Page 4129 of 4731

INFINITI FX35 2005 Service Manual MA-2Revision: 2005 July 2005 FX
ROTOR .............................................................
... 36
CALIPER .......................................................... ... 36
PAD ..........

Page 4130 of 4731

INFINITI FX35 2005 Service Manual PREPARATION MA-3
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
PREPARATIONPFP:00002
Special Service ToolsALS000G2

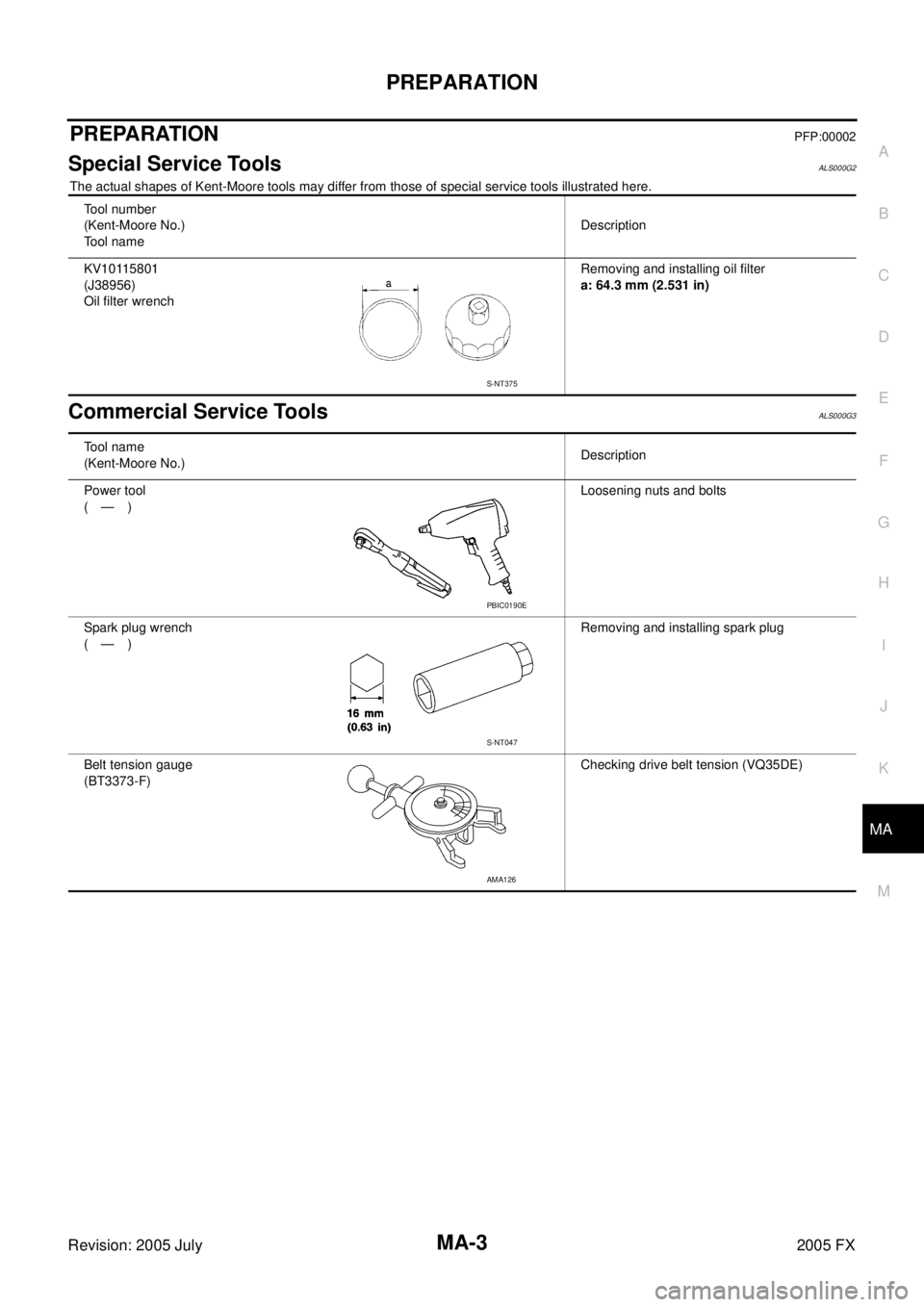

The actual shapes of Kent-Moore tools may differ from those of s

Page 4131 of 4731

INFINITI FX35 2005 Service Manual MA-4
GENERAL MAINTENANCE
Revision: 2005 July 2005 FX
GENERAL MAINTENANCEPFP:00000
Explanation of General MaintenanceALS000G4
General maintenance includes those items which should be checked during the

Page 4132 of 4731

INFINITI FX35 2005 Service Manual GENERAL MAINTENANCE MA-5
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwi

GENERAL MAINTENANCE MA-5
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc. Item
Reference page
Tires Check the pressure with a gauge, including the spare, at least once a month
and always prior to a long distance trips. Adjust to the specified pressure if
necessary. Check carefully for damage, cuts or excessive wear. —
Wheel nuts When checking the tires, make sure no nuts are missing, and check for any
loose nuts. Tighten if necessary. —
Windshield Clean the windshield on a regular basis. Check the windshield at least every
six months for cracks or other damage. Repair as necessary. —
Tire rotation Tires should be rotated every 12,000 km (7,500 miles). MA-35
Wheel alignment and
balance If the vehicle pulls to either side while driving on a straight and level road, or if
you detect uneven or abnormal tire wear, there may be a need for wheel align-
ment. If the steering wheel or seat vibrates at normal highway speeds, wheel
balancing may be needed. MA-33
,
FSU-6
Windshield wiper
blades Check for cracks or wear if they do not wipe properly. —
Doors and engine
hood Check that all doors and the engine hood operate smoothly as well as the
trunk lid and back hatch. Also make sure that all latches lock securely. Lubri-
cate if necessary. Make sure that the secondary latch keeps the hood from
opening when the primary latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently. MA-38
Lamps
Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim. Clean the headlamps on a regular basis. —
Item
Reference page
Warning lamps and
chimes Make sure that all warning lamps and chimes are operating properly. —
Windshield wiper and
washer Check that the wipers and washer operate properly and that the wipers do not
streak. —
Windshield defroster Check that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner. —
Steering wheel Check that it has the specified play. Be sure to check for changes in the steer-
ing condition, such as excessive play, hard steering or strange noises.
Free play: Less than 35 mm (1.38 in) —
Seats Check seat position controls such as seat adjusters, seatback recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every
position. Check that the head restrains move up and down smoothly and that
the locks (if equipped) hold securely in all latched positions. Check that the
latches lock securely for folding-down rear seatbacks. —
Seat belts Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters
and retractors) operate properly and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying, wear or damage. MA-39
Accelerator pedal
Check the pedal for smooth operation and make sure the pedal does not catch
or require uneven effort. Keep the floor mats away from the pedal. —
Brakes Check that the brake does not pull the vehicle to one side when applied. —
Brake pedal and
booster Check the pedal for smooth operation and make sure it has the proper dis-
tance under it when depressed fully. Check the brake booster function. Be
sure to keep the floor mats away from the pedal. BR-6
,
BR-15

Page 4133 of 4731

INFINITI FX35 2005 Service Manual MA-6
GENERAL MAINTENANCE
Revision: 2005 July 2005 FX
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel). Pa

MA-6
GENERAL MAINTENANCE
Revision: 2005 July 2005 FX
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel). Parking brake
Check that the pedal has the proper travel and make sure that the vehicle is
held securely on a fairly steep hill when only the parking brake is applied. PB-2
Automatic transmis-
sion "Park" mecha-
nism Check that the lock release button on the selector lever operates properly and
smoothly. On a fairly steep hill check that the vehicle is held securely with the
selector lever in the P (Park) position without applying any brakes. —
Item
Reference page
Item Reference page
Windshield washer
fluid Check that there is adequate fluid in the tank. —
Engine coolant level Check the coolant level when the engine is cold. MA-15
, MA-22
Radiator and hoses Check the front of the radiator and clean off any dirt, insects, leaves, etc., that
may have accumulated. Make sure the hoses have no cracks, deformation,
deterioration or loose connections. —
Brake fluid level Make sure that the brake fluid level is between the “MAX” and “MIN” lines on
the reservoir. MA-35

Battery Check the fluid level in each cell. It should be between the “MAX” and “MIN”
lines. Vehicles operated in high temperatures or under severe conditions
require frequent checks of the battery fluid level. SC-5, "
CHECKING
ELECTROLYTE LEVEL"
Engine drive belts
Make sure that no belt is frayed, worn, cracked or oily. MA-14, MA-22
Engine oil level Check the level on the oil level gauge after parking the vehicle on a level spot
and turning off the engine. MA-18,
MA-25
Power steering fluid
level and lines Check the level on the dipstick with the engine off. Check the lines for improper
attachment, leaks, cracks, etc. MA-37
Exhaust system
Make sure there are no loose supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of exhaust fumes, immediately
locate the trouble and correct it. MA-29
Underbody
The underbody is frequently exposed to corrosive substances such as those
used on icy roads or to control dust. It is very important to remove these sub-
stances, otherwise rust will form on the floor pan, frame, fuel lines and around
the exhaust system. At the end of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean those areas where mud and dirt
can easily accumulate. —
Fluid leaks Check under the vehicle for fuel, oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping from the air conditioner after use is
normal. If you should notice any leaks or gasoline fumes are evident, check for
the cause and correct it immediately. —

Page 4134 of 4731

INFINITI FX35 2005 Service Manual PERIODIC MAINTENANCE MA-7
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
PERIODIC MAINTENANCEPFP:00026
Introduction of Periodic MaintenanceALS000G5
Two different maintenance sched

Page 4135 of 4731

INFINITI FX35 2005 Service Manual MA-8
PERIODIC MAINTENANCE
Revision: 2005 July 2005 FX
Schedule 1ALS000G6
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the milea

Page 4136 of 4731

INFINITI FX35 2005 Service Manual PERIODIC MAINTENANCE MA-9
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 month

PERIODIC MAINTENANCE MA-9
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace the drive belts i f found
damaged or if the auto belt tensioner reading (only for VK45DE engine) reaches the maximum limit.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, refer to FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by INFINITI for reliable vehicle operation. The owner need not perfo rm
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and inter vals are
required.
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary.
Spark plugs (PLATINUM-
TIPPED type) Replace every 105,000 miles (169,000 km). MA-20
,
MA-
27
Intake & exhaust valve clear-
ance* NOTE (5) EM-93, "Valve Clear-
ance",
EM-
219, "Va l v e
Clearance"
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months, which-
ever comes first. Miles x 1,000
(km x 1,000) Months 33.75
(54) 27 37.5
(60) 30 41.25
(66) 33 45
(72) 36 48.75
(78) 39 52.5
(84) 42 56.25
(90) 45 60
(96) 48
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months,
whichever comes first. Miles x 1,000
(km x 1,000)
Months 3.75
(6)
3 7.50
(12)
6 11 . 2 5
(18)
9 15
(24)
12 18.75
(30)
15 22.5
(36)
18 26.25
(42)
21 30
(48)
24
Brake lines & cables II MA-35
Brake pads & rotors
IIII MA-36
Automatic transmission &
transfer fluid & differential
gear oil NOTE (1) I I MA-29,
MA-31
,
MA-32
Steering gear, linkage &
transfer gear, axle & sus-
pension parts IIII MA-36
,
MA-37
Tire rotation NOTE (2) MA-4,
MA-35
Drive shaft boots and pro-
peller shaft (AWD models) IIII MA-38,
MA-32
Exhaust system IIII MA-29
In-cabin microfilter
RR AT C - 1 2 5
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months,
whichever comes first. Miles x 1,000
(km x 1,000)
Months 33.75
(54)
27 37.5
(60)
30 41.25
(66)
33 45
(72)
36 48.75
(78)
39 52.5
(84)
42 56.25
(90)
45 60
(96)
48
Brake lines & cables II MA-35
Brake pads & rotors
I III MA-36

Load next 8 pages

Page: < prev 1-10 ... 4097-4104 4105-4112 4113-4120 4121-4128 4129-4136 4137-4144 4145-4152 4153-4160 4161-4168 ... 4736 next >
