INFINITI FX35 2005 Service Manual BL-242 BODY REPAIR Revision: 2005 July2005 FX 1. Hood 19. Roof bow No.1 2. Front fender (RH&LH) 20. Roof bow No.2 3. Side body assembly (RH&LH) 21. Roof bow No.3 4. Outer front pillar reinforcement (R

Page 1058 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-243 C D E F G H J K L MA B BL Revision: 2005 July2005 FX Corrosion ProtectionAIS005A1 DESCRIPTION To provide improved corrosion prevention, the following anti-corrosive measures have be

Page 1059 of 4731

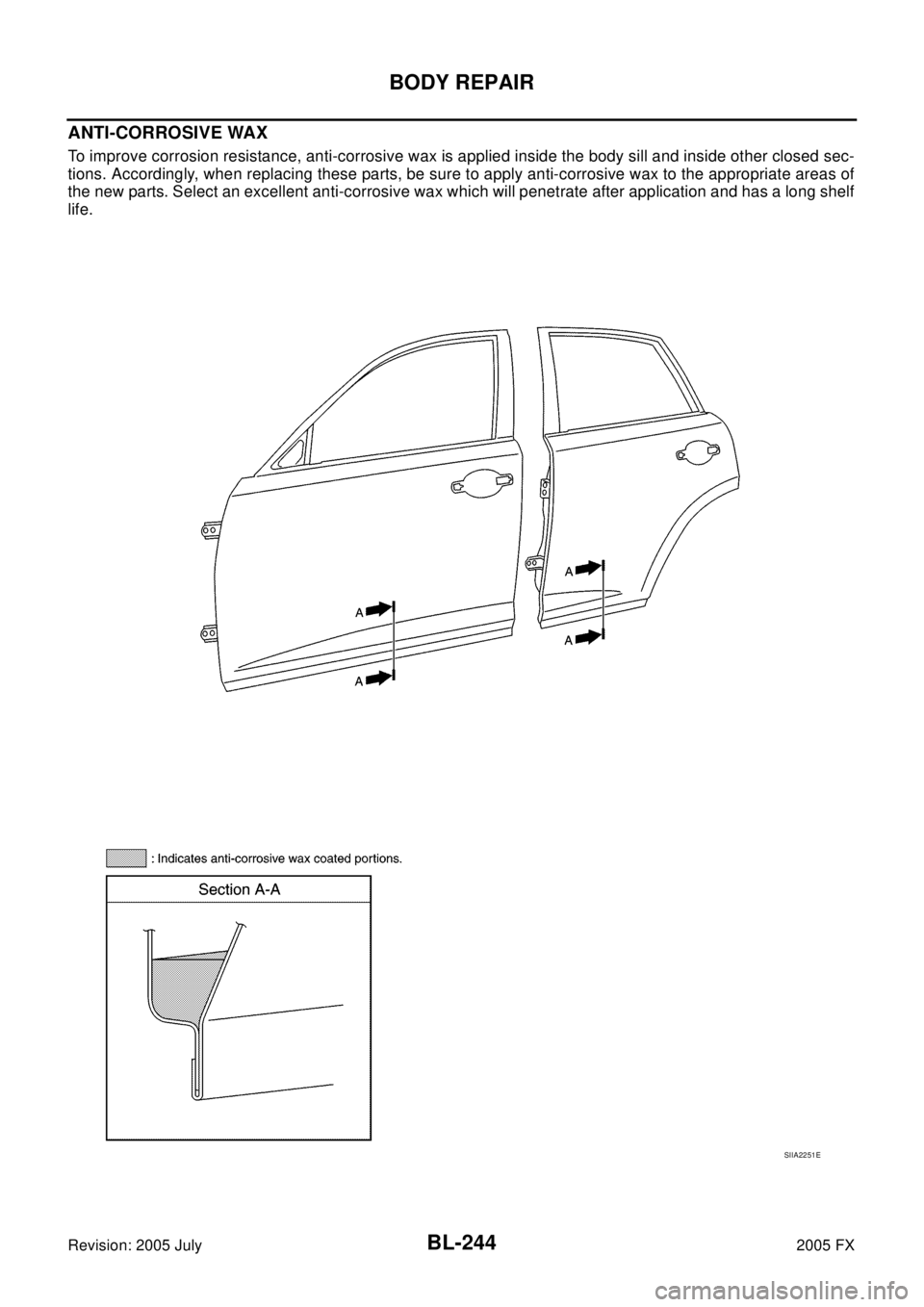

INFINITI FX35 2005 Service Manual BL-244 BODY REPAIR Revision: 2005 July2005 FX ANTI-CORROSIVE WAX To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec- tions. Accordingly, wh

Page 1060 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-245 C D E F G H J K L MA B BL Revision: 2005 July2005 FX UNDERCOATING The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip- ping. T

Page 1061 of 4731

INFINITI FX35 2005 Service Manual BL-246 BODY REPAIR Revision: 2005 July2005 FX STONE GUARD COAT To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer of Stone Guard Coating over

Page 1062 of 4731

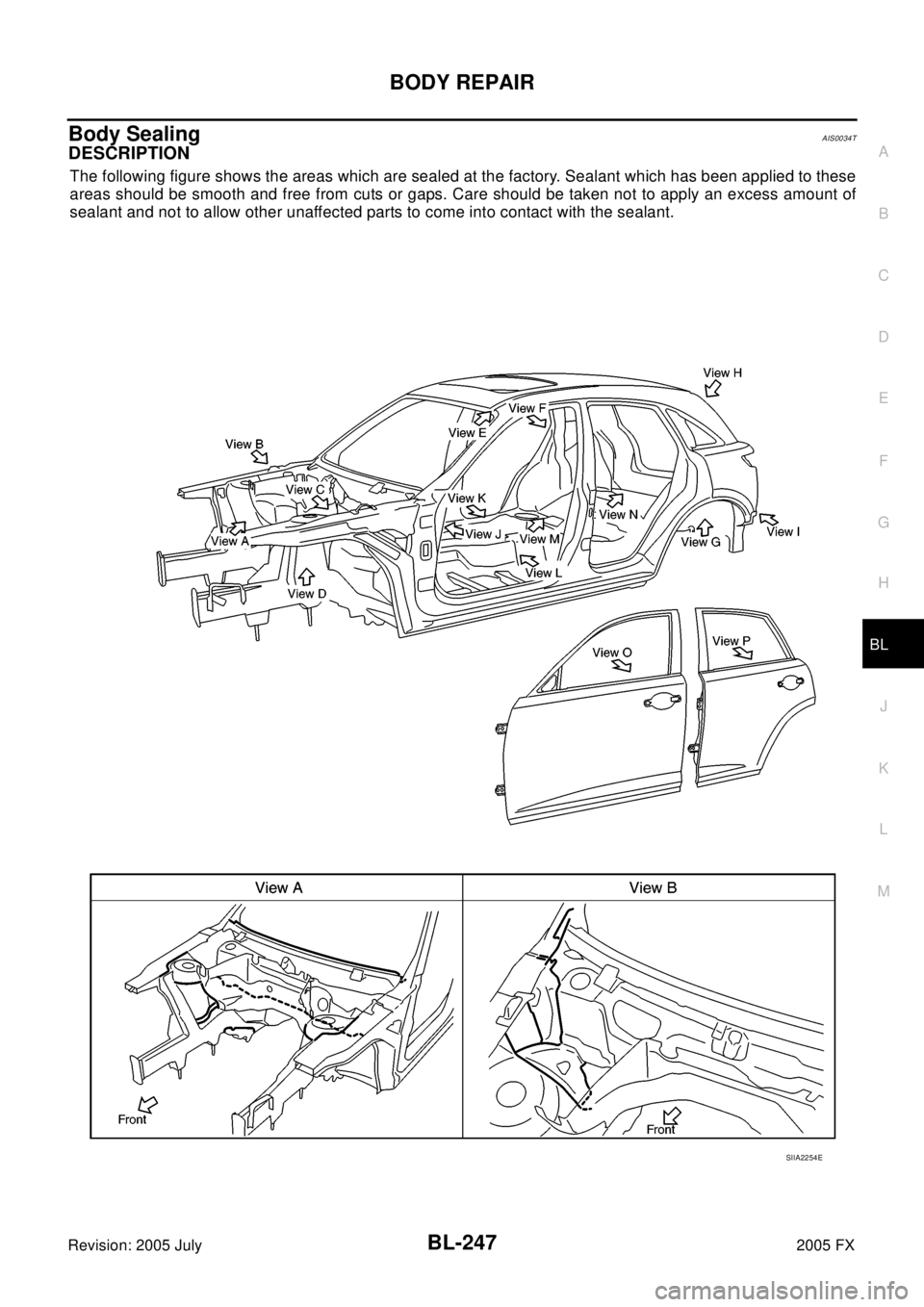

INFINITI FX35 2005 Service Manual BODY REPAIR BL-247 C D E F G H J K L MA B BL Revision: 2005 July2005 FX Body SealingAIS0034T DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been ap

Page 1063 of 4731

INFINITI FX35 2005 Service Manual BL-248 BODY REPAIR Revision: 2005 July2005 FX SIIA2255E

Page 1064 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-249 C D E F G H J K L MA B BL Revision: 2005 July2005 FX SIIA2256E
