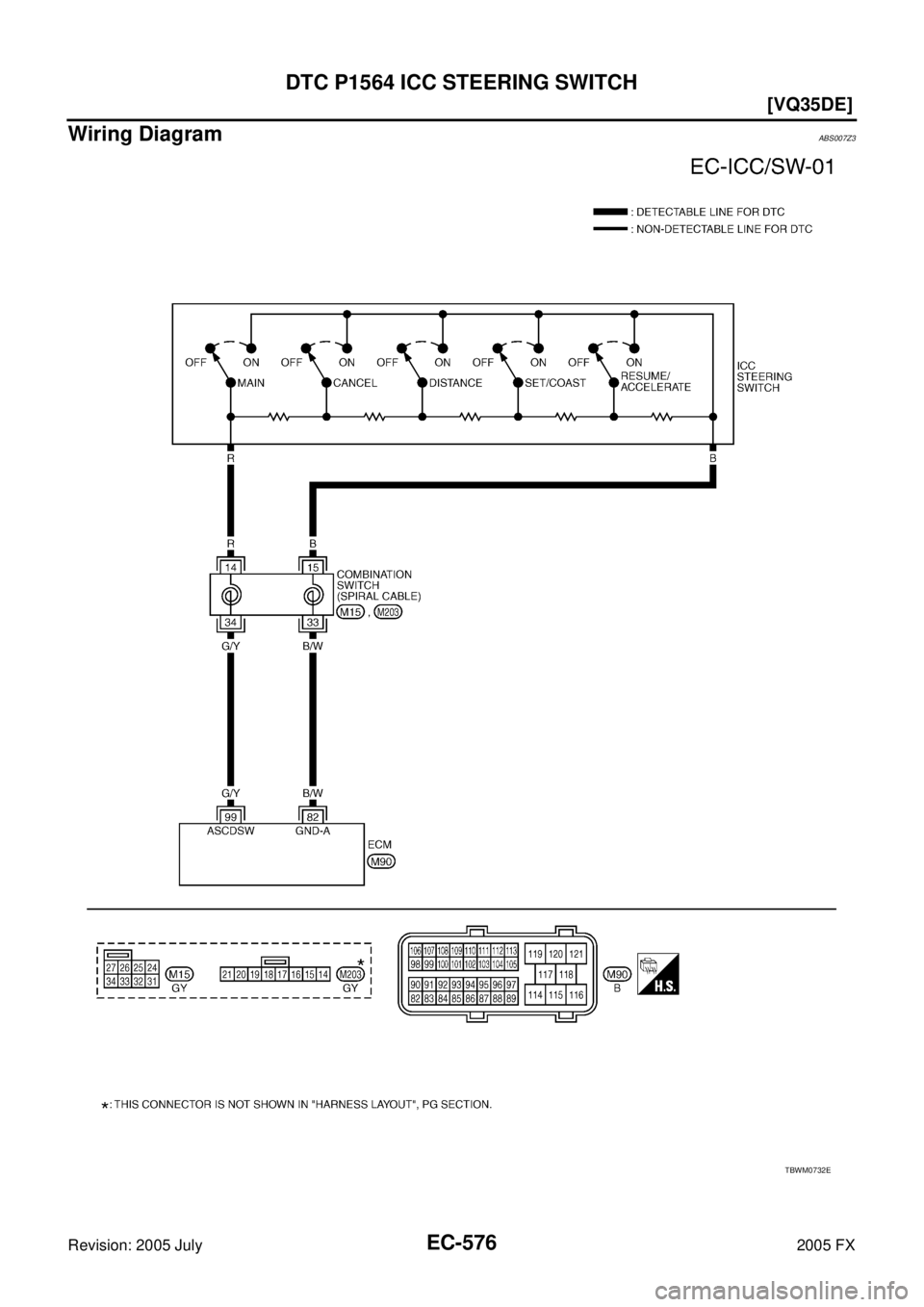

INFINITI FX35 2005 Service Manual EC-576 [VQ35DE] DTC P1564 ICC STEERING SWITCH Revision: 2005 July 2005 FX Wiring DiagramABS007Z3 TBWM0732E

Page 1970 of 4731

INFINITI FX35 2005 Service Manual DTC P1564 ICC STEERING SWITCH EC-577 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX Specification data are reference values and are measured between each terminal and gro

Page 1971 of 4731

INFINITI FX35 2005 Service Manual EC-578 [VQ35DE] DTC P1564 ICC STEERING SWITCH Revision: 2005 July 2005 FX 2. CHECK ICC STEERING SWITCH CIRCUIT With CONSULT-II 1. Turn ignition switch ON. 2. Select “MAIN SW”, “RESUME/ACC SW

Page 1972 of 4731

INFINITI FX35 2005 Service Manual DTC P1564 ICC STEERING SWITCH EC-579 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX 3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switc

Page 1973 of 4731

INFINITI FX35 2005 Service Manual EC-580 [VQ35DE] DTC P1564 ICC STEERING SWITCH Revision: 2005 July 2005 FX Component InspectionABS007Z5 ICC STEERING SWITCH 1. Disconnect combination switch (spiral cable) harness connector. 2. Check

Page 1974 of 4731

INFINITI FX35 2005 Service Manual DTC P1564 ASCD STEERING SWITCH EC-581 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX DTC P1564 ASCD STEERING SWITCHPFP:25551 Component DescriptionABS006W9 ASCD steering s

Page 1975 of 4731

INFINITI FX35 2005 Service Manual EC-582 [VQ35DE] DTC P1564 ASCD STEERING SWITCH Revision: 2005 July 2005 FX DTC Confirmation ProcedureABS006WC NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition s

Page 1976 of 4731

INFINITI FX35 2005 Service Manual DTC P1564 ASCD STEERING SWITCH EC-583 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX Wiring DiagramABS006WD TBWM0733E
