Page 1137 of 4731

INFINITI FX35 2005 Service Manual BR-28
REAR DISC BRAKE
Revision: 2005 July 2005 FX
INSTALLATION
CAUTION:
Refill with new brake fluid “DOT 3”.
Do not reuse drained brake fluid.
1. Install disc rotor.
2. Install caliper assembly

Page 1138 of 4731

INFINITI FX35 2005 Service Manual REAR DISC BRAKE BR-29
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2005 July 2005 FX

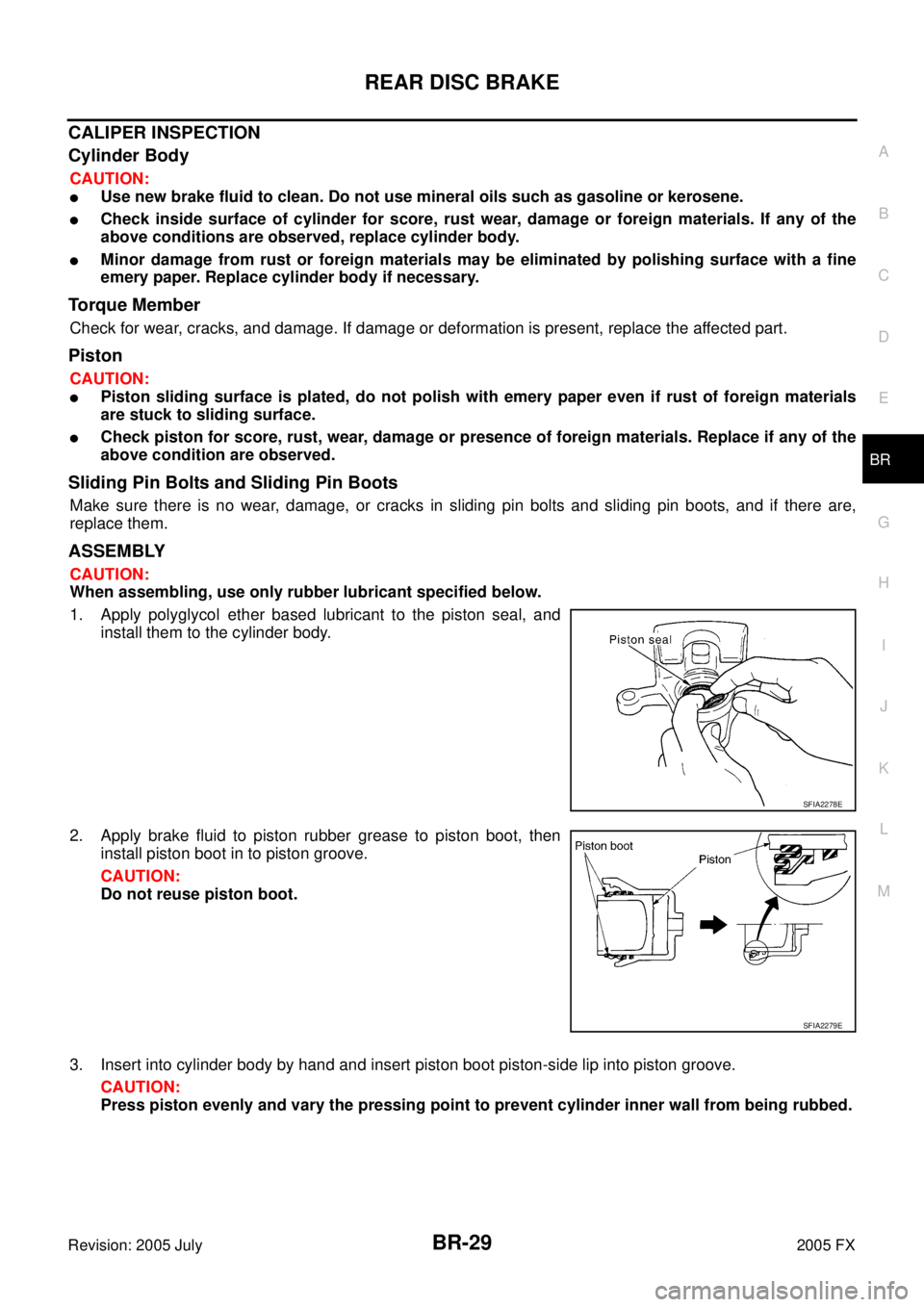

CALIPER INSPECTION
Cylinder Body
CAUTION:
Use new brake fluid to clean. Do not use mineral oils such as gaso

Page 1139 of 4731

INFINITI FX35 2005 Service Manual BR-30
REAR DISC BRAKE
Revision: 2005 July 2005 FX

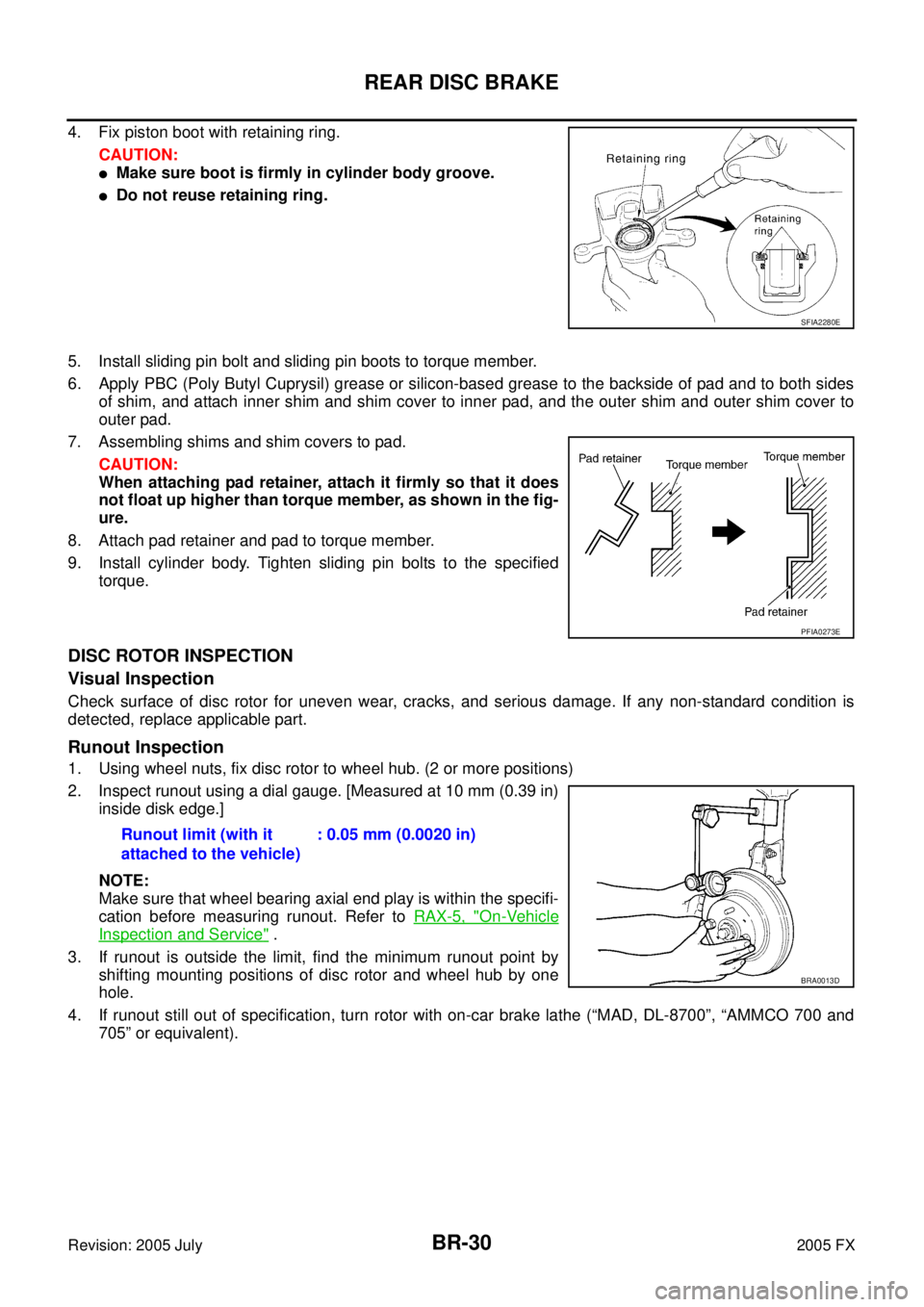

4. Fix piston boot with retaining ring.
CAUTION:
Make sure boot is firmly in cylinder body groove.
Do not reuse retaining ring.
5. Install sliding

Page 1140 of 4731

INFINITI FX35 2005 Service Manual REAR DISC BRAKE BR-31
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2005 July 2005 FX
Thickness Inspection
Using a micrometer, check thickness of disc rotor. If thickness is out-
side the standar

Page 1141 of 4731

INFINITI FX35 2005 Service Manual BR-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsAFS001NF
Unit: mm (in)
Brake PedalAFS001NG
Brake BoosterAFS

BR-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsAFS001NF
Unit: mm (in)
Brake PedalAFS001NG
Brake BoosterAFS001NH
Vacuum type
Check ValveAFS001NI
Front Disc BrakeAFS001NJ
Rear Disc BrakeAFS001NK
Front brake Rotor outer diameter
× thickness 320 × 28 (12.60 × 1.10)
Pad length × width × thickness 111.0 × 73.5 × 9.5 (4.73 × 2.894 × 0.374)
Cylinder bore diameter 63.6 (2.504)
Rear brake Rotor outer diameter
× thickness 308 × 16 (12.13 × 0.63)
Pad length × width × thickness 83.0 × 33.0 × 8.5 (3.268 × 1.299 × 0.335)
Cylinder bore diameter 42.86 (1.6874)
Master cylinder Cylinder bore diameter 25.4 (1.00)
Control valve Valve model Electric brake force distribution
Brake booster Diaphragm diameter Primary 228.5 (9.0)
Secondary 203.0 (8.0)
Recommended brake fluid DOT 3
Brake pedal height (from dash panel top surface) 161.5 − 171.5 mm (6.36 − 6.75 in)
Depressed pedal height [under a force of 490 N (50 kg, 110 lb)
with engine running] More than 80 mm (3.15 in)
Clearance between stopper rubber and the threaded end of stop
lamp switch 0.74
− 1.96 mm (0.0291 − 0.0772 in)
Pedal play 3 − 11 mm (0.12 − 0.43 in)
Input rod installation standard dimension 126.5 mm (4.98 in)
Vacuum leakage
[at a vacuum of –66.7 kPa (–500 mmHg, –19.69 inHg)] Within a vacuum of 1.3 kPa (10 mmHg, 0.39 inHg) for 15 seconds
Brake pad Standard thickness (new) 9.5 mm (0.374 in)
Repair limit thickness 2.0 mm (0.079 in)
Disc rotor Standard thickness (new) 28.0 mm (1.102 in)
Repair limit thickness 26.0 mm (1.024 in)
Maximum uneven wear (measured at 8 positions) 0.015mm (0.0006 in)
Runout limit (with the disc rotor attached to the vehicle) 0.04 mm (0.0016 in)
Brake pad Standard thickness (new) 8.5 mm (0.335 in)
Repair limit thickness 2.0 mm (0.079 in)
Disc rotor Standard thickness (new) 16.0 mm (0.630 in)
Repair limit thickness 14.0 mm (0.551 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in)
Runout limit (with the disc rotor attached to the vehi-
cle) 0.05 mm (0.0020 in)

Page 1142 of 4731

INFINITI FX35 2005 Service Manual BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION BRC
A
B
BRC
Revision: 2005 July 2005 FX
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
PRECAUTIONS .............................

BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION BRC
A
B
BRC
Revision: 2005 July 2005 FX
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Brake System ............................. ..... 3
Precautions for Brake Control ............................. ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 5
ON-VEHICLE SERVICE ........................................ ..... 6
Adjustment of Steering Angle Sensor Neutral Posi-
tion ...................................................................... ..... 6
Calibration of Decel G Sensor (AWD Model) ...... ..... 6
SYSTEM DESCRIPTION ....................................... ..... 8
System Diagram .................................................. ..... 8
VDC Function ...................................................... ..... 8
TCS Function ...................................................... ..... 8
ABS Function ...................................................... ..... 8
EBD Function ...................................................... ..... 9
Fail-Safe Function ............................................... ..... 9
VDC / TCS SYSTEM ........................................ ..... 9
ABS, EBD SYSTEM ......................................... ..... 9
Hydraulic Circuit Diagram ................................... ... 10
CAN COMMUNICATION ....................................... ....11
System Description ............................................. .... 11
TROUBLE DIAGNOSIS ......................................... ... 12
How to Proceed with Diagnosis .......................... ... 12
BASIC CONCEPT ............................................ ... 12
DIAGNOSIS FLOWCHART ............................. ... 13
ASKING COMPLAINTS ................................... ... 14
EXAMPLE OF DIAGNOSIS SHEET ................ ... 14
Component Installation Location ......................... ... 15
Schematic ........................................................... ... 16
Wiring Diagram — VDC — .................................. ... 17
Control Unit Input/Output Signal Standard .......... ... 23
REFERENCE VALUE FROM CONSULT-II ...... ... 23
CONSULT-II Functions ........................................ ... 25
CONSULT-II MAIN FUNCTION ........................ ... 25
CONSULT-II BASIC OPERATION PROCEDURE ... 26
SELF-DIAGNOSIS ........................................... ... 27
DATA MONITOR .............................................. ... 30
ACTIVE TEST .................................................. ... 33
For Fast and Accurate Diagnosis ........................ ... 35
PRECAUTIONS FOR DIAGNOSIS .................. ... 35
Basic Inspection .................................................. ... 36
BASIC INSPECTION 1: BRAKE FLUID
AMOUNT, LEAKS, AND BRAKE PADS INSPEC-
TION ................................................................. ... 36
BASIC INSPECTION 2: POWER SYSTEM TER-
MINAL LOOSENESS AND BATTERY INSPEC-
TION ................................................................. ... 36
BASIC INSPECTION 3: ABS WARNING LAMP,
VDC OFF INDICATOR LAMP, SLIP INDICATOR
LAMP AND BRAKE WARNING LAMP INSPEC-
TION ................................................................. ... 37
Inspection 1: Wheel Sensor Circuit ..................... ... 37
Inspection 2: Engine System ............................... ... 39
Inspection 3: VDC/TCS/ABS Control Unit Circuit ... 40
Inspection 4: Pressure Sensor Circuit ................. ... 40
Inspection 5: Steering Angle Sensor Circuit ........ ... 42
Inspection 6: Yaw Rate/Side G Sensor (2WD
Model), Yaw Rate/Side/Decel G sensor (AWD Mod-
els) Circuit ............................................................ ... 44
Inspection 7: Solenoid and VDC Change-Over
Valve Circuit ......................................................... ... 46
Inspection 8: Actuator Motor Circuit .................... ... 47
Inspection 9: ABS Actuator and Electric Unit (Con-
trol Unit) Power Supply and Ground Circuit ......... ... 48
Inspection 10: Stop Lamp Switch Circuit ............. ... 50
Inspection 11: Brake Fluid Level Switch Circuit ... ... 51
Inspection 12: When “ST ANG SEN SIGNAL”
Appears on Self-diagnosis Results Display ......... ... 52
Inspection 13: When “DECEL G SEN SET” Appears
on Self-diagnostic Results Display (AWD Model) ... 52
Inspection 14: CAN Communication Circuit ........ ... 53
Component Inspection ......................................... ... 53
VDC OFF SWITCH .......................................... ... 53
Symptom 1: Excessive ABS Function Operation

Page 1143 of 4731

INFINITI FX35 2005 Service Manual BRC-2Revision: 2005 July 2005 FX
Frequency ............................................................
... 53
Symptom 2: Unexpected Pedal Reaction ............ ... 54
Symptom 3: The Braking Dis

Page 1144 of 4731

INFINITI FX35 2005 Service Manual PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG”

PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AFS00289
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemAFS001S3
Recommended fluid is brake fluid “DOT 3”.
Do not reuse drained brake fluid.
Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.
Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.
Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.
Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.
Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.
When installing brake piping, be sure to check torque.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlAFS001S4
During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.
Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
noise may be heard from engine room. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.
If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
SBR686C

Load next 8 pages

Page: < prev 1-10 ... 1105-1112 1113-1120 1121-1128 1129-1136 1137-1144 1145-1152 1153-1160 1161-1168 1169-1176 ... 4736 next >

oil ignition odometer wiper fluid service interval gearbox
