DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
72 BR Intake valve timing control
position sensor (bank 1) [Engine is running]
Warm-up condition
Idle speed
0 - 1.0V
[Engine is running]
Engine speed: 2,000rpm 0 - 1.0V
PBIB2046E
Page 2562 of 4731
DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1169
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
BANK 2
TBWM0419E
Page 2563 of 4731
![INFINITI FX35 2005 Service Manual EC-1170
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is me INFINITI FX35 2005 Service Manual EC-1170
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is me](/manual-img/42/57020/w960_57020-2562.png)

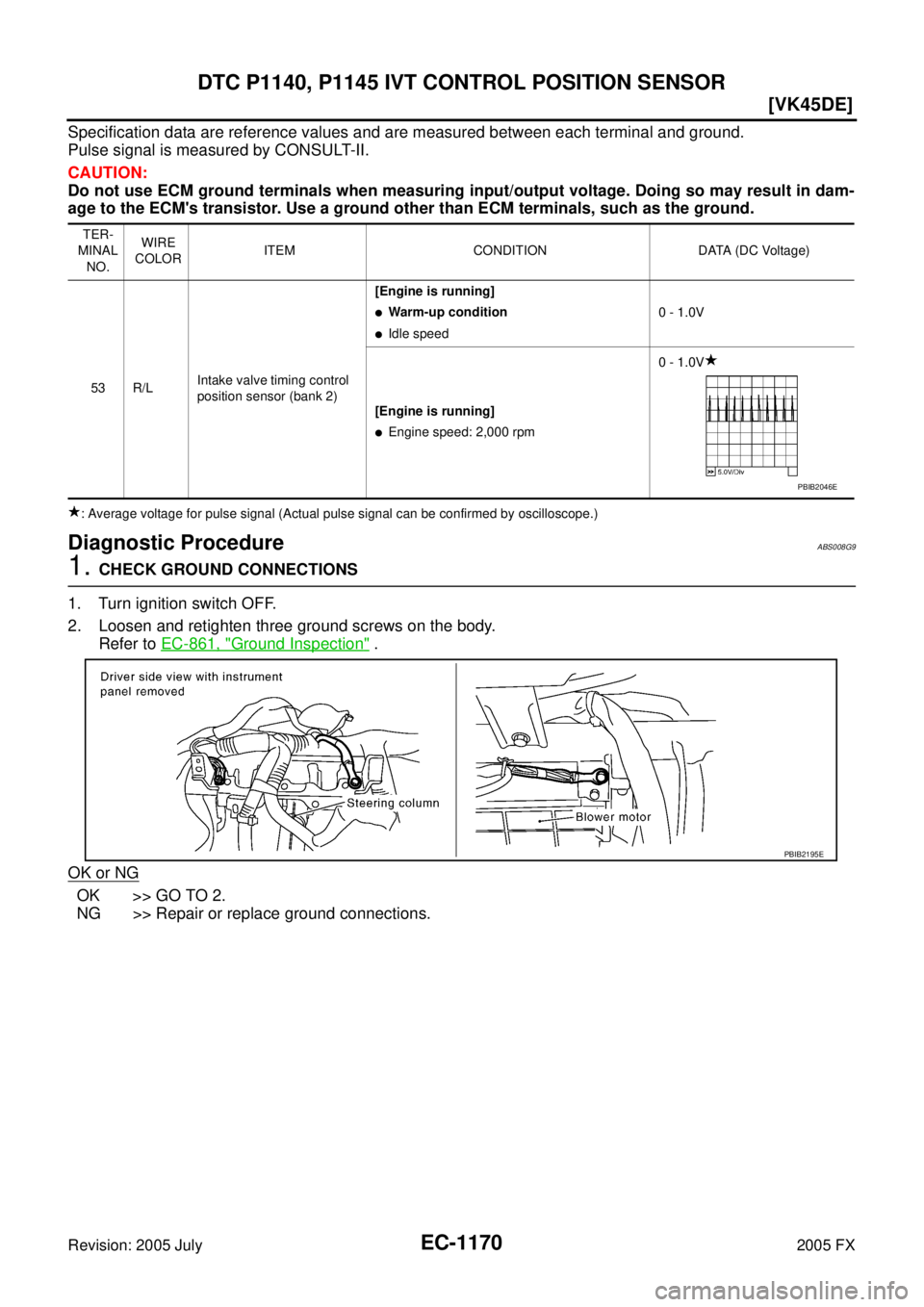

EC-1170
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureABS008G9
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
53 R/L Intake valve timing control
position sensor (bank 2) [Engine is running]
Warm-up condition
Idle speed
0 - 1.0V
[Engine is running]
Engine speed: 2,000 rpm 0 - 1.0V
PBIB2046E
PBIB2195E
Page 2564 of 4731
![INFINITI FX35 2005 Service Manual DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRC INFINITI FX35 2005 Service Manual DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRC](/manual-img/42/57020/w960_57020-2563.png)
DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen- sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness connectors F102, M82
Harness for open or short between intake valve timing control position sensor and IPDM E/R
Harness for open or short between intake valve timing control position sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT 1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5. Voltage: Battery voltage
PBIB1517E
SEF509Y
Continuity should exist.
Page 2565 of 4731
![INFINITI FX35 2005 Service Manual EC-1172
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short b INFINITI FX35 2005 Service Manual EC-1172
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short b](/manual-img/42/57020/w960_57020-2564.png)
EC-1172
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2005 July 2005 FX
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
6. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following; ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-1173, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace intake valve timing control position sensor.
8. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1042, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace crankshaft position sensor (POS).
9. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-1049, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace camshaft position sensor (PHASE).
10. CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick-up portion of the camshaft sprocket. Refer to EM-200, "
TIM-
ING CHAIN" .
OK or NG
OK >> GO TO 11.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Page 2566 of 4731
DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1173
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS008GA
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor.
Removal and InstallationABS008GB
INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EM-200, "TIMING CHAIN" .
SEF362Z
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
3 (+) - 1 (-) Except 0 or ∞
2 (+) - 1 (-)
3 (+) - 2 (-)
PBIB0194E
Page 2567 of 4731
![INFINITI FX35 2005 Service Manual EC-1174
[VK45DE]
DTC P1143, P1163 HO2S1
Revision: 2005 July 2005 FX
DTC P1143, P1163 HO2S1PFP:22690
Component DescriptionABS007RG
The heated oxygen sensor 1 is placed into the exhaust manifold. It
de INFINITI FX35 2005 Service Manual EC-1174
[VK45DE]
DTC P1143, P1163 HO2S1
Revision: 2005 July 2005 FX
DTC P1143, P1163 HO2S1PFP:22690
Component DescriptionABS007RG
The heated oxygen sensor 1 is placed into the exhaust manifold. It
de](/manual-img/42/57020/w960_57020-2566.png)
EC-1174
[VK45DE]
DTC P1143, P1163 HO2S1
Revision: 2005 July 2005 FX
DTC P1143, P1163 HO2S1PFP:22690
Component DescriptionABS007RG
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1 to 0V.
CONSULT-II Reference Value in Data Monitor ModeABS007RH
Specification data are reference values.
On Board Diagnosis LogicABS007RI
To judge the malfunction, the output from the heated oxygen sensor
1 is monitored to determine whether the rich output is sufficiently
high and whether the lean output is sufficiently low. When both the
outputs are shifting to the lean side, the malfunction will be detected.
SEF463R
SEF288D
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 (B1)
HO2S1 (B2)
Engine: After warming up Maintaining engine speed at 2,000 rpm 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2) LEAN
←→ RICH
Changes more than 5 times
during 10 seconds.
SEF300U
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1143
1143
(Bank 1) Heated oxygen sensor
1 lean shift monitoring The maximum and minimum voltage from the
sensor are not reached to the specified volt-
ages.
Heated oxygen sensor 1
Heated oxygen sensor 1 heater
Fuel pressure
Fuel injector
Intake air leaks
P1163
1163
(Bank 2)
Page 2568 of 4731
![INFINITI FX35 2005 Service Manual DTC P1143, P1163 HO2S1 EC-1175
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS007RJ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
I INFINITI FX35 2005 Service Manual DTC P1143, P1163 HO2S1 EC-1175
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS007RJ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
I](/manual-img/42/57020/w960_57020-2567.png)
DTC P1143, P1163 HO2S1 EC-1175
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS007RJ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform at a temperature above −10 °C (14 °F).
Before performing following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and wait at least 10 seconds.
3. Turn ignition switch ON and select “HO2S1 (B1) P1143” of “HO2S1” or “HO2S1 (B2) P1163” of “HO2S1” in “DTC WORK SUPPORT” mode with CONSULT-II.
4. Touch “START”.
5. Start engine and let it idle for at least 3 minutes. NOTE:
Do not raise engine speed above 3,000 rpm after this step. If
the engine speed limit is exceeded, return to step 5.
6. When the following conditions are met, “TESTING” will be dis- played on the CONSULT-II screen. Maintain the conditions con-
tinuously until “TESTING” changes to “COMPLETED”. (It will
take approximately 40 seconds or more.)
If “TESTING” is not displayed after 5 minutes, retry from
step 2.
7. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-1176, "
Diagnostic
Procedure" .
PBIB0546E
ENG SPEED 1,200 - 2,500 rpm
Vehicle speed Less than 100 km/h (62 MPH)
B/FUEL SCHDL 1.7 - 12.0 msec
Selector lever Suitable position
PBIB0547E
SEC769C
