INSTRUMENT PANEL ASSEMBLYPFP:68200

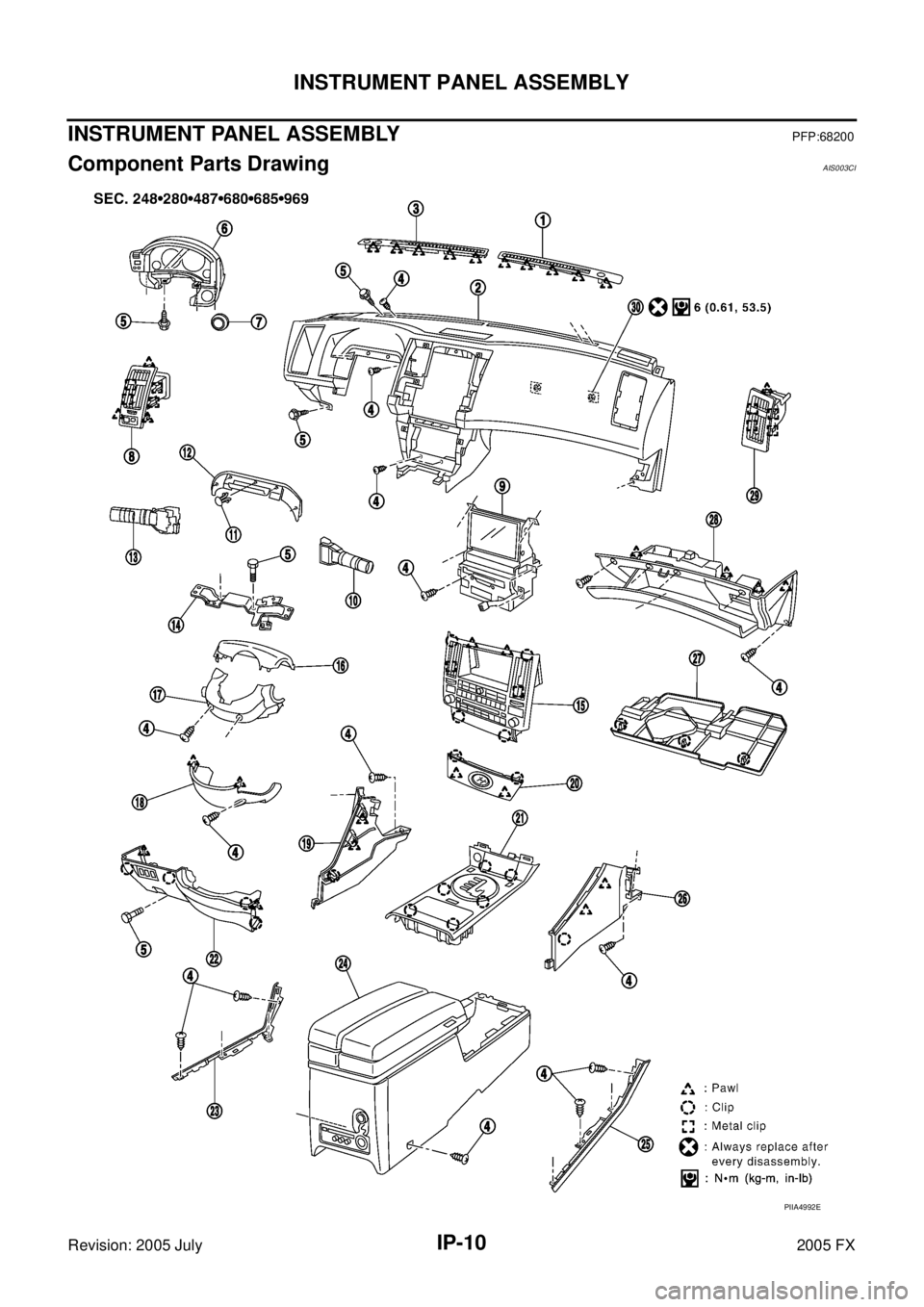

Component Parts DrawingAIS003CI
PIIA4992E
Page 3412 of 4731

INSTRUMENT PANEL ASSEMBLY IP-11
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2005 July 2005 FX
Removal and InstallationAIS003CJ
WORK STEP
When removing instrument panel and pad, combination meter, display unit and audio unit, center console take
steps in the order shown by the numbers below.
CAUTION:
Disconnect both battery cables in advance.
Disconnect air bag system line in advance.
Never temper with air bag lid or force air bag lid to open, as this may adversely affect air bag per-
formance.
Be careful not to scratch pad and other parts.
1. Front defroster grille (RH) 2. Instrument panel and pad 3. Front defroster grille (LH)
4. Screw 5. Bolt 6. Combination meter assembly
7. Steering lock escutcheon 8. Side ventilation (LH) 9. Display unit and audio unit
10. Wiper and washer switch 11. Clip 12. Rubber
13. Lighting and turn signal switch 14. Combination meter bracket 15. Cluster lid C
16. Steering column upper cover 17. Steering column lower cover 18. Steering column front lower cover
19. Instrument side panel (LH) 20. Instrument clock finisher 21. A/T console finisher
22. Instrument driver lower panel 23. Console finisher (LH) 24. Center console
25. Console finisher (RH) 26. Instrument side panel (RH) 27. Instrument lower cover
28. Instrument passenger lower panel 29. Side ventilation (RH) 30. Front passenger air bag module mounting nut
Parts Reference
page Instrument
panel and pad Combination
meter Display unit and
audio unit Center console
(A) Front kicking plate (RH/LH) EI-38
[ 1 ] [ 1 ]
(B) Dash side finisher (RH/LH) EI-37
[ 2 ] [ 2 ]
(C) Front pillar garnish (RH/LH) EI-38
[ 3 ]
(D) A/T select lever knob AT- 2 3 3
[ 4 ] [ 1 ]

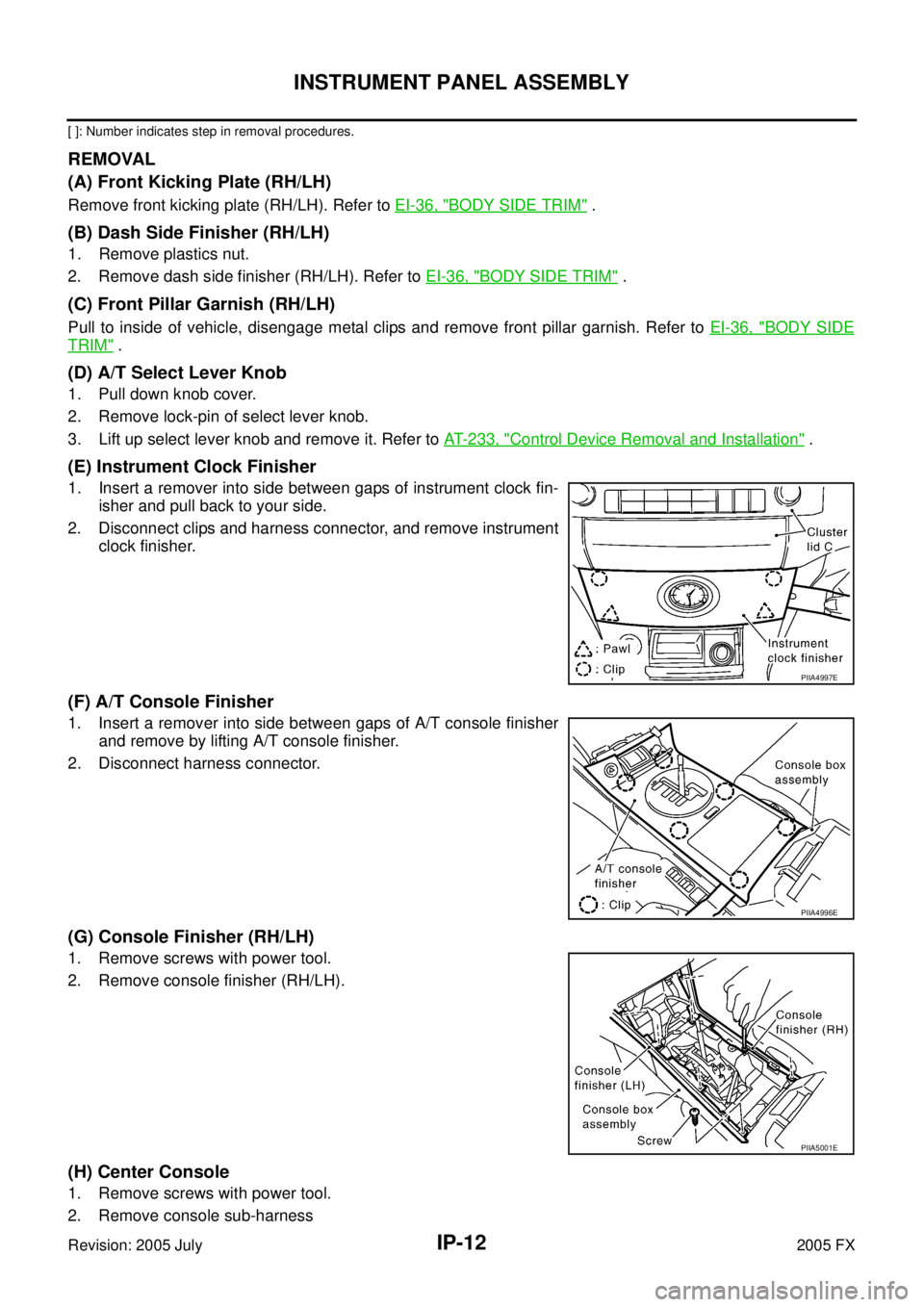

(E) Instrument clock finisher IP-12
[ 5 ] [ 2 ]
(F) A/T console finisher IP-12
[ 6 ] [ 3 ]
(G) Console finisher (RH/LH) IP-12
[ 7 ] [ 4 ]
(H) Center console IP-12
[ 8 ] [ 5 ]
(I) Instrument lower cover IP-13
[ 9 ]
(J) Instrument passenger lower panel IP-13
[10]
(K) Instrument driver lower panel IP-13
[11] [ 3 ]
(L) Steering column front lower cover IP-13
[12] [ 4 ]
(M) Steering column lower cover IP-13
[13] [ 5 ]
(N) Steering column upper cover IP-14
[14] [ 6 ]
(O) Wiper and washer switch IP-14
[15] [ 7 ]
(P) Lighting and turn signal switch IP-14
[16] [ 8 ]
(Q) Steering lock escutcheon IP-14
[17] [ 9 ]
(R) Combination meter assembly IP-14
[18] [10]
(S) Instrument side panel (RH/LH) IP-14
[19]
(T) Cluster lid C IP-15
[20] [ 1 ]
(U) Display unit and audio unit IP-15
[21] [ 2 ]
(V) Front defroster grille (RH/LH) IP-15
[22]
(W) Combination meter bracket IP-15
[23]
(X) Side ventilation (RH/LH) IP-16
[24]
(Y) Instrument panel and pad IP-16
[25]
