Page 3929 of 4731

INFINITI FX35 2005 Service Manual LT-40
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
to BCM terminal 55,
through 10A fuse (No. 36, located in fuse, fusible link and relay box)
to daytime light relay terminals 2 and 5.
When ign

LT-40
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
to BCM terminal 55,
through 10A fuse (No. 36, located in fuse, fusible link and relay box)
to daytime light relay terminals 2 and 5.
When ignition switch is in ON or START position, power is supplied
through 10A fuse [No. 14, located in fuse block (J/B)]
to combination meter terminal 7,
through 15A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85,
to BCM terminals 49 and 52
through grounds M35, M45 and M85.
DAYTIME LIGHT OPERATION
With the engine running, the lighting switch in the OFF or 1ST position and parking brake released, power is
supplied
through daytime light relay terminal 1
to combination meter terminal 10,
through daytime light relay terminal 3
to clearance lamp RH and LH terminal 1.
Ground is supplied
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85,
to clearance lamp RH and LH terminal 3
through grounds E21, E50 and E51.
With power and grounds supplied, the daytime light lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
AUTO LIGHT OPERATION
Refer to LT- 5 5 , "System Description" in “AUTO LIGHT SYSTEM”.
CAN Communication System DescriptionAKS007N1
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080T
Refer to LAN-30, "CAN Communication Unit" .

Page 3930 of 4731

INFINITI FX35 2005 Service Manual DAYTIME LIGHT SYSTEM LT-41
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
SchematicAKS007N3
TKWM2045E

Page 3931 of 4731

INFINITI FX35 2005 Service Manual LT-42
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
Wiring Diagram — DTRL —AKS007N4
TKWM2046E

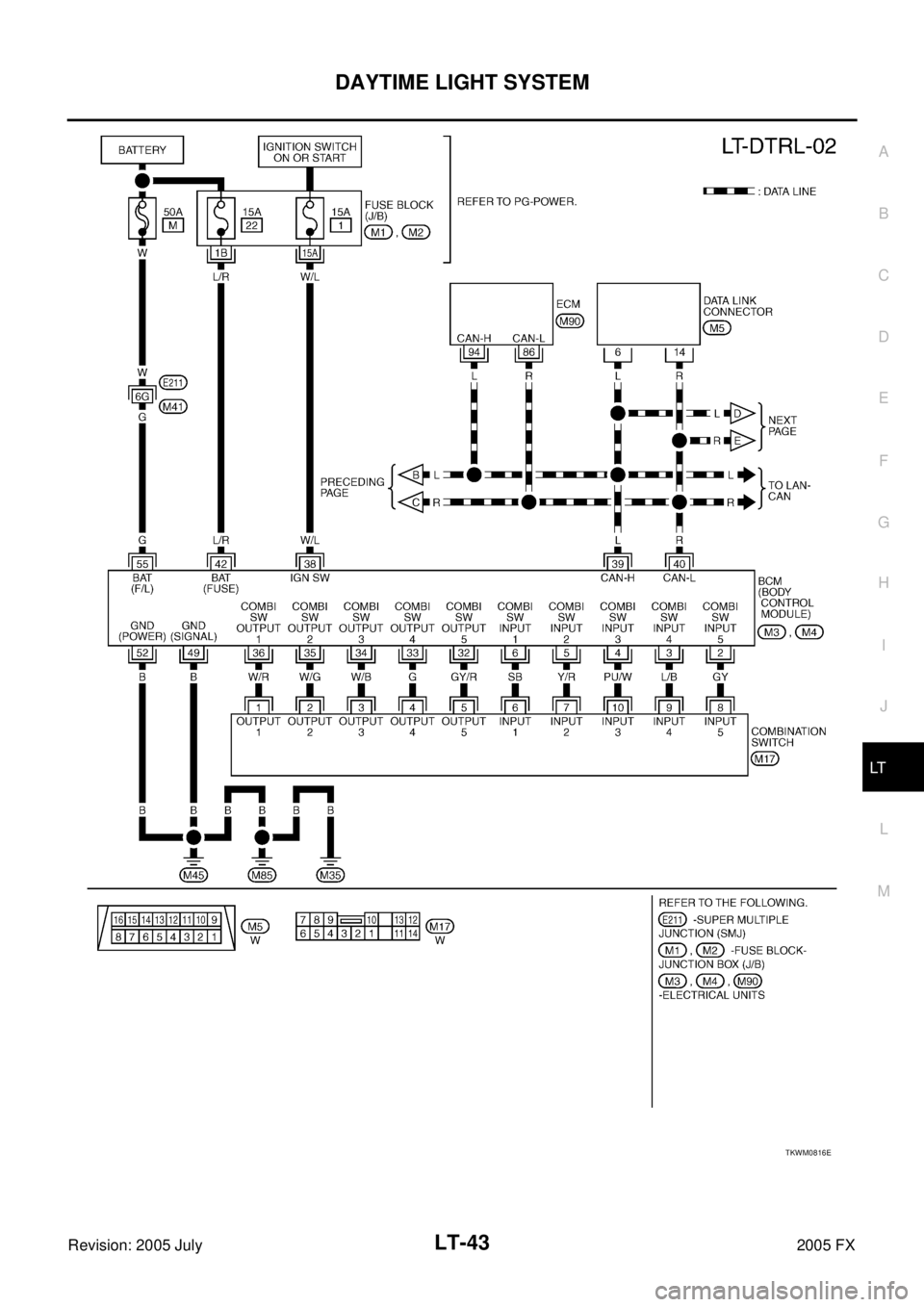

Page 3932 of 4731

INFINITI FX35 2005 Service Manual DAYTIME LIGHT SYSTEM LT-43
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TKWM0816E

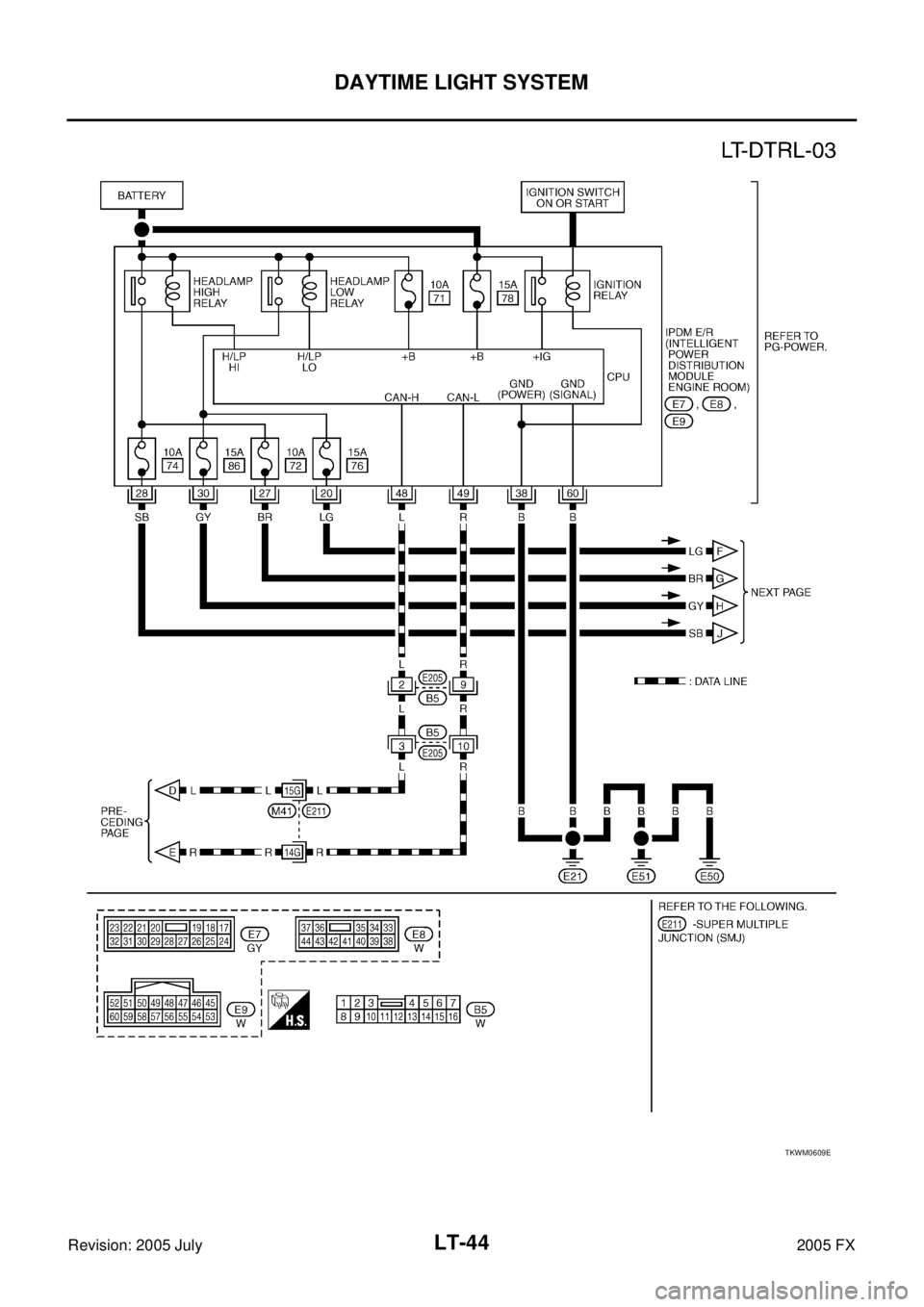

Page 3933 of 4731

INFINITI FX35 2005 Service Manual LT-44
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
TKWM0609E

Page 3934 of 4731

INFINITI FX35 2005 Service Manual DAYTIME LIGHT SYSTEM LT-45
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TKWM0610E

Page 3935 of 4731

INFINITI FX35 2005 Service Manual LT-46
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
Terminals and Reference Values for BCMAKS00CHO
How to Proceed With Trouble DiagnosisAKS007N6
1. Confirm the symptom or customer complaint.
2. Un

Page 3936 of 4731

INFINITI FX35 2005 Service Manual DAYTIME LIGHT SYSTEM LT-47
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Preliminary CheckAKS007N7
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
R
