Driver Seat Control Unit Circuit InspectionAKS00CFG
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from INFINITI FX35 2005 Service Manual LAN-118
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Driver Seat Control Unit Circuit InspectionAKS00CFG
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from](/manual-img/42/57020/w960_57020-3536.png)
LAN-118
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
Driver Seat Control Unit Circuit InspectionAKS00CFG
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and harness side).
–Driver seat control unit connector
–Harness connector B151
–Harness connector B8
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con- nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har- ness connector B5.
IPDM E/R Circuit InspectionAKS00CFH
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 14 (OR) - 15 (SB) : Approx. 54 - 66
Ω
SKIA6882E
Page 3538 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-119
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-119
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between](/manual-img/42/57020/w960_57020-3537.png)
CAN SYSTEM (TYPE 2) LAN-119
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector B8.
CAN Communication Circuit InspectionAKS00CFI
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side, control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display unit
–BCM
–Steering angle sensor
–LDW camera unit
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
–Between ECM and LDW camera unit
–Between ECM and driver seat control unit
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 48 (L) - 49 (R) : Approx. 108 - 132
Ω
SKIB1363E
Page 3539 of 4731
![INFINITI FX35 2005 Service Manual LAN-120
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX

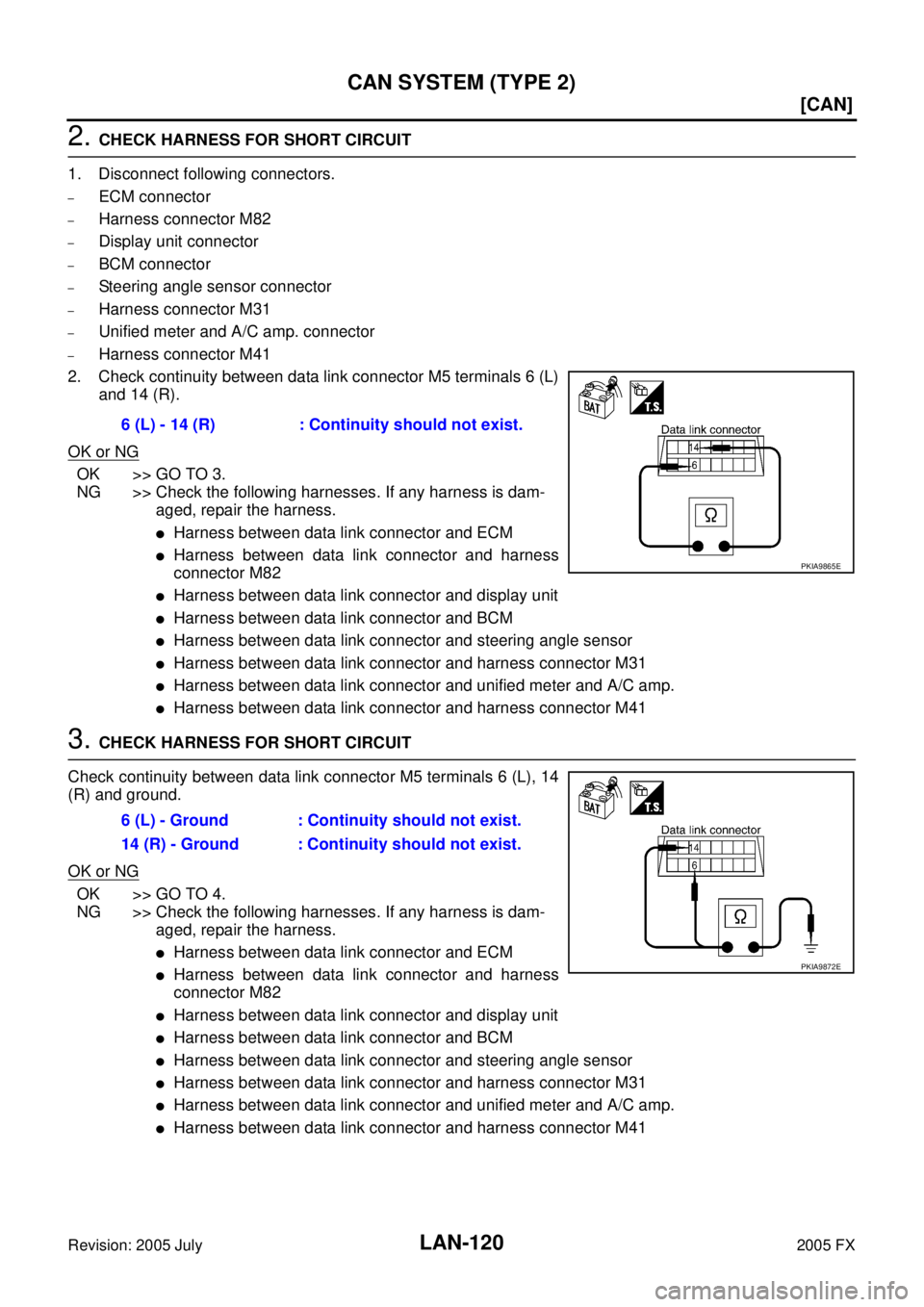

2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connecto INFINITI FX35 2005 Service Manual LAN-120
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connecto](/manual-img/42/57020/w960_57020-3538.png)
LAN-120
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connector
–BCM connector
–Steering angle sensor connector
–Harness connector M31
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L) and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and harness connector M31
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and harness connector M31
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
6 (L) - 14 (R) : Continuity should not exist.
PKIA9865E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA9872E
Page 3540 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-121
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity be INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-121
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity be](/manual-img/42/57020/w960_57020-3539.png)
CAN SYSTEM (TYPE 2) LAN-121
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect LDW camera unit connector.
2. Check continuity between LDW camera unit harness connector R9 terminals 10 (L) and 5 (R).
OK or NG
OK >> GO TO 7.
NG >> Replace harness between LDW camera unit and har- ness connector R1.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between LDW camera unit harness connector R9
terminals 10 (L), 5 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace harness between LDW and harness connector R1.
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E
10 (L) - 5 (R) : Continuity should not exist.
SKIB2333E
10 (L) - Ground : Continuity should not exist.
5 (R) - Ground : Continuity should not exist.
SKIB2339E
Page 3541 of 4731
![INFINITI FX35 2005 Service Manual LAN-122
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. INFINITI FX35 2005 Service Manual LAN-122
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2.](/manual-img/42/57020/w960_57020-3540.png)
LAN-122
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (control unit) and harness connector E205
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L) and 10 (R).
OK or NG
OK >> GO TO 11.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between harness connector B5 and harness
connector B8
Harness between harness connector B5 and harness
connector B5
11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E
Page 3542 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-123
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-123
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3](/manual-img/42/57020/w960_57020-3541.png)
CAN SYSTEM (TYPE 2) LAN-123
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

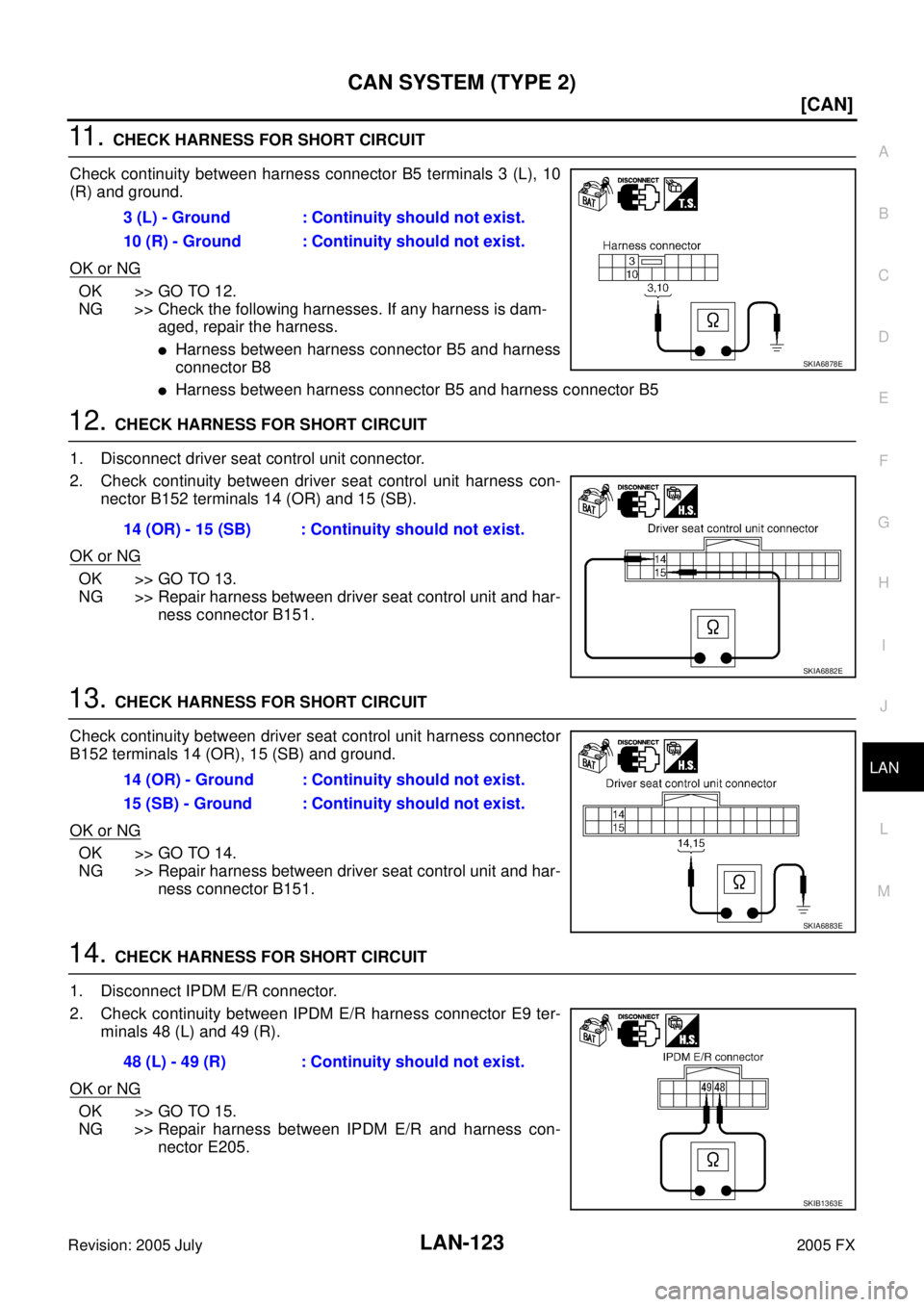

11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 12.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between harness connector B5 and harness
connector B8
Harness between harness connector B5 and harness connector B5
12. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con- nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> GO TO 13.
NG >> Repair harness between driver seat control unit and har- ness connector B151.
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
B152 terminals 14 (OR), 15 (SB) and ground.
OK or NG
OK >> GO TO 14.
NG >> Repair harness between driver seat control unit and har- ness connector B151.
14. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 15.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
14 (OR) - 15 (SB) : Continuity should not exist.
SKIA6882E
14 (OR) - Ground : Continuity should not exist.
15 (SB) - Ground : Continuity should not exist.
SKIA6883E
48 (L) - 49 (R) : Continuity should not exist.
SKIB1363E
Page 3543 of 4731
![INFINITI FX35 2005 Service Manual LAN-124
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or INFINITI FX35 2005 Service Manual LAN-124
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or](/manual-img/42/57020/w960_57020-3542.png)
LAN-124
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2005 July 2005 FX
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 16.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals 94 and 86.
3. Check resistance between IPDM E/R terminals 48 and 49.
OK or NG
OK >> GO TO 17.
NG >> Replace ECM and/or IPDM E/R.
17. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 18.
NG >> Refer to LAN-16, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIB1364E
94 - 86 : Approx. 108 - 132 Ω
48 - 49 : Approx. 108 - 132 Ω
LKIA0037E
Page 3544 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-125
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 2) LAN-125
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform](/manual-img/42/57020/w960_57020-3543.png)
CAN SYSTEM (TYPE 2) LAN-125
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–Display unit
–BCM
–Steering angle sensor
–LDW camera unit
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionAKS00CFJ
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
