Page 2817 of 4731
EI-28
CENTER MUD GUARD
Revision: 2005 July 2005 FX
CENTER MUD GUARDPFP:76850
Removal and InstallationAIS0037H
REMOVAL
1. Remove bolts center mud-guard lower portion.
2. Remove screws center mud-guard front and rear portion.
3. Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

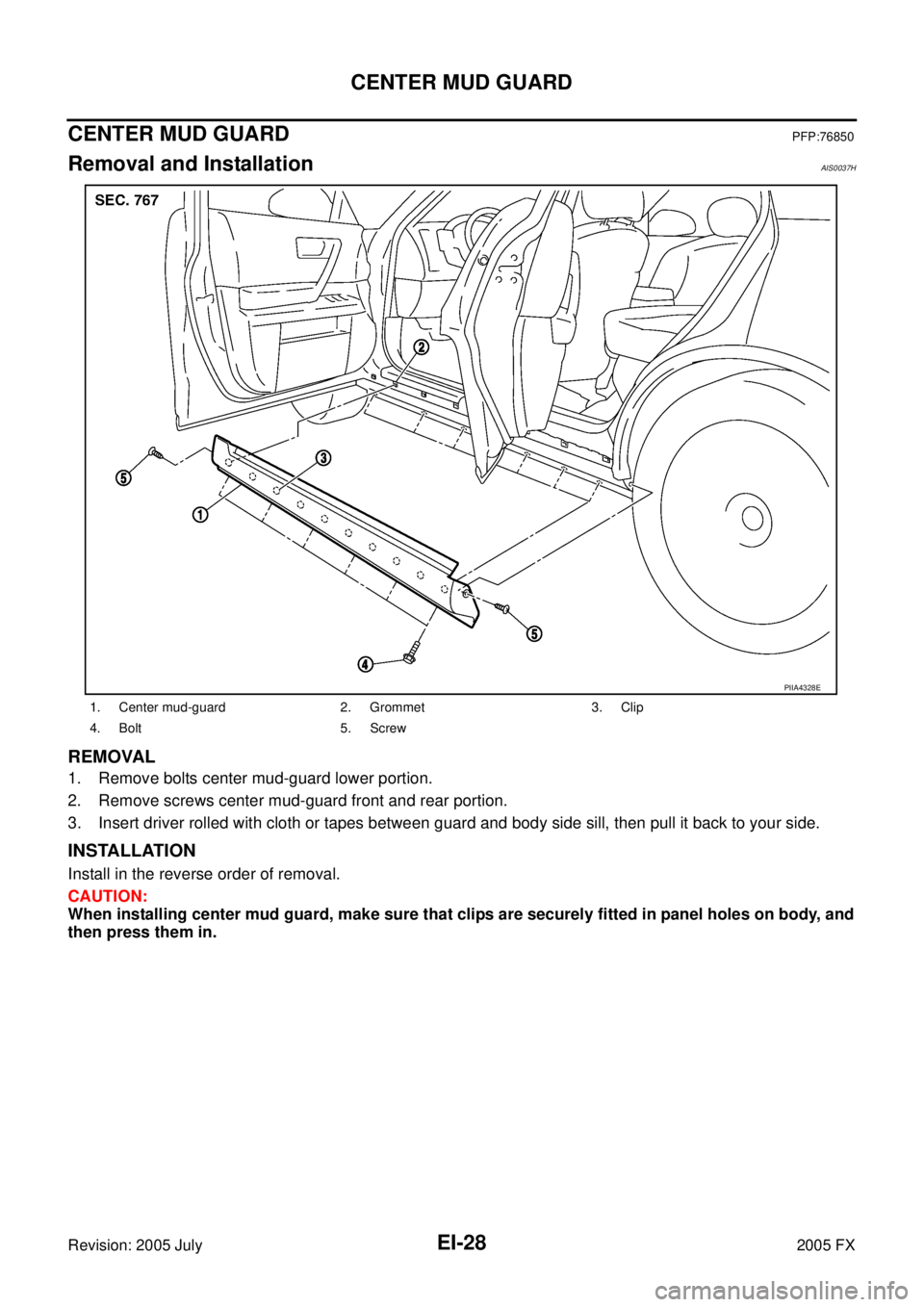

1. Center mud-guard 2. Grommet 3. Clip
4. Bolt 5. Screw
PIIA4328E
Page 2818 of 4731
WINDSHIELD MOLDING EI-29
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2005 July 2005 FX
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationAIS0037I
REMOVAL
Remove windshield molding. Refer to GW-11, "REMOVAL" .
INSTALLATION
Install windshield molding. Refer to GW-12, "INSTALLATION" .

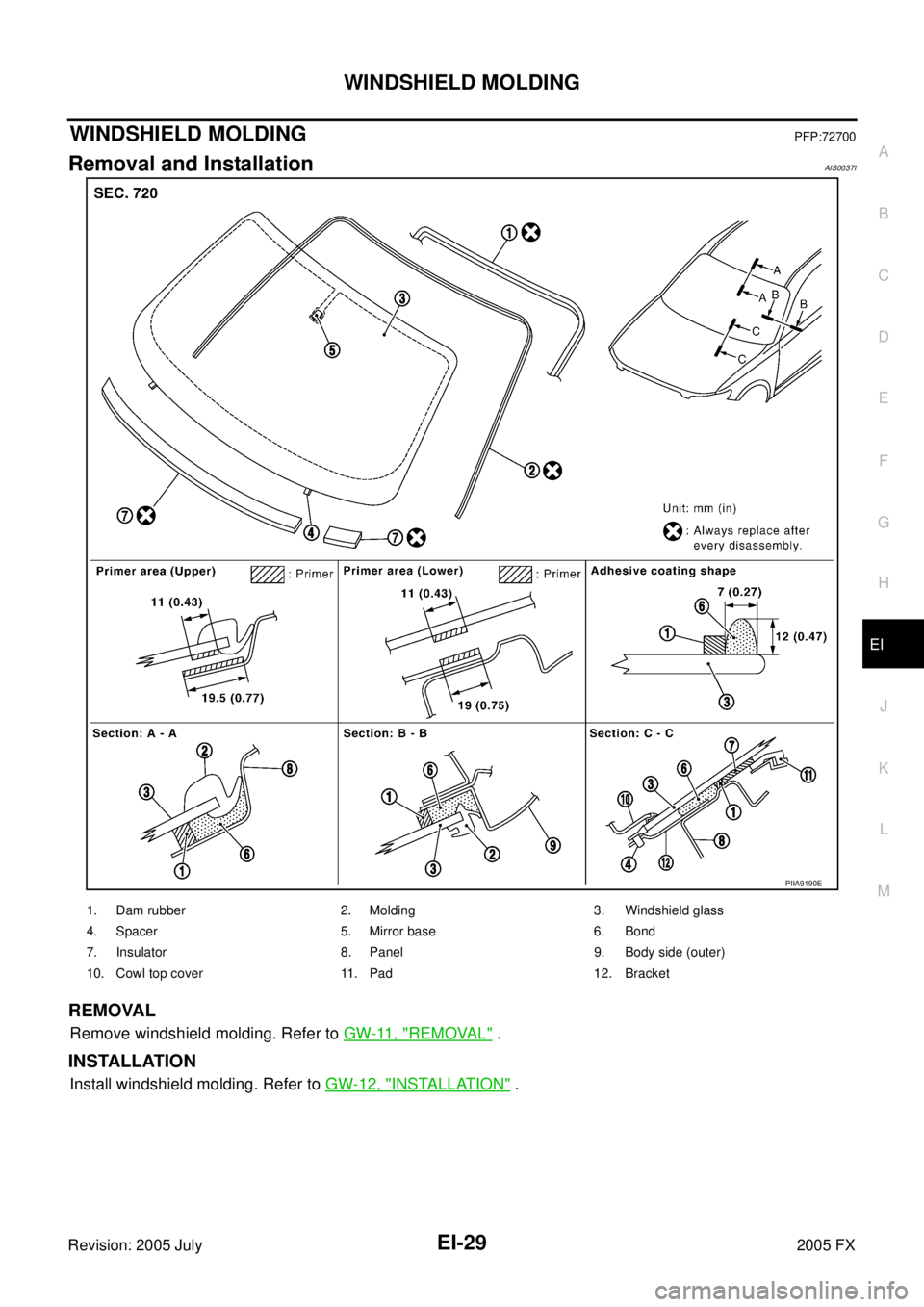

PIIA9190E
1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
Page 2819 of 4731
EI-30
BACK DOOR WINDOW MOLDING
Revision: 2005 July 2005 FX
BACK DOOR WINDOW MOLDINGPFP:90352
Removal and InstallationAIS003C0
REMOVAL
Remove back door window molding. Refer to GW-13, "REMOVAL" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-14, "INSTALLATION" .
NOTE:
Clean adhesive portion of back door window glass and around circumference with white gasoline.
Apply dam rubber to upper and side surfaces of glass.
Attach back door window molding to side face of glass.

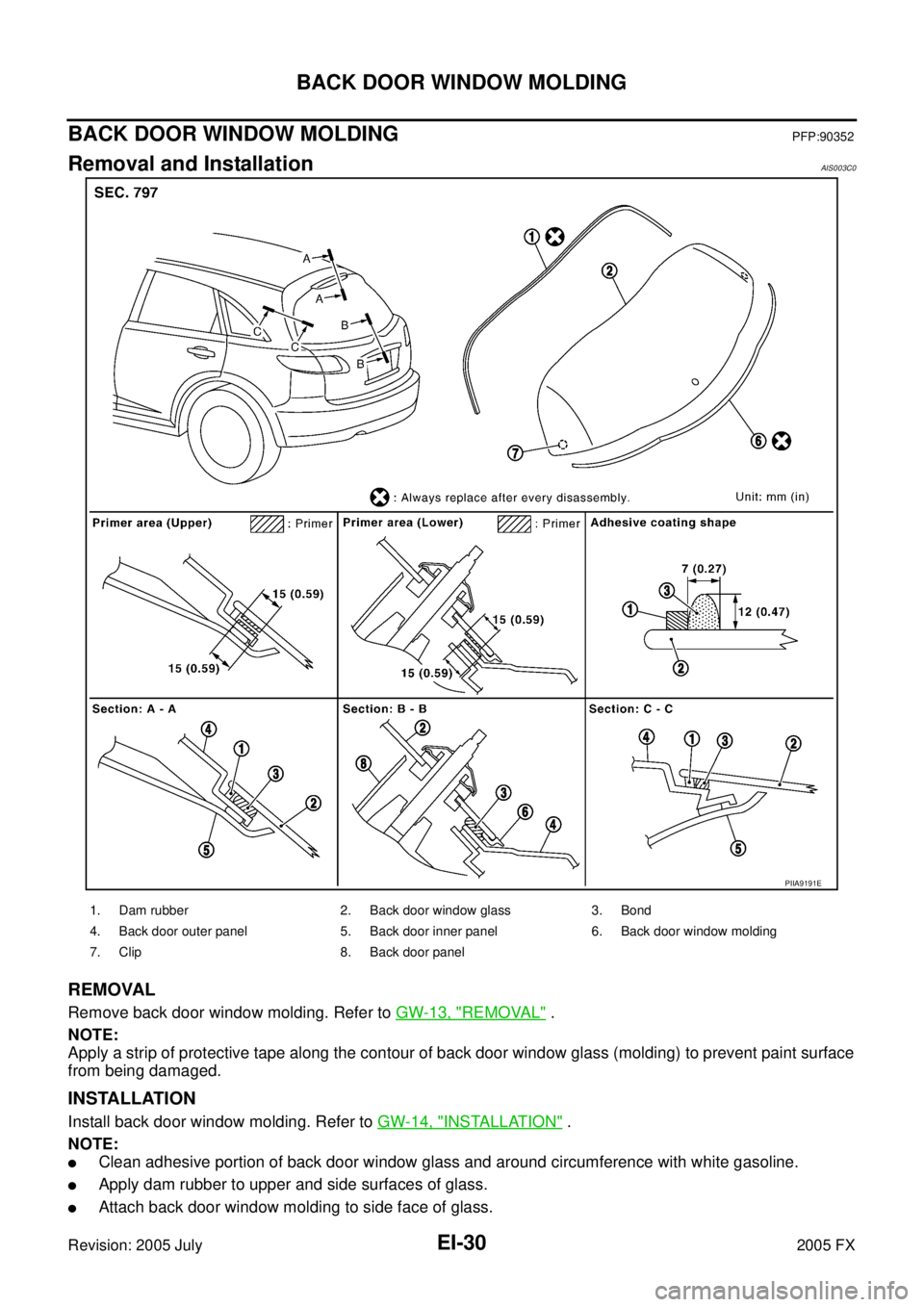

PIIA9191E
1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel
Page 2820 of 4731
BACK DOOR WINDOW MOLDING EI-31
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2005 July 2005 FX
Back door window molding should not overlap on the surface of back door window glass.
Page 2821 of 4731
EI-32
ROOF SIDE MOLDING
Revision: 2005 July 2005 FX
ROOF SIDE MOLDINGPFP:73854
Removal and InstallationAIS0037J
REMOVAL
Disconnect molding from roof side clip and remove roof side molding.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.

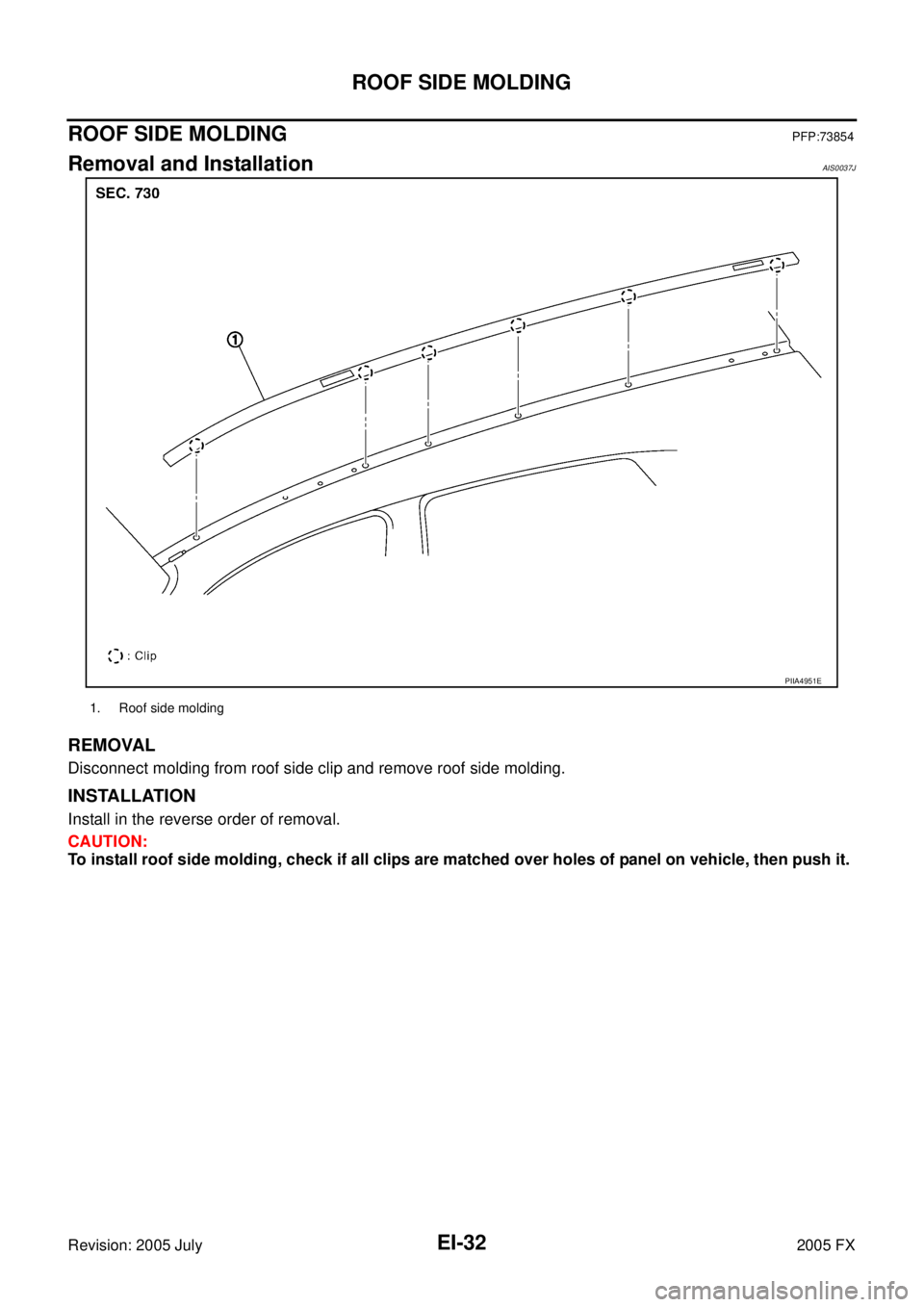

PIIA4951E
1. Roof side molding
Page 2822 of 4731
ROOF RAIL EI-33
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2005 July 2005 FX
ROOF RAILPFP:73820
Removal and InstallationAIS0037K
REMOVAL
1. Remove cover roof rail (front/rear).
2. Remove nuts of roof rail and remove roof rail assembly.
INSTALLATION
Install in the reverse order of removal.
REMOVAL AND INSTALLATION OF ROOF RAIL BRACKET
Removal
1. Remove roof rail assembly.
2. Remove roof side molding. Refer to EI-32, "
ROOF SIDE MOLDING" .
3. Remove headlining. Refer to EI-41, "
HEADLINING" .
4. Remove nuts of roof rail bracket assembly and remove roof rail bracket assembly.
Installation
Install in the reverse order of removal.
CAUTION:
Replace sealing washer.

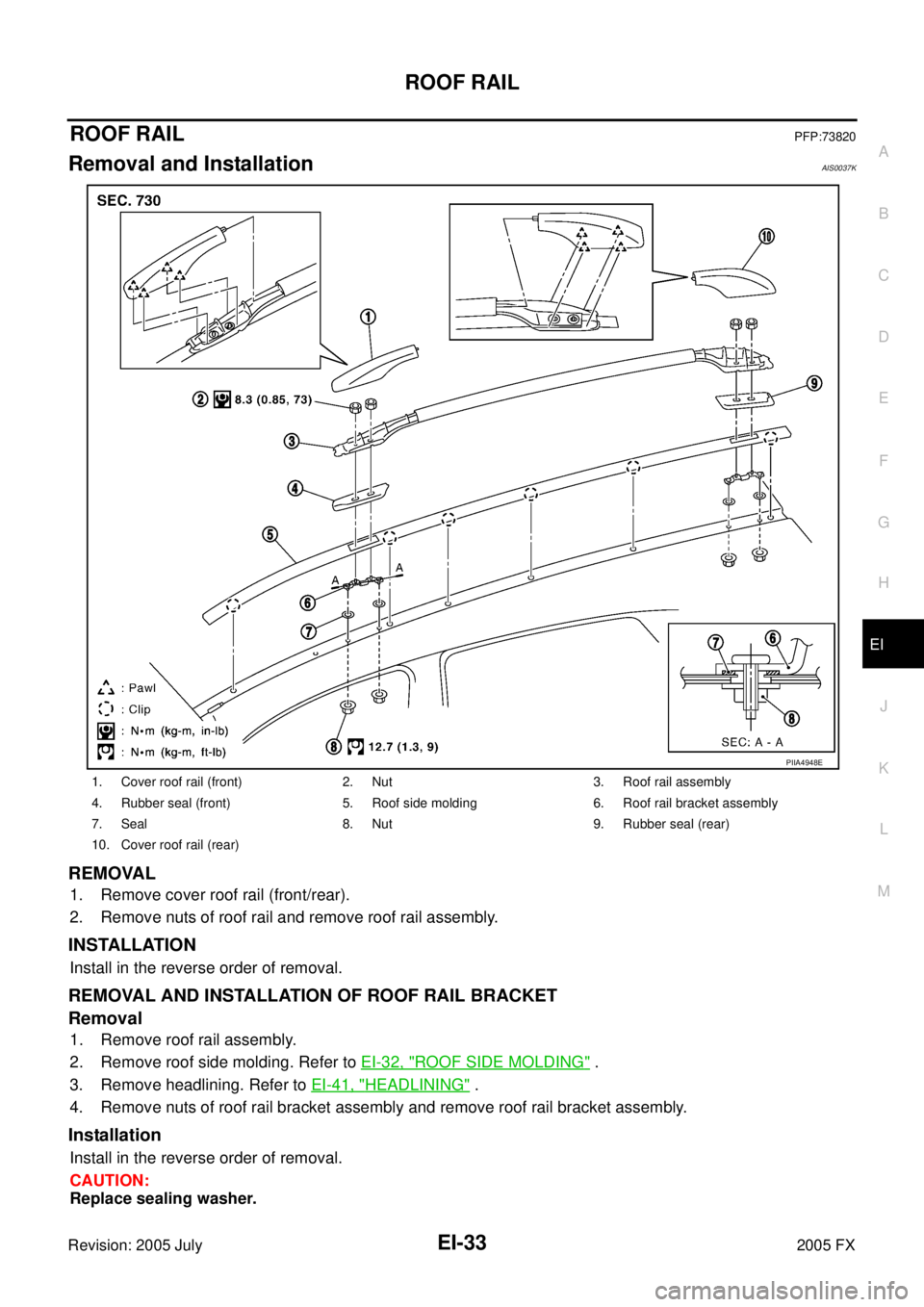

1. Cover roof rail (front) 2. Nut 3. Roof rail assembly
4. Rubber seal (front) 5. Roof side molding 6. Roof rail bracket assembly
7. Seal 8. Nut 9. Rubber seal (rear)
10. Cover roof rail (rear)
PIIA4948E
Page 2823 of 4731
EI-34
DOOR FINISHER
Revision: 2005 July 2005 FX
DOOR FINISHERPFP:80900
Removal and InstallationAIS003BT
DOOR FINISHER (FRONT AND REAR)
Removal
1. Remove door finisher cap of inside handle portion and remove bolt.
2. Remove door grip cap and remove bolts of door grip portion.
3. Insert screw driver rolled with cloth between panel on vehicle and clips (as indicated with arrow), and remove finisher.
4. Pull up door finisher, and remove electrical parts connectors.

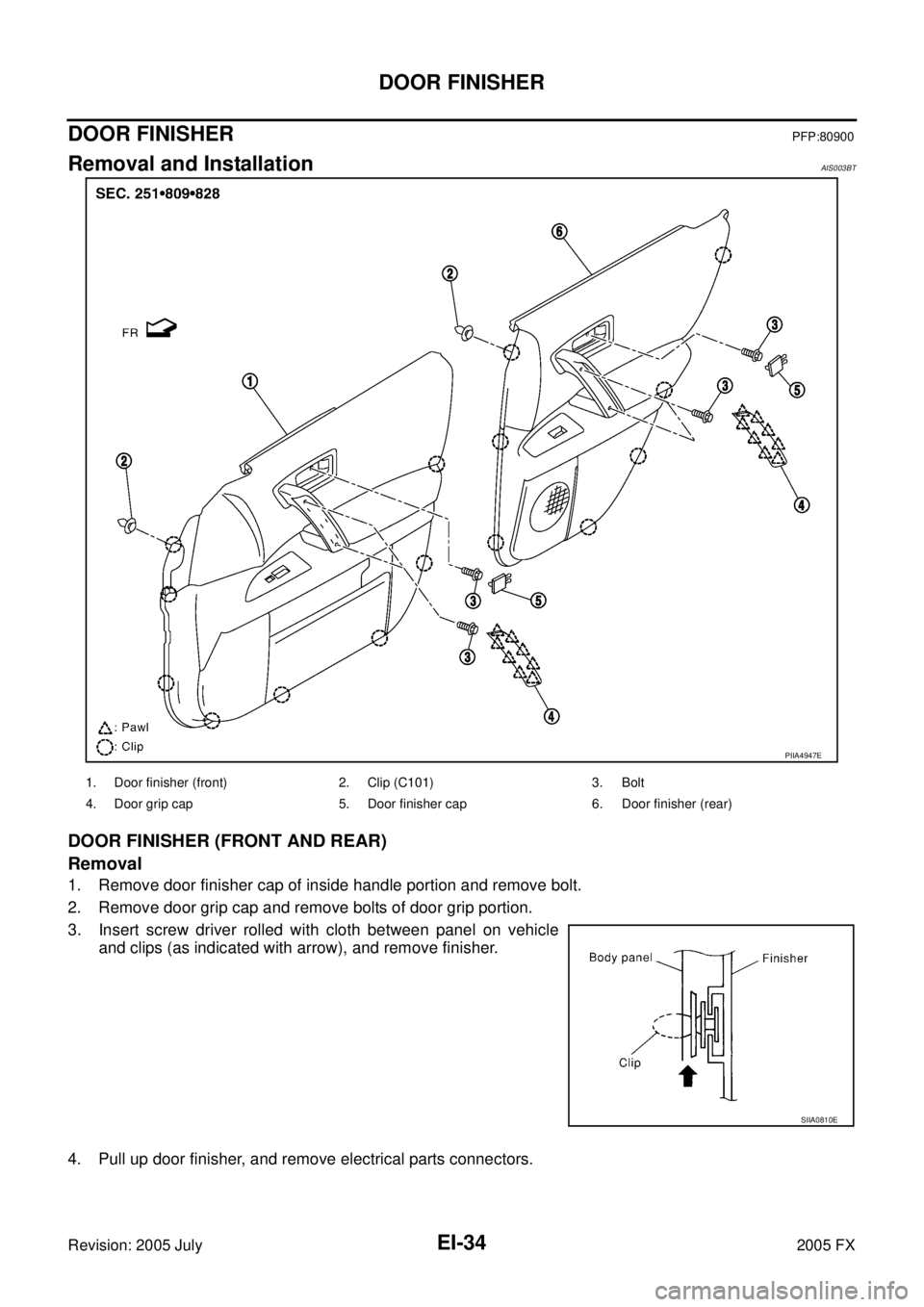

PIIA4947E
1. Door finisher (front) 2. Clip (C101) 3. Bolt
4. Door grip cap 5. Door finisher cap 6. Door finisher (rear)
SIIA0810E
Page 2824 of 4731
DOOR FINISHER EI-35
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2005 July 2005 FX
5. Remove lock knob cable, inside handle cable and illumination
harness connector (front door only) from backside of inside han-
dle assembly.
6. Remove inside handle screws, and remove it from finisher.
Installation
Install in the reverse order of removal.
CAUTION:
To install finisher, check if all clips are matched over holes of panel on vehicle, then push it.
PIIA4959E
