INFINITI FX35 2005 Service Manual EC-1104
[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX

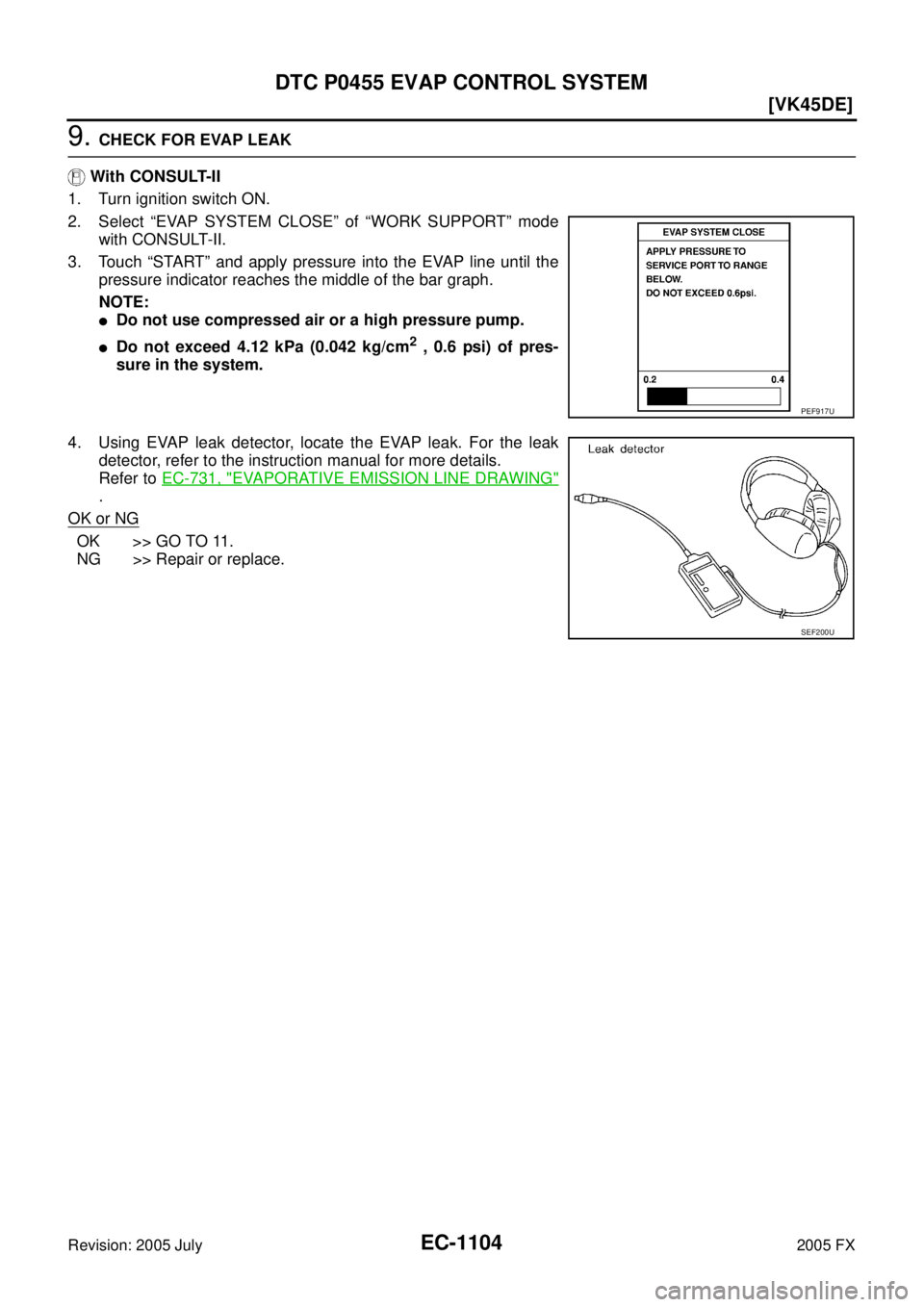

9. CHECK FOR EVAP LEAK
With CONSULT-II
1. Turn ignition switch ON.
2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT�

Page 2498 of 4731

INFINITI FX35 2005 Service Manual DTC P0455 EVAP CONTROL SYSTEM EC-1105
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

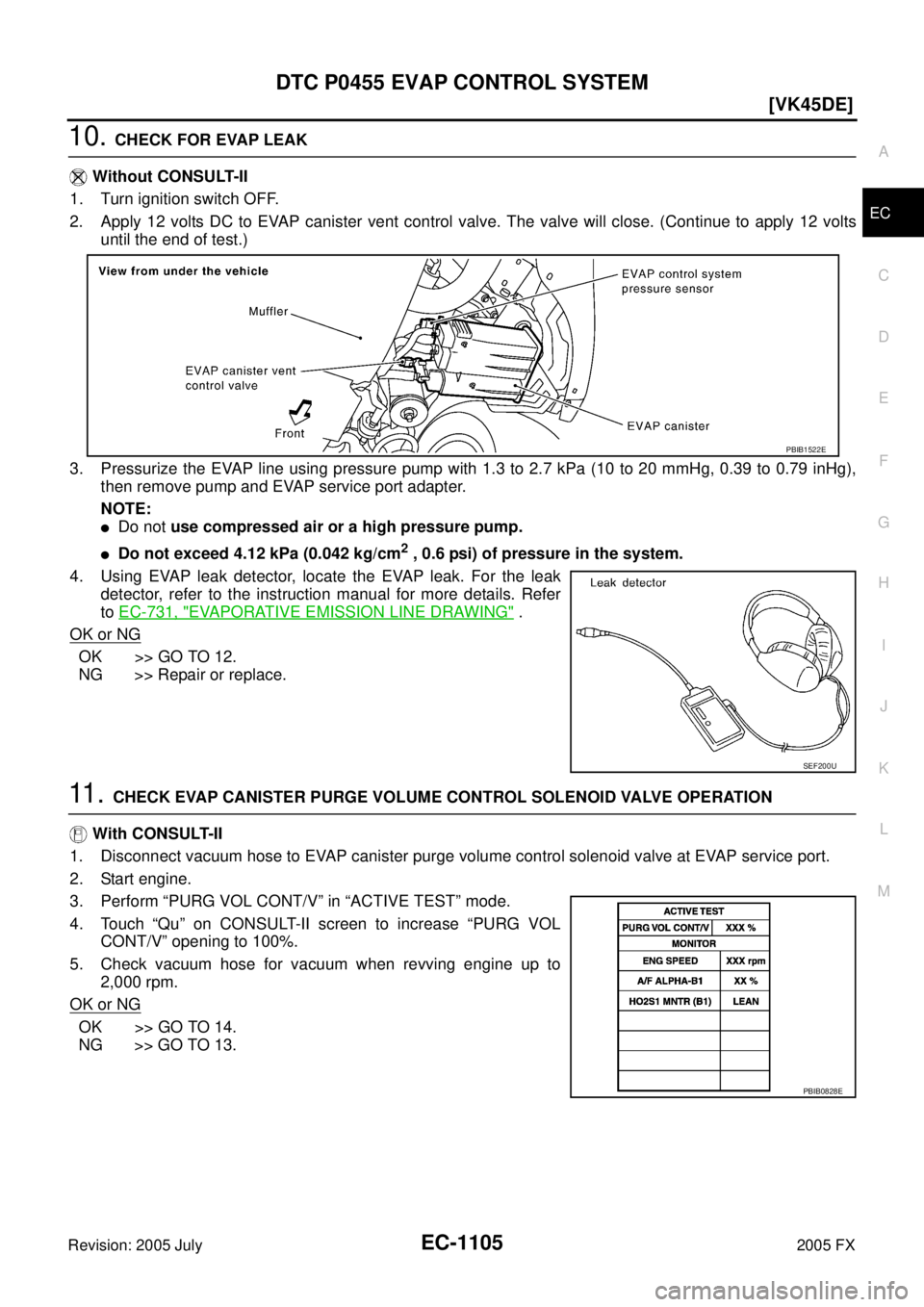

10. CHECK FOR EVAP LEAK
Without CONSULT-II
1. Turn ignition switch OFF.
2. Apply

Page 2499 of 4731

INFINITI FX35 2005 Service Manual EC-1106
[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
12. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-II
1. Start engine and warm it up

Page 2500 of 4731

INFINITI FX35 2005 Service Manual DTC P0455 EVAP CONTROL SYSTEM EC-1107
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
17. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-1091, "
Component Inspec

Page 2501 of 4731

INFINITI FX35 2005 Service Manual EC-1108
[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
DTC P0456 EVAP CONTROL SYSTEMPFP:14950
On Board Diagnosis LogicABS007P0
This diagnosis detects very small leaks in the EVAP l

Page 2502 of 4731

INFINITI FX35 2005 Service Manual DTC P0456 EVAP CONTROL SYSTEM EC-1109
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CAUTION:
Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect

DTC P0456 EVAP CONTROL SYSTEM EC-1109
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CAUTION:
Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.
If the fuel filler cap is not tightened properly, the MIL may come on.
Use only a genuine NISSAN rubber tube as a replacement.
DTC Confirmation ProcedureABS007P1
NOTE:
If DTC P0456 is displayed with P0442, first perform trouble diagnosis for DTC P0456.
After repair, make sure that the hoses and clips are installed properly.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Open engine hood before conducting following procedure.
If any of following conditions are met just before the DTC confirmation procedure, leave the vehi-
cle for more than 1 hour.
–Fuel filler cap is removed.
–Fuel is refilled or drained.
–EVAP component parts is/are removed.
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
2. Make sure the following conditions are met. FUEL LEVEL SE: 0.25 - 1.4V
COOLAN TEMP/S: 0 - 32 °C (32 - 90 °F)
FUEL T/TMP SE: 0 - 35 °C (32 - 95 °F)
INT A/TEMP SE: More than 0 °C (32 °F)
If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining
fuel until the output voltage condition of the “FUEL LEVEL SE” meets within the range above and leave
the vehicle for more than 1 hour. Then start from step 1).
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “EVAP V/S LEAK P0456/P1456” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with CONSULT-II.
Follow the instruction displayed.
6. Make sure that “OK” is displayed. If “NG” is displayed, refer to EC-1111, "
Diagnostic Procedure" .
NOTE:
If the engine speed cannot be maintained within the range displayed on CONSULT-II screen, go
to EC-769, "
Basic Inspection" .
Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid
valve properly.
PBIB0837E

Page 2503 of 4731

INFINITI FX35 2005 Service Manual EC-1110
[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
Revision: 2005 July 2005 FX
Overall Function CheckABS007P2
WITH GST
Use this procedure to check the overall function of the EVAP very small leak functio

Page 2504 of 4731

INFINITI FX35 2005 Service Manual DTC P0456 EVAP CONTROL SYSTEM EC-1111
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007P3
1. CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch
