Page 2961 of 4731

INFINITI FX35 2005 Service Manual EM-126 [VQ35DE] CYLINDER BLOCK Revision: 2005 July 2005 FX 10. Remove pilot converter using the pilot bushing puller [SST] as necessary. 11. Remove rear oil seal retainer. Remove by inserting a scr

Page 2962 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-127 [VQ35DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX 16. Remove piston from connecting rod as follows: a. Using a snap ring pliers, remove snap rings.

Page 2963 of 4731

INFINITI FX35 2005 Service Manual EM-128 [VQ35DE] CYLINDER BLOCK Revision: 2005 July 2005 FX 18. Remove main bearing beam. 19. Remove main bearing caps. CAUTION: Be careful not to drop main bearing, and to scratch the sur- face.

Page 2964 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-129 [VQ35DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX Tighten each plug as specified below. 3. Install oil jet. Insert oil jet dowel pin into cylinder b

Page 2965 of 4731

INFINITI FX35 2005 Service Manual EM-130 [VQ35DE] CYLINDER BLOCK Revision: 2005 July 2005 FX Main bearing caps are identified by identification mark cast on them. For installation, face front mark to front side. NOTE: Main bearing

Page 2966 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-131 [VQ35DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX Assemble so that the front mark on the piston head and the cylinder number on connecting rod are po

Page 2967 of 4731

INFINITI FX35 2005 Service Manual EM-132 [VQ35DE] CYLINDER BLOCK Revision: 2005 July 2005 FX When installing, align connecting rod bearing stopper protru- sion with cutout of connecting rods and connecting rod bear- ing caps to inst

Page 2968 of 4731

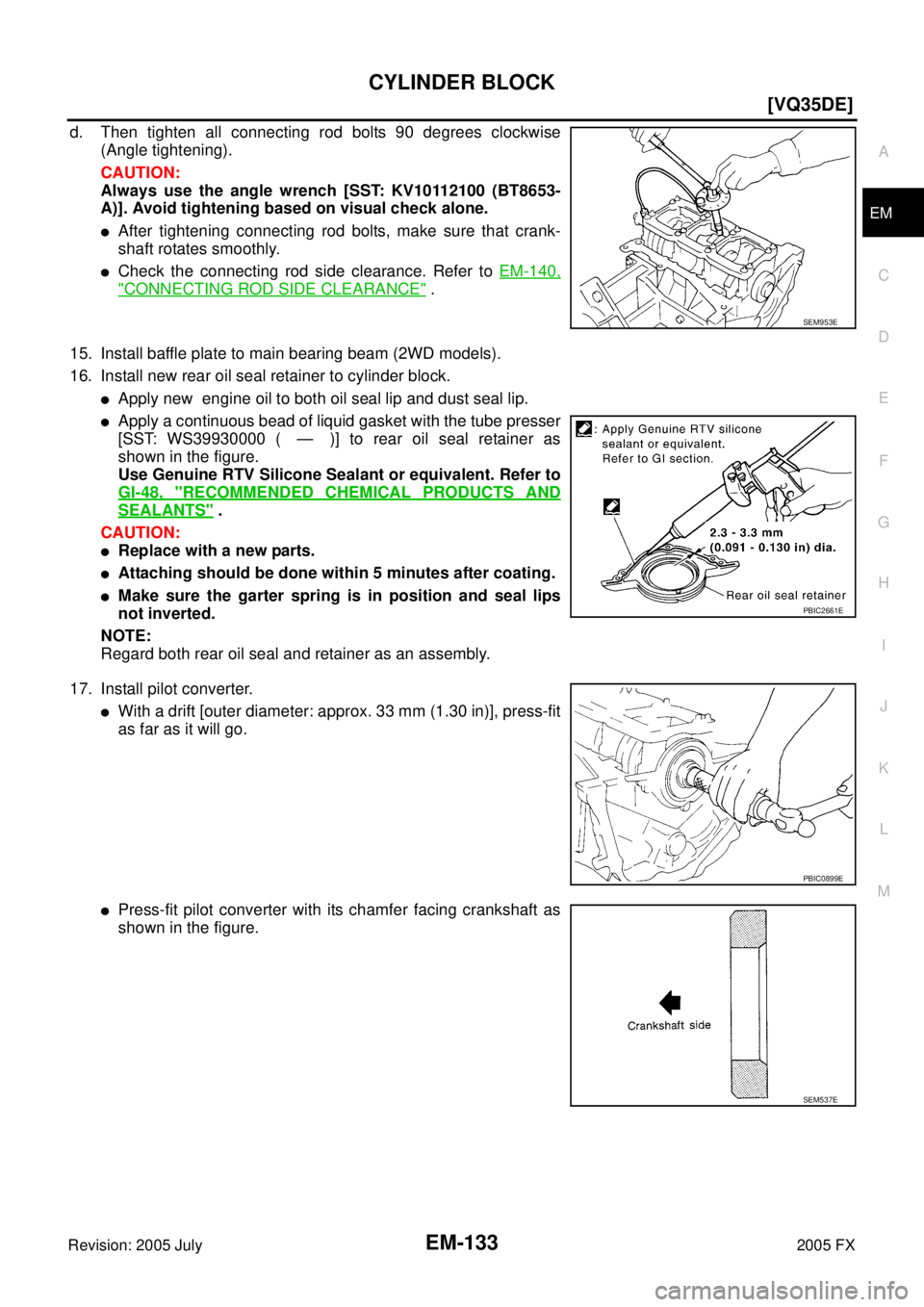

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-133 [VQ35DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX d. Then tighten all connecting rod bolts 90 degrees clockwise (Angle tightening). CAUTION: Always
