ACS-48
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
3. CHECK ICC STEERING SWITCH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM connector and spiral cable connector.
3. Check continuity between spiral cable harness connector M15 terminals 33 (B/W), 34 (G/Y) and ECM harness connector M90
terminals 82 (B/W), 99 (G/Y).
4. Check continuity between spiral cable harness connector M15 terminals 33 (B/W), 34 (G/Y) and ground.
OK or NG
OK >> GO TO 4.
NG >> 1. Repair harness between ECM and spiral cable.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. CHECK SPIRAL CABLE
Check continuity between spiral cable (on vehicle) M15 terminals 33,
34 and spiral cable (on switch) M203 terminals 14, 15.
OK or NG
OK >> 1. Perform ECM self-diagnosis. 2. After repairing or replacing applicable item, erase DTC and perform ICC system running test. Then per-
form self-diagnosis of ICC system again.
NG >> 1. Replace spiral cable. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 61 PRESS SEN CIRCUITAKS00C8U
1. CHECK CONNECTOR BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect brake pressure sensor connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
33 (B/W) – 82 (B/W) : Continuity should exist.
34 (G/Y) – 99 (G/Y) : Continuity should exist.
PKIB4164E
33 (B/W) – Ground : Continuity should not exist.
34 (G/Y) – Ground : Continuity should not exist.
PKIB4165E
33 – 15 : Continuity should exist.
34 – 14 : Continuity should exist.
PKIB4166E
Page 58 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-49
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
2. CHECK HARNESS BETWEEN BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignit INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-49
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
2. CHECK HARNESS BETWEEN BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignit](/manual-img/42/57020/w960_57020-57.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-49
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
2. CHECK HARNESS BETWEEN BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector and brake pressure sensor con- nector.
3. Check continuity between brake pressure sensor harness con- nector E142 terminals 1 (Y/R), 2 (OR), 3 (Y/G) and ICC unit har-
ness connector M88 terminals 24 (Y/R), 17 (BR), 8 (Y/G).
4. Check continuity between ICC unit harness connector M88 ter- minals 8 (Y/G), 17 (BR), 24 (Y/R) and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair harness between brake pressure sensor and ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
3. CHECK POWER SUPPLY CIRCUIT FOR BRAKE PRESSURE SENSOR
1. Connect ICC unit connector.
2. Turn ignition switch ON.
3. Check voltage between ICC unit harness connector M88 termi- nals 8 (Y/G) and 24 (Y/R).
OK or NG
OK >> 1. Replace brake pressure sensor. Refer to BR-13,
"BRAKE MASTER CYLINDER" .
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
1 (Y/R) – 24 (Y/R) : Continuity should exist.
2 (OR) – 17 (BR) : Continuity should exist.
3 (Y/G) – 8 (Y/G) : Continuity should exist.
SKIA6652E
8 (Y/G) – Ground : Continuity should not exist.
17 (BR) – Ground : Continuity should not exist.
24 (Y/R) – Ground : Continuity should not exist.
PKIB1444E
Terminal (wire color) Voltage (V)
(+) (–)
8 (Y/G) 24 (Y/R) Approx. 5
SKIA6653E
Page 59 of 4731
![INFINITI FX35 2005 Service Manual ACS-50
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
DTC 62 BOOSTER SOL/V CIRCUITAKS00C8V
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition swi INFINITI FX35 2005 Service Manual ACS-50
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
DTC 62 BOOSTER SOL/V CIRCUITAKS00C8V
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition swi](/manual-img/42/57020/w960_57020-58.png)
ACS-50
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2005 July 2005 FX
DTC 62 BOOSTER SOL/V CIRCUITAKS00C8V
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect brake booster connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
2. CHECK HARNESS BETWEEN SOLENOID/RELEASE SWITCH AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector and brake booster connector.
3. Check continuity between ICC unit harness connector M88 ter- minals 10 (B/R), 12 (L/W) and brake booster harness connector
E54 terminals 4 (B), 6 (L).
4. Check continuity between ICC unit harness connector M88 ter- minals 10 (B/R), 12 (L/W) and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair harness between brake booster and ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
3. CHECK BOOST SOLENOID
Check boost solenoid. Refer to ACS-71, "
Boost Solenoid" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> Boost solenoid malfunction 1. Replace brake booster.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
10 (B/R) – 4 (B) : Continuity should exist.
12 (L/W) – 6 (L) : Continuity should exist.
PKIB4147E
10 (B/R) – Ground : Continuity should not exist.
12 (L/W) – Ground : Continuity should not exist.
PKIB4148E
Page 60 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-51
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
DTC 63 RELEASE SW CIRCUITAKS00C8W
1. CHECK SOLENOID/RELEASE SWITCH AND ICC INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-51
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
DTC 63 RELEASE SW CIRCUITAKS00C8W
1. CHECK SOLENOID/RELEASE SWITCH AND ICC](/manual-img/42/57020/w960_57020-59.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-51
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
DTC 63 RELEASE SW CIRCUITAKS00C8W
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect brake booster connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.

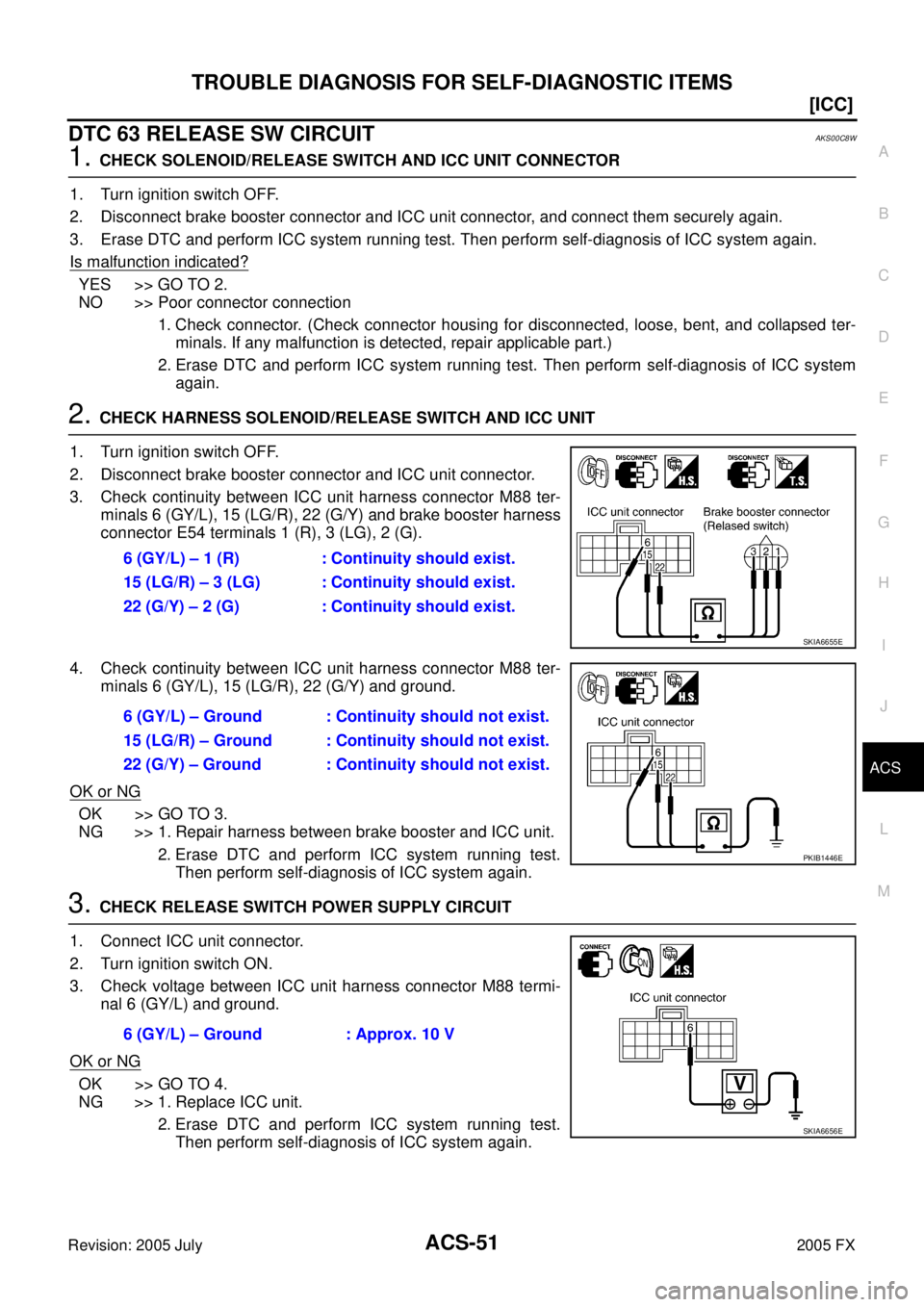

2. CHECK HARNESS SOLENOID/RELEASE SWITCH AND ICC UNIT
