REAR VIEW MONITOR
Revision: 2005 July 2005 FX

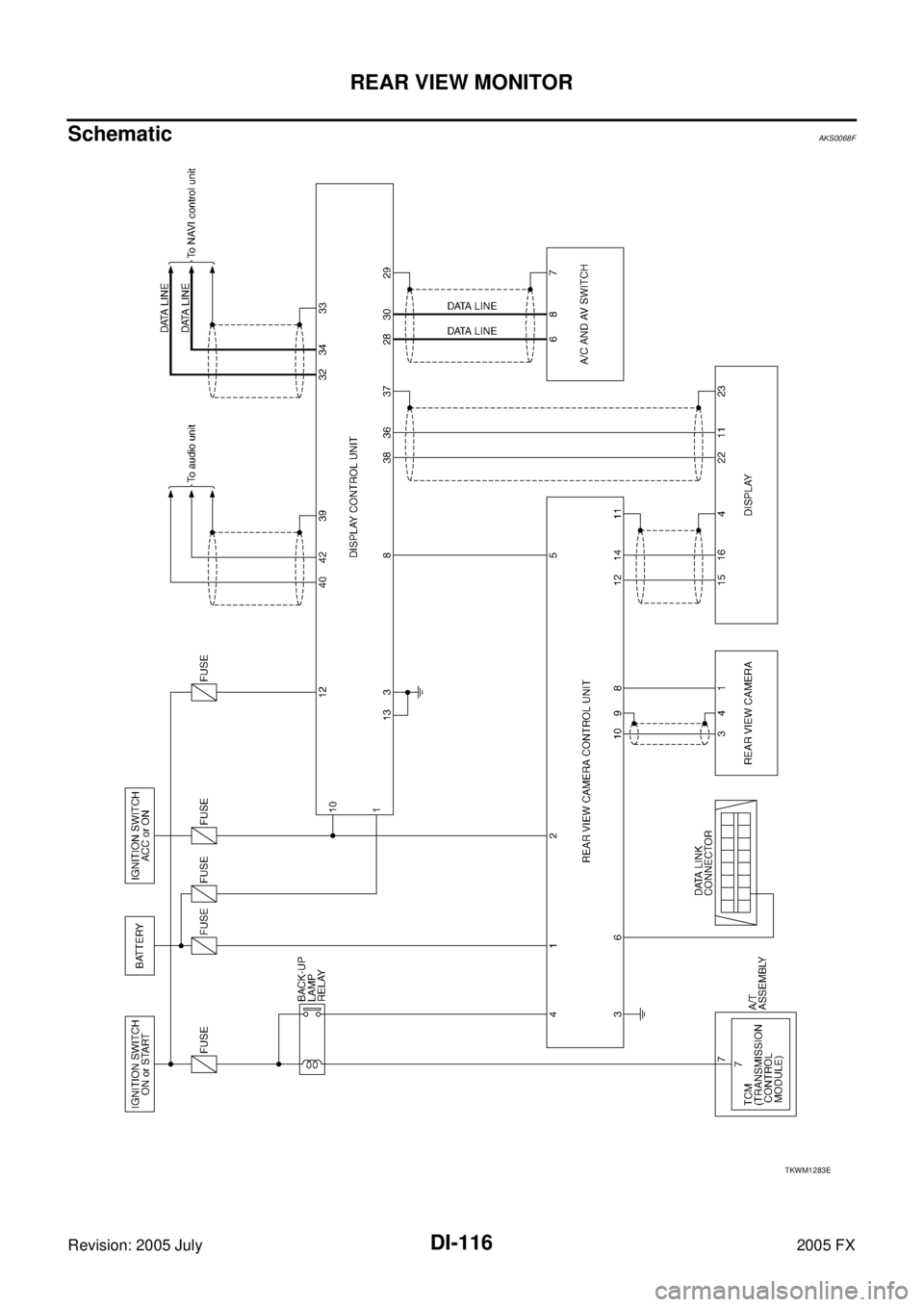

SchematicAKS0068F
TKWM1283E
Page 1378 of 4731
REAR VIEW MONITOR DI-117
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

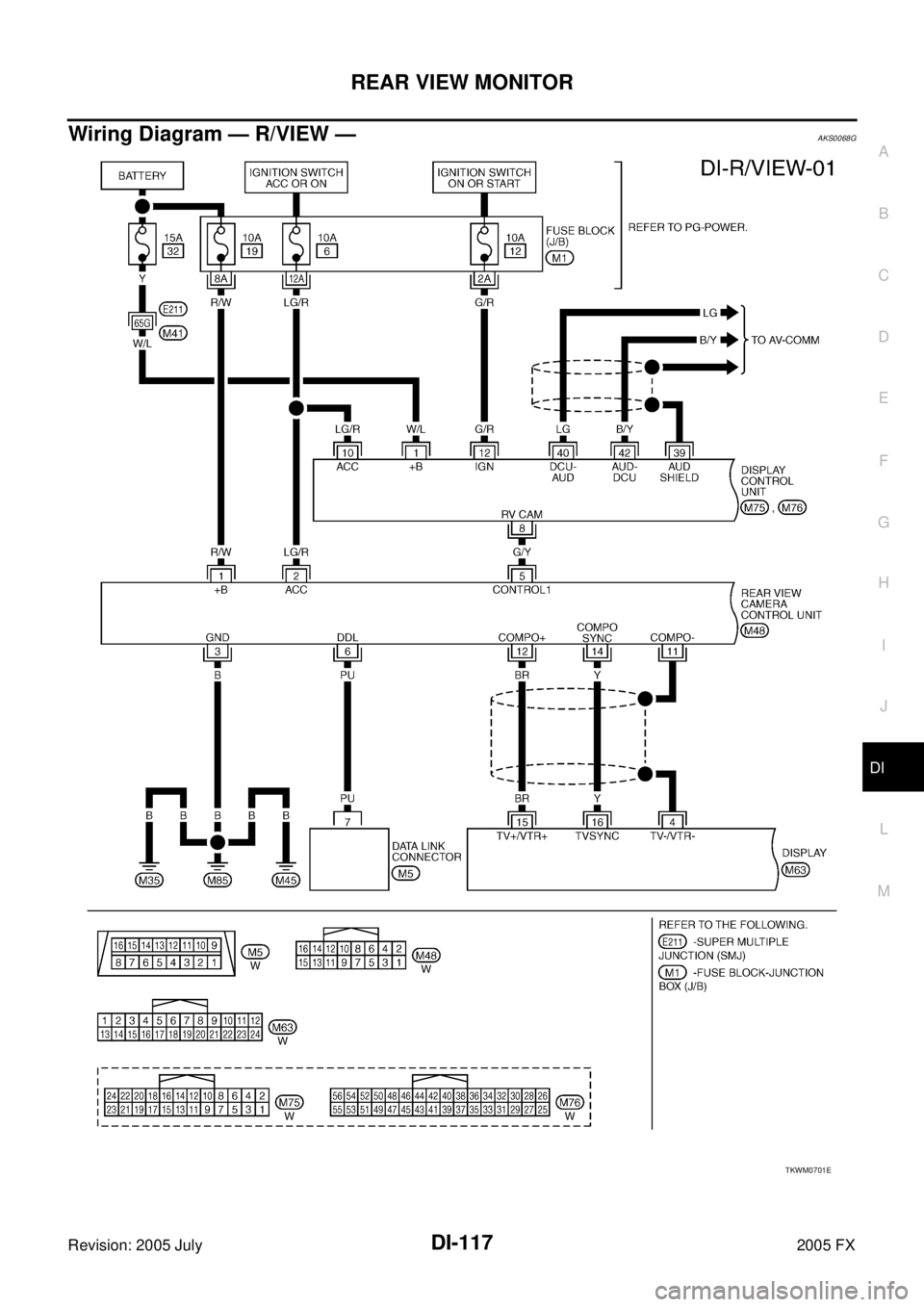

Wiring Diagram — R/VIEW —AKS0068G
TKWM0701E

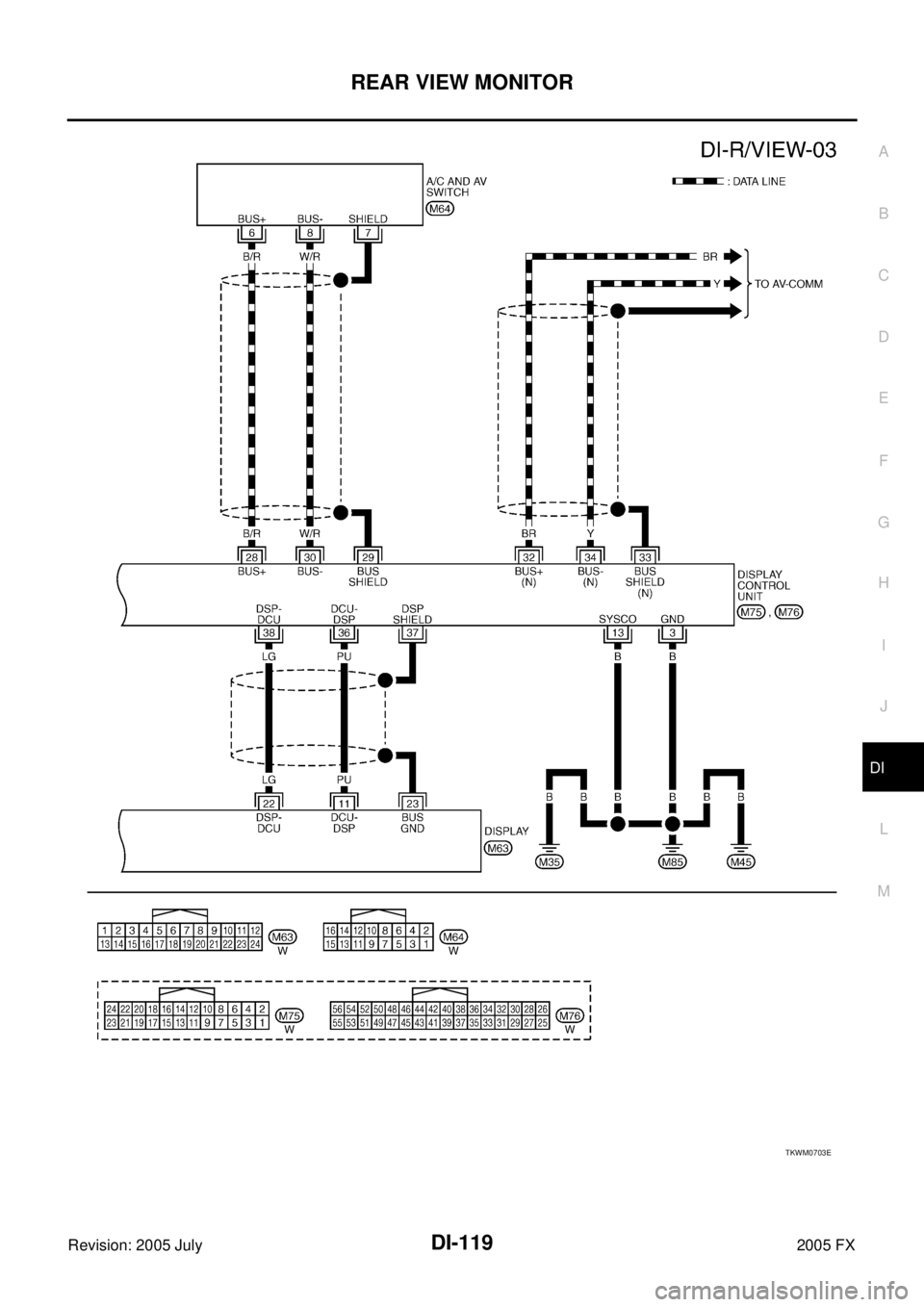

Page 1379 of 4731
DI-118
REAR VIEW MONITOR
Revision: 2005 July 2005 FX

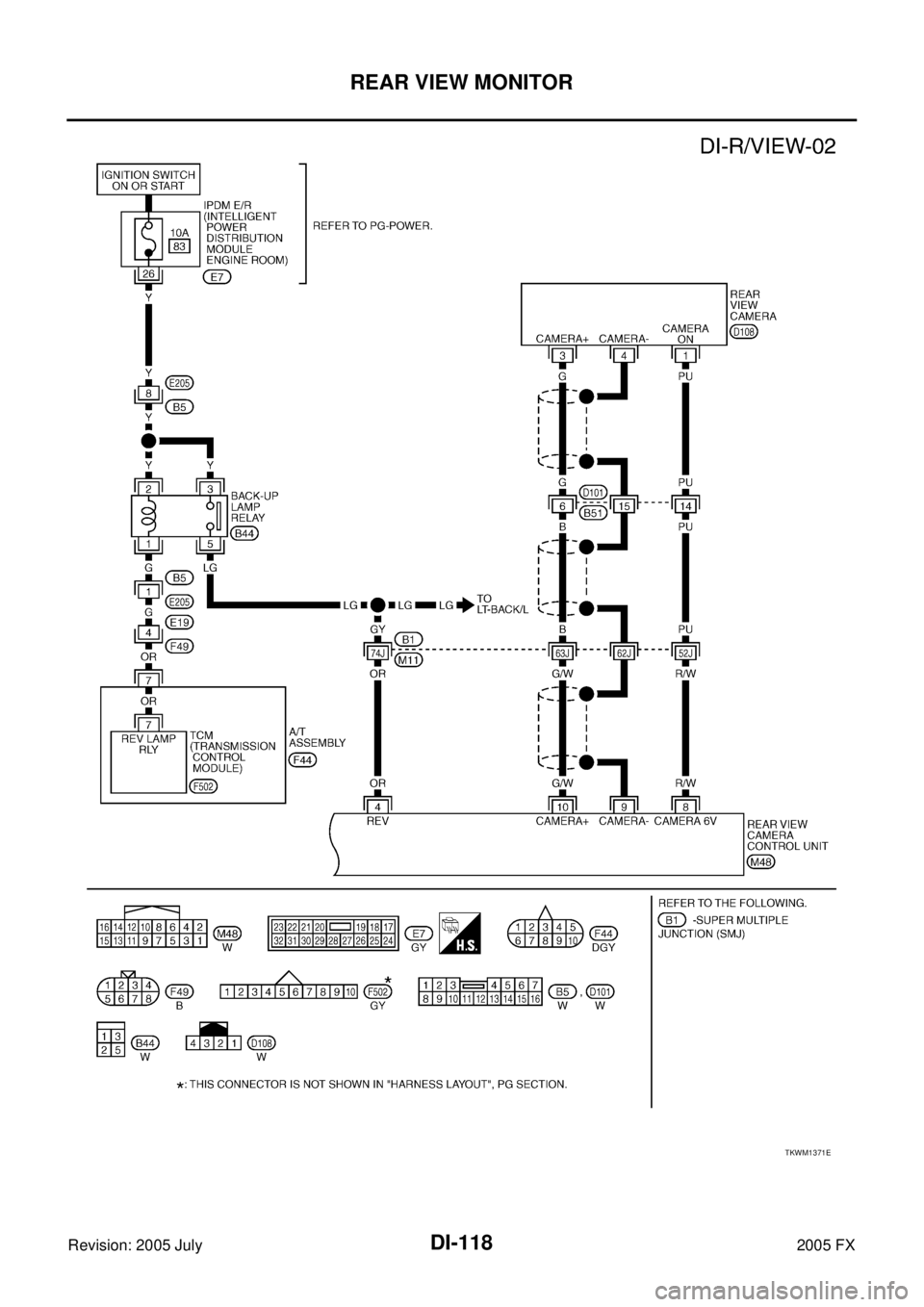

TKWM1371E
Page 1380 of 4731
REAR VIEW MONITOR DI-119
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
TKWM0703E
Page 1381 of 4731
DI-120
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
Terminals and Reference Value for Rear View Camera Control UnitAKS0068H
Terminals
Item Condition
Reference value
Te r m i n a l
No. Wire
color Ignition
switch Operation
1 R/W Battery power supply OFF — Battery voltage
2 LG/R Ignition switch ACC or ON ACC — Battery voltage
3 B Ground ON — Approx. 0 V
4 OR Reverse signal input ON A/T selector lever R range
position Battery voltage
A/T selector lever in other than
R range position Approx. 0 V
5 G/Y CONTROL 1 ON — Approx. 0 V
6 PU DDL — — —
8 R/W Camera power output ON A/T selector lever R range
position Approx. 6 V
9 — Camera image input (–) ON — Approx. 0 V
10 G/W Camera image input (+) ON A/T selector lever R range
position
11 — Shield ground — — —
12 BR Composite image output ON A/T selector lever R range
position
14 Y Composite image synchroni-
zation signal output ON A/T selector lever R range
position
SKIA4894E
SKIA4896E
SKIA5896E
Page 1382 of 4731

REAR VIEW MONITOR DI-121
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
CONSULT-II Function (REARVIEW CAMERA)AKS007FM
CONSULT-II performs the following functions communicating with the rear view camera control unit.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

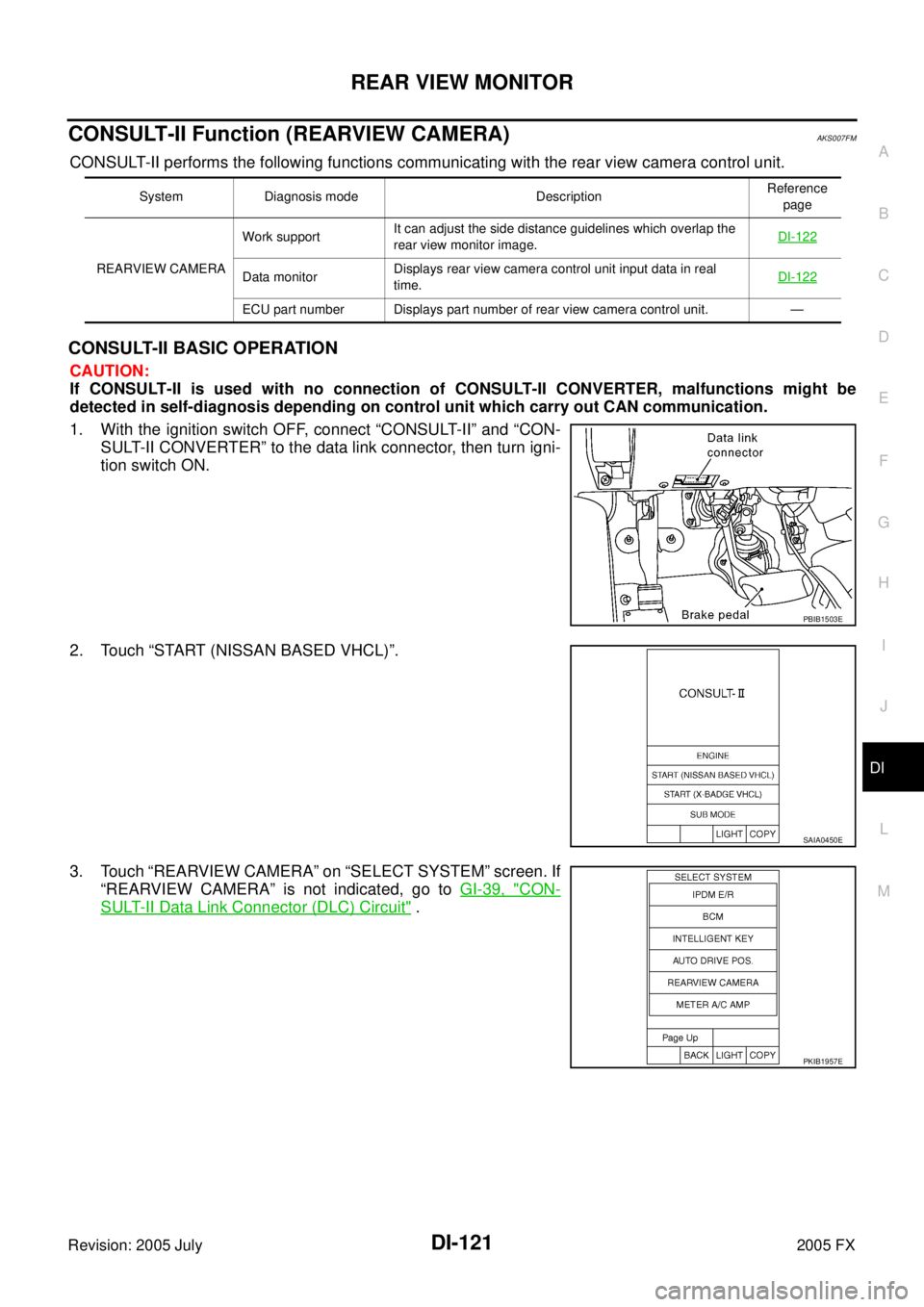

1. With the ignition switch OFF, connect “CONSULT-II” and “CON- SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “REARVIEW CAMERA” on “SELECT SYSTEM” screen. If “REARVIEW CAMERA” is not indicated, go to GI-39, "
CON-
SULT-II Data Link Connector (DLC) Circuit" .
System Diagnosis mode Description Reference
page
REARVIEW CAMERA Work support
It can adjust the side distance guidelines which overlap the
rear view monitor image. DI-122
Data monitor Displays rear view camera control unit input data in real
time. DI-122
ECU part number Displays part number of rear view camera control unit. —
PBIB1503E
SAIA0450E
PKIB1957E
Page 1383 of 4731

DI-122
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
4. Select “WORK SUPPORT”, “DATA MONITOR” or “ECU PART
NUMBER”.
WORK SUPPORT
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “SELCT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on the “WORK SUP- PORT” screen.
Refer to DI-123, "
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE" for detail.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG- NALS” is selected, all items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
SKIA5748E
SELCT GUIDELINE PATTERN Side distance guideline is optional from two patterns.
ADJ GUIDELINE POSITION Side distance guideline is adjustable toward up and down, right and left.
ALL SIGNALS Monitors all signals.
SELECTION FROM MENU Selects and monitors individual signal.
Display item [Unit] ALL
SIGNALS SELECTION
FROM MENU Contents
R POSI SIG [ON/OFF] X X Indicates [ON/OFF] condition of R range position signal input.
Page 1384 of 4731

REAR VIEW MONITOR DI-123
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Side Distance Guideline CorrectionAKS0068L
This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE

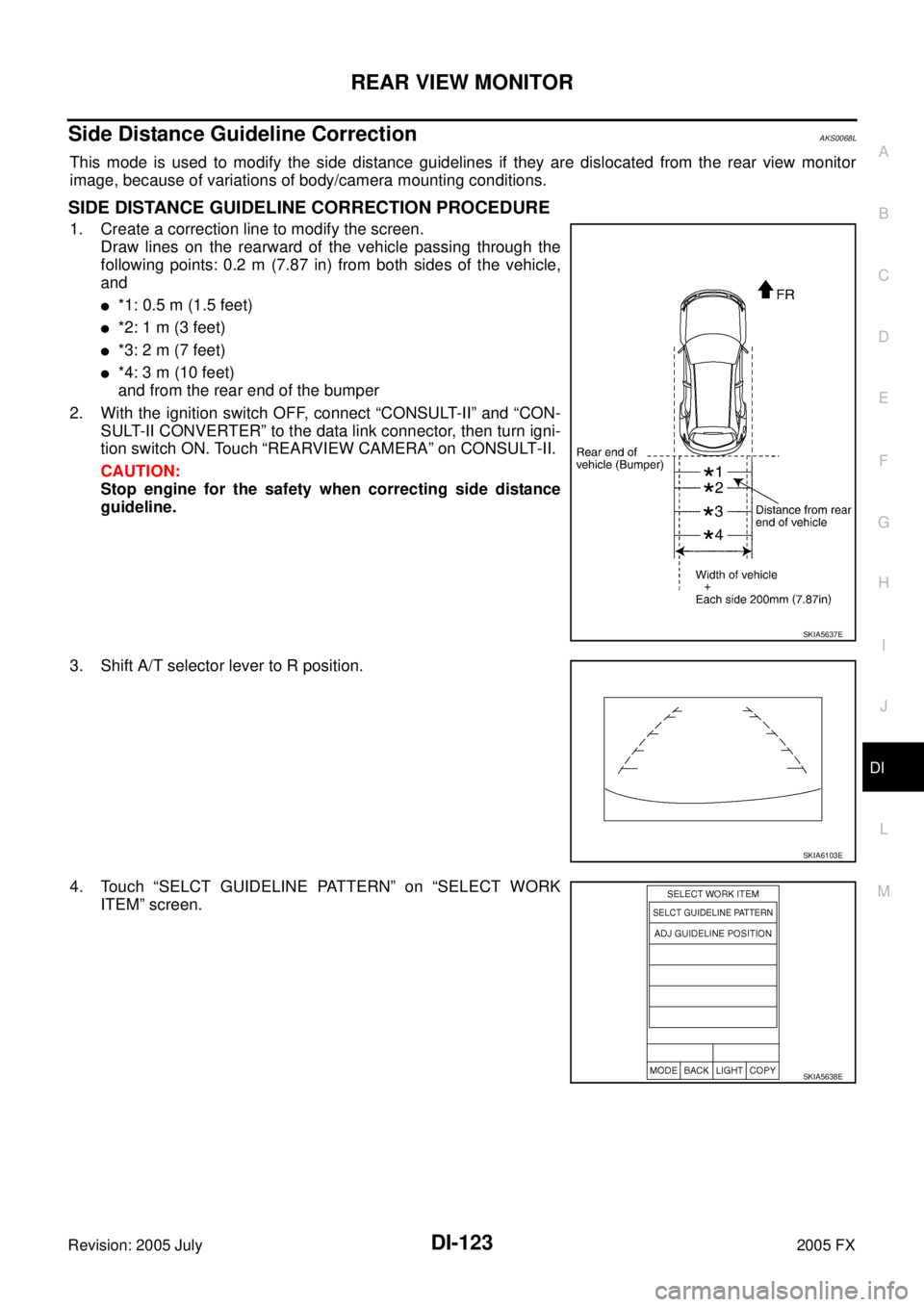

1. Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the
following points: 0.2 m (7.87 in) from both sides of the vehicle,
and
*1: 0.5 m (1.5 feet)
*2: 1 m (3 feet)
*3: 2 m (7 feet)
*4: 3 m (10 feet)
and from the rear end of the bumper
2. With the ignition switch OFF, connect “CONSULT-II” and “CON- SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON. Touch “REARVIEW CAMERA” on CONSULT-II.
CAUTION:
Stop engine for the safety when correcting side distance
guideline.
3. Shift A/T selector lever to R position.
4. Touch “SELCT GUIDELINE PATTERN” on “SELECT WORK ITEM” screen.
SKIA5637E
SKIA6103E
SKIA5638E
