Page 3697 of 4731

INFINITI FX35 2005 Service Manual LAN-278 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 10 Check BCM circuit. Refer to LAN-292, "BCM Circuit Inspection" . PKIB5955E PKIB4233E

Page 3698 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-279 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 11 Check steering angle sensor circuit. Refer to LAN-293, "Steering Angle Sensor Circuit Ins

Page 3699 of 4731

INFINITI FX35 2005 Service Manual LAN-280 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 12 Check LDW camera unit circuit. Refer to LAN-293, "LDW Camera Unit Circuit Inspection" . PKIB5957E PKIB4235E

Page 3700 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-281 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 13 Check unified meter and A/C amp. circuit. Refer to LAN-294, "Unified Meter and A/C Amp. C

Page 3701 of 4731

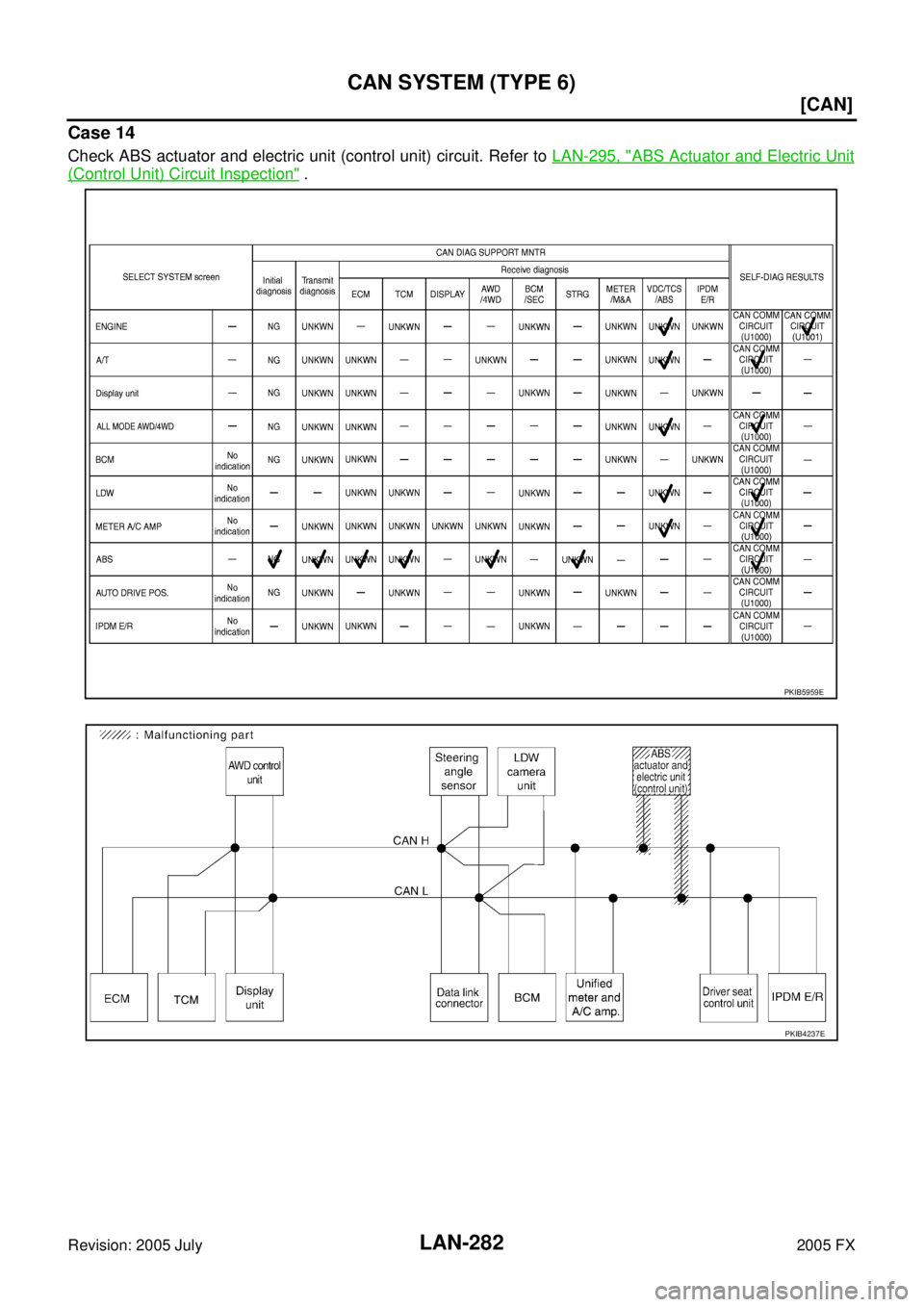

INFINITI FX35 2005 Service Manual LAN-282 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 14 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-295, "ABS Actuator and Electric Unit (Control Unit) Circ

Page 3702 of 4731

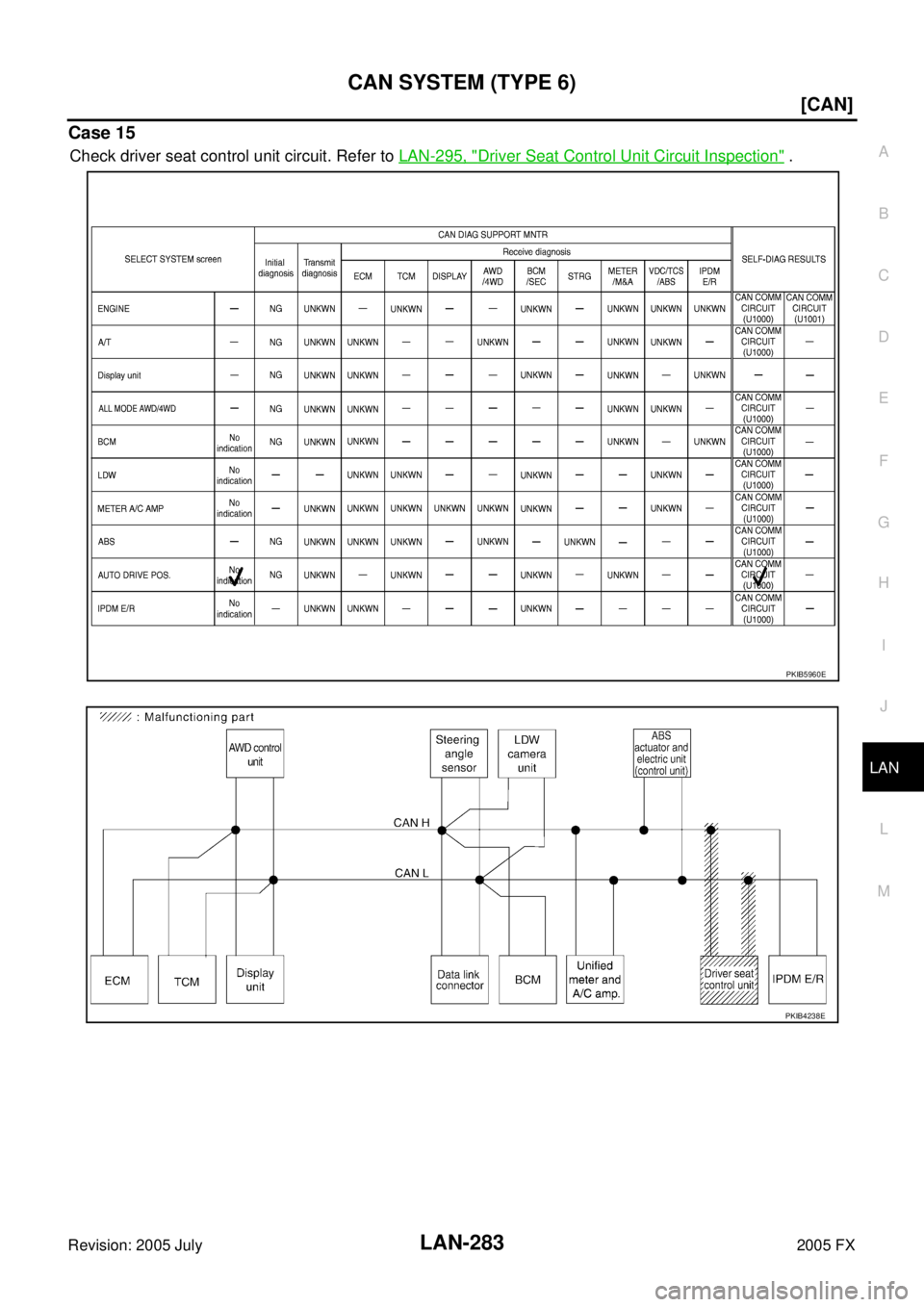

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-283 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 15 Check driver seat control unit circuit. Refer to LAN-295, "Driver Seat Control Unit Circu

Page 3703 of 4731

INFINITI FX35 2005 Service Manual LAN-284 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 16 Check IPDM E/R circuit. Refer to LAN-296, "IPDM E/R Circuit Inspection" . PKIB5961E PKIB4239E

Page 3704 of 4731

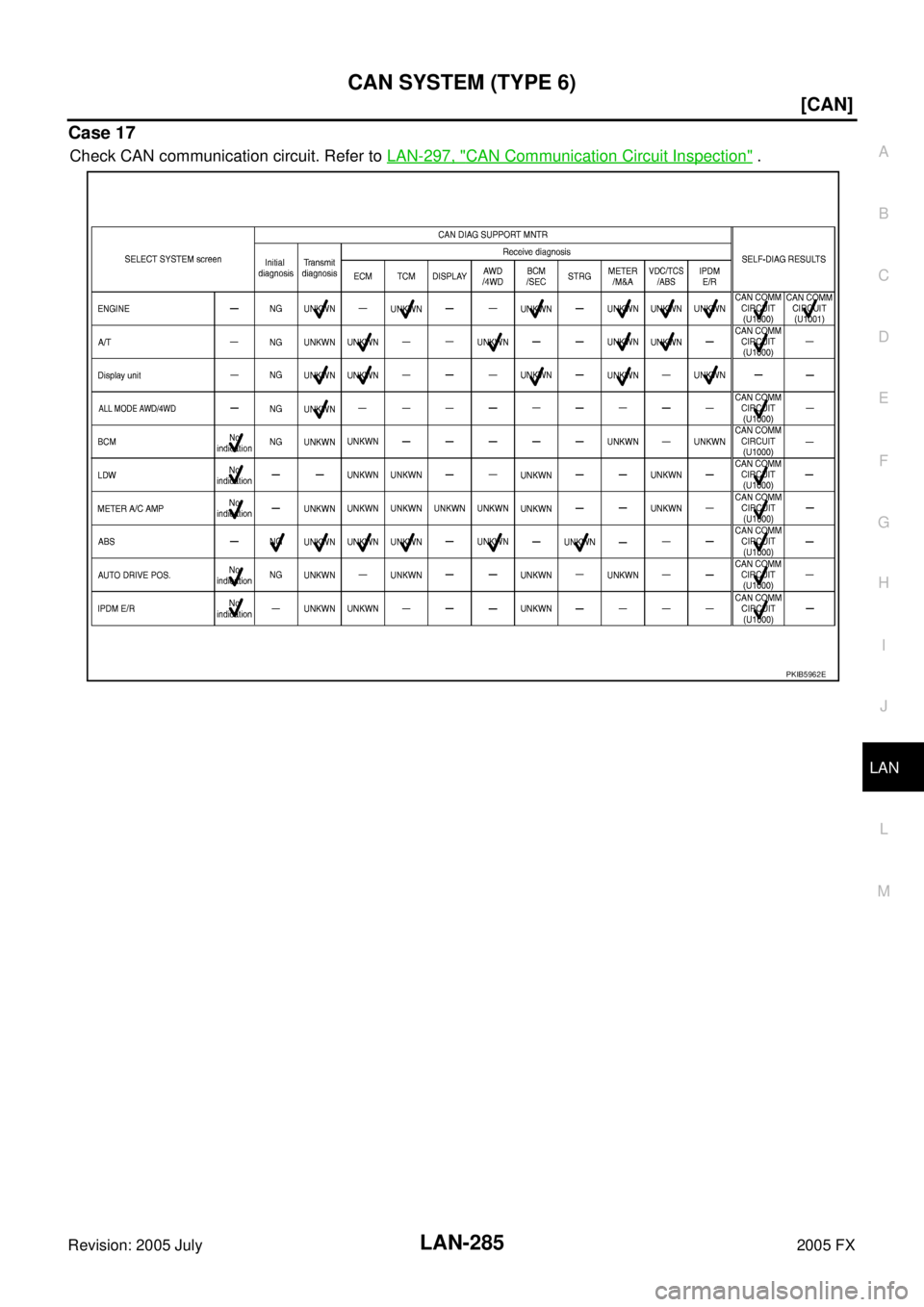

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-285 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 17 Check CAN communication circuit. Refer to LAN-297, "CAN Communication Circuit Inspection"
