INFINITI FX35 2005 Service Manual ACS-32
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-41, "Diagnostic Trouble Code (DTC) Chart" .
DATA MONITOR
Operation

ACS-32
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-41, "Diagnostic Trouble Code (DTC) Chart" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen. Refer to ACS-30, "
CONSULT-II BASIC OPERATION" .
2. Touch any of “ECU INPUT SIGNALS”, “MAIN SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Monitored Item
× : Applicable
PKIB0112E
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description
VHCL SPEED SE
[km/h] or [mph] ××× Indicates vehicle speed calculated from ICC unit through CAN
communication [ABS actuator and electric unit (control unit)
transmits wheel speed sensor signal through CAN communica-
tion].
SET VHCL SPD
[km/h] or [mph] ×× Indicates set vehicle speed memorized in ICC unit.
THRTL OPENING
[%] ××× Indicates throttle angle read from ICC unit through CAN commu-
nication (ECM transmits throttle angle through CAN communi-
cation).
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN com-
munication (ECM transmits engine speed through CAN commu-
nication).
DISTANCE ADJ
[SHOR/MID/LONG] ×××
Indicates set distance memorized in ICC unit.
WIPER SW
[OFF/LOW/HIGH] ×× Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front
wiper request signal through CAN communication).
MAIN SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
SET/COAST SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CANCEL SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
RESUME/ACC SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CRUISE OPE
[ON/OFF] ×× Indicates whether controlling or not (ON means “controlling”).
BRAKE SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC brake switch sig-
nal.
STOP LAMP SW
[ON/OFF] ×××
Indicates [ON/OFF] status as judged from stop lamp switch sig-
nal.

Page 42 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-33
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
RELEASE SW NO
[ON/OFF] ×× Indicates [ON/OFF] status as judged from rele

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-33
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
RELEASE SW NO
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.
RELEASE SW NC
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is not depressed.
OFF when brake is depressed.
IDLE SW
[ON/OFF] ×× Indicates [ON/OFF] status of idle switch read from ICC unit
through CAN communication (ECM transmits ON/OFF status
through CAN communication).
GEAR
[1, 2, 3, 4, 5] ×× Indicates AT gear position read from ICC unit through CAN com-
munication (TCM transmits gear position through CAN commu-
nication).
BUZZER O/P
[ON/OFF] ×
Indicates [ON/OFF] status of ICC warning chime output.
ICC WARNING × NOTE:
This item is displayed, but cannot monitor.
VHCL SPD AT
[km/h] or [mph] × Indicates vehicle speed calculated from AT vehicle speed sen-
sor read from ICC unit through CAN communication (TCM
transmits AT vehicle speed sensor signal through CAN commu-
nication).
PRESS SENS
[bar] ××× Indicates brake fluid pressure value calculated from signal volt-
age of pressure sensor.
PRESS SENS 2 ×× NOTE:
This item is displayed, but cannot monitor.
D RANGE SW
[ON/OFF] ×× Indicates [ON/OFF] status of “D” position read from ICC unit
through CAN communication (TCM transmits ON/OFF condition
of “D” position through CAN communication).
AT OD OFF
[ON/OFF] ×
Indicates [ON/OFF] status of OD cancel output under control.
NP RANGE SW
[ON/OFF] ×× Indicates PNP switch signal read from ICC unit through CAN
communication (TCM transmits PNP switch signal through CAN
communication).
DISTANCE × NOTE:
This item is displayed, but cannot monitor.
RELATIVE SPD × NOTE:
This item is displayed, but cannot monitor.
STP LMP DRIVE
[ON/OFF] ××Indicates [ON/OFF] status of brake hold relay drive output.
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description

Page 43 of 4731

INFINITI FX35 2005 Service Manual ACS-34
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
ACTIVE TEST
CAUTION:
Never perform the active test while driving.
Active test cannot be started while ICC system wa

Page 44 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-35
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
BOOSTER SOL/V 3
Touch any of “MODE 1”, “MODE 2”, “MODE 3” to ch

Page 45 of 4731

INFINITI FX35 2005 Service Manual ACS-36
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
Self-Diagnostic FunctionAKS00C8N
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom infor

ACS-36
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
Self-Diagnostic FunctionAKS00C8N
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-9, "ACTION
TEST" .
2. Stop vehicle, turn ignition switch OFF, then connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. With engine started, touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” on CON- SULT-II screen in this order.
CAUTION:
If “ICC” cannot be shown after several attempts, the ICC unit may have had malfunction. Repair or
replace it. Refer to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Self-diagnostic result appears on screen. If “NO DTC ···” is shown, check ICC warning lamp. If any mal- function is indicated, GO TO step 5.
5. According to ACS-41, "
Diagnostic Trouble Code (DTC) Chart" , perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start the engine and touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULT”, and “ERASE” on CONSULT-II display in turn to erase the memory.
CAUTION:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp does not illuminate.
WITHOUT CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-9, "ACTION
TEST" .
2. Stop the vehicle to start the self-diagnosis.
3. Turn ignition switch OFF.
4. From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/
COAST switch 5 times.
CAUTION:
Never start the engine.
Never turn the MAIN switch ON.
When operation above is not completed from 5 seconds
through 15 seconds, start again from above go to 3.
If self-diagnosis mode cannot be started after several
attempts, the ICC unit may have had malfunction. Repair
or replace it. Refer to ACS-38, "
SELF-DIAGNOSIS BY ICC
SYSTEM DISPLAY WILL NOT RUN" .
PKIA9675E

Page 46 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-37
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX

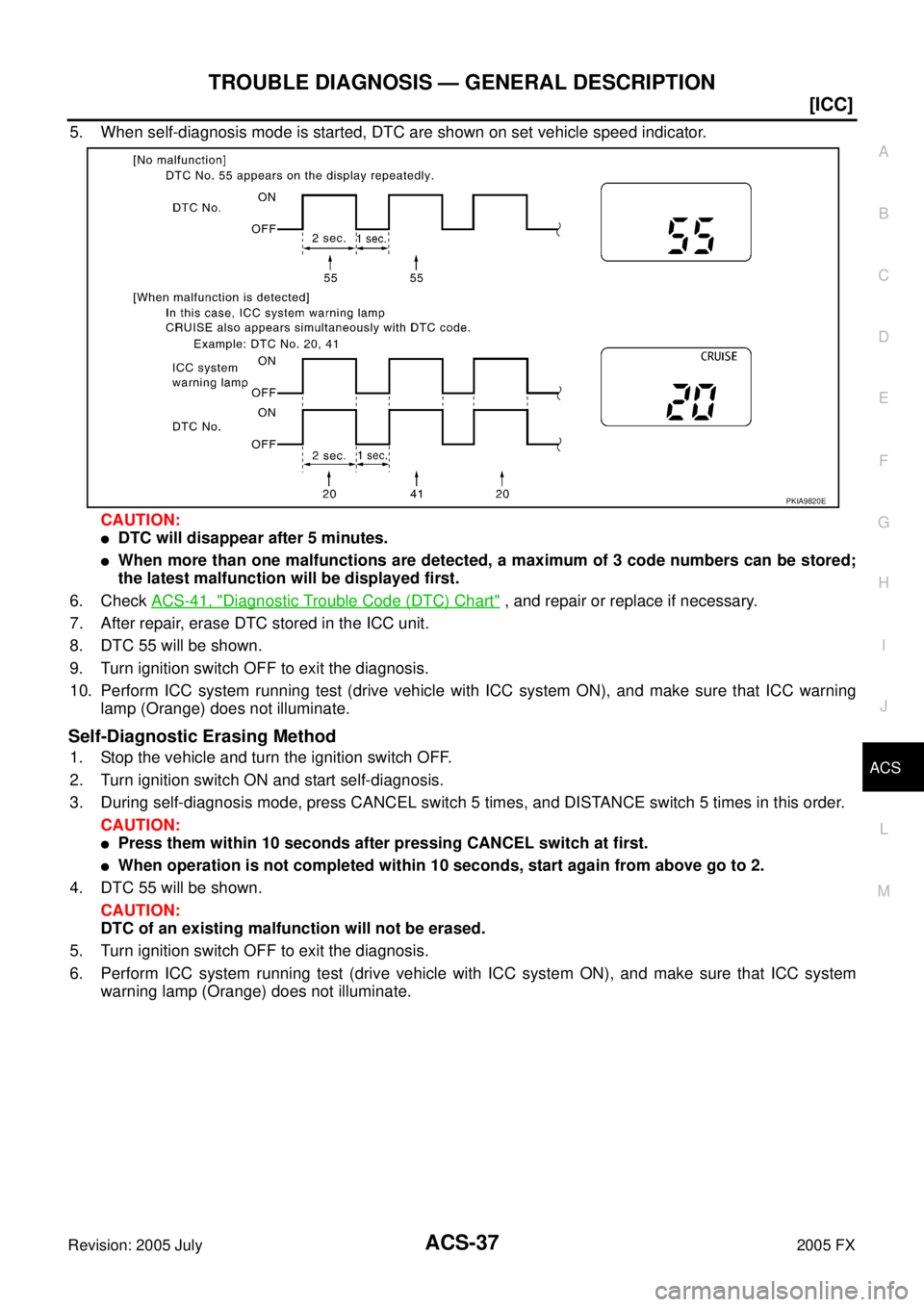

5. When self-diagnosis mode is started, DTC are shown on set vehicle speed i

Page 47 of 4731

INFINITI FX35 2005 Service Manual ACS-38
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: 2005 July 2005 FX
SELF-DIAGNOSIS BY ICC SYSTEM DISPLAY WILL NOT RUN
Possible Irregular Condition
1. CHECK FUSES
Check that any of the

Page 48 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-39
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2005 July 2005 FX
3. CHECK HARNESS BETWEEN ECM AND ICC STEERING SWITCH
1. Turn ignition switc
