Page 3881 of 4731
![INFINITI FX35 2005 Service Manual LAN-462
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C INFINITI FX35 2005 Service Manual LAN-462
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C](/manual-img/42/57020/w960_57020-3880.png)
LAN-462
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness connector M55 terminals 1 (L) and 11 (R).
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp.
and harness connector M41.
ABS Actuator and Electric Unit (Control Unit) Circuit InspectionAKS00FE9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con- trol unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit (control unit) and harness connector E205.
IPDM E/R Circuit InspectionAKS00FEA
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 1 (L) - 11 (R) : Approx. 54 - 66
Ω
SKIA6871E
11 (L) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E
Page 3882 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-463
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance betwee INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-463
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance betwee](/manual-img/42/57020/w960_57020-3881.png)
CAN SYSTEM (TYPE 10) LAN-463
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and ABS actuator
and electric unit (control unit).
CAN Communication Circuit InspectionAKS00FEB
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side, control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display unit
–AWD control unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 48 (L) - 49 (R) : Approx. 108 - 132
Ω
SKIB1363E
Page 3883 of 4731
![INFINITI FX35 2005 Service Manual LAN-464
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connect INFINITI FX35 2005 Service Manual LAN-464
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connect](/manual-img/42/57020/w960_57020-3882.png)
LAN-464
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connector
–AWD control unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L) and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display unit
Harness between data link connector and AWD control unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display unit
Harness between data link connector and AWD control unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
6 (L) - 14 (R) : Continuity should not exist.
PKIA9865E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA9872E
Page 3884 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-465
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity b INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-465
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity b](/manual-img/42/57020/w960_57020-3883.png)
CAN SYSTEM (TYPE 10) LAN-465
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E
11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E
Page 3885 of 4731
![INFINITI FX35 2005 Service Manual LAN-466
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 termina INFINITI FX35 2005 Service Manual LAN-466
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 termina](/manual-img/42/57020/w960_57020-3884.png)

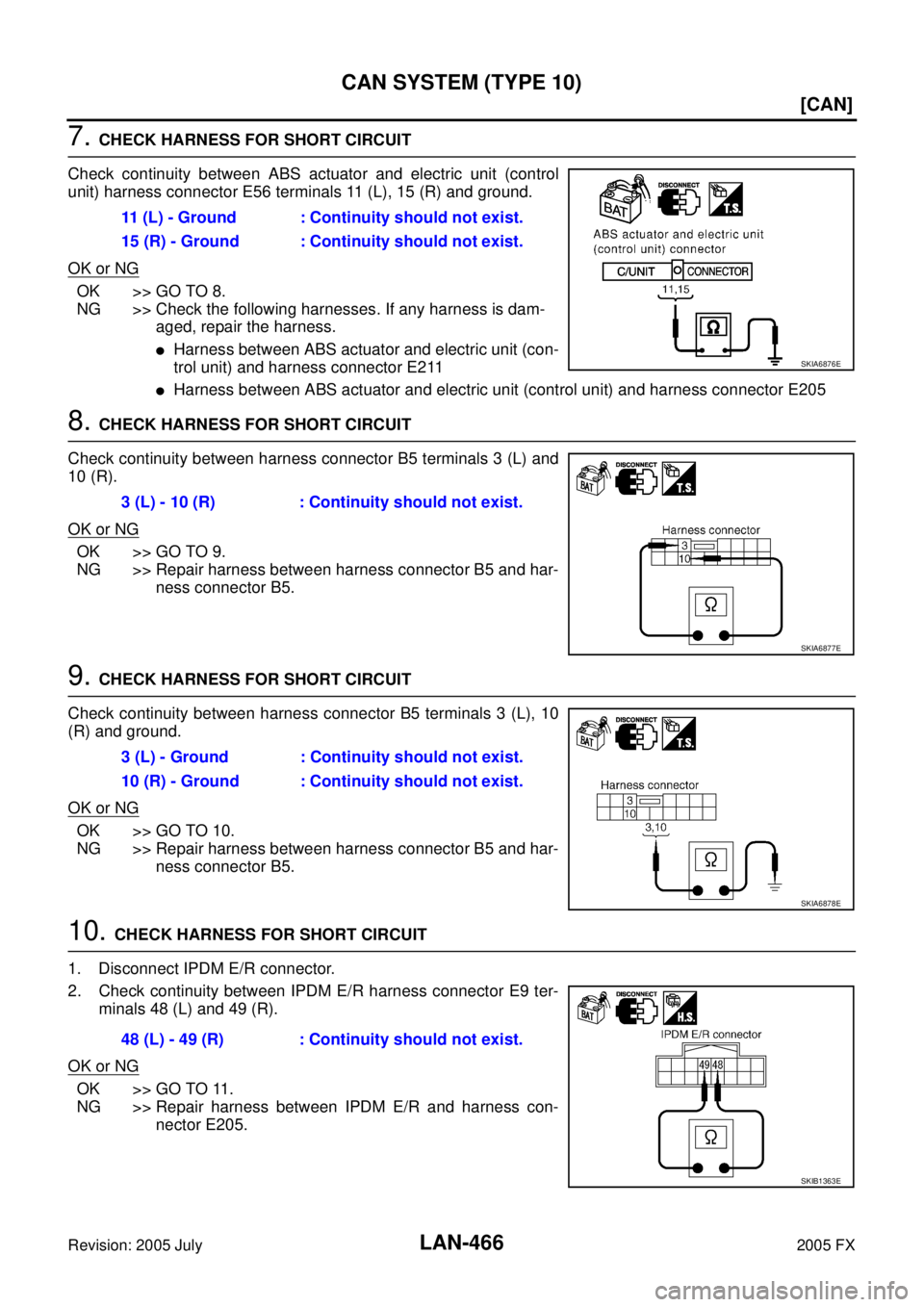

LAN-466
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211
Harness between ABS actuator and electric unit (control unit) and harness connector E205
8. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L) and
10 (R).
OK or NG
OK >> GO TO 9.
NG >> Repair harness between harness connector B5 and har-
ness connector B5.
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Repair harness between harness connector B5 and har-
ness connector B5.
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 11.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E
3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
48 (L) - 49 (R) : Continuity should not exist.
SKIB1363E
Page 3886 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-467
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 te INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 10) LAN-467
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 te](/manual-img/42/57020/w960_57020-3885.png)
CAN SYSTEM (TYPE 10) LAN-467
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
12. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals 94 and 86.
3. Check resistance between IPDM E/R terminals 48 and 49.
OK or NG
OK >> GO TO 13.
NG >> Replace ECM and/or IPDM E/R.
13. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 14.
NG >> Refer to LAN-16, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIB1364E
94 - 86 : Approx. 108 - 132 Ω
48 - 49 : Approx. 108 - 132 Ω
LKIA0037E
Page 3887 of 4731
LAN-468
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX
14. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–Display unit
–AWD control unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
Page 3888 of 4731
CAN SYSTEM (TYPE 10) LAN-469
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
IPDM E/R Ignition Relay Circuit InspectionAKS00FEC
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
