Page 3097 of 4731

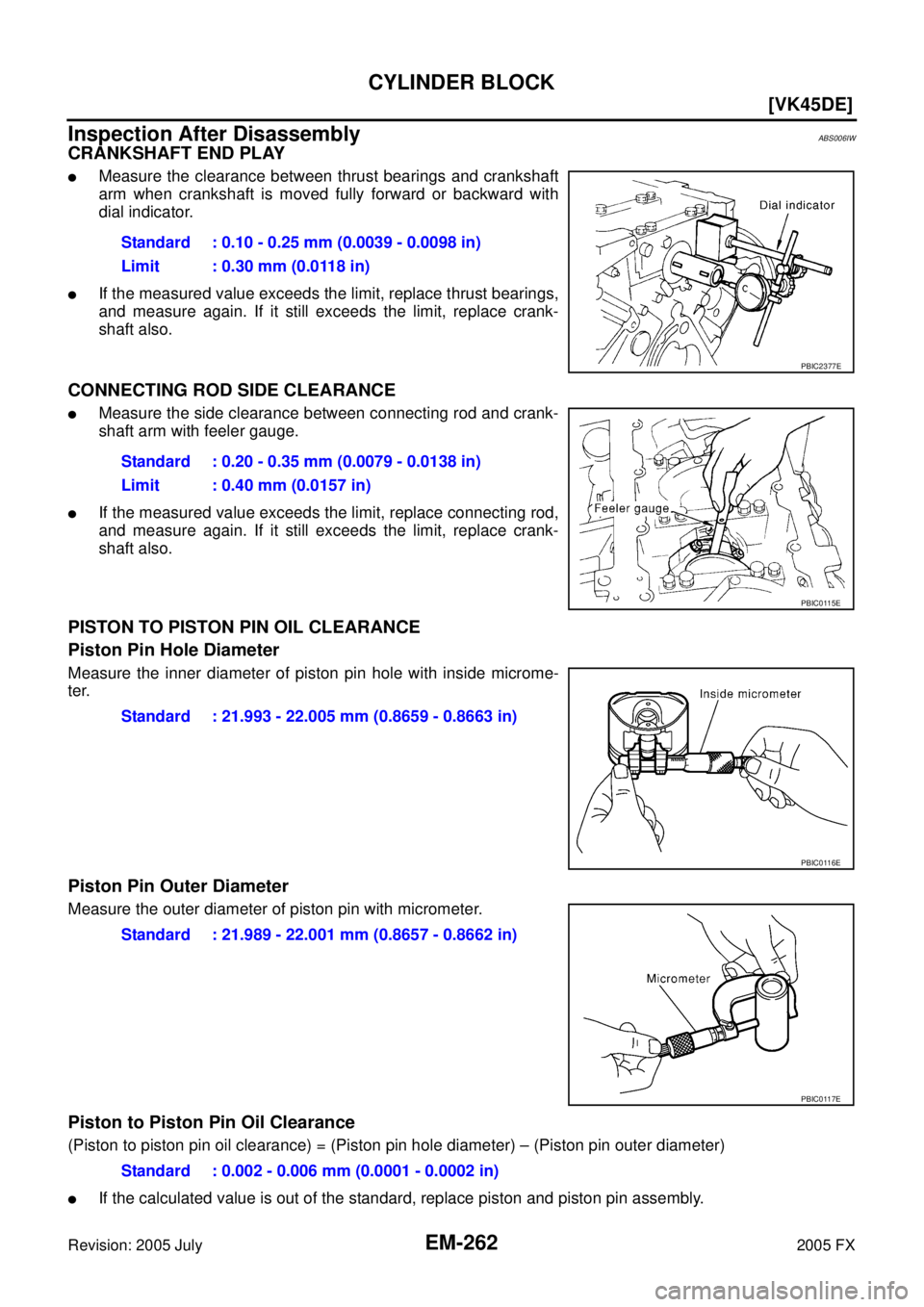

INFINITI FX35 2005 Service Manual EM-262 [VK45DE] CYLINDER BLOCK Revision: 2005 July 2005 FX Inspection After DisassemblyABS006IW CRANKSHAFT END PLAY Measure the clearance between thrust bearings and crankshaft arm when crankshaft i

Page 3098 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-263 [VK45DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX When replacing piston and piston pin assembly, refer to EM-255, "HOW TO SELECT PISTON" . NOTE: Pis

Page 3099 of 4731

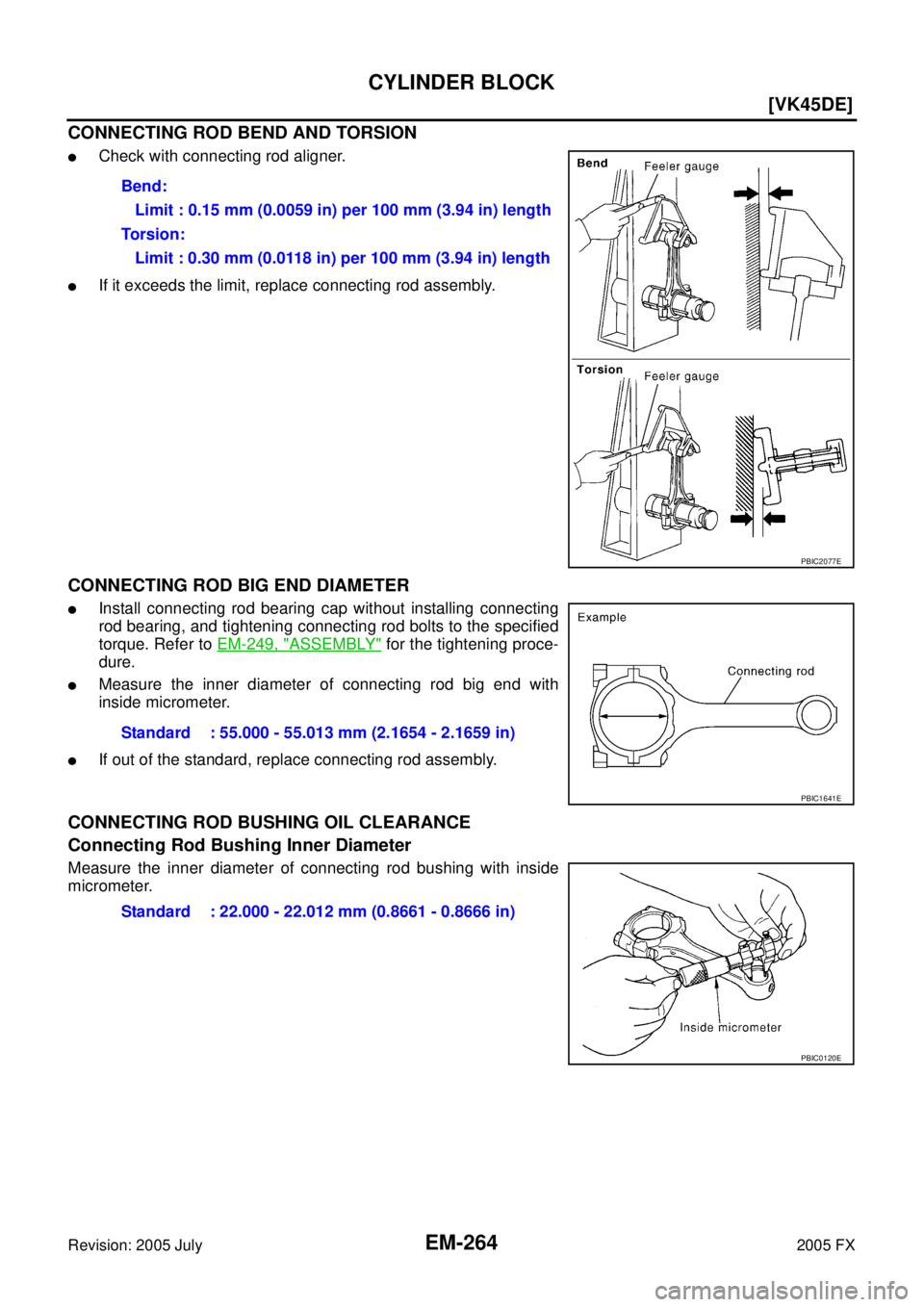

INFINITI FX35 2005 Service Manual EM-264 [VK45DE] CYLINDER BLOCK Revision: 2005 July 2005 FX CONNECTING ROD BEND AND TORSION Check with connecting rod aligner. If it exceeds the limit, replace connecting rod assembly. CONNECTING ROD

Page 3100 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-265 [VK45DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX Piston Pin Outer Diameter Measure the outer diameter of piston pin with micrometer. Connecting Rod Bu

Page 3101 of 4731

INFINITI FX35 2005 Service Manual EM-266 [VK45DE] CYLINDER BLOCK Revision: 2005 July 2005 FX Measure the distortion on the cylinder block upper face at some different points in six directions with straightedge and feeler gauge. If

Page 3102 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-267 [VK45DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX Piston Skirt Diameter Measure the outer diameter of piston skirt with micrometer. Measure point “

Page 3103 of 4731

INFINITI FX35 2005 Service Manual EM-268 [VK45DE] CYLINDER BLOCK Revision: 2005 July 2005 FX If out of the standard, measure the main bearing oil clearance. Then use undersize bearing. Refer to EM- 270, "MAIN BEARING OIL CLEARANCE" .

Page 3104 of 4731

INFINITI FX35 2005 Service Manual CYLINDER BLOCK EM-269 [VK45DE] C D E F G H I J K L M A EM Revision: 2005 July 2005 FX CONNECTING ROD BEARING OIL CLEARANCE Method by Calculation Install connecting rod bearings to conne
