PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
5. CHECK PARKING, LICENSE PLATE AND SIDE MARKER LAMPS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

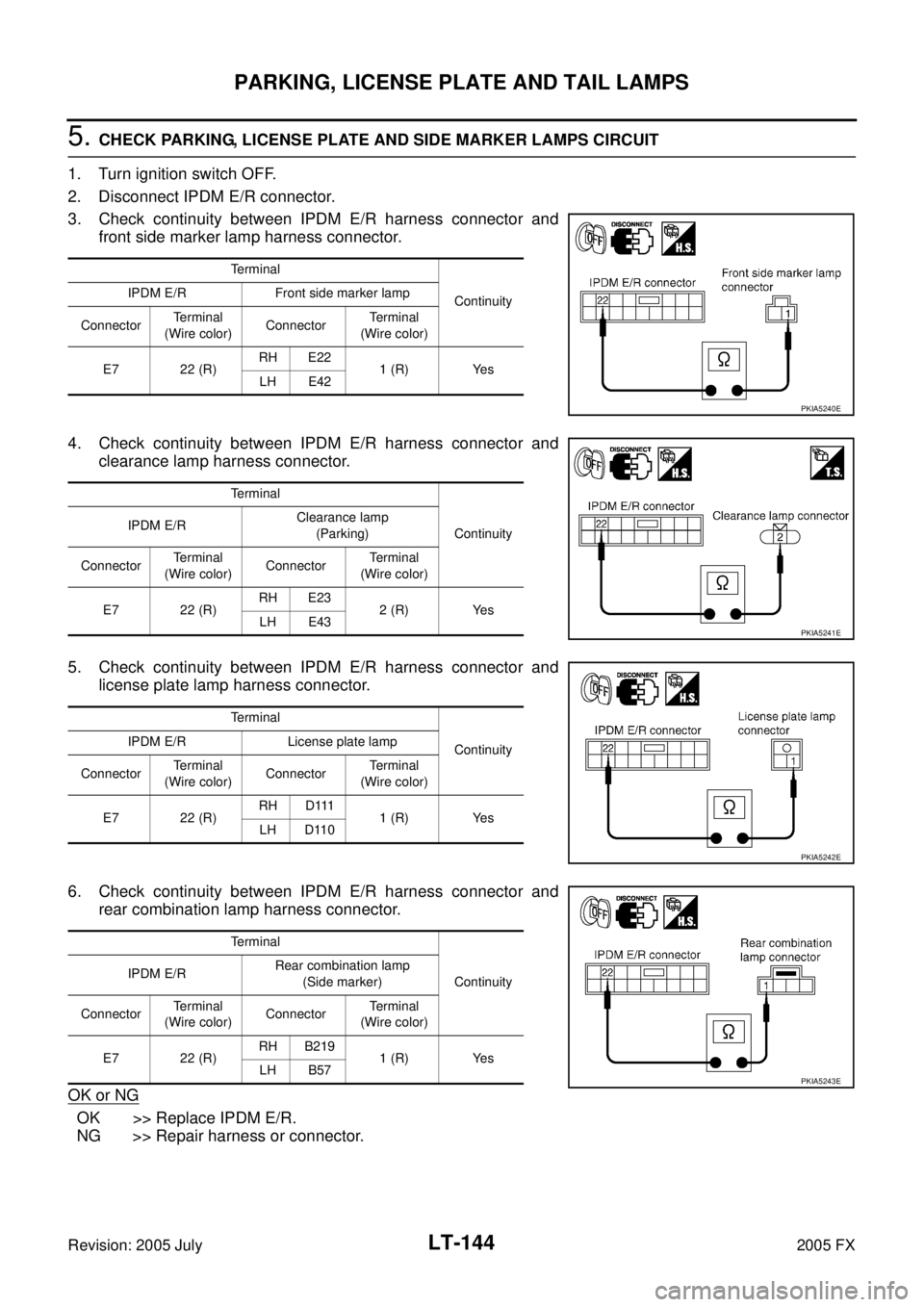

3. Check continuity between IPDM E/R harness connector and front side marker lamp harness connector.
4. Check continuity between IPDM E/R harness connector and clearance lamp harness connector.
5. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.
6. Check continuity between IPDM E/R harness connector and rear combination lamp harness connector.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Terminal
Continuity
IPDM E/R Front side marker lamp
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
E7 22 (R) RH E22
1 (R) Yes
LH E42
PKIA5240E
Terminal
Continuity
IPDM E/R
Clearance lamp
(Parking)
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
E7 22 (R) RH E23
2 (R) Yes
LH E43
PKIA5241E
Terminal
Continuity
IPDM E/R License plate lamp
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
E7 22 (R) RH D111
1 (R) Yes
LH D110
PKIA5242E
Terminal
Continuity
IPDM E/R Rear combination lamp
(Side marker)
Connector Terminal
(Wire color) Connector
Terminal
(Wire color)
E7 22 (R) RH B219
1 (R) Yes
LH B57
PKIA5243E
Page 4034 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-145
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
6. CHECK GROUND
1. Turn ignition switch OFF.

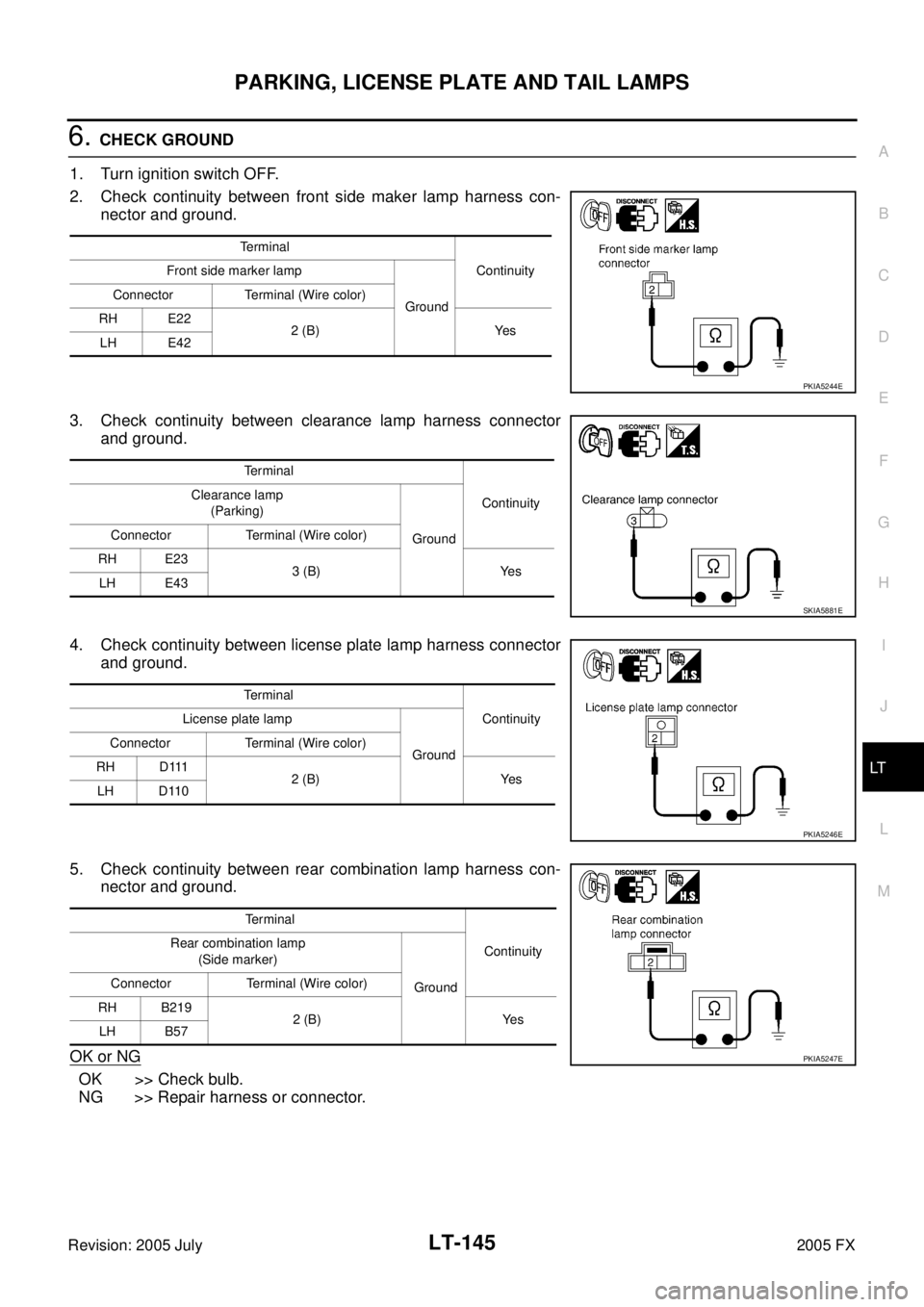

2. Check continuity between front side maker lamp harness con- nector and ground.
3. Check continuity between clearance lamp harness connector and ground.
4. Check continuity between license plate lamp harness connector and ground.
5. Check continuity between rear combination lamp harness con- nector and ground.
OK or NG
OK >> Check bulb.
NG >> Repair harness or connector.
Terminal
Continuity
Front side marker lamp
Ground
Connector Terminal (Wire color)
RH E22 2 (B) Yes
LH E42
PKIA5244E
Te r m i n a l
Continuity
Clearance lamp
(Parking)
Ground
Connector Terminal (Wire color)
RH E23 3 (B) Yes
LH E43
SKIA5881E
Terminal
Continuity
License plate lamp
Ground
Connector Terminal (Wire color)
RH D111 2 (B) Yes
LH D110
PKIA5246E
Te r m i n a l
Continuity
Rear combination lamp
(Side marker)
Ground
Connector Terminal (Wire color)
RH B219 2 (B) Yes
LH B57
PKIA5247E
Page 4035 of 4731

LT-146
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
Tail Lamp Does Not OperateAKS007IN
1. CHECK STOP LAMP AND TURN SIGNAL LAMP
Make sure stop lamps and turn signal lamps is illuminated.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL
Check voltage between rear combination lamp control unit harness
connector B65 terminal 2 (R) and ground.
OK or NG
OK >> Replace rear combination lamp control unit.
NG >> Repair harness or connector.
3. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between rear combination lamp control unit har- ness connector B65 terminal 1 (GY) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK GROUND CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
Terminal
(-) Condition Voltage
(+)
Connector Terminal
(Wire color)
B65 2 (R) Ground Lighting switch 1ST
position is ON Battery voltage
Lighting switch 1ST position is OFF Approx. 0V
PKIA5248E
1 (GY) – Ground : Battery voltage.
PKIB3526E
7 (B) – Ground : Continuity should exist.
SKIA5908E
Page 4036 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-147
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
5. CHECK TURN SIGNAL LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connector.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 11 (W) and rear combination
lamp LH harness connector B57 terminal 3 (W).
3. Check continuity between rear combination lamp control unit harness connector B65 terminal 10 (BR) and rear combination
lamp LH harness connector B57 terminal 4 (BR).
4. Check continuity between rear combination lamp control unit harness connector B65 terminal 9 (LG) and rear combination lamp RH harness connector B219 terminal 3
(LG).
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 (Y) and rear combination lamp RH harness connector B219 terminal 4 (Y).
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal lamps is illuminated.
NG >> Repair harness or connector.
Parking, License Plate, Side Maker and Tail Lamps Do Not Turn OFF (After
Approx. 10 Minutes)
AKS007E4
1. CHECK IPDM E/R
1. Turn ignition switch ON. Turn combination switch (lighting switch) to the OFF position. Turn ignition switch OFF.
2. Verify that parking, license plate, and tail lamps turn on and off after approximately 10 minutes.
OK or NG
OK >> Ignition relay malfunction. Refer to PG-19, "Function of Detecting Ignition Relay Malfunction" .
NG >> INSPECTION END
License Plate LampAKS007E5
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove screws and remove license plate lamp from back door.
2. Disconnect license plate lamp connector. 11 (W) – 3 (W) : Continuity should exist.
10 (BR) – 4 (BR) : Continuity should exist.
9 (LG) – 3 (LG) : Continuity should exist.
8 (Y) – 4 (Y) : Continuity should exist.
SKIA5910E
SKIA5567E
Page 4037 of 4731

LT-148
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
3. Insert a flat head or suitable tool and remove housing.
4. Remove bulb from it's socket.
5. Installation is the reverse order of removal.
Front Parking LampAKS007E6
BULB REPLACEMENT
For bulb replacement, refer to LT- 3 6 , "Bulb Replacement" in “HEADLAMP-XENON TYPE-”.
REMOVAL AND INSTALLATION
For front parking lamp removal and installation procedures, refer to LT- 3 7 , "Removal and Installation" in
“HEAD LAMP -XENON TYPE-”.
Tail LampAKS007E7
BULB REPLACEMENT
For bulb replacement, refer to LT- 1 4 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
REMOVAL AND INSTALLATION
For tail lamp removal and installation procedures, refer to LT- 1 4 9 , "Removal and Installation" in “REAR COM-
BINATION LAMP”.
Front Side Marker LampAKS007E8
BULB REPLACEMENT
For bulb replacement, refer to LT- 3 6 , "Bulb Replacement" in “HEADLAMP-XENON TYPE-”.
REMOVAL AND INSTALLATION
For head lamp removal and installation procedures, refer to LT- 3 7 , "Removal and Installation" in “HEAD
LAMP-XENON TYPE-”.
Rear Side Marker LampAKS007E9
BULB REPLACEMENT
For bulb replacement, refer to LT- 1 4 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
REMOVAL AND INSTALLATION
For rear side marker lamp removal and installation procedures, refer to LT- 1 4 9 , "Removal and Installation" in
“REAR COMBINATION LAMP”.
Rear Combination Lamp Control UnitAKS007O3
REMOVAL AND INSTALLATION
Refer to LT- 1 0 9 , "Removal and Installation of Rear Combination Lamp Control Unit" in “TURN SIGNAL AND
HAZARD WARNING LAMPS”. License plate lamp : 12V - 5W
