Page 3649 of 4731

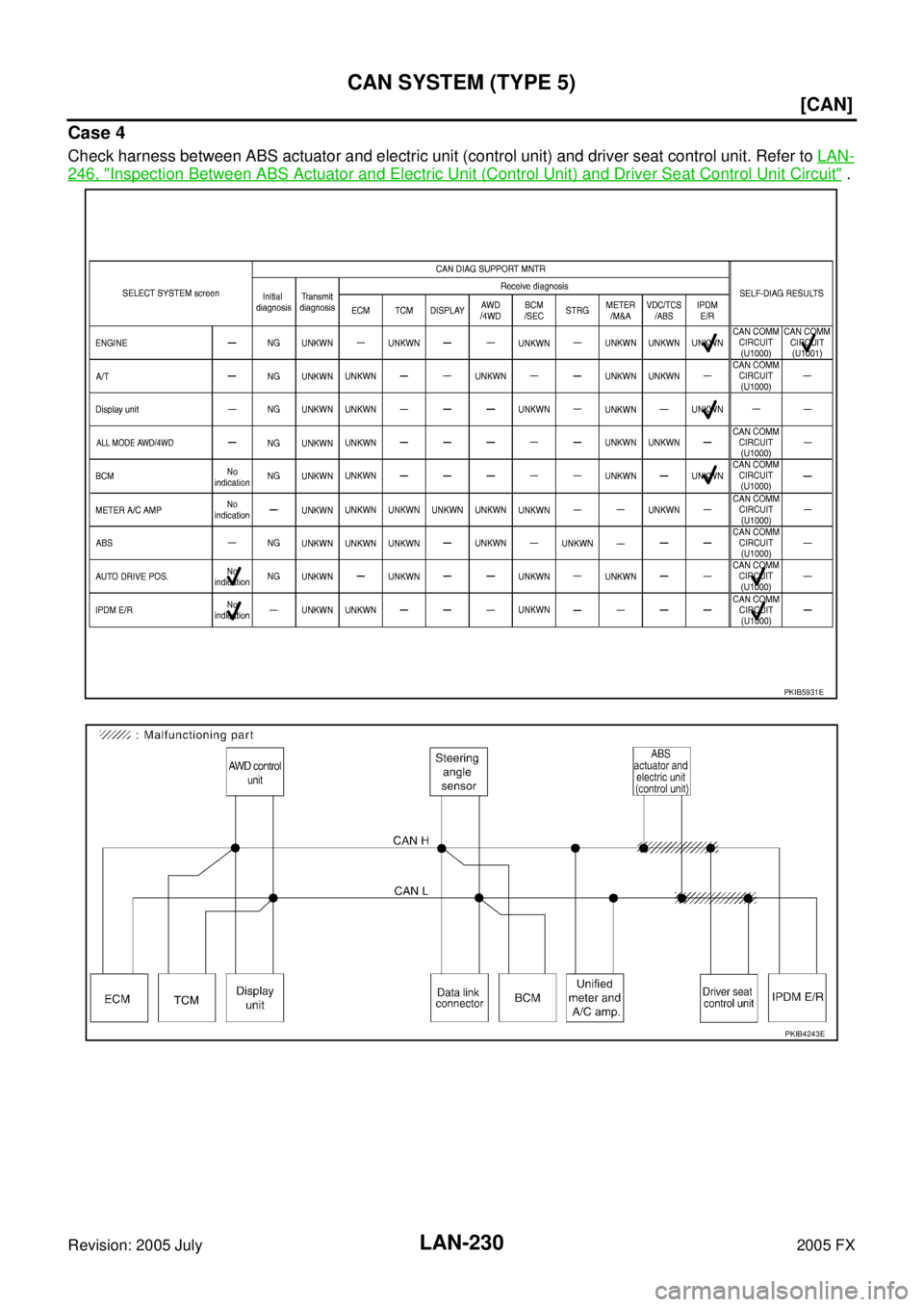

INFINITI FX35 2005 Service Manual LAN-230 [CAN] CAN SYSTEM (TYPE 5) Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 246, "Inspection Be

Page 3650 of 4731

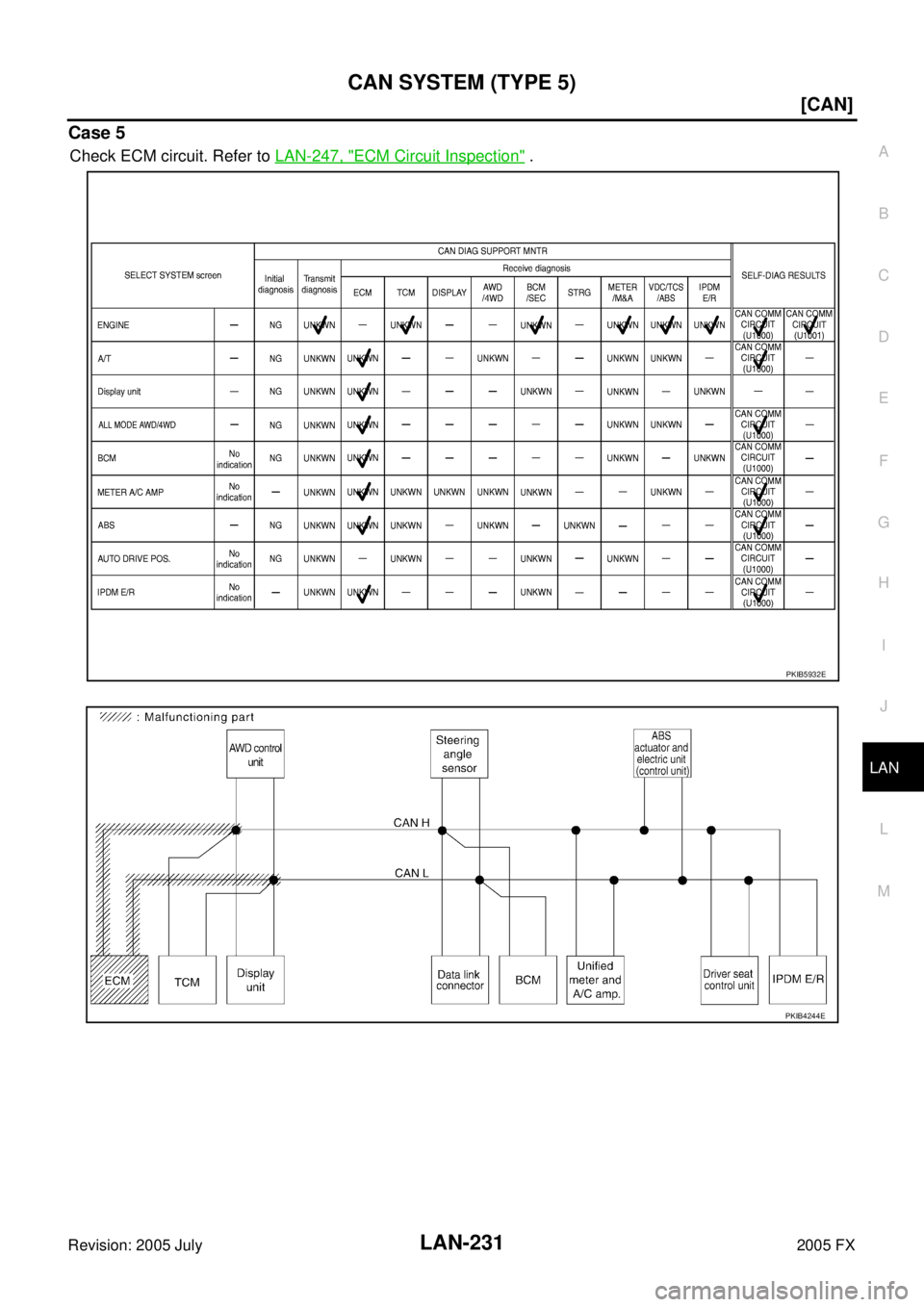

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-231 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-247, "ECM Circuit Inspection" . PKIB5932E PKIB4244E

Page 3651 of 4731

INFINITI FX35 2005 Service Manual LAN-232 [CAN] CAN SYSTEM (TYPE 5) Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-247, "TCM Circuit Inspection" . PKIB5933E PKIB4245E

Page 3652 of 4731

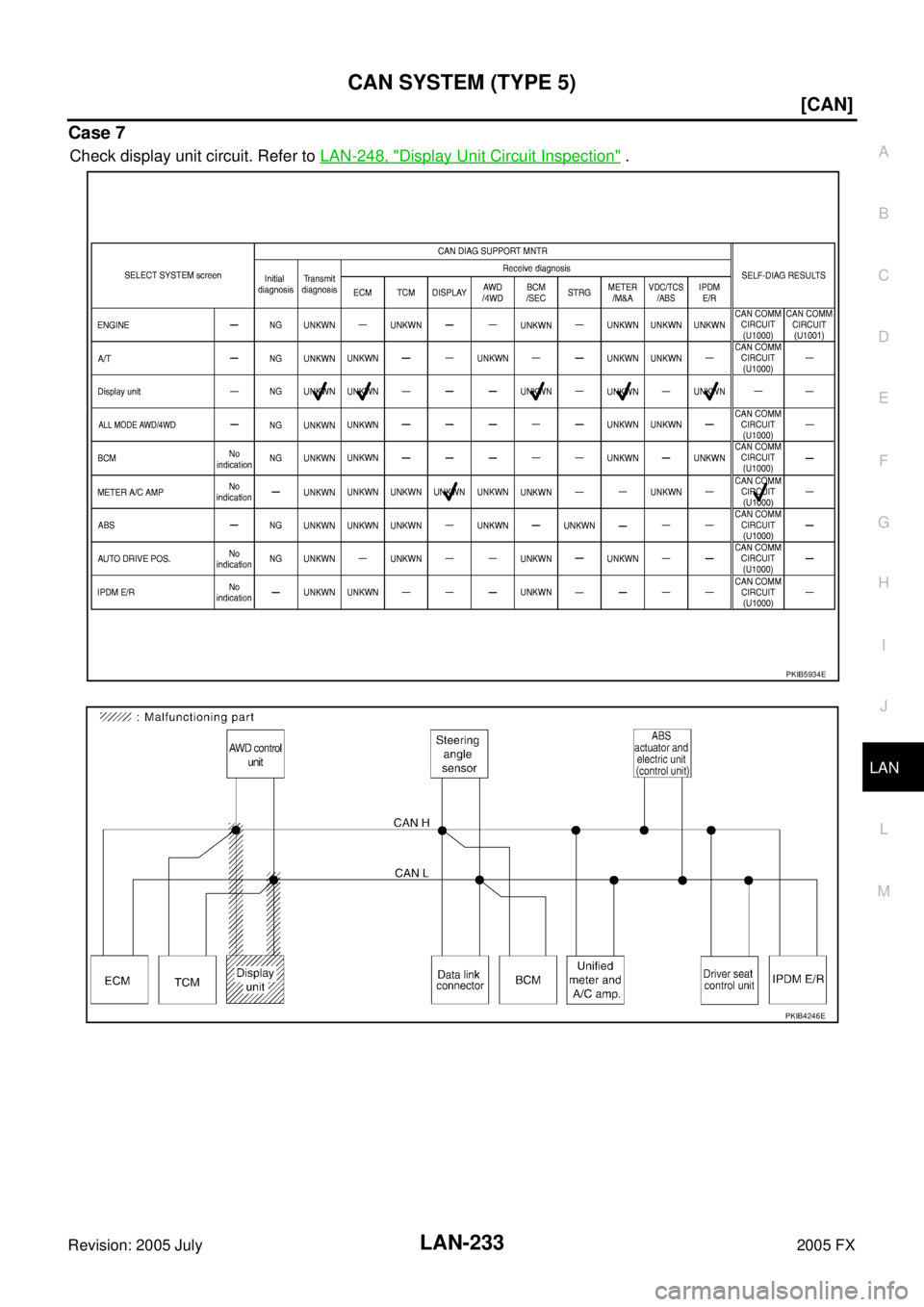

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-233 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check display unit circuit. Refer to LAN-248, "Display Unit Circuit Inspection" . PKIB5934

Page 3653 of 4731

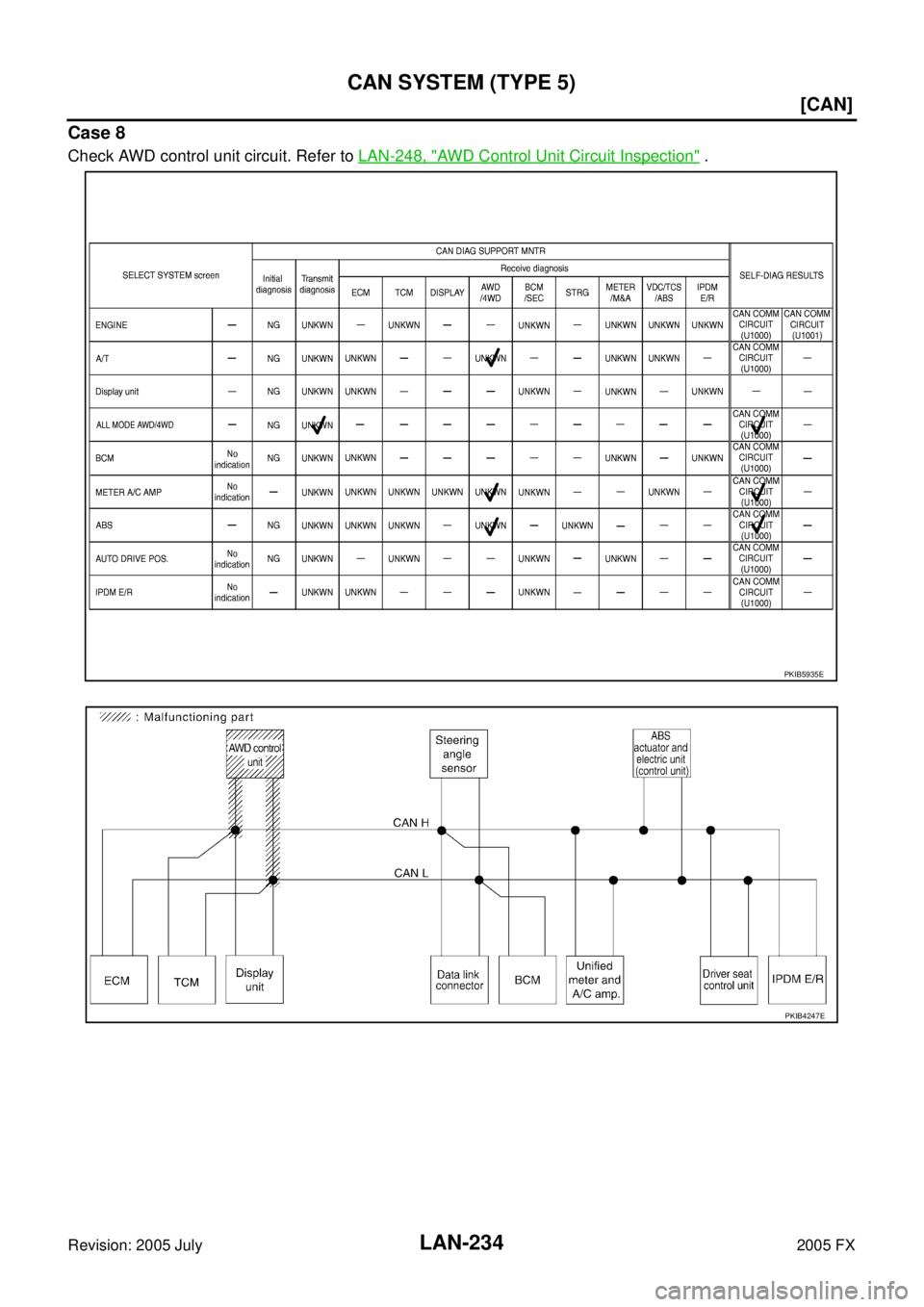

INFINITI FX35 2005 Service Manual LAN-234 [CAN] CAN SYSTEM (TYPE 5) Revision: 2005 July 2005 FX Case 8 Check AWD control unit circuit. Refer to LAN-248, "AWD Control Unit Circuit Inspection" . PKIB5935E PKIB4247E

Page 3654 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-235 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 9 Check data link connector circuit. Refer to LAN-249, "Data Link Connector Circuit Inspecti

Page 3655 of 4731

INFINITI FX35 2005 Service Manual LAN-236 [CAN] CAN SYSTEM (TYPE 5) Revision: 2005 July 2005 FX Case 10 Check BCM circuit. Refer to LAN-249, "BCM Circuit Inspection" . PKIB5937E PKIB4249E

Page 3656 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 5) LAN-237 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 11 Check steering angle sensor circuit. Refer to LAN-250, "Steering Angle Sensor Circuit Ins
