Page 2529 of 4731
EC-1136
[VK45DE]
DTC P0605 ECM
Revision: 2005 July 2005 FX
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to BL-215, "
ECM Re-Communicating Function" .
3. Perform EC-786, "
VIN Registration" .
4. Perform EC-786, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-786, "
Throttle Valve Closed Position Learning" .
6. Perform EC-787, "
Idle Air Volume Learning" .
>> INSPECTION END
Page 2530 of 4731
![INFINITI FX35 2005 Service Manual DTC P1065 ECM POWER SUPPLY EC-1137
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionABS007Q7
Battery voltage is sup INFINITI FX35 2005 Service Manual DTC P1065 ECM POWER SUPPLY EC-1137
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionABS007Q7
Battery voltage is sup](/manual-img/42/57020/w960_57020-2529.png)
DTC P1065 ECM POWER SUPPLY EC-1137
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionABS007Q7
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicABS007Q8
DTC Confirmation ProcedureABS007Q9
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
5. Repeat steps 3 and 4 for 4 times.
6. If 1st trip DTC is detected, go to EC-1139, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065 ECM power supply cir-
cuit ECM back-up RAM system does not function
properly.
Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
ECM
SEF058Y
Page 2531 of 4731
EC-1138
[VK45DE]
DTC P1065 ECM POWER SUPPLY
Revision: 2005 July 2005 FX

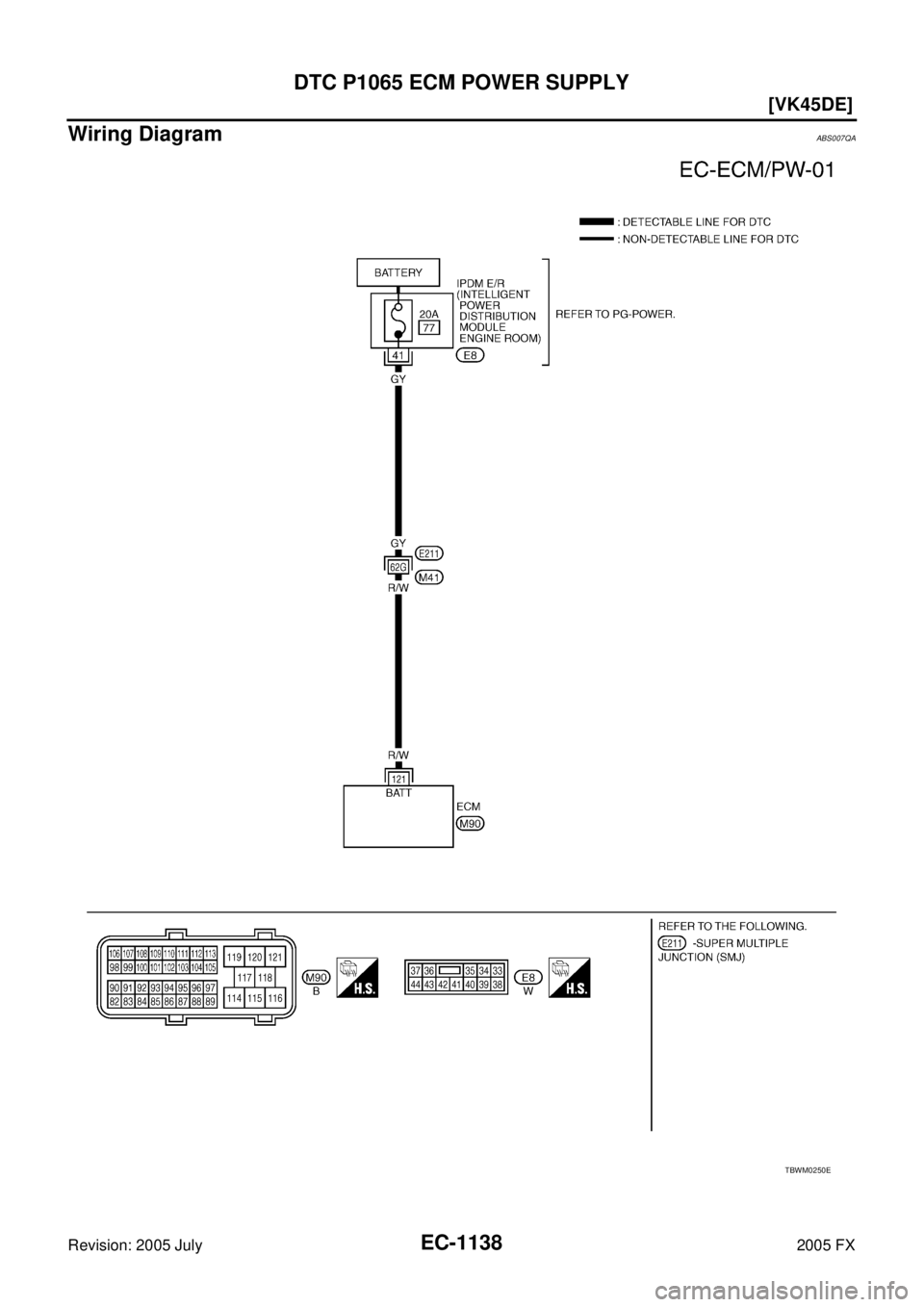

Wiring DiagramABS007QA
TBWM0250E
Page 2532 of 4731
![INFINITI FX35 2005 Service Manual DTC P1065 ECM POWER SUPPLY EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and groun INFINITI FX35 2005 Service Manual DTC P1065 ECM POWER SUPPLY EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and groun](/manual-img/42/57020/w960_57020-2531.png)
DTC P1065 ECM POWER SUPPLY EC-1139
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS007QB
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
20A fuse
IPDM E/R harness connector E8
Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
121 R/W Power supply for ECM
(Back-up) [Ignition switch: OFF] BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E
Page 2533 of 4731
![INFINITI FX35 2005 Service Manual EC-1140
[VK45DE]
DTC P1065 ECM POWER SUPPLY
Revision: 2005 July 2005 FX
4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESULTS” mode wi INFINITI FX35 2005 Service Manual EC-1140
[VK45DE]
DTC P1065 ECM POWER SUPPLY
Revision: 2005 July 2005 FX
4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESULTS” mode wi](/manual-img/42/57020/w960_57020-2532.png)
EC-1140
[VK45DE]
DTC P1065 ECM POWER SUPPLY
Revision: 2005 July 2005 FX
4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-1137, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1065 displayed again?
With GST
1. Turn ignition switch ON.
2. Select “Service $04” with GST.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-1137, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1065 displayed again?
Ye s o r N o
Yes >> GO TO 5.
No >> INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to BL-215, "
ECM Re-Communicating Function" .
3. Perform EC-786, "
VIN Registration" .
4. Perform EC-786, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-786, "
Throttle Valve Closed Position Learning" .
6. Perform EC-787, "
Idle Air Volume Learning" .
>> INSPECTION END
Page 2534 of 4731
![INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV](/manual-img/42/57020/w960_57020-2533.png)
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1141
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV EPFP:23796
Component DescriptionABS007QK
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeABS007QL
Specification data are reference values.
On Board Diagnosis LogicABS007QM
DTC Confirmation ProcedureABS007QN
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-1145, "
Diagnostic Proce-
dure" .
WITH GST
Following the procedure “WITH CONSULT-II” above.
PBIB1842E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 0% - 2%
2,000 rpm Approx. 25% - 50%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111
(Bank 1) Intake valve timing control
solenoid valve circuit An improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
Harness or connectors
(Intake valve timing control solenoid valve
circuit is open or shorted.)
Intake valve timing control solenoid valve
P1136
11 3 6
(Bank 2)
SEF058Y
Page 2535 of 4731
EC-1142
[VK45DE]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
Revision: 2005 July 2005 FX
Wiring DiagramABS007QO
BANK 1
TBWM0219E
Page 2536 of 4731
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1143
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
10 OR Intake valve timing control
solenoid valve (bank 1) [Engine is running]
Warm-up condition
Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm 7 - 12V
