Page 4017 of 4731
LT-128
BACK-UP LAMP
Revision: 2005 July 2005 FX
Bulb ReplacementAKS007DR
Refer to LT- 1 4 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and InstallationAKS007DS
Refer to LT- 1 4 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
Page 4018 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-129
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationAKS007O7
System DescriptionAKS007DT
Control of the parking, license plate, side marker and tail lamp operation is dependent upon the position of the
lighting switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body
control module) receives input signal requesting the parking, license plate, side marker and tail lamps to illumi-
nate. This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room)
across the CAN communication lines. CPU (central processing unit) located in the IPDM E/R controls the tail
lamp relay coil. This relay, when energized, directs power to the parking, license plate, side marker and tail
lamps, which then illuminate.
The current that flows by Rear combination lamp control unit is controlled, and a tail lamp (LED) is made to
turn ON.
OUT LINE
Power is supplied at all times
through 10A fuse (No. 71, located in IPDM E/R)
to tail lamp relay, located in IPDM E/R, and
to CPU located in IPDM E/R,
PKIB3478E
Page 4019 of 4731

LT-130
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
through 15A fuse (No. 78, located in IPDM E/R)
to CPU located in IPDM E/R.
Power is also supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 15A fuse [No. 22, located in fuse block (J/B)]
to BCM terminal 42,
through 10A fuse [No. 20, located in fuse block (J/B)]
to rear combination lamp control unit terminal 1,
through 10A fuse [No. 19, located in fuse block (J/B)]
to combination meter terminal 8, and
to unified meter and A/C amp. terminal 21.
With ignition switch in ON or START position, power is supplied
through ignition relay, located in IPDM E/R, from battery direct,
through 15A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 14, located in fuse block (J/B)]
to combination meter terminal 7,
through 10A fuse [No. 12, located in fuse block (J/B)]
to unified meter and A/C amp. terminal 22.
With ignition switch in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminals 49 and 52
through grounds M35, M45 and M85,
to IPDM E/R terminals 38 and 60
through grounds E21, E50 and E51,
to rear combination lamp control unit terminal 7
through grounds E21, E50 and E51,
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85,
to unified meter and A/C amp. terminals 29 and 30
through grounds M35, M45 and M85.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU located in the IPDM E/R con-
trols the tail lamp relay coil, which when energized, directs power.
through IPDM E/R terminal 22
to front side marker lamp LH terminal 1
to clearance lamp LH terminal 2
to license plate lamp LH terminal 1
to rear combination lamp LH terminal 1
to rear combination lamp control unit terminal 2
to front side marker lamp RH terminal 1
to clearance lamp RH terminal 2
to license plate lamp RH terminal 1, and
to rear combination lamp RH terminal 1.
Page 4020 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-131
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Ground is supplied at all times
to front side marker lamp LH terminal 2
through grounds E21, E50 and E51,
to clearance lamp LH terminal 3
through grounds E21, E50 and E51,
to license plate lamp LH terminal 2
through grounds B15 and B45,
to rear combination lamp LH terminal 2
through grounds B15 and B45,
to front side marker lamp RH terminal 2
through grounds E21, E50 and E51,
to clearance lamp RH terminal 3
through grounds E21, E50 and E51,
to license plate lamp RH terminal 2
through grounds B15 and B45,
to rear combination lamp RH terminal 2
through grounds B203 and B210,
to rear combination lamp control unit terminal 7
through grounds E21, E50 and E51.
With power and ground supplied, the parking, license plate, side marker and tail lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST (or 2ND) position, and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the parking, license, side marker and tail lamps remain illuminated for 5 minutes, then the
parking, license plate, side marker and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007DU
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080X
Refer to LAN-30, "CAN Communication Unit" .
Page 4021 of 4731
LT-132
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
SchematicAKS007DW
TKWM0630E
Page 4022 of 4731
PARKING, LICENSE PLATE AND TAIL LAMPS LT-133
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

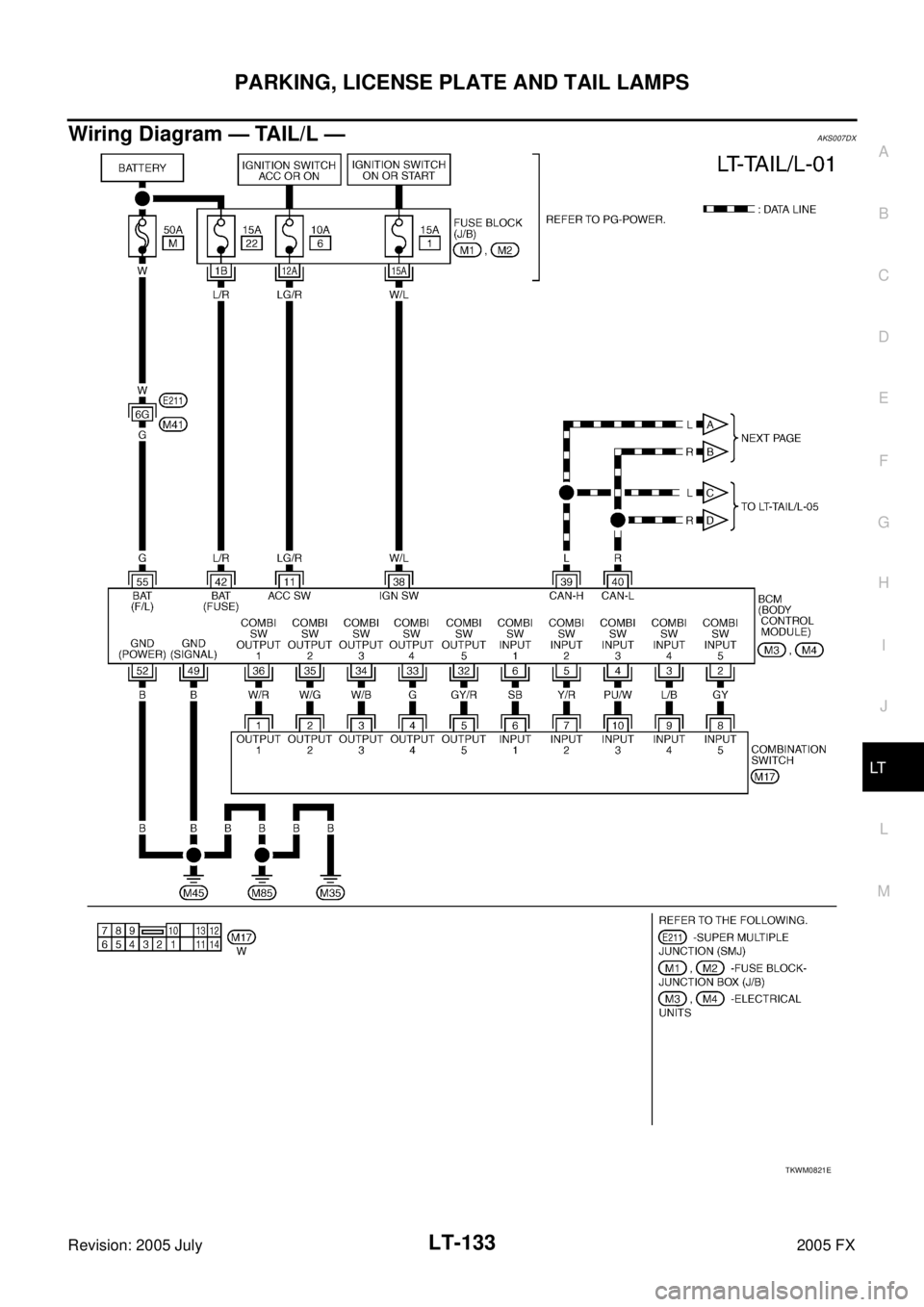

Wiring Diagram — TAIL/L —AKS007DX
TKWM0821E
Page 4023 of 4731
LT-134
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
TKWM0632E
Page 4024 of 4731
PARKING, LICENSE PLATE AND TAIL LAMPS LT-135
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TKWM1080E
