Page 1433 of 4731

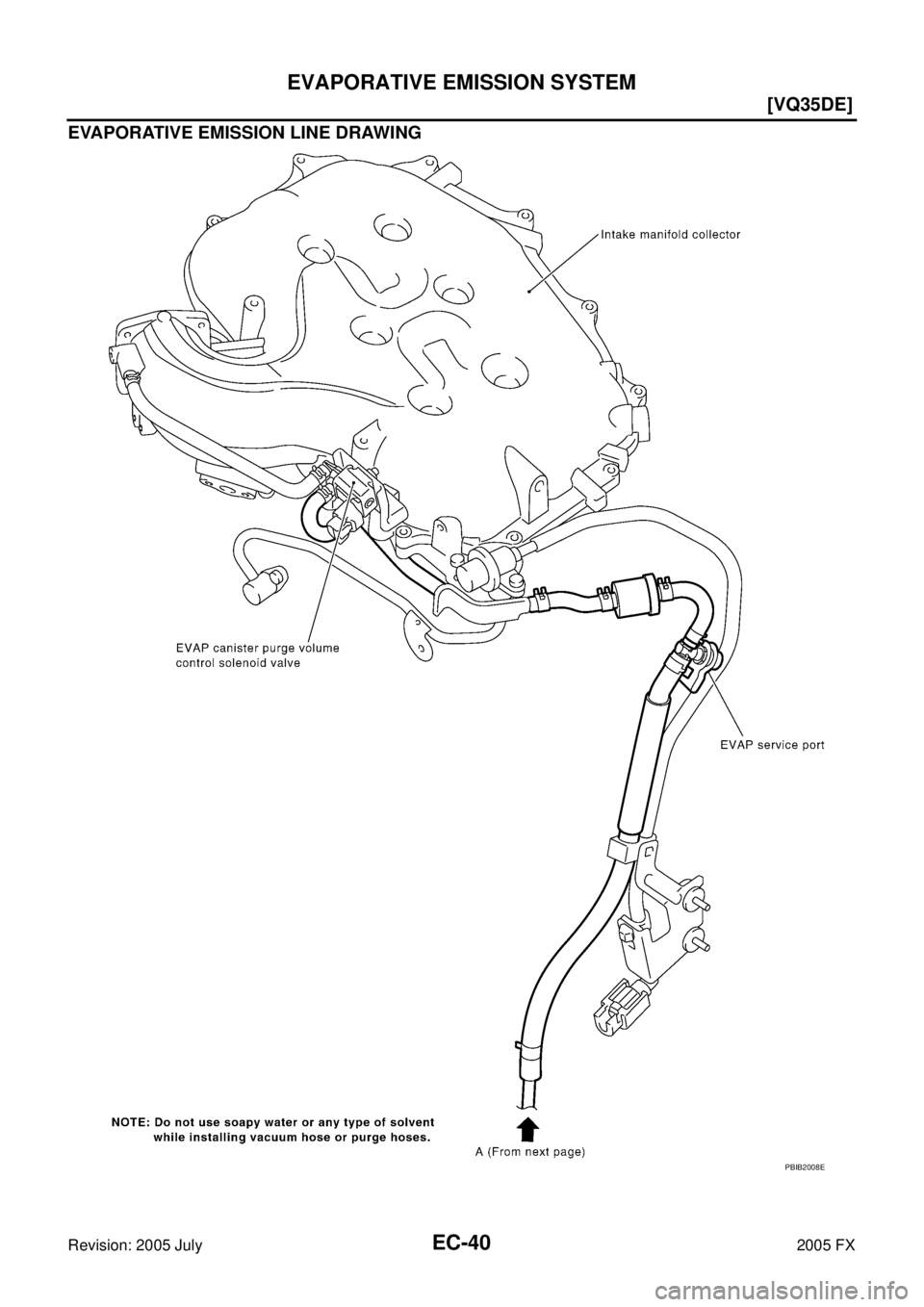

INFINITI FX35 2005 Service Manual EC-40 [VQ35DE] EVAPORATIVE EMISSION SYSTEM Revision: 2005 July 2005 FX EVAPORATIVE EMISSION LINE DRAWING PBIB2008E

Page 1434 of 4731

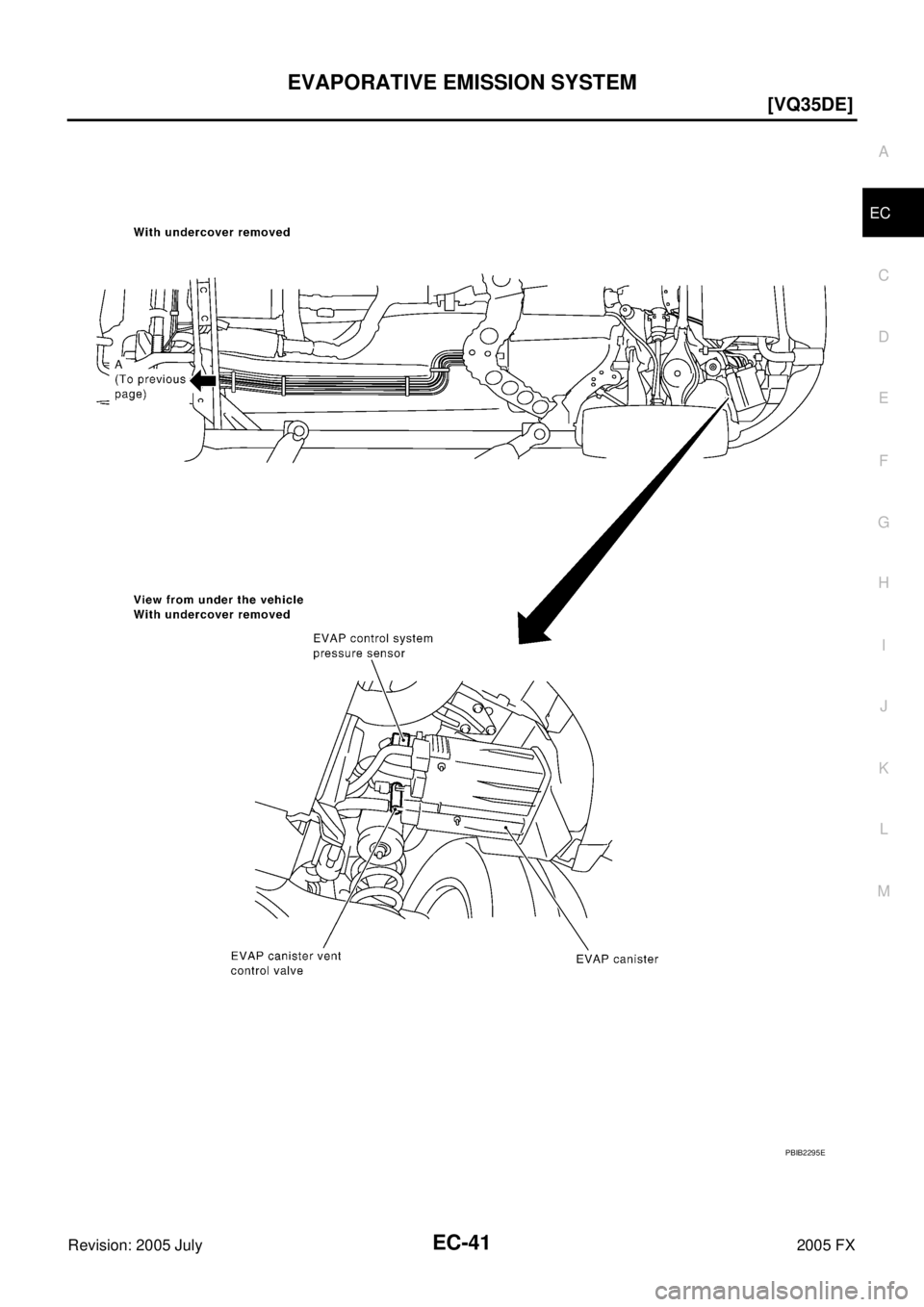

INFINITI FX35 2005 Service Manual EVAPORATIVE EMISSION SYSTEM EC-41 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX PBIB2295E

Page 1435 of 4731

INFINITI FX35 2005 Service Manual EC-42 [VQ35DE] EVAPORATIVE EMISSION SYSTEM Revision: 2005 July 2005 FX Component InspectionABS006Z8 EVAP CANISTER Check EVAP canister as follows: 1. Block port B . 2. Blow air into port A and c

Page 1436 of 4731

INFINITI FX35 2005 Service Manual EVAPORATIVE EMISSION SYSTEM EC-43 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX EVAP SERVICE PORT Positive pressure is delivered to the EVAP system through the EVAP ser

Page 1437 of 4731

INFINITI FX35 2005 Service Manual EC-44 [VQ35DE] EVAPORATIVE EMISSION SYSTEM Revision: 2005 July 2005 FX WITH CONSULT-II 1. Attach the EVAP service port adapter securely to the EVAP service port. 2. Also attach the pressure pump and

Page 1438 of 4731

INFINITI FX35 2005 Service Manual EVAPORATIVE EMISSION SYSTEM EC-45 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX 3. Apply battery voltage between the terminals of EVAP canister vent control valve to mak

Page 1439 of 4731

INFINITI FX35 2005 Service Manual EC-46 [VQ35DE] ON BOARD REFUELING VAPOR RECOVERY (ORVR) Revision: 2005 July 2005 FX ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032 System DescriptionABS006ZB From the beginning of refueling, the ai

Page 1440 of 4731

INFINITI FX35 2005 Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR) EC-47 [VQ35DE] C D E F G H I J K L M A EC Revision: 2005 July 2005 FX Diagnostic ProcedureABS006ZC SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG
