Page 3361 of 4731
GW-84
INSIDE MIRROR
Revision: 2005 July 2005 FX
INSIDE MIRRORPFP:96321
Wiring Diagram —I/MIRR—AIS003A8
TIWM0981E
Page 3362 of 4731
INSIDE MIRROR GW-85
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Removal and InstallationAIS003A9
REMOVAL
1. Remove inside mirror cover.
2. Remove inside mirror finisher.
3. Remove TORX bolt (T20) of the mirror base.
4. Slide the mirror base upward to remove.
5. Disconnect the connector.
INSTALLATION
Install in the reverse order of removal.
COMPASS
For reset of compass, refer to DI-38, "System Description" .
CAUTION:
Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to GI-48,
"RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS" .

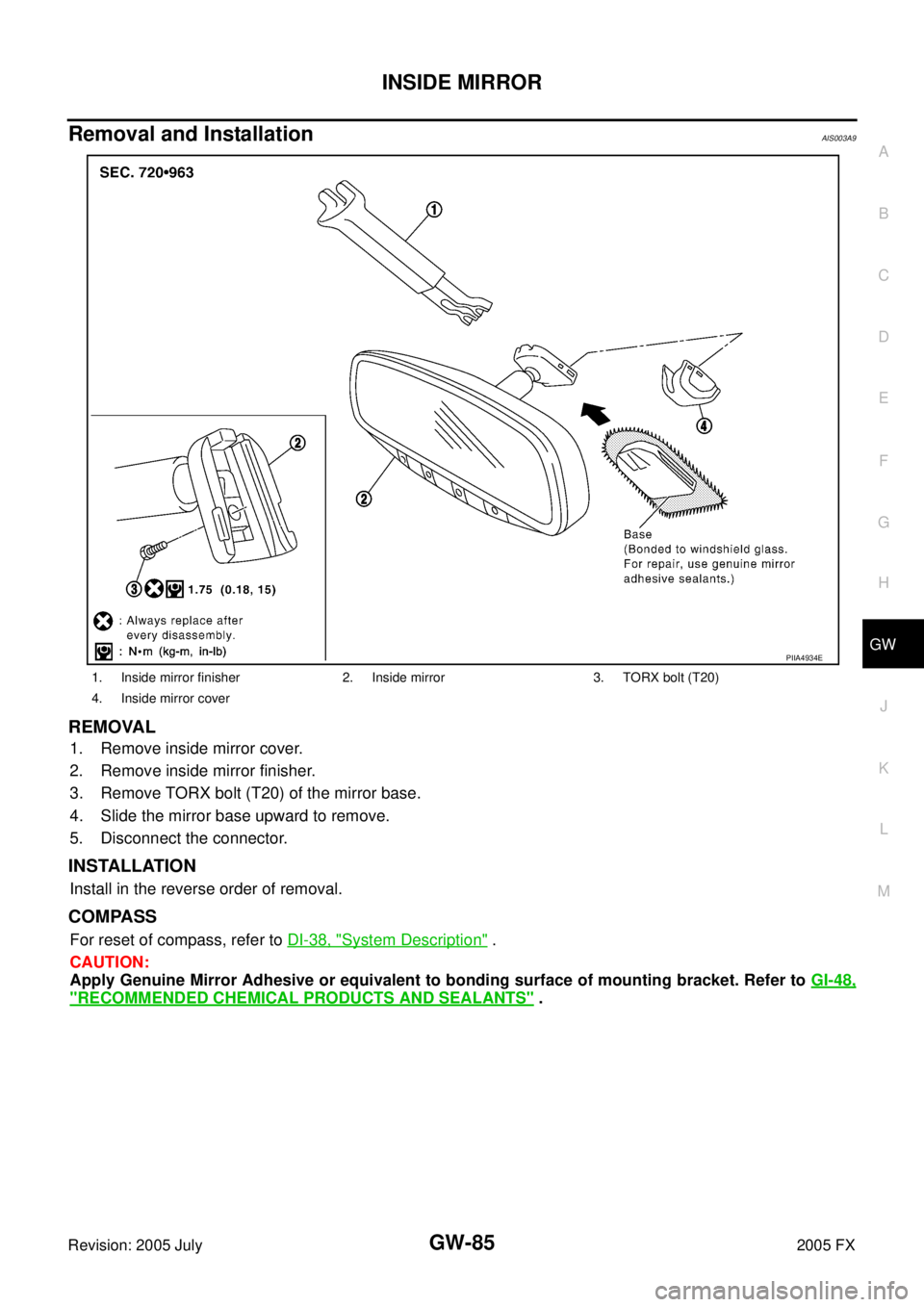

1. Inside mirror finisher 2. Inside mirror 3. TORX bolt (T20)
4. Inside mirror cover
PIIA4934E
Page 3363 of 4731
GW-86
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationAIS004QY
System DescriptionAIS004QZ
The rear window defogger system is controlled by BCM (Body Control Module) and IPDM E/R (Intelligent
Power Distribution Module Engine Room).
The rear window defogger operates only for approximately 15 minutes.
Power is at all times supplied
through 20A fuse [No. 75, located in the IPDM E/R]
to rear window defogger relay terminals 3,
through 20A fuse [No. 80, located in the IPDM E/R]
to rear window defogger relay terminals 6,
through 10A fuse [No. 12, located in the fuse block]
PIIA6408E
Page 3364 of 4731
![INFINITI FX35 2005 Service Manual REAR WINDOW DEFOGGER GW-87
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
to rear window defogger relay terminal 1,
through 15A fuse [No. 32, located in the fuse block (J/B)]
t INFINITI FX35 2005 Service Manual REAR WINDOW DEFOGGER GW-87
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
to rear window defogger relay terminal 1,
through 15A fuse [No. 32, located in the fuse block (J/B)]
t](/manual-img/42/57020/w960_57020-3363.png)
REAR WINDOW DEFOGGER GW-87
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
to rear window defogger relay terminal 1,
through 15A fuse [No. 32, located in the fuse block (J/B)]
to A/C and AV switch terminal 1,
through 50A fusible link (letter M , located in the fuse and fusible link box)
to BCM terminal 55,
through 15A fuse [No. 22, located in the fuse block (J/B)]
to BCM terminal 42.
With the ignition switch turned to ON or START position,
Power is supplied
through 15A fuse [No. 1, located in the fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to BCM terminal 49 and 52
through body grounds M35, M45 and M85,
to A/C and AV switch terminal 5
through body grounds M35, M45 and M85,
to IPDM E/R terminals 38 and 60
through body grounds E21, E50 and E51.
When rear window defogger switch in A/C and AV switch is turned to ON,
Ground is supplied
to BCM terminal 9
through A/C and AV switch terminal 16
through A/C and AV switch terminal 5 and
through body grounds M35, M45 and M85.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R, display control unit (with navigation system)
or display unit (without navigation system) via DATA LINE (CAN H, CAN L).
When display control unit (with navigation system) or display unit (without navigation system) receives rear
window defogger switch signals, and display on the screen.
When IPDM E/R receives rear window defogger switch signals,
Ground is supplied
to rear window defogger relay terminal 2
through IPDM E/R terminal 52
through IPDM E/R terminals 38 and 60 and
through body grounds E21, E50 and E51.
And then rear window defogger relay is energized.
When rear window defogger relay is turned ON, signals are transmitted.
through rear window defogger relay terminals 5 and 7
to rear window defogger terminal 1
Rear window defogger terminal 2 is grounded through grounds B15 and B45.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON,
Power is supplied
through rear window defogger relay terminal 7
through fuse block (J/B) terminal 2C
through 15A fuse [No. 8, located in the fuse block (J/B)] and
through fuse block (J/B) terminal 5B
to door mirror defogger (driver side and passenger side) terminal 1.
Door mirror defogger (driver side and passenger side) terminal 2 is grounded through body grounds M35, M45
and M85.
Page 3365 of 4731
GW-88
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror defogger filaments heat and defog the mirror.
CAN Communication System DescriptionAIS004R0
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS004RR
Refer to LAN-30, "CAN Communication Unit" .
Page 3366 of 4731
REAR WINDOW DEFOGGER GW-89
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX

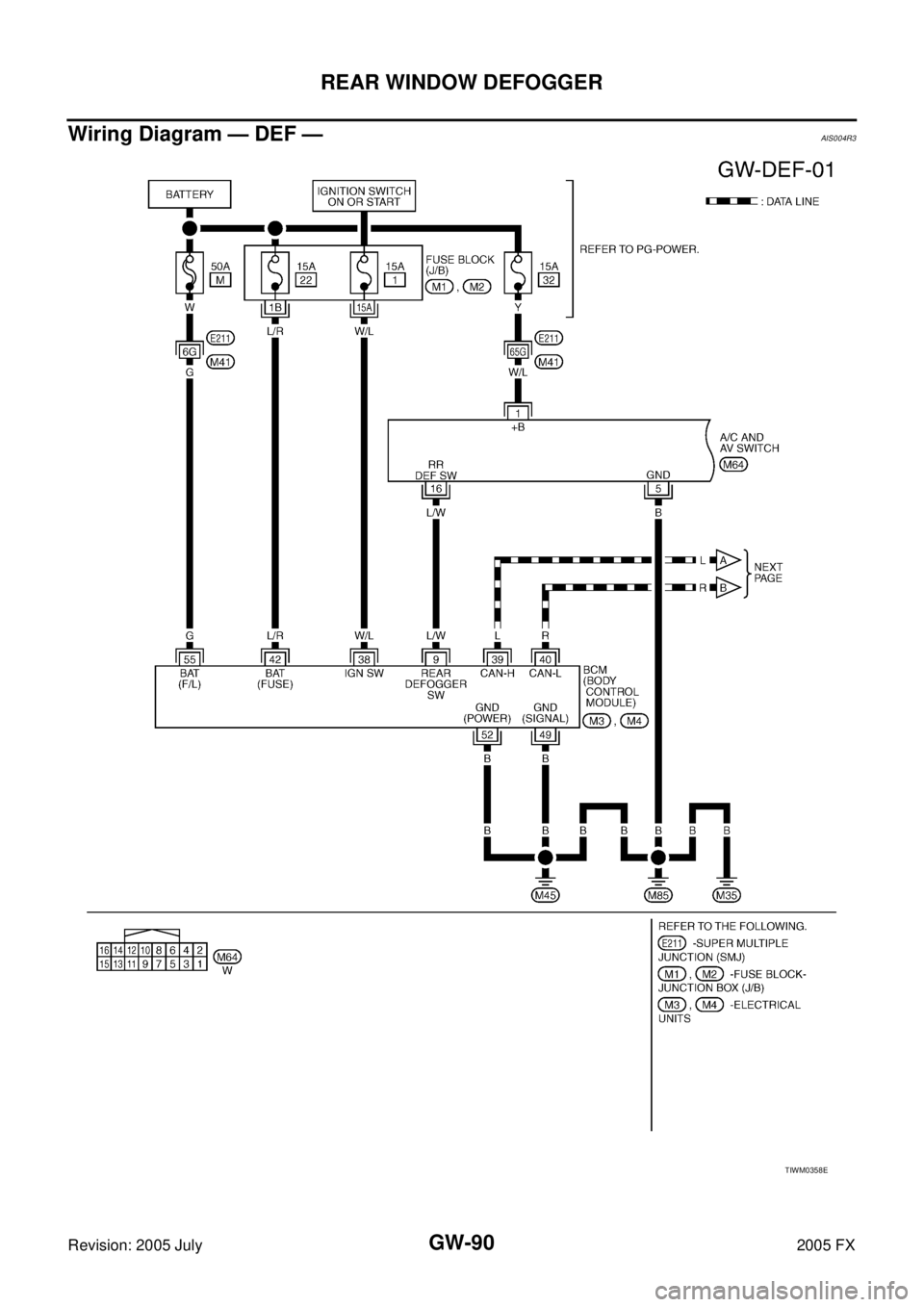

SchematicAIS004R2
