BRC-44
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
5. PERFORM DATA MONITOR
1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Perform “DATA MONITOR” of the “STEERING ANGLE SIGNAL” to check if the status is normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to BRC-
6, "Adjustment of Steering Angle Sensor Neutral Position" .
Inspection 6: Yaw Rate/Side G Sensor (2WD Model), Yaw Rate/Side/Decel G sen-
sor (AWD Models) Circuit
AFS001SY
DTC C1145, C1146, C1113
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc. may cause the G sensor circuit
indicate a malfunction. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
CAUTION:
When on a turntable, such as at a parking structure entrance, or when on a moving object with engine
running, VDC OFF indicator lamp might turn on and self-diagnosis using CONSULT-II the yaw rate sen-
sor system might be displayed, but in this case there is no malfunction in yaw rate sensor circuit. As
soon as vehicle leaves turntable or moving object, restart engine to return the system to normal.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect G sensor connector and ABS actuator and electric unit (control unit) connector and check ter- minals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace
terminal.
2. Reconnect connectors and perform a ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
Steering condition Data monitor
Straight-ahead -3.5 deg - +3.5 deg
Turn wheel to the right by 90 °. Approx. -90 deg
Turn wheel to the left by 90 °. Approx. +90 deg
Self-diagnostic results
YAW RATE SENSOR
SIDE G-SEN CIRCUIT
G-SENSOR (AWD model)
Page 1186 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-45
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK G SENSOR HARNESS
1. Turn ignition switch OFF and disconnect G sensor connector an INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-45
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK G SENSOR HARNESS
1. Turn ignition switch OFF and disconnect G sensor connector an](/manual-img/42/57020/w960_57020-1185.png)
TROUBLE DIAGNOSIS BRC-45
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK G SENSOR HARNESS
1. Turn ignition switch OFF and disconnect G sensor connector and ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 and G sensor harness connector
M79 (2WD model) or M71 (AWD model).
OK or NG
OK >> GO TO 4.
NG >> If the open or short in harness, repair or replace harness.
4. CHECK G SENSOR
1. Connect G sensor connector and ABS actuator and electric unit (control unit) connector.
2. Use CONSULT-II “DATA MONITOR” to check if G sensor are normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace malfunctioning G sensor, and then perform self-diagnosis for ABS actuator and electric unit (control unit) again.
SFIA1192E
ABS actuator and electric unit
(control unit)
(Harness connector E56) G sensor (Harness con-
nector M79 or M71) Continuity
6 (Y) 3 (Y/B) Yes
24 (B) 5 (B/Y) Yes
25 (R/Y) 1 (R/Y) Yes
29 (R/G) 2 (R/G) Yes
Vehicle status Yaw rate sensor
(Data monitor stan- dard) Side G sensor
(Data monitor stan- dard) Decel G sensor
(Data monitor stan- dard) (AWD model)
When stopped –4 to +4 deg/s –1.1 to +1.1 m/s
2–0.11 to +0.11 G
Right turn Negative value Negative value – Left turn Positive value Positive value –
Speed up – – Negative value
Speed down – – Positive value
Page 1187 of 4731
BRC-46
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Inspection 7: Solenoid and VDC Change-Over Valve CircuitAFS001SZ
DTC C1120-C1127, C1164-C1167
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit (control unit) connector check terminals for deformation, dis- connection, looseness, and so on. If any malfunction is found, repair or replace terminal.
2. Securely reconnect connector and perform self-diagnosis.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
Self-diagnostic results
FR LH IN ABS SOL
FR LH OUT ABS SOL RR RH IN ABS SOL
RR RH OUT ABS SOL FR RH IN ABS SOL
FR RH OUT ABS SOL RR LH IN ABS SOL
RR LH OUT ABS SOL CV 1
CV 2 SV 1
SV 2
Page 1188 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-47
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK SOLENOID POWER AND GROUND CIRCUIT
1. Disconnect ABS actuator and electric unit (co INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-47
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK SOLENOID POWER AND GROUND CIRCUIT
1. Disconnect ABS actuator and electric unit (co](/manual-img/42/57020/w960_57020-1187.png)
TROUBLE DIAGNOSIS BRC-47
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK SOLENOID POWER AND GROUND CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check voltage between ABS actuator and electric unit (control unit) harness connector E56 and ground.
3. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 and ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit (control
unit). Refer to BRC-60, "
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)" .
NG >> Repair or replace harness or connectors.
Inspection 8: Actuator Motor CircuitAFS001T0
DTC C1111, C1140
Inspection Procedure
1. CHECK SELF-DIAGNOSTIC RESULTS (1)
Check the self-diagnostic results.
Is the above displayed in the self-diagnostic display items?
YES >> GO TO 2.
NO >> Inspection is completed.
2. CHECK SELF-DIAGNOSTIC RESULTS (2)
1. Disconnect ABS actuator and electric unit (control unit) connector. Then reconnect it securely.
2. Perform self-diagnosis again.
Do any self-diagnosis item appear?
YES >> GO TO 3.
NO >> Poor connection. Repair or replace the applicable connector. ABS actuator and electric
unit (control unit)
(Harness connector E56) Ground
Vo l ta g e ( V )
(Approx.)
32 (R) — 12 V
SFIA1196E
ABS actuator and electric unit (control unit)
(Harness connector E56) Ground Continuity
16 (B) — Yes
47 (B) — Yes
SFIA1197E
Self-diagnostic results
PUMP MOTOR
ACTUATOR RLY
Page 1189 of 4731
![INFINITI FX35 2005 Service Manual BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
3. CHECK ABS MOTOR AND MOTOR RELAY POWER SUPPLY CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. C INFINITI FX35 2005 Service Manual BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
3. CHECK ABS MOTOR AND MOTOR RELAY POWER SUPPLY CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. C](/manual-img/42/57020/w960_57020-1188.png)
BRC-48
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
3. CHECK ABS MOTOR AND MOTOR RELAY POWER SUPPLY CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check voltage between ABS actuator and electric unit (control unit) harness connector E56 and ground.
3. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 and ground.
OK or NG
OK >> Perform self-diagnosis again. If the same result appears, replace ABS actuator and electric unit (control
unit). Refer to BRC-60, "
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)" .
NG >> Repair harness or connectors.
Inspection 9: ABS Actuator and Electric Unit (Control Unit) Power Supply and
Ground Circuit
AFS001T1
DTC C1109
Inspection Procedure
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Does
“BATTERY VOLTAGE” appear in self-diagnostic results display?
YES >> GO TO 2.
NO >> INSPECTION END
2. STARTING INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector. Then reconnect it securely.
2. Perform self-diagnosis.
Do any self-diagnosis item appear?
YES >> GO TO 3.
NO >> Poor connection. Repair or replace connector. ABS actuator and electric
unit (control unit)
(Harness connector E56) Ground
Voltage (V)
(Approx.)
1 (Y)
32 (R) —12 V
SFIA1198E
ABS actuator and electric
unit (control unit)
(Harness connector E56) Ground Continuity
16 (B) — Yes
47 (B) — Yes
SFIA1197E
Self-diagnostic results
BATTERY VOLTAGE
Page 1190 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-49
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (1)
1. Disconne INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-49
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (1)
1. Disconne](/manual-img/42/57020/w960_57020-1189.png)
TROUBLE DIAGNOSIS BRC-49
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (1)
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Turn ignition switch OFF. Check voltage between ABS actuator and electric unit (control unit) harness connector E56 and
ground.
3. Turn ignition switch ON (but do not start engine). Check voltage between ABS actuator and electric unit (control unit) harness
connector E56 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check ABS actuator and electric unit (control unit) ground circuit.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self- diagnosis again.
NG >> Repair or replace harness or connectors.
5. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (2)
1. Check fuse 10A (terminal 4) and 30A (terminal 32).
2. Turn ignition switch OFF and check continuity between battery positive terminal and ABS actuator and electric unit (control unit)
harness connector E56.
OK or NG
OK >> Check for non-standard conditions in battery (terminal looseness, low voltage, etc.) and alternator.
NG >>
Replace fuse 10A or 30A.
Open or short in harness.
ABS actuator and electric
unit (control unit)
(Harness connector E56) Ground
Voltage (V)
(Approx.)
32 (R) — 12 V
ABS actuator and electric unit (control unit)
(Harness connector E56) Ground
Voltage (V)
(Approx.)
4 (G) — 12 V
SFIA1200E
ABS actuator and electric unit (control unit)
(Harness connector E56) Ground Continuity
16 (B) — Yes
SFIA1434E
ABS actuator and elec- tric unit (control unit)
(Harness connector E56) Battery positive
terminal Continuity
4 (G), 32 (R) — Yes
SFIA1435E
Page 1191 of 4731
![INFINITI FX35 2005 Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Inspection 10: Stop Lamp Switch CircuitAFS001T2
DTC C1116
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagn INFINITI FX35 2005 Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Inspection 10: Stop Lamp Switch CircuitAFS001T2
DTC C1116
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagn](/manual-img/42/57020/w960_57020-1190.png)
BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Inspection 10: Stop Lamp Switch CircuitAFS001T2
DTC C1116
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis display item?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect stop lamp switch connector and ABS actuator and electric unit (control unit) connector E56 and check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found,
repair or replace terminal.
2. Securely reconnect connectors.
3. Perform self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF and disconnect stop lamp switch con- nector and ABS actuator and electric unit (control unit) connec-
tor.
2. Check continuity between stop lamp switch harness connector E210 and ABS actuator and electric unit (control unit) harness
connector E56.
OK or NG
OK >> Connect connectors and perform an ABS actuator and electric unit (control unit) self-diagnosis.
NG >> Open or short in harness between stop lamp switch and ABS actuator and electric unit (control unit). Repair or replace applied harness.
Self-diagnostic results
STOP LAMP SW
SFIA1436E
ABS actuator and electric unit
(control unit) (Harness connector E56) Stop lamp switch
(Harness connector E210) Continuity
41 (P) 2 (P) Yes
Page 1192 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-51
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
Inspection 11: Brake Fluid Level Switch CircuitAFS001T4
DTC C1155
INSPECTION PROCEDURE
1. CH INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS BRC-51
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
Inspection 11: Brake Fluid Level Switch CircuitAFS001T4
DTC C1155
INSPECTION PROCEDURE
1. CH](/manual-img/42/57020/w960_57020-1191.png)

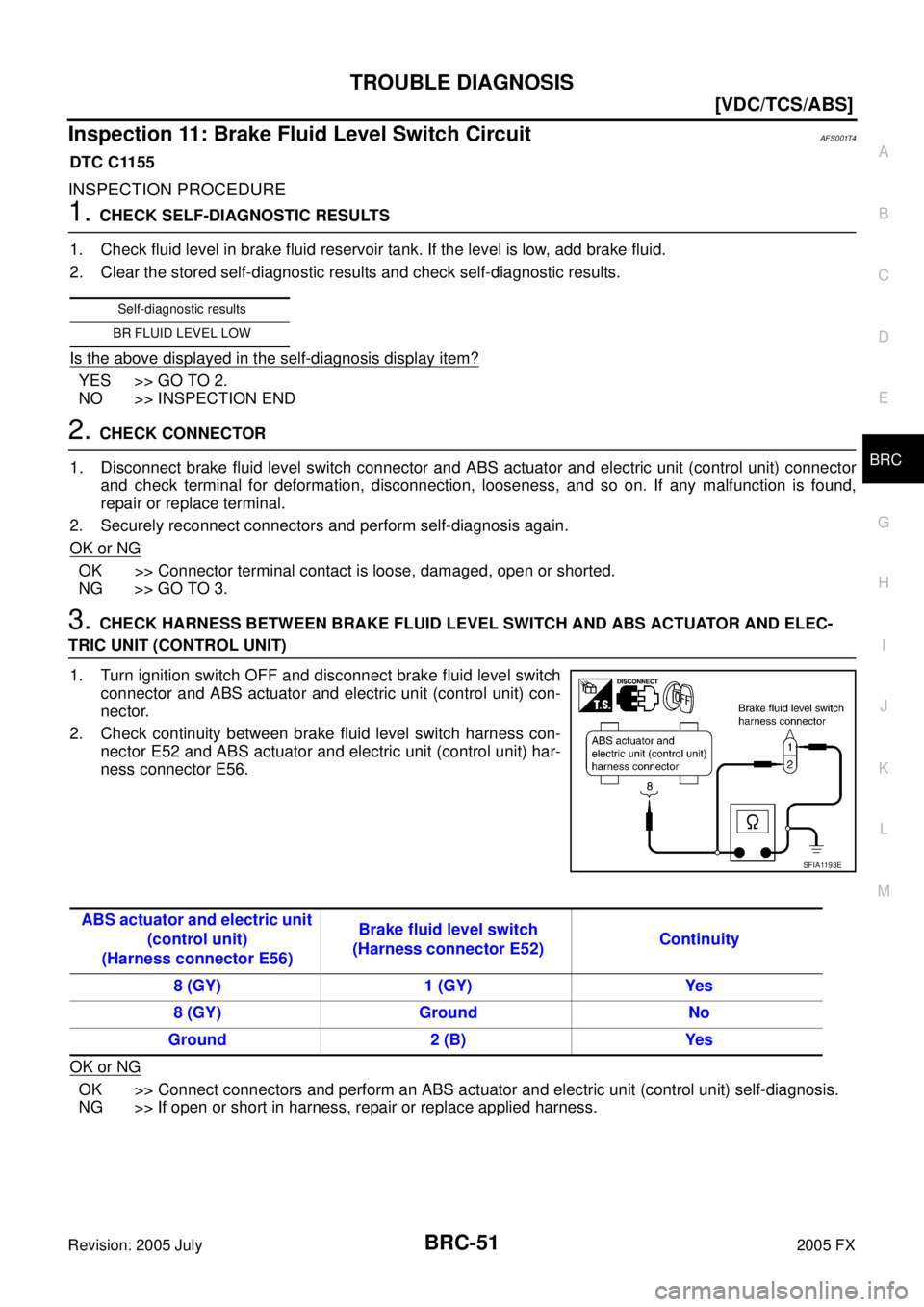

TROUBLE DIAGNOSIS BRC-51
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
Inspection 11: Brake Fluid Level Switch CircuitAFS001T4
DTC C1155
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
1. Check fluid level in brake fluid reservoir tank. If the level is low, add brake fluid.
2. Clear the stored self-diagnostic results and check self-diagnostic results.
Is the above displayed in the self-diagnosis display item?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect brake fluid level switch connector and ABS actuator and electric unit (control unit) connector and check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found,
repair or replace terminal.
2. Securely reconnect connectors and perform self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN BRAKE FLUID LEVEL SWITCH AND ABS ACTUATOR AND ELEC-
TRIC UNIT (CONTROL UNIT)
1. Turn ignition switch OFF and disconnect brake fluid level switch connector and ABS actuator and electric unit (control unit) con-
nector.
2. Check continuity between brake fluid level switch harness con- nector E52 and ABS actuator and electric unit (control unit) har-
ness connector E56.
OK or NG
OK >> Connect connectors and perform an ABS actuator and electric unit (control unit) self-diagnosis.
NG >> If open or short in harness, repair or replace applied harness.
Self-diagnostic results
BR FLUID LEVEL LOW
SFIA1193E
ABS actuator and electric unit (control unit)
(Harness connector E56) Brake fluid level switch
(Harness connector E52) Continuity
8 (GY) 1 (GY) Yes
8 (GY) Ground No
Ground 2 (B) Yes
