CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-303, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIB5963E
Page 3706 of 4731
CAN SYSTEM (TYPE 6) LAN-287
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 19
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-303, "IPDM E/R Ignition Relay
Circuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitAKS00CCJ
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals 14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
PKIB5964E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
Page 3707 of 4731
![INFINITI FX35 2005 Service Manual LAN-288
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX

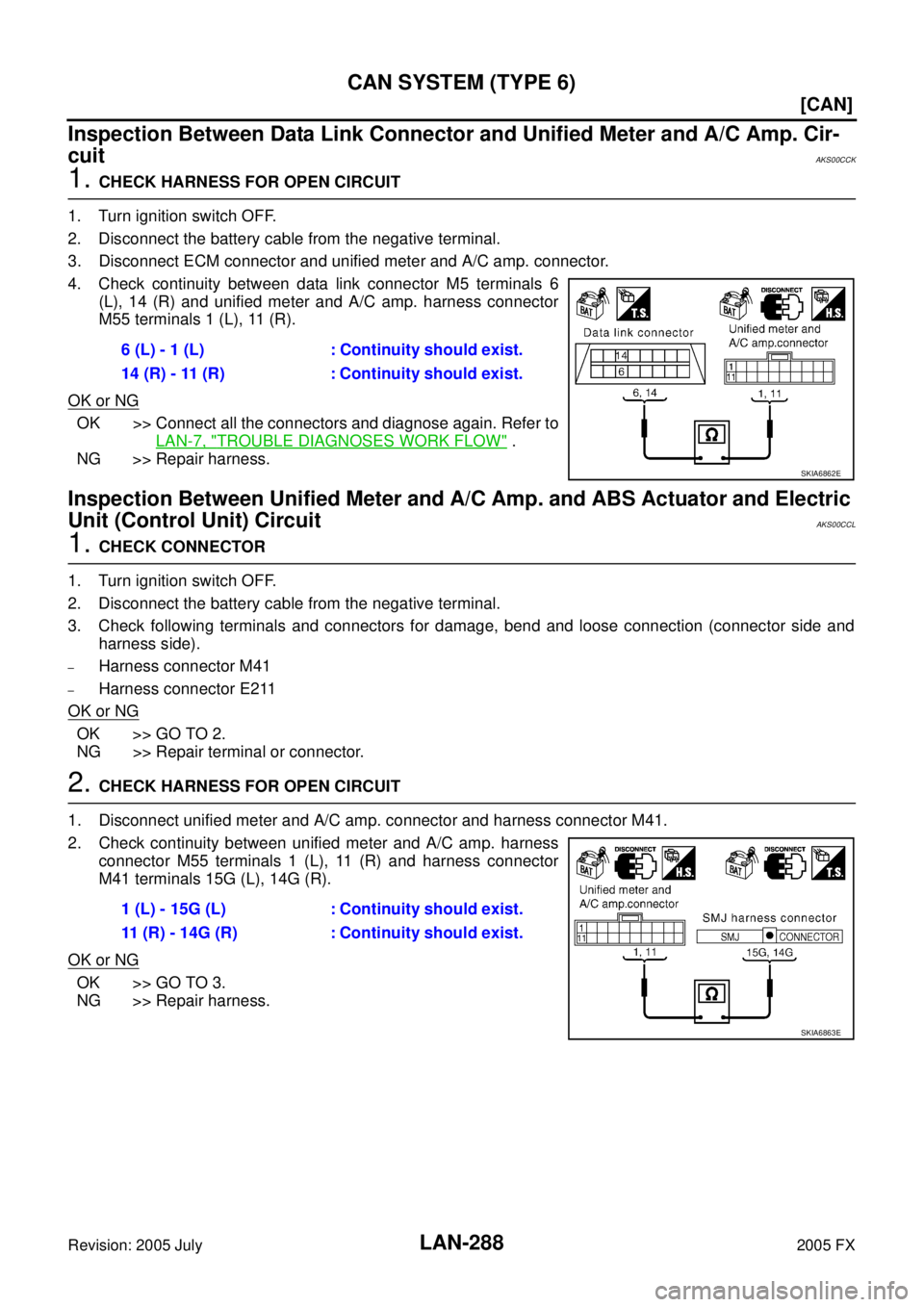

Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CCK
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignit INFINITI FX35 2005 Service Manual LAN-288
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CCK
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignit](/manual-img/42/57020/w960_57020-3706.png)
LAN-288
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
AKS00CCK
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6 (L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric
Unit (Control Unit) Circuit
AKS00CCL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
–Harness connector M41
–Harness connector E211
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector and harness connector M41.
2. Check continuity between unified meter and A/C amp. harness connector M55 terminals 1 (L), 11 (R) and harness connector
M41 terminals 15G (L), 14G (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness. 6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E
1 (L) - 15G (L) : Continuity should exist.
11 (R) - 14G (R) : Continuity should exist.
SKIA6863E
Page 3708 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-289
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) co INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-289
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) co](/manual-img/42/57020/w960_57020-3707.png)
CAN SYSTEM (TYPE 6) LAN-289
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between harness connector E211 terminals 15G (L), 14G (R) and ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver
Seat Control Unit Circuit
AKS00CCM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 terminals 11 (L), 15 (R) and har-
ness connector E205 terminals 3 (L), 10 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness. 15G (L) - 11 (L) : Continuity should exist.
14G (R) - 15 (R) : Continuity should exist.
SKIA6864E
11 (L) - 3 (L) : Continuity should exist.
15 (R) - 10 (R) : Continuity should exist.
SKIA6880E
