Terminals and Reference Value for BOSE Speaker Amp.AKS005T8
Te r m i n a l
(Wire color) Item Signal
input/
output Condition
Reference value Example of
symptom
+– Ignition
switch Operation
1 (R) Ground Battery power
supply Input OFF — Battery voltage System does not
work properly.
9 (LG) 10 (B/Y) Audio sound
signal
(Rear LH) Output ACC
Receive audio
signal No sound from rear
door speaker LH.
11 (OR) 12 (B/P) Audio sound
signal
(Rear RH) Output ACC
No sound from rear
door speaker RH.
13 (L) 14 (B/W) Audio sound
signal
(Front LH) Output ACC
Receive audio
signal No sound from
front door speaker
LH and instrument
speaker LH
15 (BR) 16 (B/R) Audio sound
signal
(Front RH) Output ACC No sound from front
door speaker RH
and instrument
speaker RH.
17 (B) Ground Ground (Power) — ON — Approx. 0 V BOSE speaker
amp. dose not work
properly.
18
(R/L) 2 (B) Audio sound
signal
(Instrument
CENTER) Output ACC
Receive audio
signal No sound from
instrument speaker
CENTER.
19 (W) 3 (B) Woofer signal Output ACC Receive audio
signal No sound from
woofer.
20 (G) 4 (G/W) Tweeter signal Output ACC Receive audio
signal No sound from
tweeter.
22 (P) Ground Amp ON signal
(woofer) Output ACC — Approx. 12 V Woofer does not
work properly.
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0177E
Page 634 of 4731
AUDIO AV-35
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
24 (L) 23 (B/W) Audio sound
signal
(Rear RH) Input ACC
Receive audio
signal No sound from rear
door speaker RH.
26
(B/R) 25
(BR) Audio sound
signal
(Rear LH) Input ACC
No sound from rear
door speaker LH.
28 (LG) 27 (PU) Audio sound
signal
(Front RH) Input ACC
Receive audio
signal No sound from front
door speaker RH or
instrument speaker
RH.
30 (W) 29 (B) Audio sound
signal
(Front LH) Input ACC No sound from front
door speaker LH or
instrument speaker
LH.
31 (P) Ground Control signal Input ACC — Approx. 12 V BOSE speaker
amp. does not work
properly.
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value Example of
symptom
+– Ignition
switch Operation
SKIA0177E
SKIA0177E
Page 635 of 4731

AV-36
AUDIO
Revision: 2005 July 2005 FX
Terminals and Reference Value for A/C and AV SwitchAKS00A2B
Terminal No.
(Wire color) Item Signal
input/
output Condition
Voltage Example of
symptom
+– Ignition
switch Operation
1 (W/L) Ground Battery power
supply Input OFF — Battery voltage System does not
work properly.
2 (LG/R) Ground ACC power
supply Input ACC — Battery voltage System does not
work properly.
3 (R/L) Ground Illumination
signal Input OFF Lighting switch is
ON (position 1). Approx. 12 V
A/C and AV
switch illumina-
tion does not
come on when
lighting switch is
ON (position 1).
Turn lighting switch
OFF. Approx. 0 V
4 (R/Y) Ground Illumination
control signal Output ON Illumination control
switch is operated
by lighting switch in 1st or 2nd position. Changes between approx.0 V
and approx.12 V Audio unit illumi-
nation can not be
controlled.
5 (B) Ground Ground — ON — Approx. 0 V —

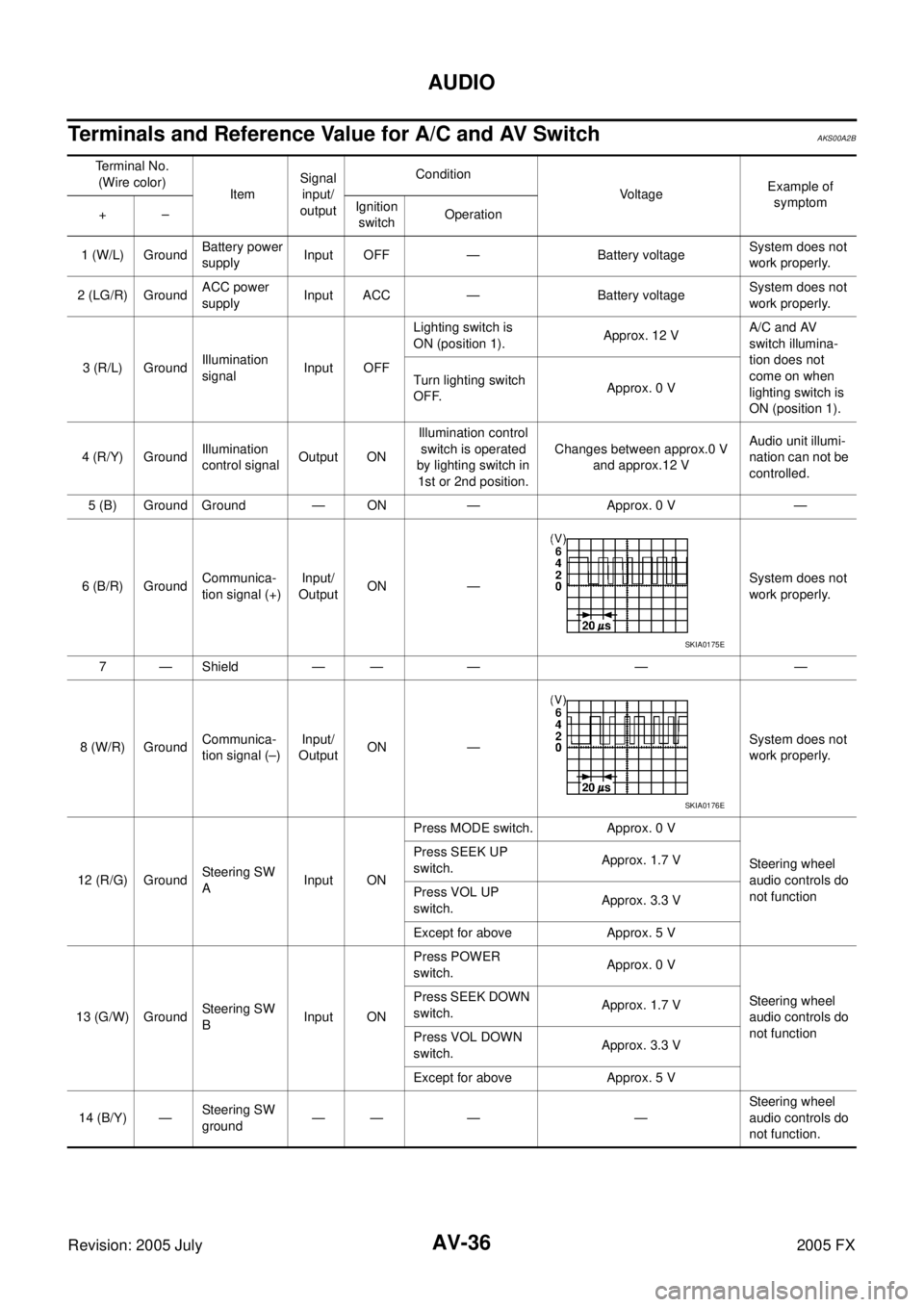

6 (B/R) Ground Communica-
tion signal (+) Input/
Output ON — System does not
work properly.
7 — Shield — — — — —
8 (W/R) Ground Communica-
tion signal (–) Input/
Output ON —
System does not
work properly.
12 (R/G) Ground Steering SW
A Input ON Press MODE switch. Approx. 0 V
Steering wheel
audio controls do
not function
Press SEEK UP
switch. Approx. 1.7 V
Press VOL UP
switch. Approx. 3.3 V
Except for above Approx. 5 V
13 (G/W) Ground Steering SW
B Input ON Press POWER
switch. Approx. 0 V
Steering wheel
audio controls do
not function
Press SEEK DOWN
switch. Approx. 1.7 V
Press VOL DOWN
switch. Approx. 3.3 V
Except for above Approx. 5 V
14 (B/Y) — Steering SW
ground —— — — Steering wheel
audio controls do
not function.
SKIA0175E
SKIA0176E
Page 636 of 4731

AUDIO AV-37
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Terminals and Reference Value for WooferAKS00AM2
A/C and AV Switch Self-Diagnosis FunctionAKS007OE
It can check ON/OFF operation of each switch in the A/C and AV switch and diagnose the input signals to the
audio steering wheel switch.
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch from OFF to ACC.
2. Within 10 seconds press and hold the switches “MUTE/ II ” and
“MAP ”simultaneously for 3 seconds.
Then the self-diagnosis operates.
EXITING THE SELF-DIAGNOSIS MODE
Turn ignition switch OFF. Then the self-diagnosis ends.
DIAGNOSIS FUNCTION
It can illuminate all the indicators (LED) in the A/C and AV switch.
It can check for continuity of the switches by sounding the buzzer when the A/C and AV switch is pressed.
It can check for continuity of harness between A/C and AV switch and audio steering wheel switch.
Terminal No. (Wire color) Item Signal
input/
output Condition
Voltag e Example of
symptom
+– Ignition
switch Operation
1 (G/R) Ground Battery power
Supply Input OFF — Battery voltage No sound from
woofer.
2 (B) Ground Ground — ON — Approx. 0 V No sound from
woofer.
5 (P) Ground Amp ON signal Input ACC — Approx. 12 V No sound from
woofer.
7 (W) 8 (B) Woofer sound
signal Input ACC Receive audio sig-
nal No sound from
woofer.
SKIA0177E
PKIB4130E
Page 637 of 4731

AV-38
AUDIO
Revision: 2005 July 2005 FX
Trouble DiagnosisAKS005TB
The majority of the audio malfunctions are the result of outside causes (bad CD/cassette, electromagnetic
interference, etc.). Check the inspection items below to diagnose the malfunction.
MALFUNCTION WITH RADIO, TAPE AND CD
Symptom Possible cause
Inoperative
Audio power supply circuit. Refer to AV-41, "Power Supply Circuit Inspection" .
Audio communication line check (Without Navigation System). Refer to AV-82,
"Audio Communication Line Inspection" .
Audio communication line check (With Navigation System). Refer to AV-149, "AV
Communication Line Check (Between Display Control Unit and NAVI Control Unit)"
.
A/C and AV switch check. Refer to AV- 4 4 , "A/C and AV Switch Inspection" .
If above systems are OK, replace audio unit.
Audio steering wheel switch does not operate.
Audio steering wheel switch check. Refer to AV-42, "Audio Steering Wheel Switch
Inspection" .
If above systems are OK, replace audio unit.
Audio display is not shown.
Audio communication line check (Without Navigation System). Refer to AV-82,
"Audio Communication Line Inspection" .
Audio communication line check (With Navigation System). Refer to AV-150,
"Audio Communication Line Check (Between Display Control Unit and Audio Unit)"
.
If above systems are OK, replace audio unit.
All speaker do not sound.
Replace audio unit (Base system). Refer to AV-47, "Removal and Installation of
Audio Unit" .
BOSE speaker amp. power supply. Refer to AV- 4 1 , "Power Supply Circuit Inspec-
tion" .
BOSE speaker amp. circuit. Refer to AV- 4 4 , "BOSE Speaker Amp. Inspection" .
If above systems are OK, replace BOSE speaker amp.
Speed sensitive volume system dose not work.
Vehicle speed signal check. Refer to AV- 4 5 , "Vehicle Speed Signal Inspection" .
If above system is OK, replace audio unit.
Poor sound
Replace audio unit (Base system). Refer to AV-47, "Removal and Installation of
Audio Unit" .
BOSE speaker amp (BOSE system). check. Refer to AV- 4 4 , "BOSE Speaker Amp.
Inspection" .
If above systems are OK, replace BOSE speaker amp.
Noisy
Noise check. Refer to AV- 4 0 , "Noise Inspection" .
If above systems are OK, replace audio unit.
Page 638 of 4731

AUDIO AV-39
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
FOR RADIO ONLY
NOTE:
1. The cause is a reduction in the receiving sensitivity of the window antenna.
2. This is noise resulting from variations in field strength, such as fading noise and multi-path noise, or exter- nal noise from trains and other sources. It is not a malfunction.
Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.
Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the
antenna at a different time from the waves which reflect off of mountains or buildings.
FOR CASSETTE PLAYER ONLY
FOR CD ONLY
Symptom Possible cause
No sound
Antenna feeder check (For open or short). Refer to AV-54, "Location of Antenna" .
Window antenna check. Refer to AV-54, "CHECK ELEMENT" .
If above systems are OK, replace audio unit.
Noisy
Antenna feeder check (For open or short). Refer to AV-54, "Location of Antenna" .
Antenna amp. check. Refer to AV-53, "Antenna Amp. Inspection" .
Window antenna check. Refer to AV-54, "CHECK ELEMENT" .
Noise prevention parts check.
Each electrical equipment check.
Wire harness of each piece of electrical equipment check.
If above systems are OK, replace antenna amp.
Selected radio stations stored in memory are
deleted.
Replace audio unit.
Symptom Possible cause
Cassette tape cannot be inserted.
Audio unit. Refer to AV-47, "Removal and Installation of Audio Unit" .
Cassette tape.
Cassette tape cannot be ejected.
Auto reverse does not work, or the tape direction changes
in the middle of play.
Audio unit. Refer to AV-47, "Removal and Installation of Audio Unit" .
There is much noise.
The sound is not clear.
Sound fluctuates/tape speed not correct
No sound.
Symptom Possible cause
CD cannot be inserted.
Audio unit. Refer to AV-47, "Removal and Installation of Audio Unit" .
CD cannot be ejected.
The CD cannot be played.
The sound skips, stops suddenly, or is distorted.
Page 639 of 4731

AV-40
AUDIO
Revision: 2005 July 2005 FX
Noise InspectionAKS005TC
The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunction.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-
tion of each piece of electrical equipment, and determine the cause.
NOTE:
The source of the noise can be found easily by listening to the noise while removing the fuses of electrical
components, one by one.
TYPE OF NOISE AND POSSIBLE CAUSE
Occurrence condition Possible cause
Occurs only when
engine is ON. A continuous growling noise occurs. The speed of the
noise varies with changes in the engine speed.
Ignition condenser
A whistling noise occurs while the engine speed is
high. A booming noise occurs while the engine is run-
ning and the lighting switch is ON.
Alternator
The occurrence of the noise is linked with the operation of the fuel pump.
Fuel pump condenser
Noise only occurs
when various elec-
trical components
are operating. A cracking or snapping sound occurs with the opera-
tion of various switches.
Relay malfunction, radio malfunction
The noise occurs when various motors are operating.
Motor case ground
Motor
The noise occurs constantly, not just under certain conditions.
Rear window defogger coil malfunction
Open circuit in printed heater
Poor ground of antenna amplifier or antenna feeder
line
Mirror type film is attached on the rear window glass
After-market TV antenna and/or electrical accessories
such as radio are attached on the rear window glass.
A cracking or snapping sound occurs while the vehicle is being driven,
especially when it is vibrating excessively.
Poor ground of audio parts
Poor ground due to incorrect installation of parts
Poor wiring connections or a short circuit
Page 640 of 4731

AUDIO AV-41
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Power Supply Circuit InspectionAKS005TD
1. CHECK FUSE
Check that the following fuses of the BOSE speaker amp., woofer, and audio unit are not blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Check voltage between the audio unit connector and ground.
2. Check voltage between BOSE speaker amp.connector or woofer connector and ground.
OK or NG
OK >>INSPECTION END (Audio unit is OK.)
GO TO 3. (BOSE speaker amp. and woofer)
NG >> Repair harness or connector between each unit and fuse.
Unit Te r m i n a l
(Wire color) Signal name Fuse No.
Audio unit 6 (W/L) Battery power supply 32
10(LG/R) ACC power supply 6
BOSE speaker amp. 1(R) Battery power supply 17
Woofer 1(G/R) Battery power supply 32
Unit Terminal No.
Ignition switch Voltage
(+)
(–)
Connector Terminal
(Wire color)
Audio
unit M58 6 (W/L) Ground OFF Battery voltage
10 (LG/R) Ground ACC Battery voltage
PKIA3814E
Unit Terminal No.
Ignition switch Voltag e
(+)
(–)
Connector Terminal
(Wire color)
BOSE
speaker
amp. B212 1 (R) Ground OFF Battery voltage
Woofer B223 1 (G/R) Ground OFF Battery voltage
SKIA8931E
