AV Communication Line Check (Between Display Control Unit and A/C and AV
Switch)
AKS007JK
1. CHECK A/C AND AV SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and A/C and AV switch connector.
3. Check continuity between display control unit and A/C and AV switch.
4. Check continuity between display control unit and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. SELF-DIAGNOSIS OF DCU
1. Replace same normal A/C and AV switch.
2. Connect display control unit connector and A/C and AV switch connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU, and check the self-diagnosis result.
OK or NG
OK >> Replace A/C and AV switch.
NG >> Replace display control unit.
Terminals
Continuity
Display control unit A/C and AV switch
Connector Te r m i n a l
(Wire color) Connector
Terminal
(Wire color)
M76 28 (B/R)
M64 6 (B/R)
Ye s
30 (W/R) 8 (W/R)
Terminals Continuity
Display control unit
—
Connector Terminal (Wire color)
M76 28 (B/R)
Ground No
30 (W/R)
PKIA2885E
Page 754 of 4731

NAVIGATION SYSTEM AV-155
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
CAN Communication Line CheckAKS007JL
1. CHECK MONITOR DESCRIPTION
1. Start display control unit self-diagnosis. Refer to AV- 1 2 9 , "
Self-Diagnosis Mode (DCU)"

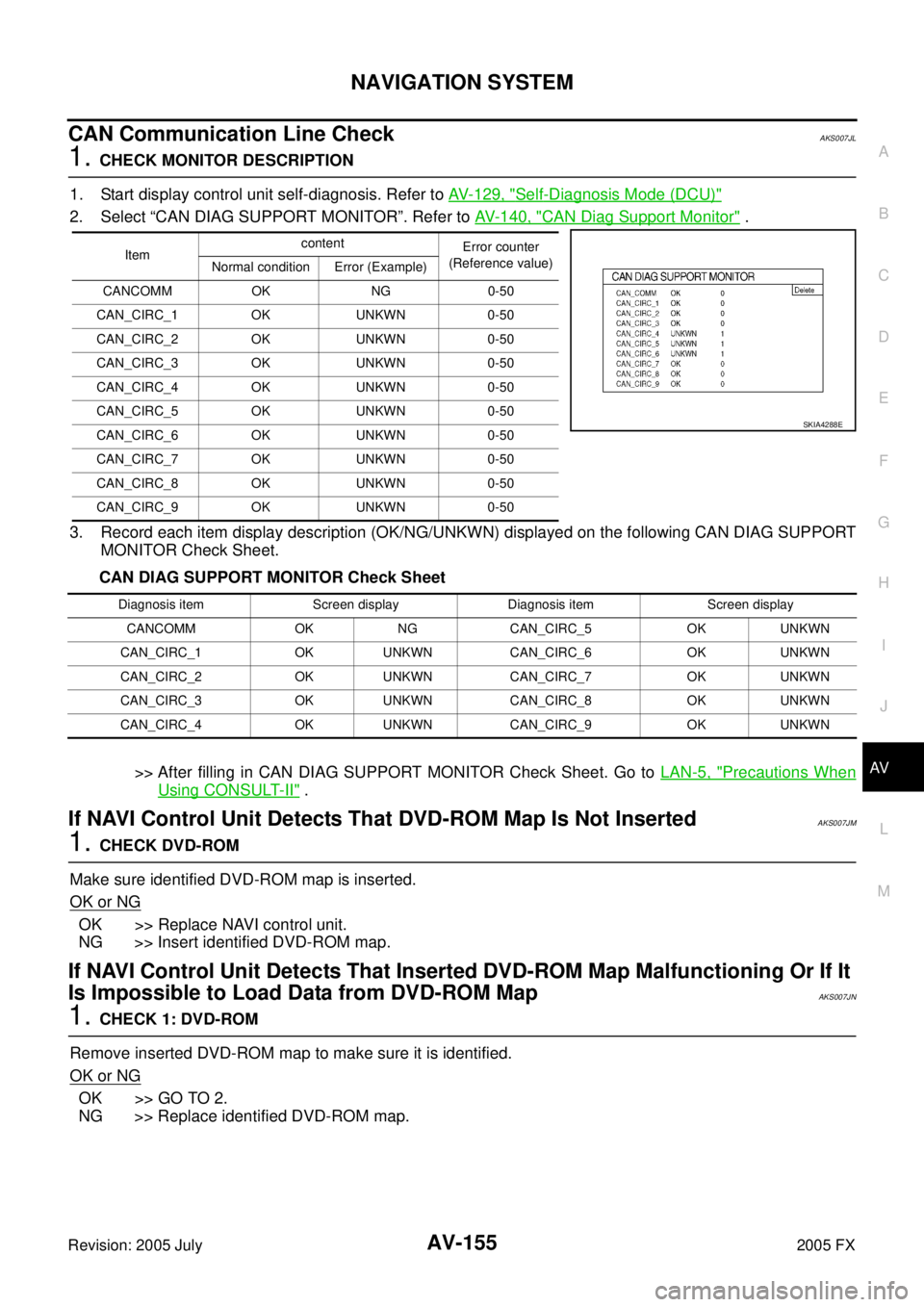

2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV- 1 4 0 , "CAN Diag Support Monitor" .
3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet
>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet. Go to LAN-5, "
Precautions When
Using CONSULT-II" .
If NAVI Control Unit Detects That DVD-ROM Map Is Not InsertedAKS007JM
1. CHECK DVD-ROM
Make sure identified DVD-ROM map is inserted.
OK or NG
OK >> Replace NAVI control unit.
NG >> Insert identified DVD-ROM map.
If NAVI Control Unit Detects That Inserted DVD-ROM Map Malfunctioning Or If It
Is Impossible to Load Data from DVD-ROM Map
AKS007JN
1. CHECK 1: DVD-ROM
Remove inserted DVD-ROM map to make sure it is identified.
OK or NG
OK >> GO TO 2.
NG >> Replace identified DVD-ROM map.
Item content
Error counter
(Reference value)
Normal condition Error (Example)
CANCOMM OK NG 0-50
CAN_CIRC_1 OK UNKWN 0-50
CAN_CIRC_2 OK UNKWN 0-50
CAN_CIRC_3 OK UNKWN 0-50
CAN_CIRC_4 OK UNKWN 0-50
CAN_CIRC_5 OK UNKWN 0-50
CAN_CIRC_6 OK UNKWN 0-50
CAN_CIRC_7 OK UNKWN 0-50
CAN_CIRC_8 OK UNKWN 0-50
CAN_CIRC_9 OK UNKWN 0-50
SKIA4288E
Diagnosis item Screen display Diagnosis item Screen display CANCOMM OK NG CAN_CIRC_5 OK UNKWN
CAN_CIRC_1 OK UNKWN CAN_CIRC_6 OK UNKWN
CAN_CIRC_2 OK UNKWN CAN_CIRC_7 OK UNKWN
CAN_CIRC_3 OK UNKWN CAN_CIRC_8 OK UNKWN
CAN_CIRC_4 OK UNKWN CAN_CIRC_9 OK UNKWN
Page 755 of 4731

AV-156
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
2. CHECK 2: DVD-ROM
Check removed DVD-ROM that there are dirt, scratch and warp.
OK or NG
OK >> GO TO 3.
NG >> Replace DVD-ROM map.
3. CHECK 3: DVD-ROM
Insert same DVD-ROM to make sure same diagnosis result is found as last self-diagnosis.
OK or NG
OK >> Replace NAVI control unit.
NG >> Replace DVD-ROM map.
If Connection Between NAVI Control Unit and GPS AntennaIs MalfunctioningAKS007JO
1. CHECK GPS ANTENNA
Check cable for GPS antenna by watching out to see that cable is malfunctioning.
OK or NG
OK >> GO TO 2.
NG >> Replace GPS antenna.
2. CHECK BY REPLACEMENT OF GPS ANTENNA
Replace other functional GPS antenna to try self-diagnosis again.
Result of self-diagnosis; Found same result?
YES >> Replace NAVI control unit.
NO >> Replace GPS antenna.
RGB Screen Is Not ShownAKS007JP
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and display connector.
3. Check continuity between display control unit harness connector M76 terminal 51 (B) and display harness connector M63 termi-
nal 9 (B).
4. Check continuity between display control unit harness connector M76 terminal 55 (R) and display harness connector M63 termi-
nal 8 (R).
5. Check continuity between display control unit harness connector M76 terminal 51 (B), 55 (R) and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. Continuity should exist.
Continuity should exist.
Continuity should not exist.
PKIA2887E
Page 756 of 4731

NAVIGATION SYSTEM AV-157
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK HORIZONTAL SYNCHRONIZATION SIGNAL
1. Connect display control unit connector and display connector.
2. Turn ignition switch ON.
3. Check signal between display control unit connector M76 termi- nals 55 (R) and 49 with CONSULT-ll or oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Replace display.
3. CHECK RGB AREA SIGNAL
1. Press the “TRIP” button.
2. Check signal between display control unit connector M76 termi- nals 51 (B) and 49 with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace display.
NG >> Replace display control unit.
Color of RGB Image Is Not Proper (NAVI Screen Looks Bluish)AKS007JQ
1. CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit and display control unit.
4. Check continuity between NAVI control unit and ground.
When the screen looks bluish
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 55 (R) - 49 : Refer to
AV- 1 2 1 , "
Terminals and Refer-
ence Value for Display Control Unit" .

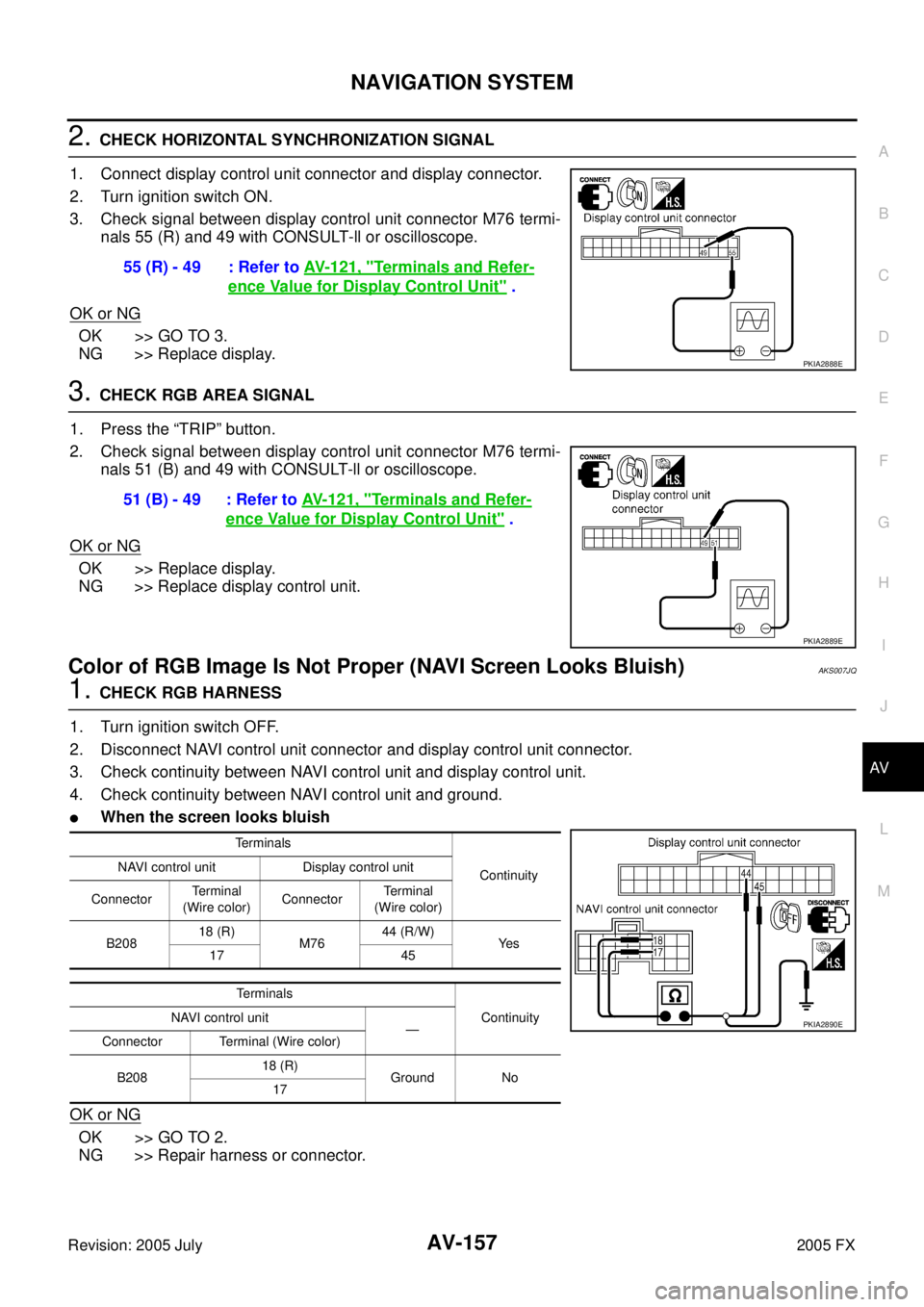

PKIA2888E
51 (B) - 49 : Refer to AV- 1 2 1 , "Terminals and Refer-
ence Value for Display Control Unit" .
PKIA2889E
Terminals
Continuity
NAVI control unit Display control unit
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
B208 18 (R)
M76 44 (R/W)
Ye s
17 45
Terminals Continuity
NAVI control unit
—
Connector Terminal (Wire color)
B208 18 (R)
Ground No
17
PKIA2890E
Page 757 of 4731

AV-158
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
2. CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.
4. Check the following with CONSULT-ll or oscilloscope.
When the screen looks bluish
Voltage signal between NAVI control unit connector B208 termi-
nal 18 (R) and 17.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Color of RGB Image Is Not Proper (NAVI Screen Looks Reddish)AKS007JR
1. CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit and display control unit.
4. Check continuity between NAVI control unit and ground.
When the screen looks reddish
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 18 (R) - 17 : Refer to
AV- 11 9 , "
Terminals and Ref-
erence Value for NAVI Control Unit" .
PKIA2891E
Terminals
Continuity
NAVI control unit Display control unit
Connector Te r m i n a l
(Wire color) Connector Terminal
(Wire color)
B208 21 (W)
M76 46 (R/L)
Ye s
17 45
Terminals Continuity
NAVI control unit
—
Connector Terminal (Wire color)
B208 21 (W)
Ground No
17
PKIA2892E
Page 758 of 4731

NAVIGATION SYSTEM AV-159
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display ″Color bar ″ by ″CONFIRMATION/ADJUSTMENT ″ mode.
4. Check the following with CONSULT-ll or oscilloscope.
When the screen looks reddish
Voltage signal between NAVI control unit connector B208 termi-
nal 21 (W) and 17.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Color of RGB Image Is Not Proper (NAVI Screen Looks Yellowish)AKS007JS
1. CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit and display control unit.
4. Check continuity between NAVI control unit and ground.
When the screen looks yellowish
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 21 (W) - 17 : Refer to
AV- 11 9 , "
Terminals and Ref-
erence Value for NAVI Control Unit" .
PKIA2893E
Terminals
Continuity
NAVI control unit Display control unit
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
B208 15 (B)
M76 48 (B)
Ye s
17 45
Terminals Continuity
NAVI control unit
—
Connector Terminal (Wire color)
B208 15 (B)
Ground No
17
PKIA2894E
Page 759 of 4731

AV-160
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
2. CHECK RGB SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display ″Color bar ″ by ″CONFIRMATION/ADJUSTMENT ″ mode.
4. Check the following with CONSULT-ll or oscilloscope.
When the screen looks yellowish
Voltage signal between NAVI control unit connector B208 termi-
nal 15 (B) and 17.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Color of RGB Image Is Not Proper (All Screens Looks Bluish)AKS007JT
1. CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and display connector.
3. Check continuity between display control unit and display.
4. Check continuity between display control unit and ground.
When the screen looks bluish
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 15 (B) - 17 : Refer to
AV- 11 9 , "
Terminals and Ref-
erence Value for NAVI Control Unit" .
PKIA2895E
Terminals
Continuity
Display control unit Display
Connector Te r m i n a l
(Wire color) Connector Terminal
(Wire color)
M76 50 (L/R)
M63 17 (L/R)
Ye s
47 7
Terminals Continuity
Display control unit
—
Connector Terminal (Wire color)
M76 50 (L/R)
Ground No
47
PKIA2896E
Page 760 of 4731

NAVIGATION SYSTEM AV-161
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK RGB SIGNAL
1. Connect display control unit connector and display connector.
2. Turn ignition switch ON.
3. Display “Color bar” by “CONFIRMATION/ADJUSTMENT” mode.
4. Check the following with CONSULT-ll or oscilloscope.
When the screen looks bluish
Voltage signal between display control unit connector M76 ter-
minal 50 (L/R) and 47.
OK or NG
OK >> Replace display.
NG >> Replace display control unit.
Color of RGB ImageIs Not Proper (All Screens Looks Reddish)AKS007JU
1. CHECK RGB HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and display connector.
3. Check continuity between display control unit and display.
4. Check continuity between display control unit and ground.
When the screen looks reddish
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 50 (L/R) - 47 : Refer to
AV- 1 2 1 , "
Terminals and Refer-
ence Value for Display Control Unit" .
PKIA2897E
Terminals
Continuity
Display control unit Display
Connector Terminal
(Wire color) Connector Te r m i n a l
(Wire color)
M76 52 (L/W)
M63 6 (L/W)
Ye s
47 7
Te r m i n a l s Continuity
Display control unit
—
Connector Terminal (Wire color)
M76 52 (L/W)
Ground No
47
PKIA2898E
