Page 3577 of 4731
![INFINITI FX35 2005 Service Manual LAN-158
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector F44 INFINITI FX35 2005 Service Manual LAN-158
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector F44](/manual-img/42/57020/w960_57020-3576.png)
LAN-158
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display con-
trol unit.
Display Control Unit Circuit InspectionAKS00CEK
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec- tor M76 terminals 25 (L) and 26 (R).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and har- ness connector M82.
ICC Unit Circuit InspectionAKS00CEM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 3 (L) - 8 (R) : Approx. 54 - 66
Ω
SKIA6866E
25 (L) - 26 (R) : Approx. 54 - 66Ω
SKIA6884E
Page 3578 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-159
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

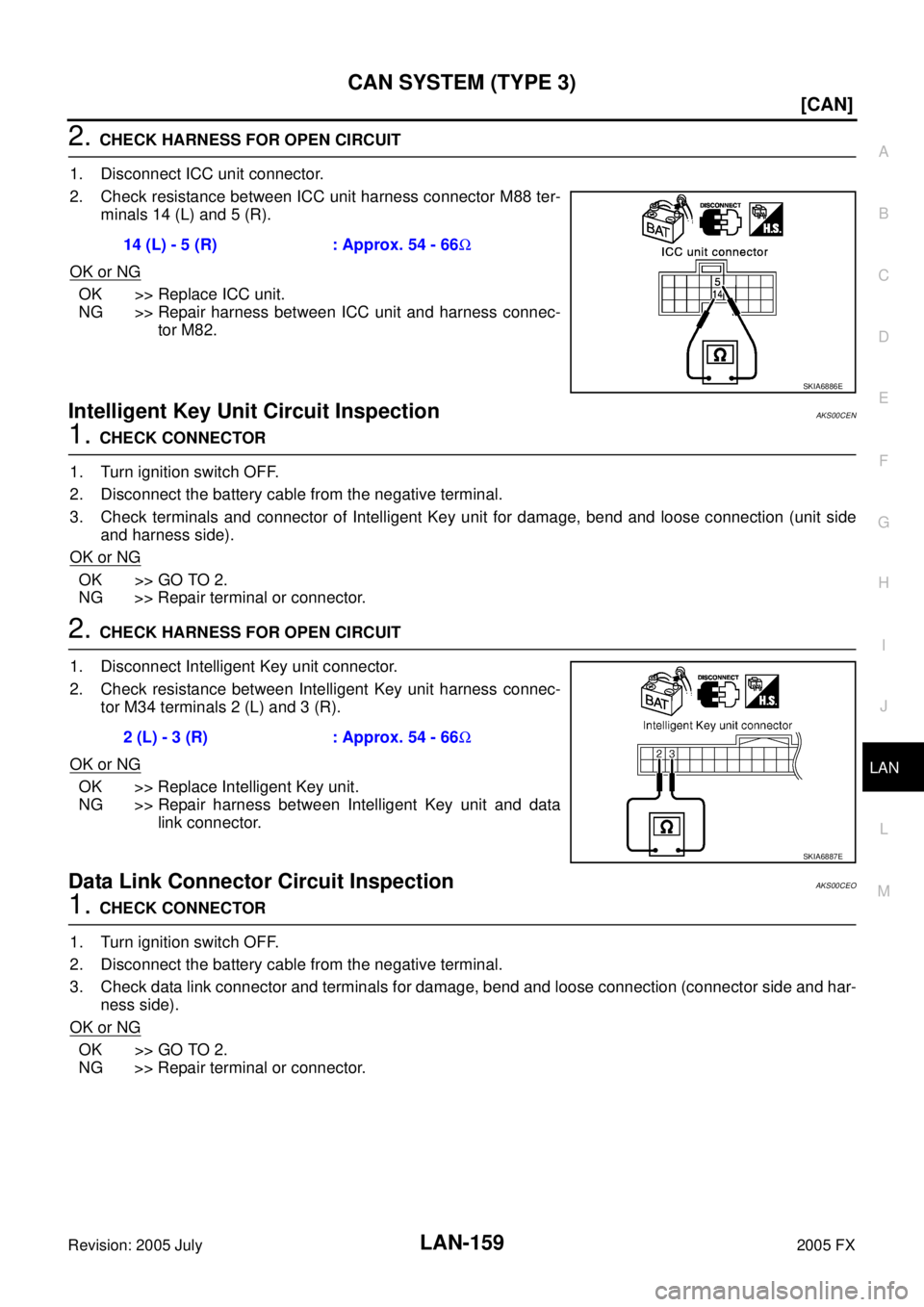

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-159
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between](/manual-img/42/57020/w960_57020-3577.png)
CAN SYSTEM (TYPE 3) LAN-159
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector M88 ter- minals 14 (L) and 5 (R).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor M82.
Intelligent Key Unit Circuit InspectionAKS00CEN
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check resistance between Intelligent Key unit harness connec- tor M34 terminals 2 (L) and 3 (R).
OK or NG
OK >> Replace Intelligent Key unit.
NG >> Repair harness between Intelligent Key unit and data link connector.
Data Link Connector Circuit InspectionAKS00CEO
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har- ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 14 (L) - 5 (R) : Approx. 54 - 66
Ω
SKIA6886E
2 (L) - 3 (R) : Approx. 54 - 66Ω
SKIA6887E
Page 3579 of 4731
![INFINITI FX35 2005 Service Manual LAN-160
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX

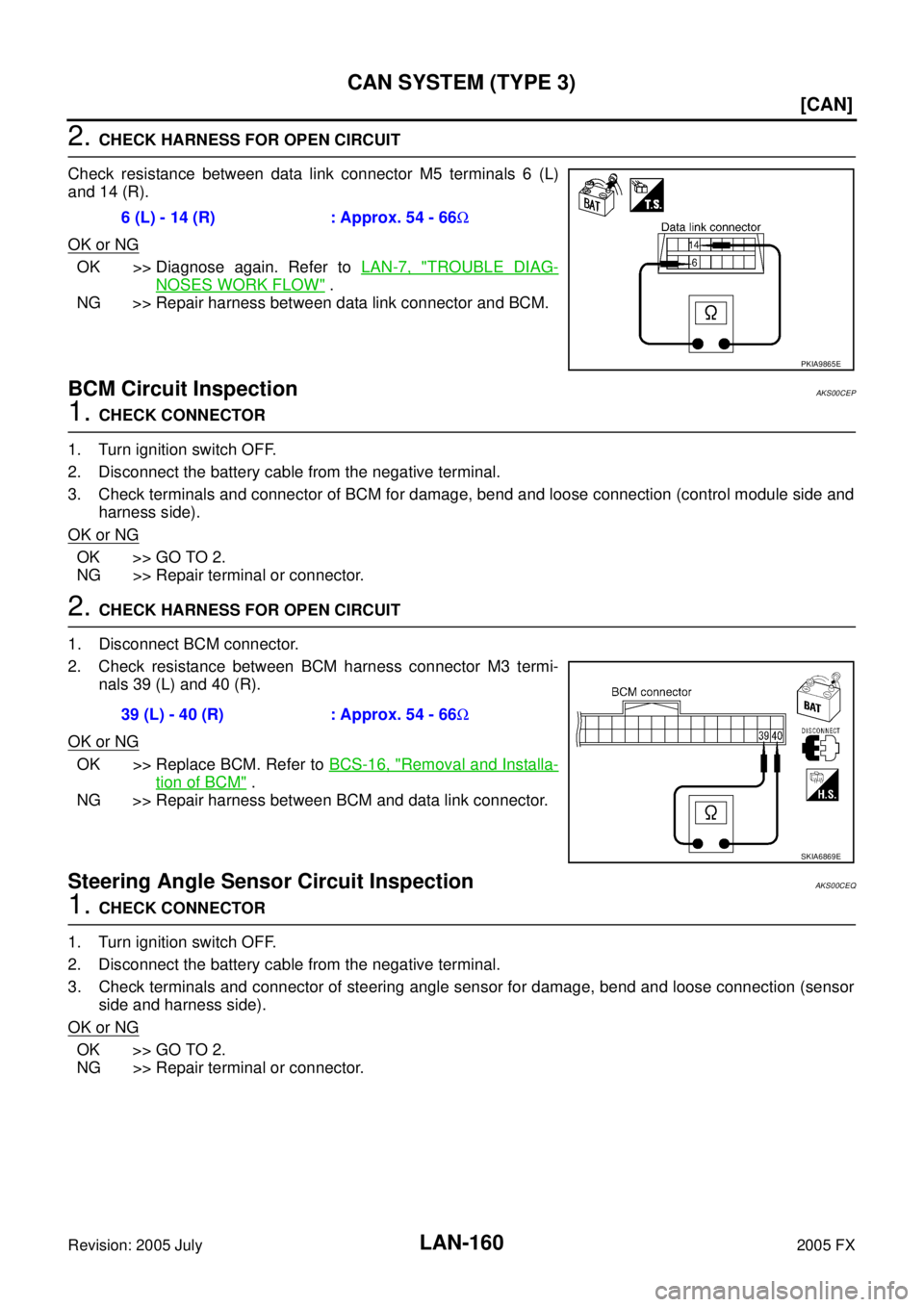

2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose a INFINITI FX35 2005 Service Manual LAN-160
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose a](/manual-img/42/57020/w960_57020-3578.png)
LAN-160
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-7, "TROUBLE DIAG-
NOSES WORK FLOW" .
NG >> Repair harness between data link connector and BCM.
BCM Circuit InspectionAKS00CEP
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M3 termi- nals 39 (L) and 40 (R).
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.
Steering Angle Sensor Circuit InspectionAKS00CEQ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 6 (L) - 14 (R) : Approx. 54 - 66
Ω
PKIA9865E
39 (L) - 40 (R) : Approx. 54 - 66Ω
SKIA6869E
Page 3580 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-161
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

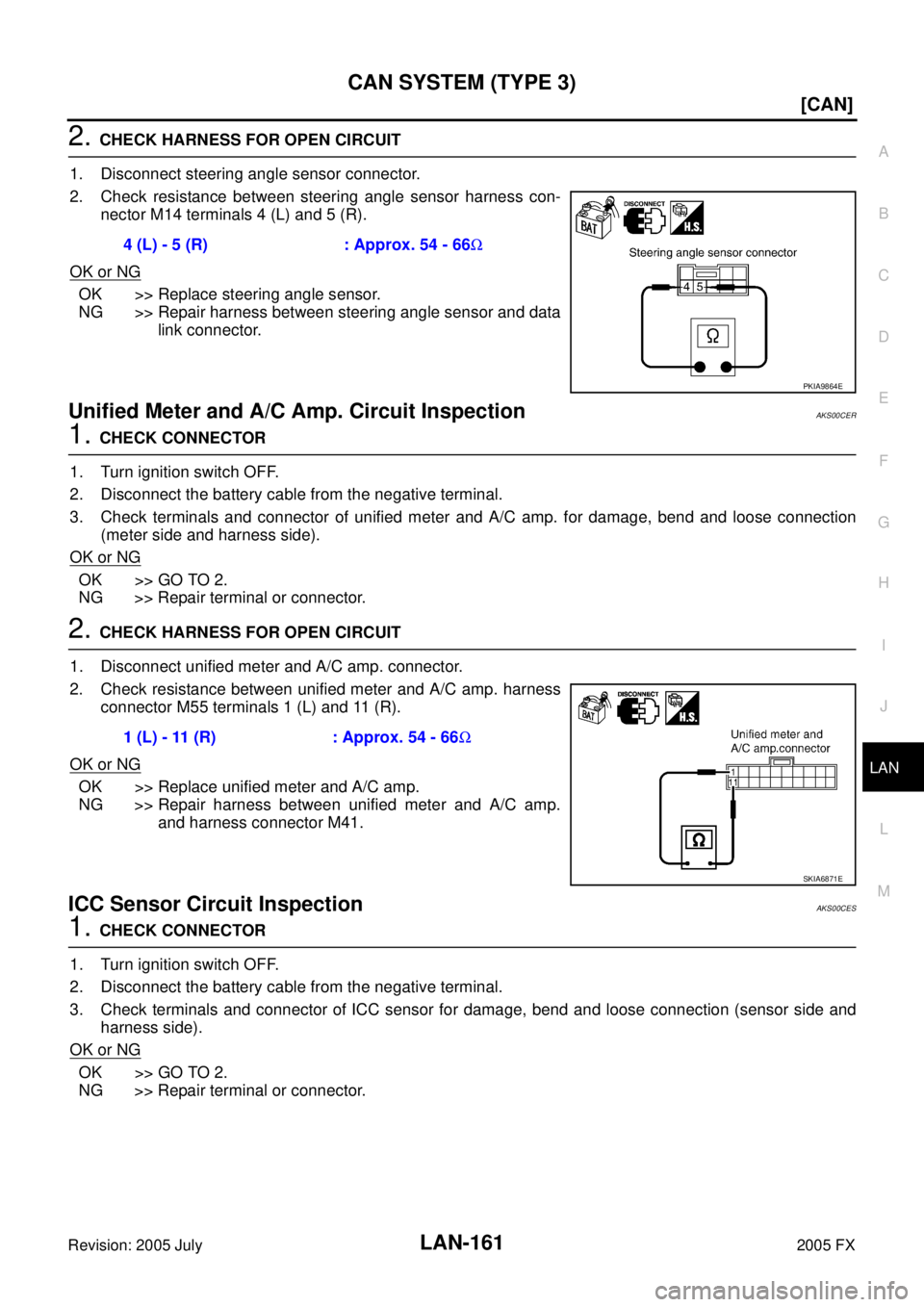

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resis INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-161
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resis](/manual-img/42/57020/w960_57020-3579.png)
CAN SYSTEM (TYPE 3) LAN-161
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con- nector M14 terminals 4 (L) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Unified Meter and A/C Amp. Circuit InspectionAKS00CER
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection (meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness connector M55 terminals 1 (L) and 11 (R).
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp. and harness connector M41.
ICC Sensor Circuit InspectionAKS00CES
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ICC sensor for damage, bend and loose connection (sensor side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 4 (L) - 5 (R) : Approx. 54 - 66
Ω
PKIA9864E
1 (L) - 11 (R) : Approx. 54 - 66Ω
SKIA6871E
Page 3581 of 4731
![INFINITI FX35 2005 Service Manual LAN-162
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX

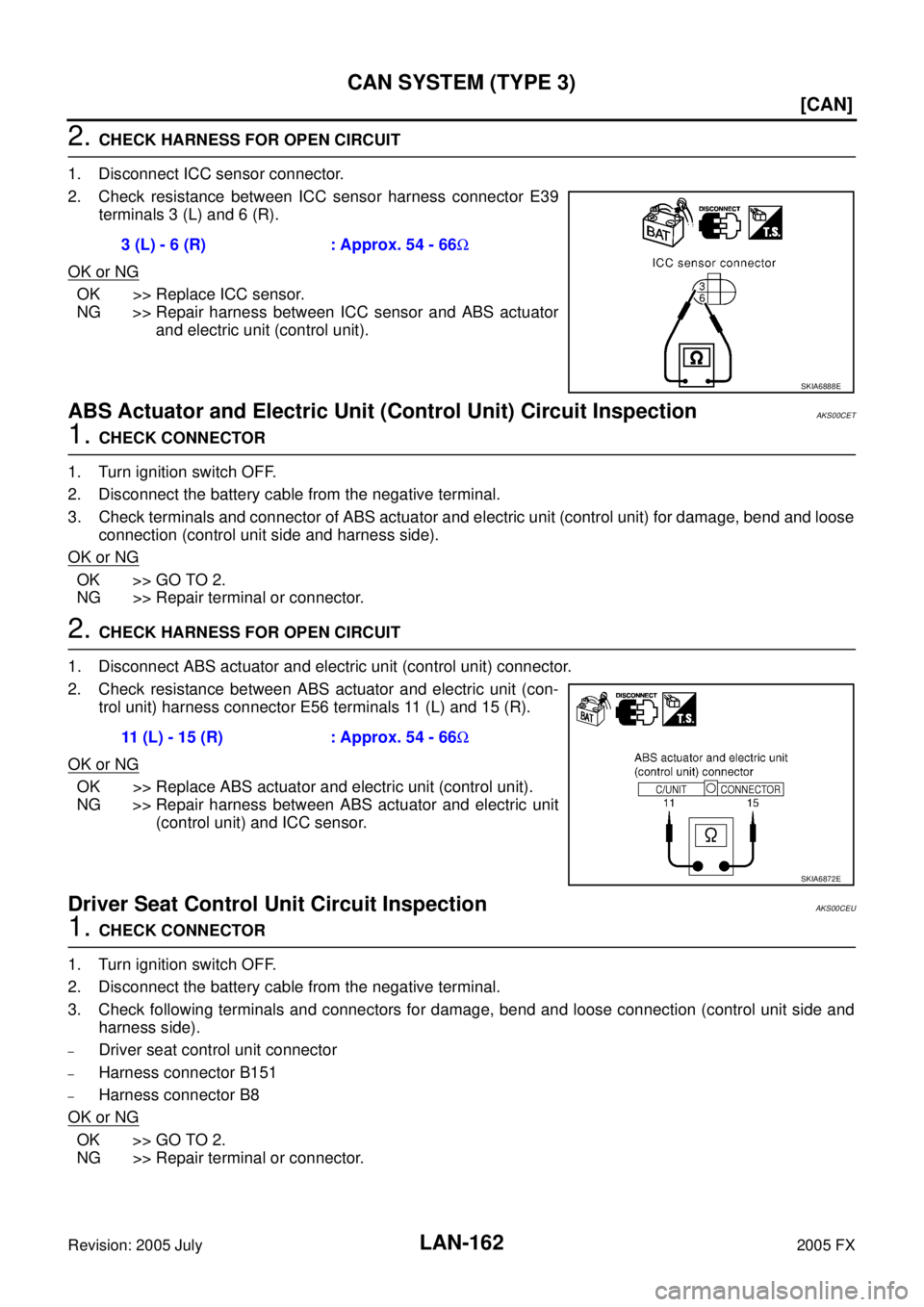

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E39 term INFINITI FX35 2005 Service Manual LAN-162
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E39 term](/manual-img/42/57020/w960_57020-3580.png)
LAN-162
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E39 terminals 3 (L) and 6 (R).
OK or NG
OK >> Replace ICC sensor.
NG >> Repair harness between ICC sensor and ABS actuator
and electric unit (control unit).
ABS Actuator and Electric Unit (Control Unit) Circuit InspectionAKS00CET
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con- trol unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit (control unit) and ICC sensor.
Driver Seat Control Unit Circuit InspectionAKS00CEU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and harness side).
–Driver seat control unit connector
–Harness connector B151
–Harness connector B8
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 3 (L) - 6 (R) : Approx. 54 - 66
Ω
SKIA6888E
11 (L) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E
Page 3582 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-163
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check re INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-163
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check re](/manual-img/42/57020/w960_57020-3581.png)
CAN SYSTEM (TYPE 3) LAN-163
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con- nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B5.
IPDM E/R Circuit InspectionAKS00CEV
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con- nector B8.
14 (OR) - 15 (SB) : Approx. 54 - 66
Ω
SKIA6882E
48 (L) - 49 (R) : Approx. 108 - 132 Ω
SKIB1363E
Page 3583 of 4731

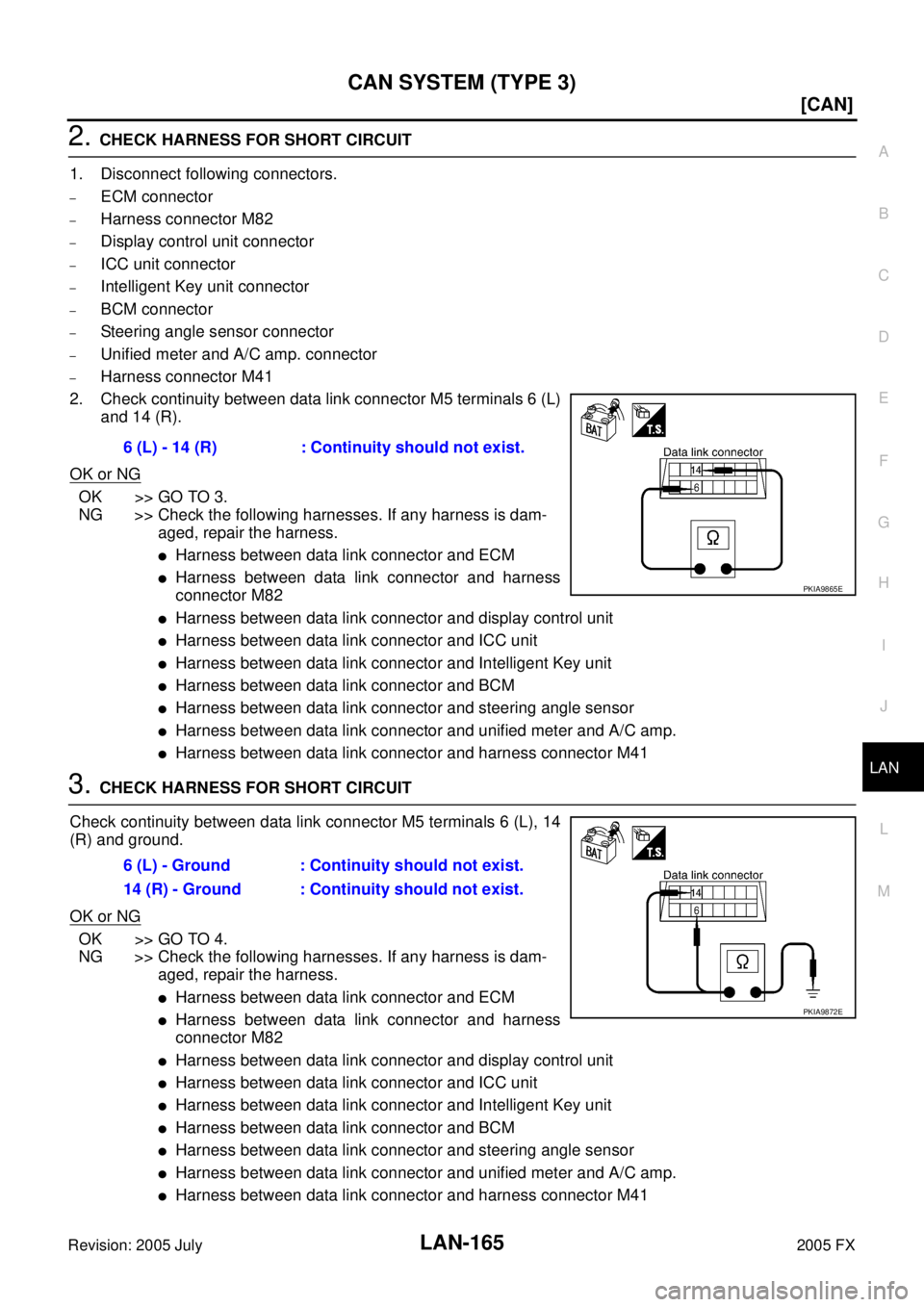

LAN-164
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2005 July 2005 FX
CAN Communication Circuit InspectionAKS00CEW
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side, control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
–Between ECM and driver seat control unit
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Page 3584 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-165
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harne INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-165
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harne](/manual-img/42/57020/w960_57020-3583.png)
CAN SYSTEM (TYPE 3) LAN-165
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L) and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam- aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
6 (L) - 14 (R) : Continuity should not exist.
PKIA9865E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA9872E
