Page 1593 of 4731
![INFINITI FX35 2005 Service Manual EC-200
[VQ35DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2005 July 2005 FX
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Che INFINITI FX35 2005 Service Manual EC-200
[VQ35DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2005 July 2005 FX
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Che](/manual-img/42/57020/w960_57020-1592.png)
EC-200
[VQ35DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2005 July 2005 FX
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 4 and ECM terminal 51. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK MASS AIR FLOW SENSOR
Refer to EC-201, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace mass air flow sensor.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Continuity should exist.
Page 1594 of 4731
![INFINITI FX35 2005 Service Manual DTC P0102, P0103 MAF SENSOR EC-201
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS006ME
MASS AIR FLOW SENSOR
With CONSULT-II
1. Reconnect all har INFINITI FX35 2005 Service Manual DTC P0102, P0103 MAF SENSOR EC-201
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS006ME
MASS AIR FLOW SENSOR
With CONSULT-II
1. Reconnect all har](/manual-img/42/57020/w960_57020-1593.png)
DTC P0102, P0103 MAF SENSOR EC-201
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS006ME
MASS AIR FLOW SENSOR
With CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Connect CONSULT-II and select “DATA MONITOR” mode.
4. Select “MAS A/F SE-B1” and check indication under the follow- ing conditions.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
5. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
Crushed air ducts
Malfunctioning seal of air cleaner element
Uneven dirt of air cleaner element
Improper specification of intake air system parts
b. If NG, repair or replace malfunctioning part and perform step 2 to 4 again. If OK, go to next step.
6. Turn ignition switch OFF.
7. Disconnect mass air flow sensor harness connector and reconnect it again.
8. Perform step 2 to 4 again.
9. If NG, clean or replace mass air flow sensor.
Without CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 51 (Mass air flow sensor signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
Crushed air ducts
Malfunctioning seal of air cleaner element
Uneven dirt of air cleaner element
Improper specification of intake air system parts
Condition MAS A/F SE-B1 (V)
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal
operating temperature.) 1.0 - 1.2
2,500 rpm (Engine is warmed-up to
normal operating temperature.) 1.6 - 2.0
Idle to about 4,000 rpm* 1.0 - 1.2 to Approx. 2.4
PBIB2371E
Condition Voltage V
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal
operating temperature.) 1.0 - 1.2
2,500 rpm (Engine is warmed-up to
normal operating temperature.) 1.6 - 2.0
Idle to about 4,000 rpm* 1.0 - 1.2 to Approx. 2.4
PBIB1106E
Page 1595 of 4731
EC-202
[VQ35DE]
DTC P0102, P0103 MAF SENSOR
Revision: 2005 July 2005 FX
b. If NG, repair or replace malfunctioning part and perform step 2 to 3 again.
If OK, go to next step.
5. Turn ignition switch OFF.
6. Disconnect mass air flow sensor harness connector and reconnect it again.
7. Perform step 2 and 3 again.
8. If NG, clean or replace mass air flow sensor.
Removal and InstallationABS006MF
MASS AIR FLOW SENSOR
Refer to EM-17, "AIR CLEANER AND AIR DUCT" .
Page 1596 of 4731
![INFINITI FX35 2005 Service Manual DTC P0112, P0113 IAT SENSOR EC-203
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionABS006MG
The intake air temper INFINITI FX35 2005 Service Manual DTC P0112, P0113 IAT SENSOR EC-203
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionABS006MG
The intake air temper](/manual-img/42/57020/w960_57020-1595.png)
DTC P0112, P0113 IAT SENSOR EC-203
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P0112, P0113 IAT SENSORPFP:22630
Component DescriptionABS006MG
The intake air temperature sensor is built-into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.
*: This data is reference value and is measured between ECM terminal 34 (Intake air
temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicABS006MH
DTC Confirmation ProcedureABS006MI
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-206, "
Diagnostic Procedure"
.
PBIB1604E
Intake air temperature
° C ( °F) Voltage* V Resistance k
Ω
25 (77) 3.32 1.94 - 2.06
80 (176) 1.23 0.295 - 0.349
SEF012P
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P0112
0112 Intake air tempera-
ture sensor circuit
low input An excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Intake air temperature sensor
P0113
0113 Intake air tempera-
ture sensor circuit
high input An excessively high voltage from the sensor is
sent to ECM.
SEF058Y
Page 1597 of 4731
EC-204
[VQ35DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2005 July 2005 FX
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Page 1598 of 4731
DTC P0112, P0113 IAT SENSOR EC-205
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

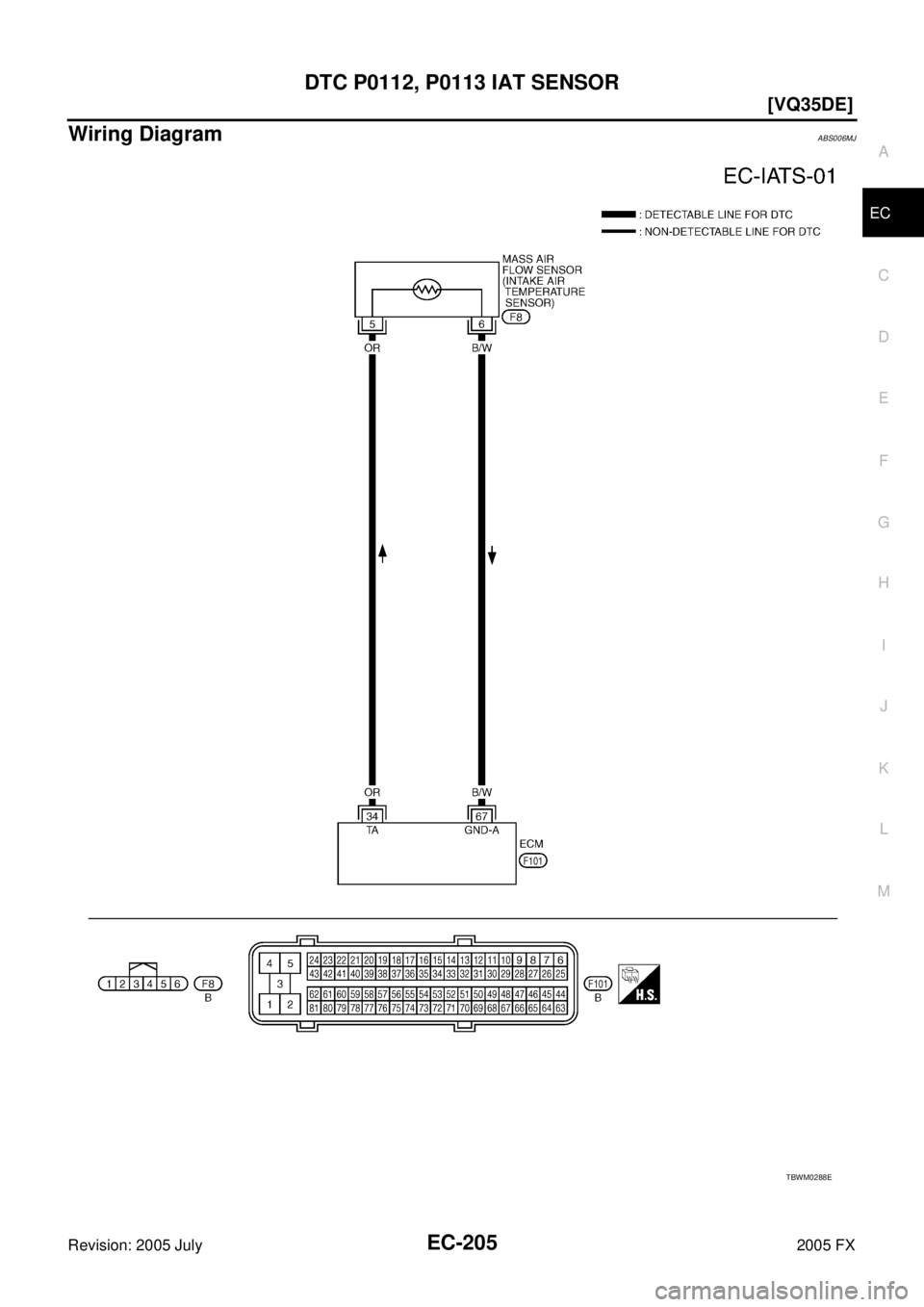

Wiring DiagramABS006MJ
TBWM0288E
Page 1599 of 4731
![INFINITI FX35 2005 Service Manual EC-206
[VQ35DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006MK
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three scr INFINITI FX35 2005 Service Manual EC-206
[VQ35DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006MK
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three scr](/manual-img/42/57020/w960_57020-1598.png)
EC-206
[VQ35DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006MK
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor is built-into) harness connector.
2. Turn ignition switch ON.
3. Check voltage between mass air flow sensor terminal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between mass air flow sensor terminal 6 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2625E
PBIB1565E
Voltage: Approximately 5V
PBIB1169E
Continuity should exist.
Page 1600 of 4731
DTC P0112, P0113 IAT SENSOR EC-207
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
4. CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-207, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
5. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS006ML
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor terminals 5 and
6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature sensor).
Removal and InstallationABS006MM
MASS AIR FLOW SENSOR
Refer to EM-17, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C ( °F) Resistance k Ω
25 (77) 1.94 - 2.06
PBIB1604E
SEF012P
