INFINITI FX35 2005 Service Manual LT-152 MAP LAMP Revision: 2005 July 2005 FX MAP LAMPPFP:26430 Bulb ReplacementAKS007ED 1. Remove lens using clip driver or suitable tool. 2. Remove bulb. 3. Installation is the reverse order of remo

Page 4042 of 4731

INFINITI FX35 2005 Service Manual PERSONAL LAMP LT-153 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX PERSONAL LAMPPFP:26415 Bulb ReplacementAKS007FT 1. Remove personal lamp. Refer to LT- 1 5 3 , "Removal and Ins

Page 4043 of 4731

INFINITI FX35 2005 Service Manual LT-154 LUGGAGE ROOM LAMP Revision: 2005 July 2005 FX LUGGAGE ROOM LAMPPFP:26410 Bulb ReplacementAKS007FV 1. Remove luggage room lamp. Refer to LT- 1 5 4 , "Removal and Installation" . 2. Remove scre

Page 4044 of 4731

INFINITI FX35 2005 Service Manual IGNITION KEY HOLE ILLUMINATION LT-155 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX IGNITION KEY HOLE ILLUMINATIONPFP:48476 Bulb Replacement, Removal and InstallationAKS007FR 1.

Page 4045 of 4731

INFINITI FX35 2005 Service Manual LT-156 GLOVE BOX LAMP Revision: 2005 July 2005 FX GLOVE BOX LAMPPFP:68520 Bulb Replacement, Removal and InstallationAKS007FS 1. Remove instrument passenger lower panel. Refer to IP-18, "INSTRUMENT PAS

Page 4046 of 4731

INFINITI FX35 2005 Service Manual ASHTRAY ILLUMINATION LT-157 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX ASHTRAY ILLUMINATIONPFP:25860 Bulb Replacement and Removal and InstallationAKS007NZ 1. Remove A/T consol

Page 4047 of 4731

INFINITI FX35 2005 Service Manual LT-158 CIGARETTE LIGHTER ILLUMINATION Revision: 2005 July 2005 FX CIGARETTE LIGHTER ILLUMINATIONPFP:25331 Bulb Replacement and Removal and InstallationAKS007O0 Refer to LT- 1 5 7 , "Bulb Replacement

Page 4048 of 4731

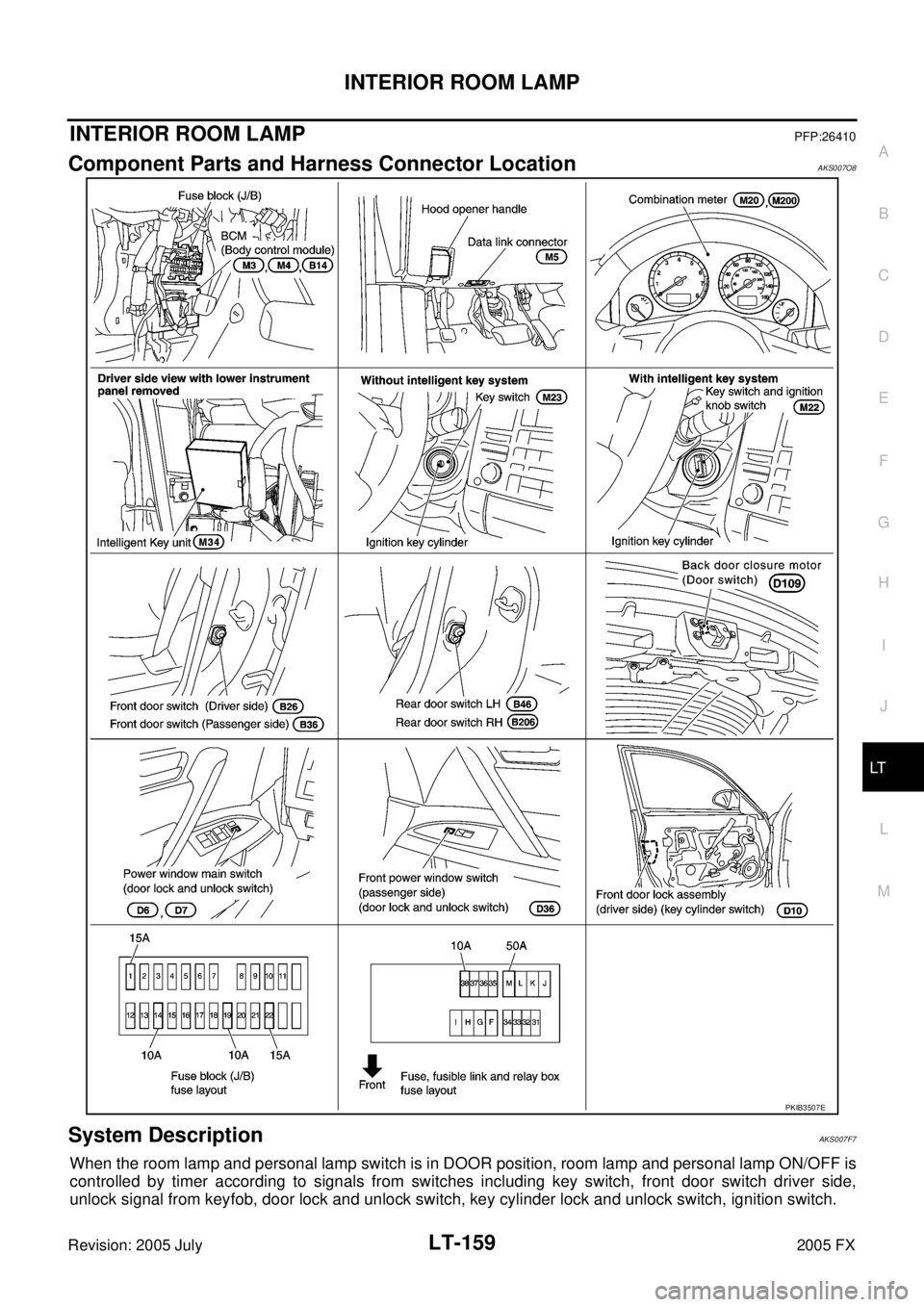

INFINITI FX35 2005 Service Manual INTERIOR ROOM LAMP LT-159 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX INTERIOR ROOM LAMPPFP:26410 Component Parts and Harness Connector LocationAKS007O8 System DescriptionAKS00
