2005 INFINITI FX35 Service Manual

odometer width jump start instrument panel night vision power steering

Page 785 of 4731

INFINITI FX35 2005 Service Manual AV-186
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2005 July 2005 FX
Terminals and Reference Value for DVD PlayerAKS007WJ
Terminal
(Wire color) Item Signal
input/
output Condition
Reference

AV-186
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2005 July 2005 FX
Terminals and Reference Value for DVD PlayerAKS007WJ
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value Example of
symptom
(+) (–) Ignition
switch Operation
1 (L) 2 (R) MES output
signal (LH)
Output ACC Rear AV
switch is ON No sound
from speaker LH
3 (LG) 4 (PU) MES output
signal (RH) No sound
from speaker RH
8—Shield —— — — —
9
(Y/B) Ground Audio ON sig-
nal (MES - H/
U) Output ACC Push “POWER”
switch of DVD
player Approx. 5 V
System dose not
work properly.
10
(R/Y) Ground Illumination
control signal Input OFF Illumination con-
trol switch is oper-
ated by lighting
switch in 1st posi-
tion. Changes between approx. 0 V
and approx. 12 V. DVD display illumi-
nation cannot be
controlled.
11
(L/W) Ground Control sig-
nal (H/U -
MES) Input ACC Push “POWER”
switch of DVD
player Approx. 5 V
System dose not
work properly.
12
(R/L) Ground Illumination
signal Input OFF Lighting switch is
ON (1st position). Approx. 12 V DVD display illumi-
nation dose not
come on when light-
ing switch is ON (1st
position).
Lighting switch
OFF. Approx. 0 V
15
(LG/R) GroundACC power
supply Input ACC — Battery voltage System does not
work properly.
16
(W/L) Ground
Battery power
supply Input OFF — Battery voltage
System dose not
work properly.
17 (G) 19 (LG) MES output
signal (Com-
mon) Output ACC
Play CD or DVD
video Approx. 0 V —
18 (L) 19 (LG) MES output
signal (L+) Output ACC
Play CD or DVD
video No sound from head
phone LH
19 (LG) Ground Ground — ON — Approx. 0 V —
20 (Y) 19 (LG) MES output
signal (R+) Output ACC Play CD or DVD
video No sound from head
phone RH
21 (L) Ground ACC power
supply Output ACC — Approx. 5 V Display does not
work properly.
22 (B) Ground Ground — ON — Approx. 0 V —
SKIA0177E
SKIA5828E
SKIA5828E

Page 786 of 4731

INFINITI FX35 2005 Service Manual INFINITI MOBILE ENTERTAINMENT SYSTEM AV-187
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Terminals and Reference Value for DVD DisplayAKS007WK
23
(OR) 24 (W) VIDEO out-
put

Page 787 of 4731

INFINITI FX35 2005 Service Manual AV-188
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2005 July 2005 FX
6 (LG) Ground Ground — ON — Approx. 0 V —
7 (OR) 8 (W) VIDEO input
signal Input ACC Play DVD video No picture
9 Gro

Page 788 of 4731

INFINITI FX35 2005 Service Manual INFINITI MOBILE ENTERTAINMENT SYSTEM AV-189
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
DVD Player Does Not WorkAKS007WO
1. CHECK FUSE
Check that the following fuse of the DVD

Page 789 of 4731

INFINITI FX35 2005 Service Manual AV-190
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2005 July 2005 FX
5. CHECK CONTROL SIGNAL
1. Connect DVD player connector and audio unit connector.
2. Turn ignition switch ACC.
3. Check volta

Page 790 of 4731

INFINITI FX35 2005 Service Manual INFINITI MOBILE ENTERTAINMENT SYSTEM AV-191
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Screen Is Not Shown (While Sounds Come Out of an Audio Speaker, Did Not Do
of a Head P

Page 791 of 4731

INFINITI FX35 2005 Service Manual AV-192
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2005 July 2005 FX

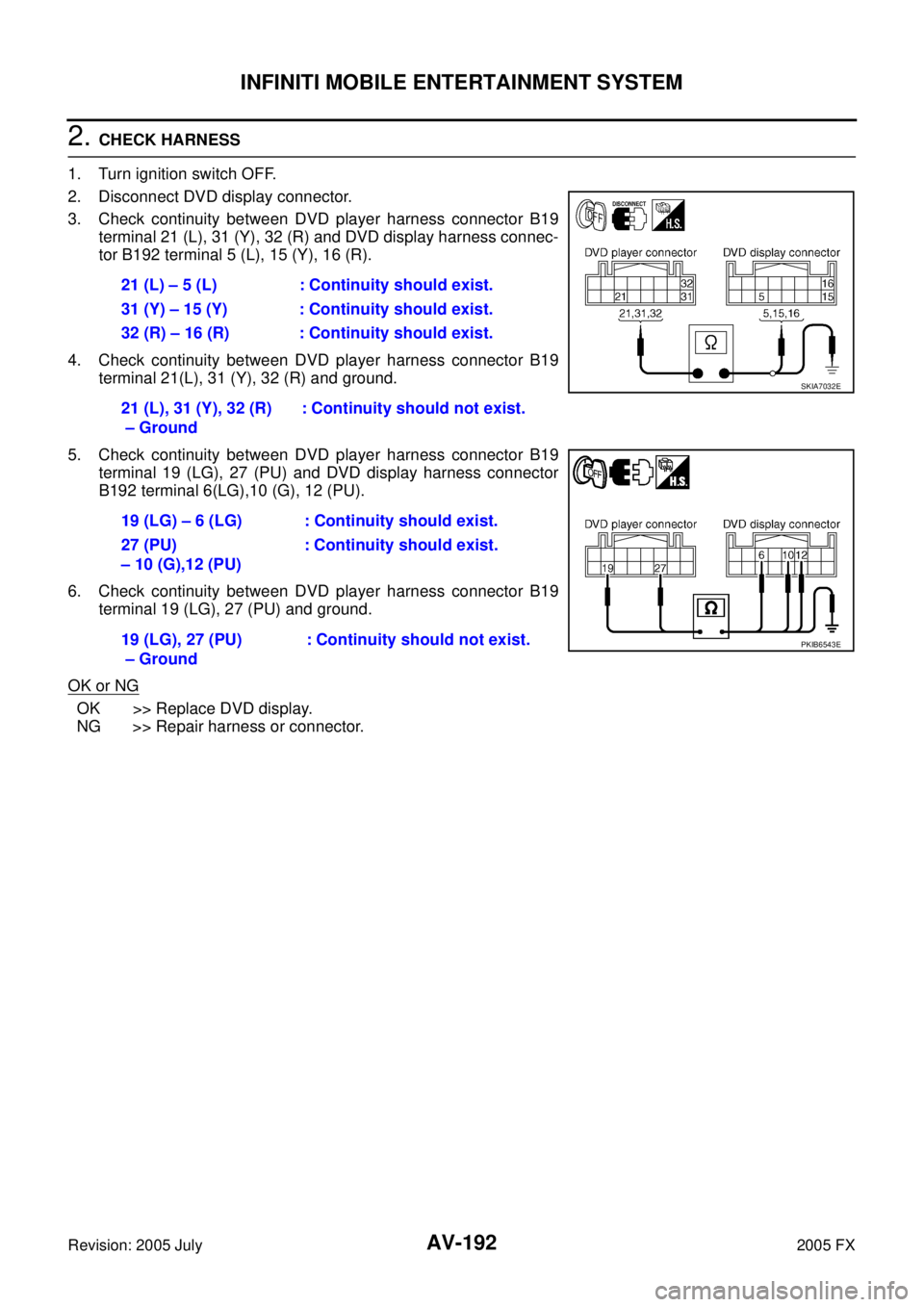

2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD display connector.
3. Check continuity between DVD player harn

Page 792 of 4731

INFINITI FX35 2005 Service Manual INFINITI MOBILE ENTERTAINMENT SYSTEM AV-193
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Screen Is not Shown (Sounds Come Out of Both an Audio Speaker and a Head
Phone)
AKS007
