Page 3601 of 4731

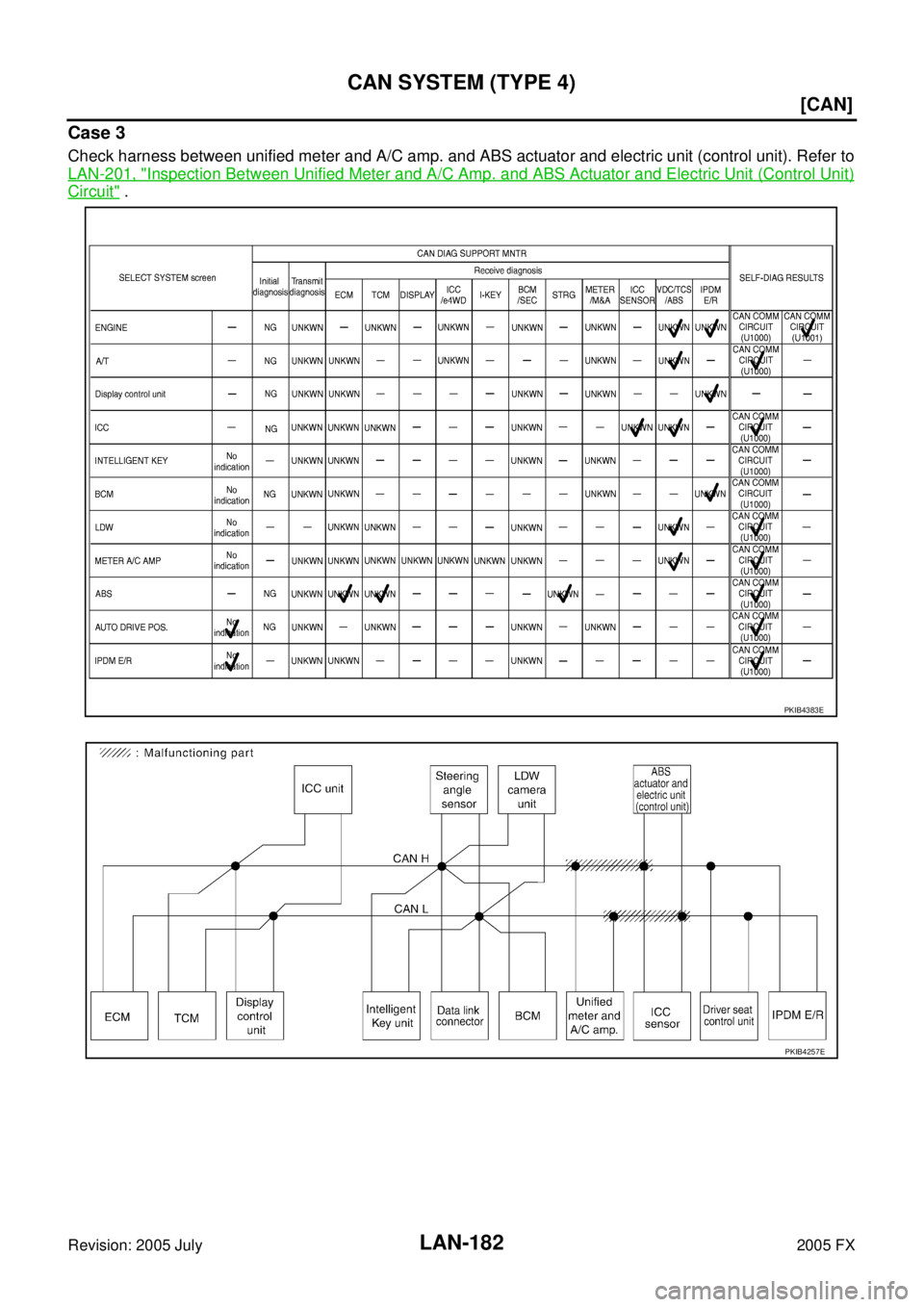

INFINITI FX35 2005 Service Manual LAN-182 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-201, " Inspection

Page 3602 of 4731

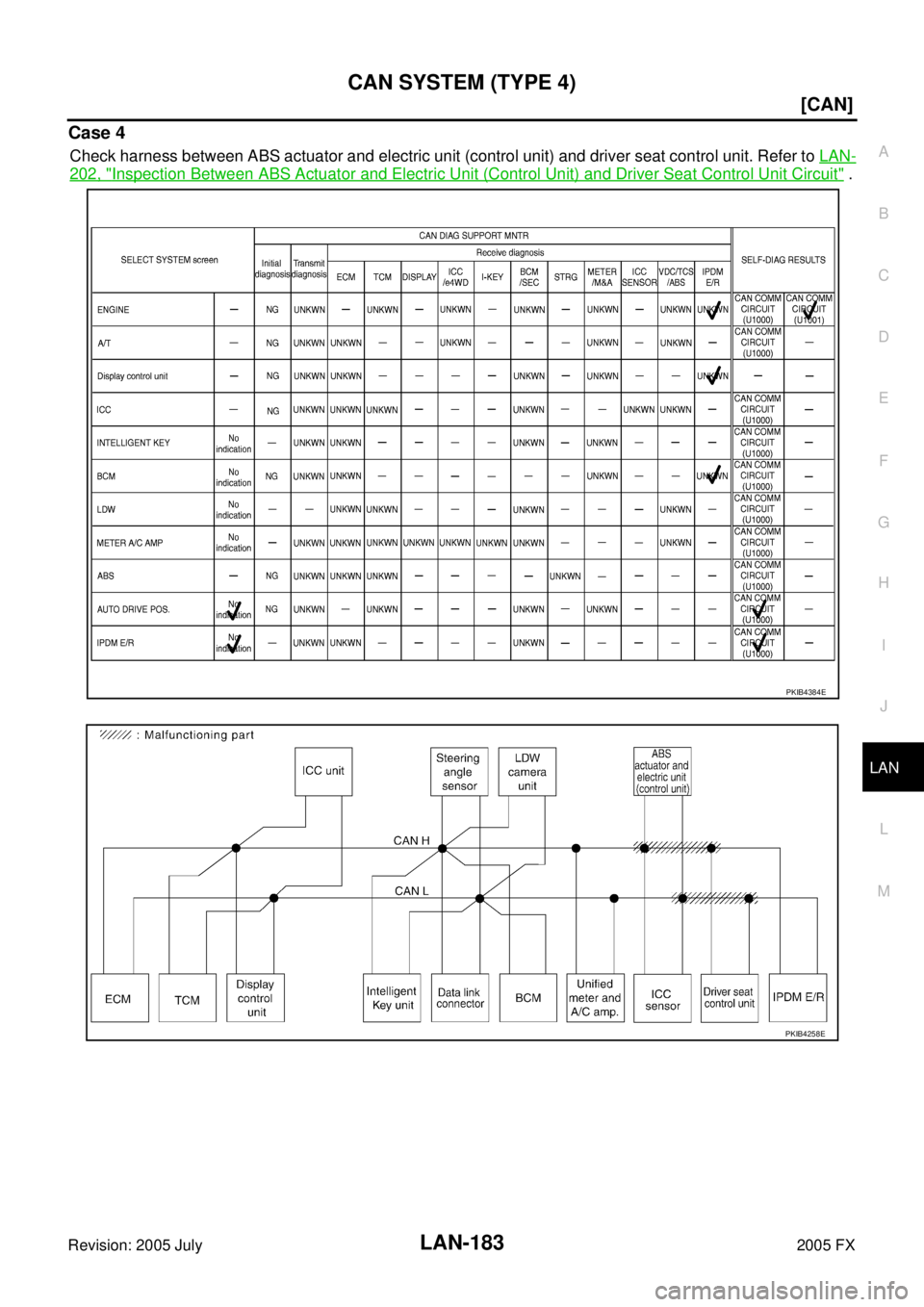

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-183 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat contro

Page 3603 of 4731

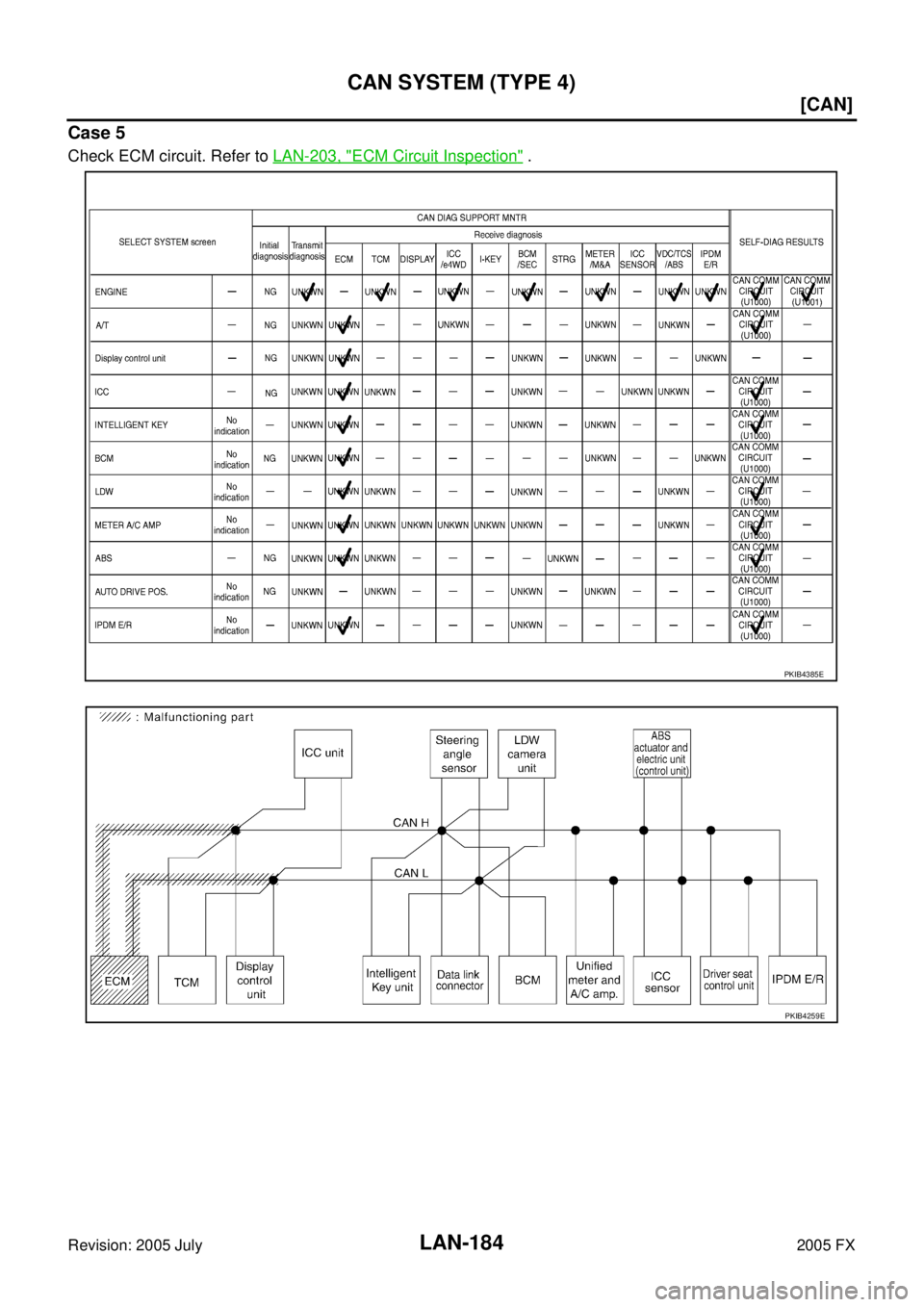

INFINITI FX35 2005 Service Manual LAN-184 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-203, "ECM Circuit Inspection" . PKIB4385E PKIB4259E

Page 3604 of 4731

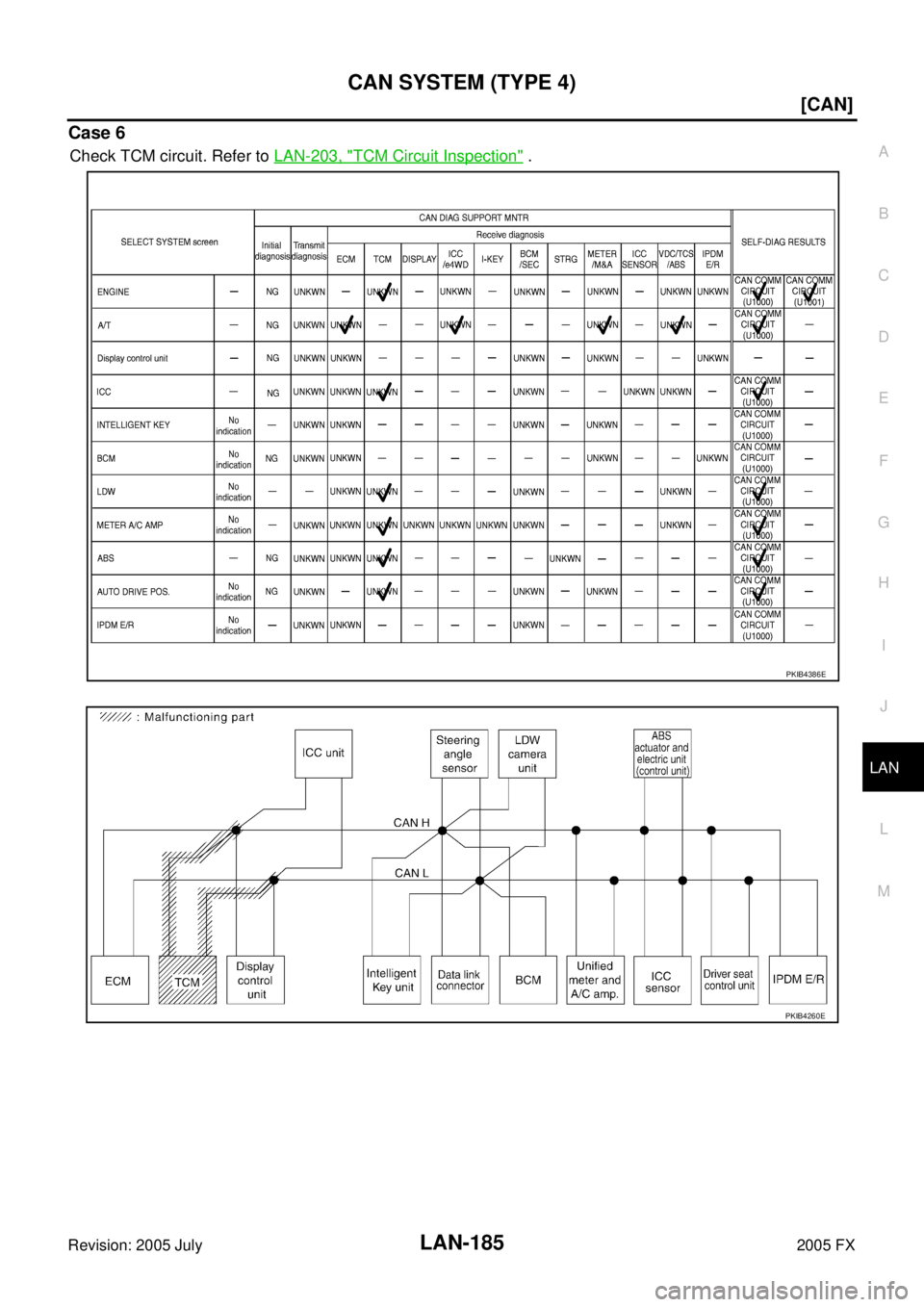

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-185 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-203, "TCM Circuit Inspection" . PKIB4386E PKIB4260E

Page 3605 of 4731

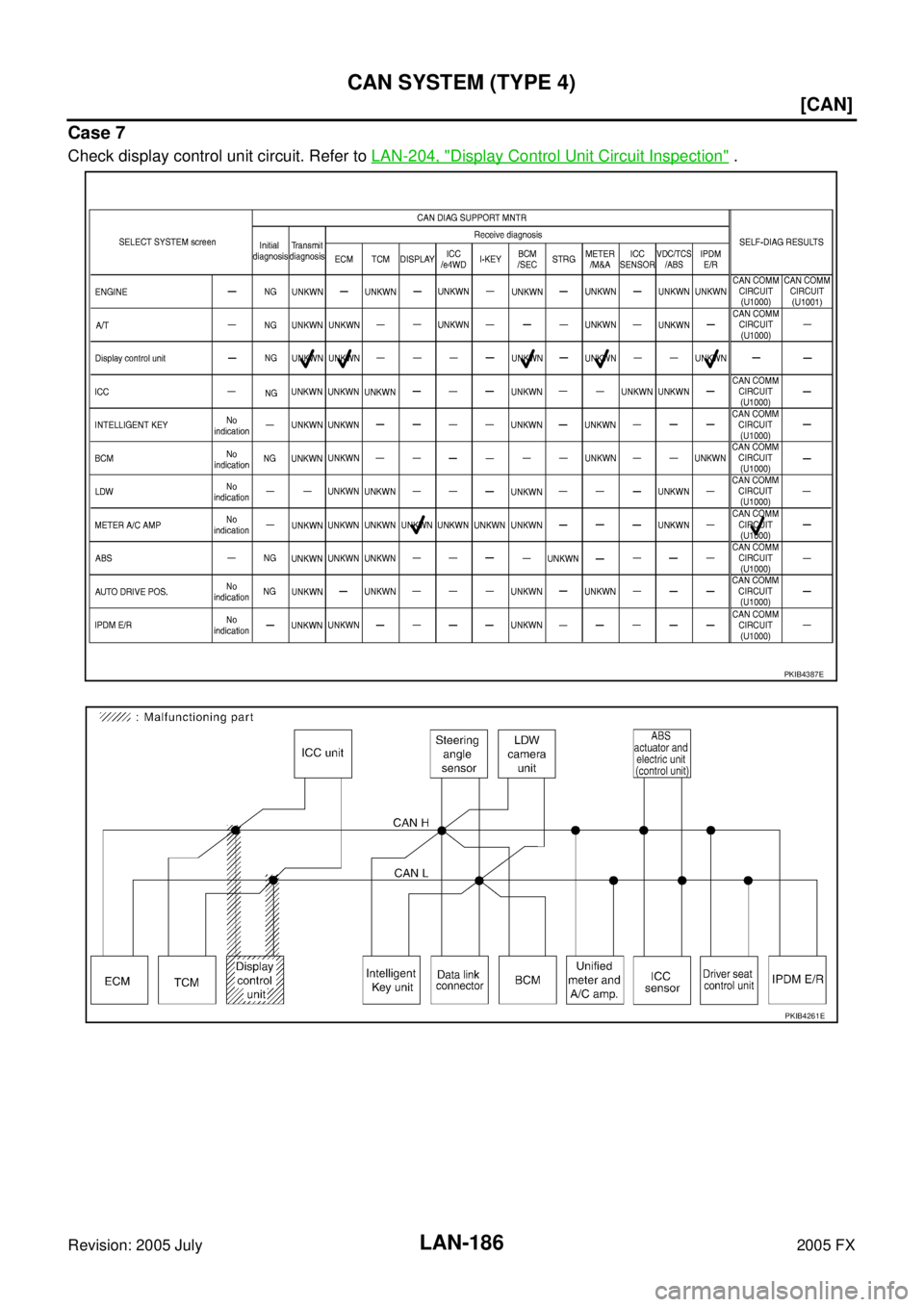

INFINITI FX35 2005 Service Manual LAN-186 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 7 Check display control unit circuit. Refer to LAN-204, "Display Control Unit Circuit Inspection" . PKIB4387E PKIB4261E

Page 3606 of 4731

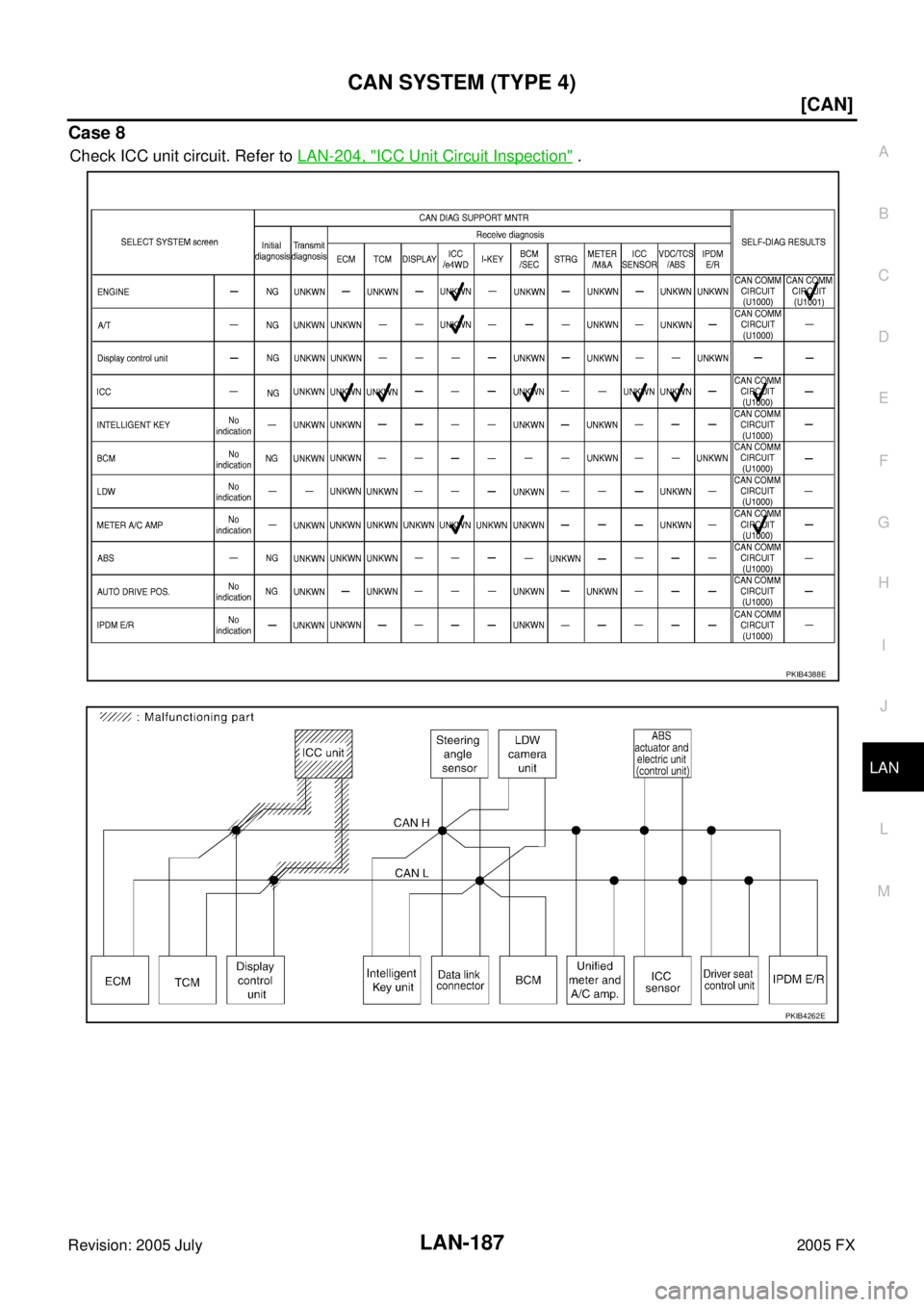

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-187 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 8 Check ICC unit circuit. Refer to LAN-204, "ICC Unit Circuit Inspection" . PKIB4388E PKIB42

Page 3607 of 4731

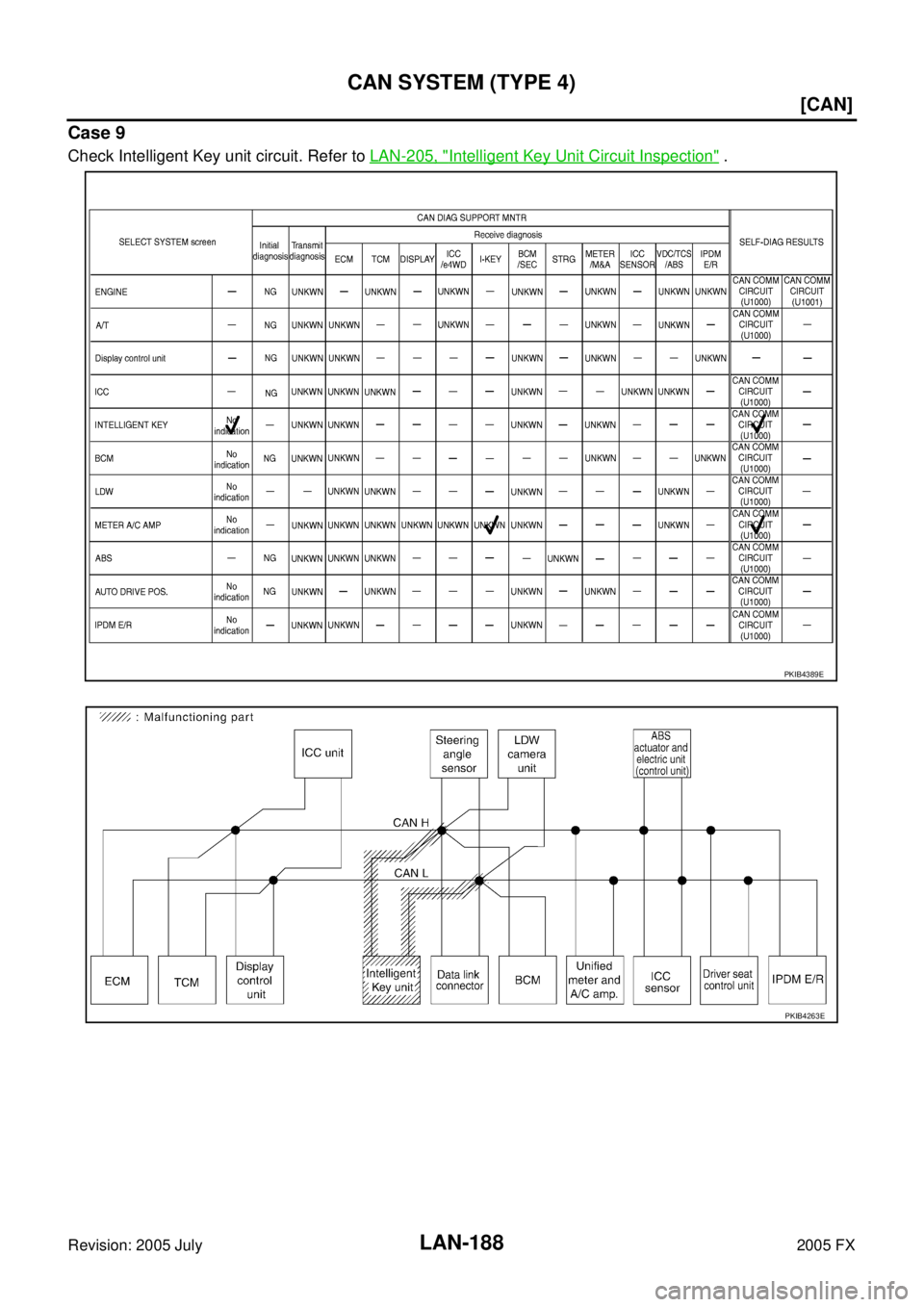

INFINITI FX35 2005 Service Manual LAN-188 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 9 Check Intelligent Key unit circuit. Refer to LAN-205, "Intelligent Key Unit Circuit Inspection" . PKIB4389E PKIB4263E

Page 3608 of 4731

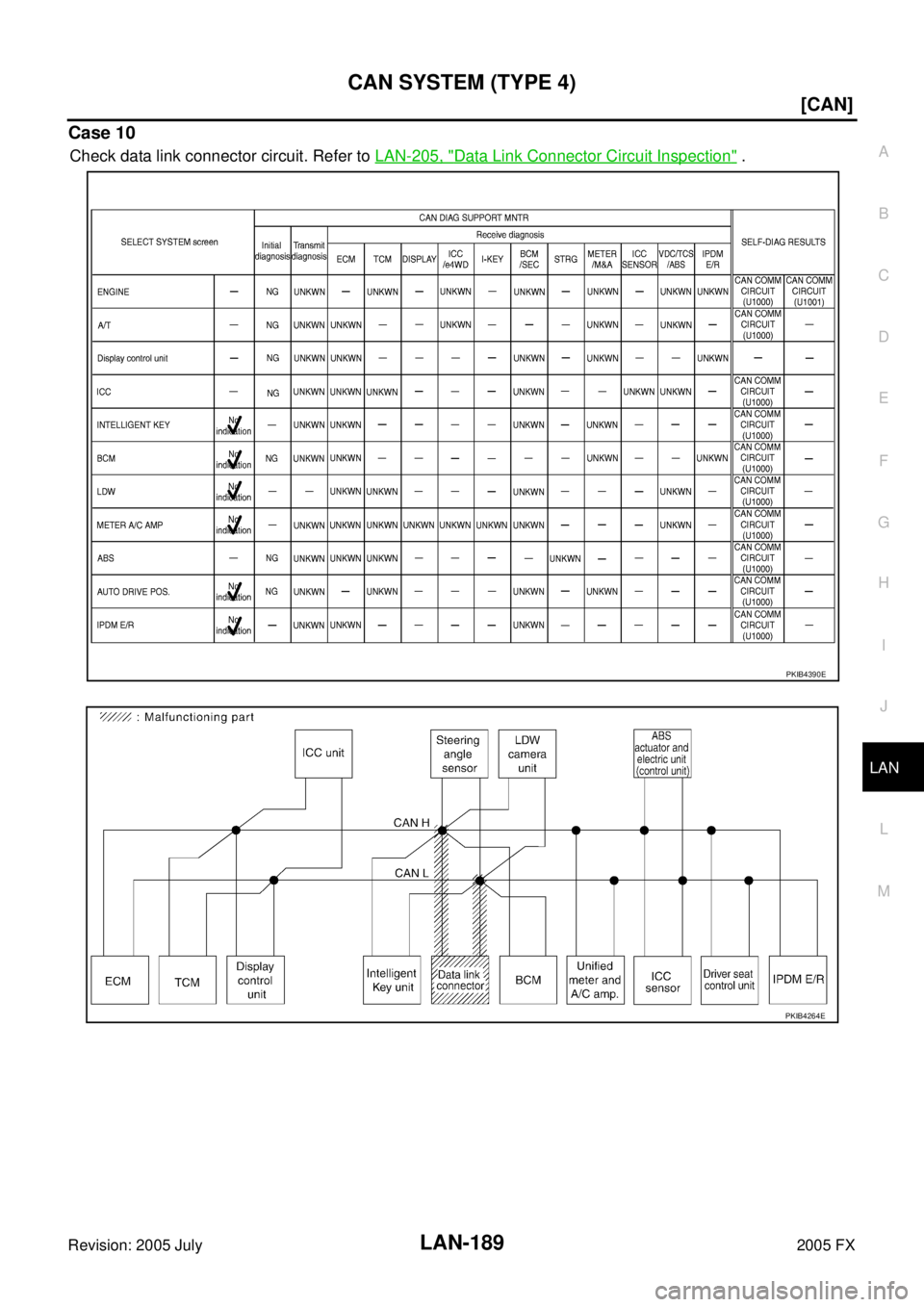

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-189 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 10 Check data link connector circuit. Refer to LAN-205, "Data Link Connector Circuit Inspect
