Page 3553 of 4731

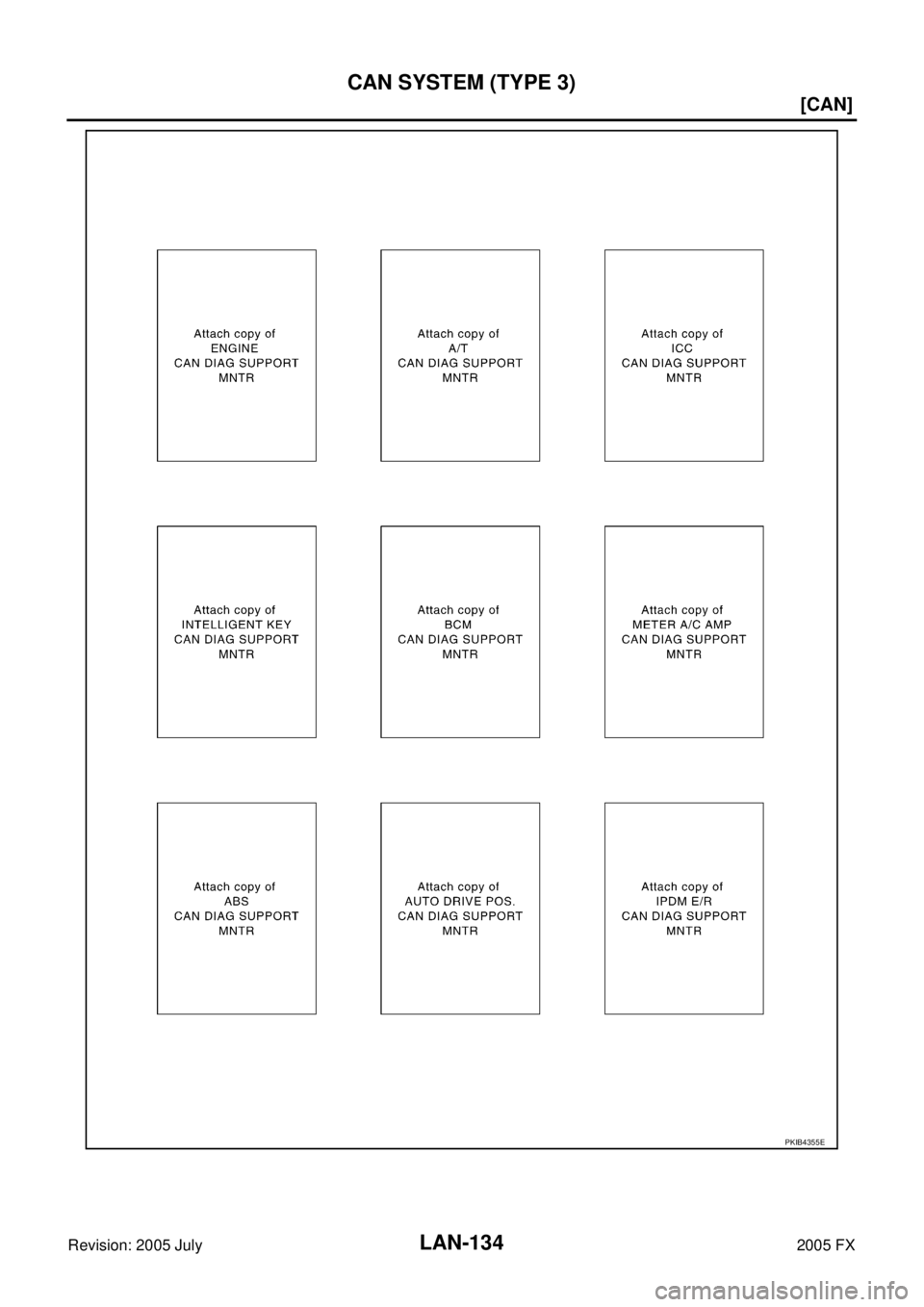

INFINITI FX35 2005 Service Manual LAN-134 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX PKIB4355E

Page 3554 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-135 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initi

Page 3555 of 4731

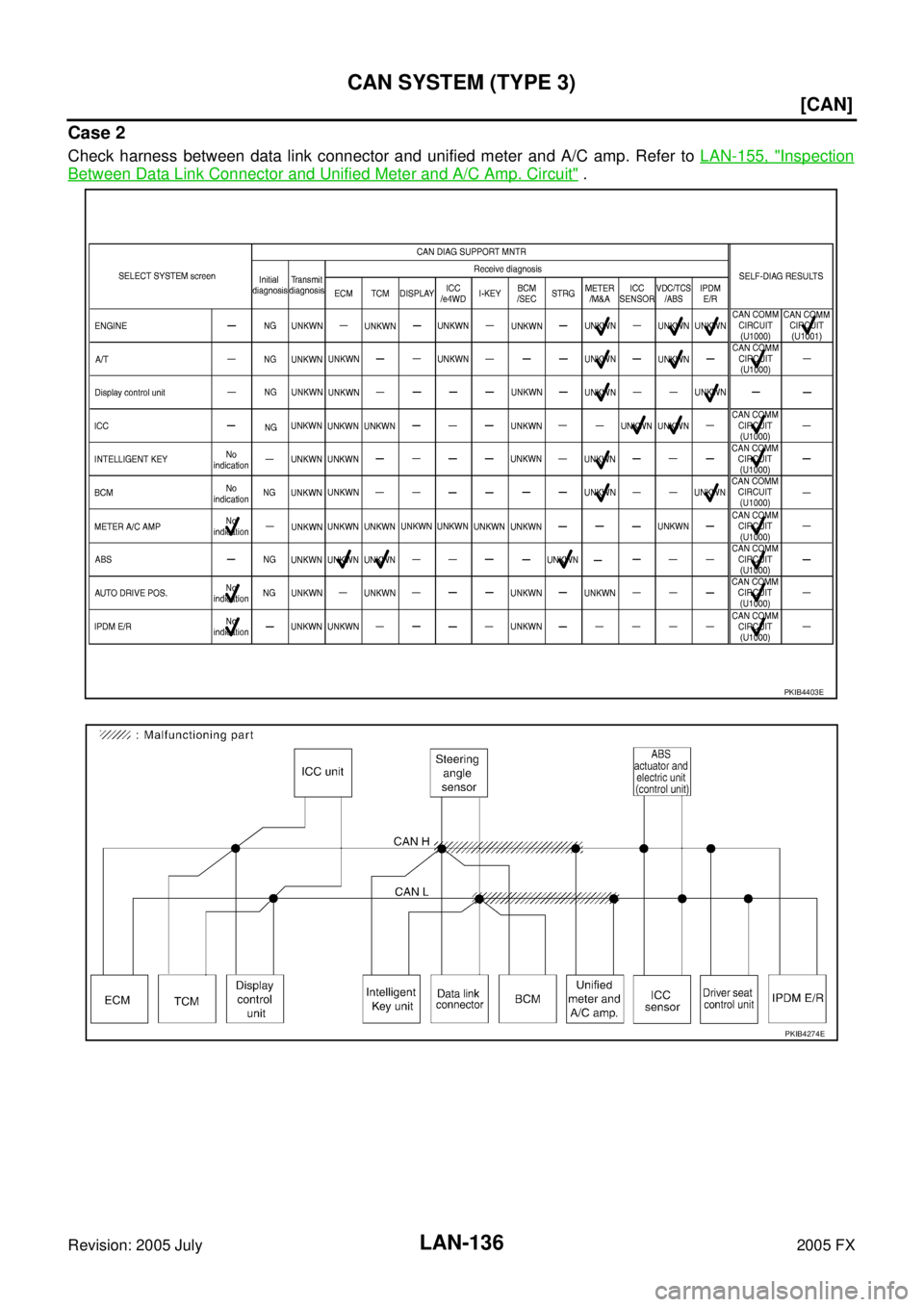

INFINITI FX35 2005 Service Manual LAN-136 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-155, "Inspection Between Data Link Connector

Page 3556 of 4731

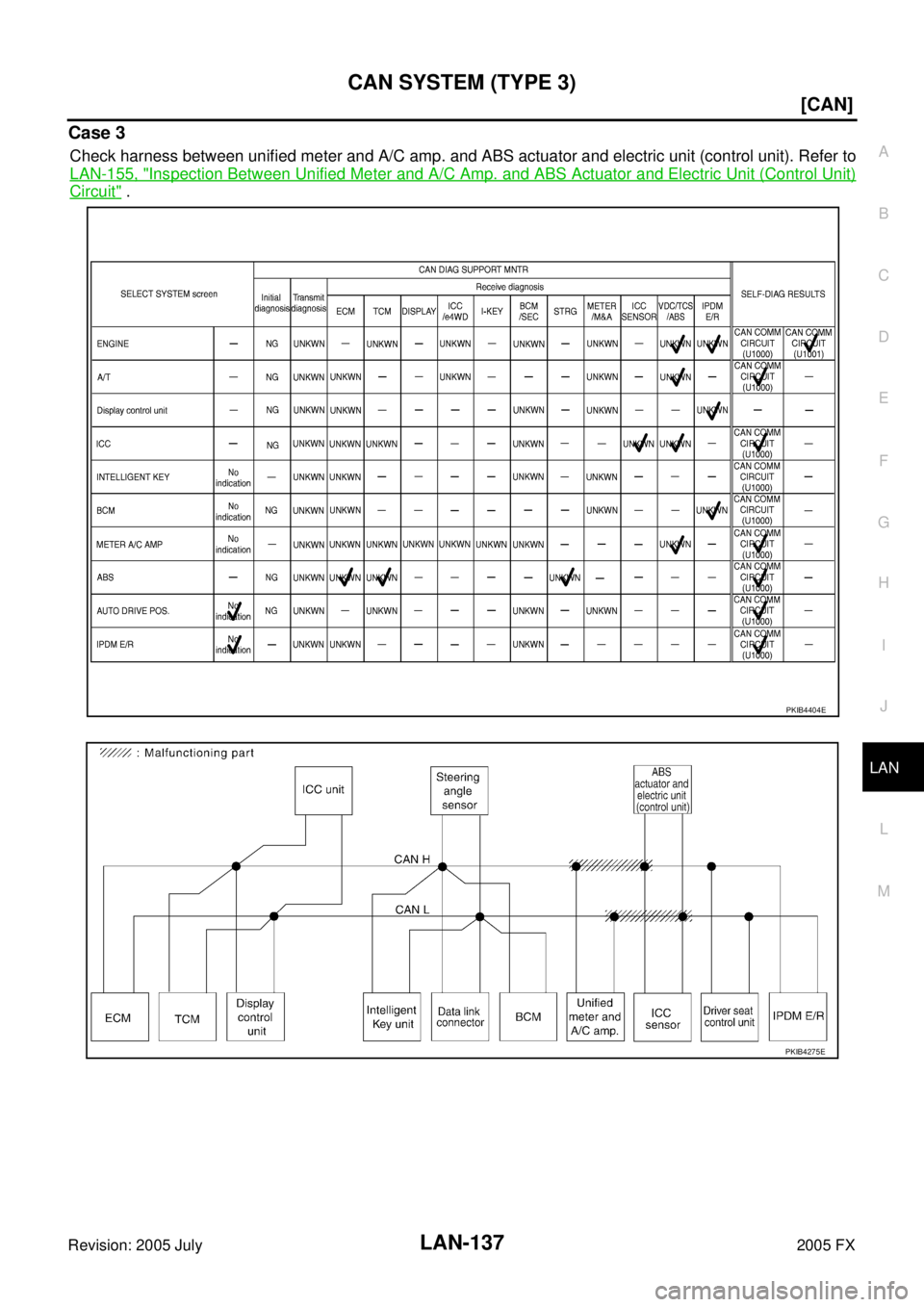

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-137 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (contr

Page 3557 of 4731

INFINITI FX35 2005 Service Manual LAN-138 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 156, "Inspection Be

Page 3558 of 4731

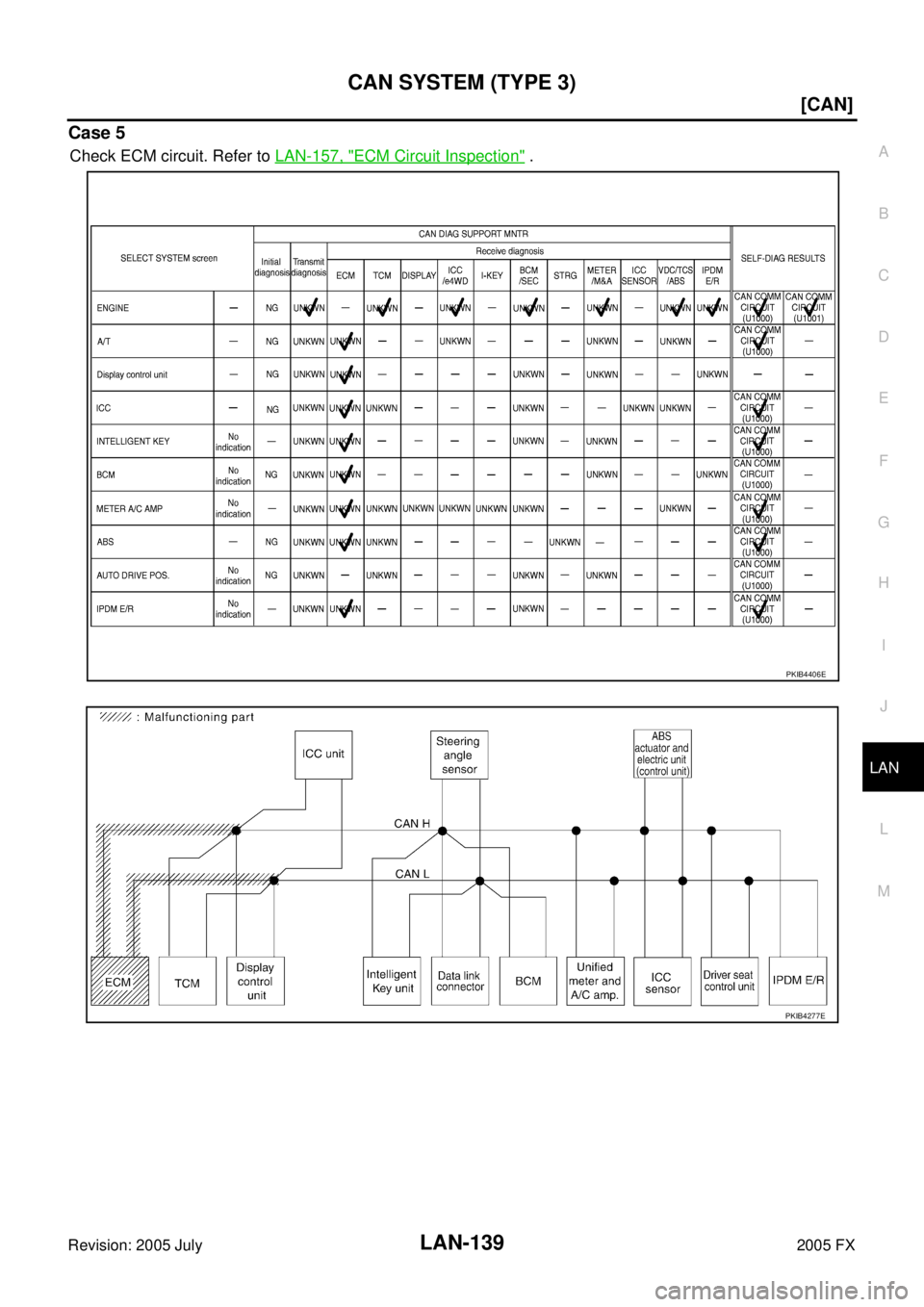

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-139 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-157, "ECM Circuit Inspection" . PKIB4406E PKIB4277E

Page 3559 of 4731

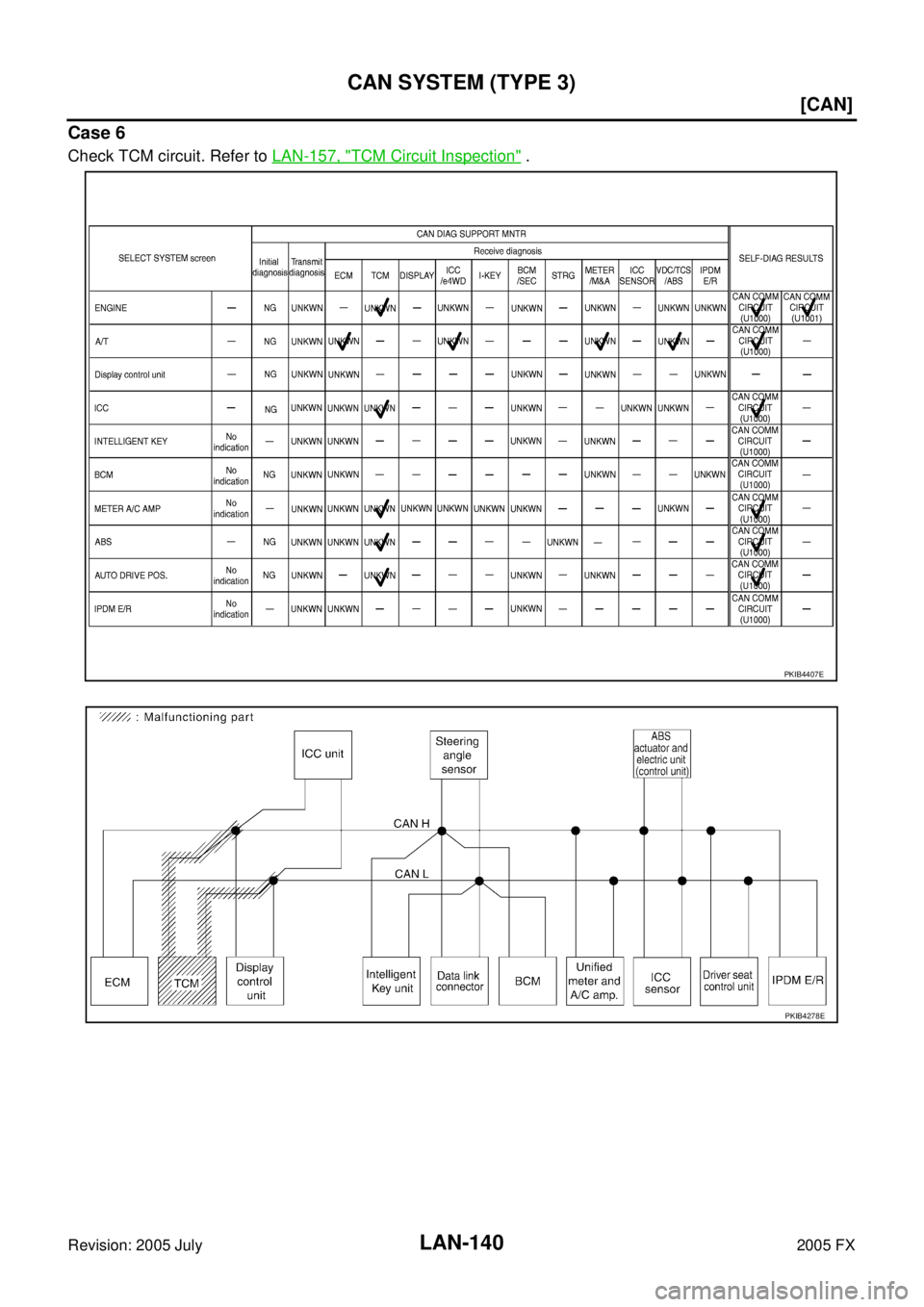

INFINITI FX35 2005 Service Manual LAN-140 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-157, "TCM Circuit Inspection" . PKIB4407E PKIB4278E

Page 3560 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-141 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check display control unit circuit. Refer to LAN-158, "Display Control Unit Circuit Inspec
