GW-108
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
Filament CheckAIS004RH

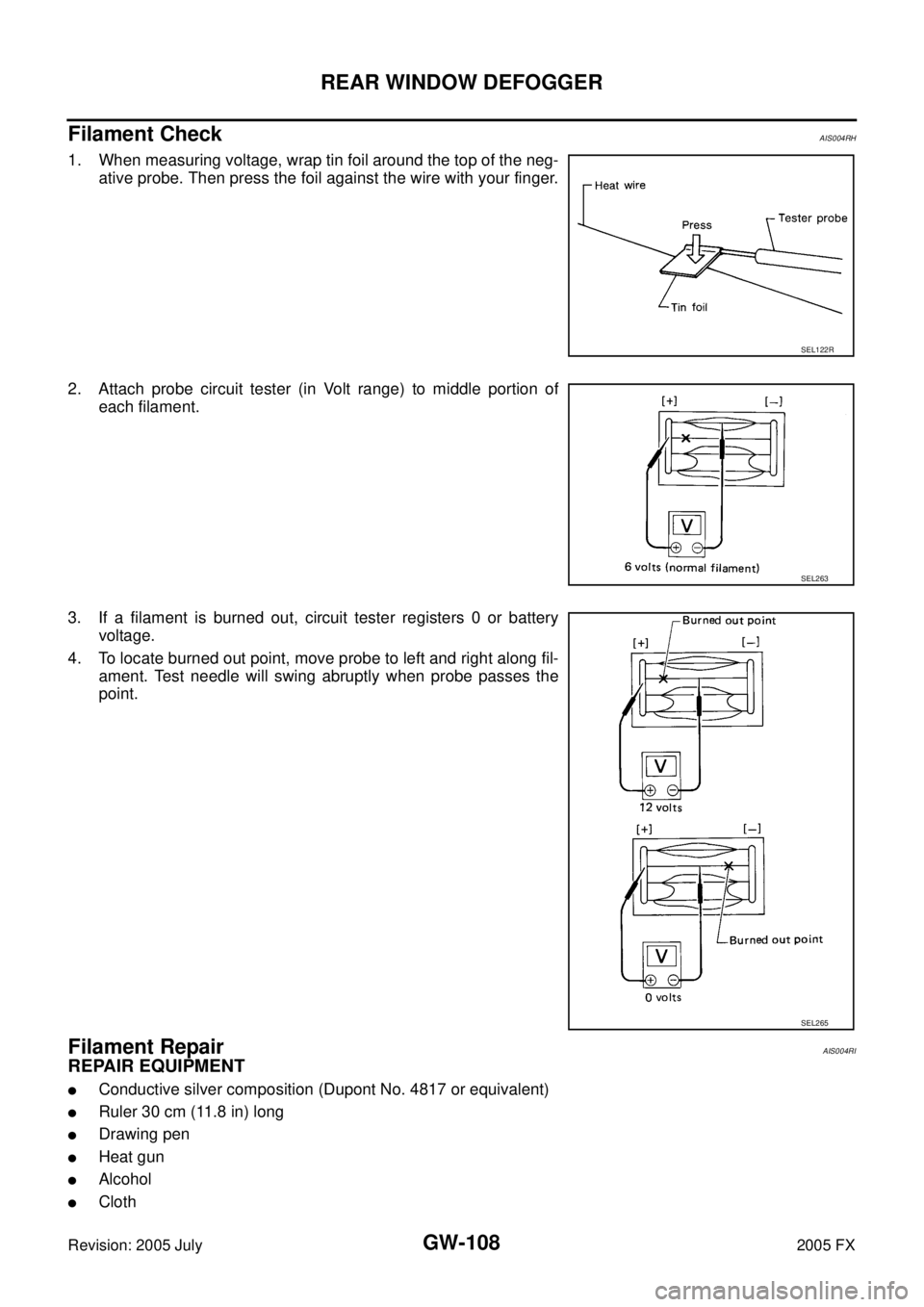

1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.
2. Attach probe circuit tester (in Volt range) to middle portion of each filament.
3. If a filament is burned out, circuit tester registers 0 or battery voltage.
4. To locate burned out point, move probe to left and right along fil- ament. Test needle will swing abruptly when probe passes the
point.
Filament RepairAIS004RI
REPAIR EQUIPMENT
Conductive silver composition (Dupont No. 4817 or equivalent)
Ruler 30 cm (11.8 in) long
Drawing pen
Heat gun
Alcohol
Cloth
SEL122R
SEL263
SEL265
Page 3386 of 4731

REAR WINDOW DEFOGGER GW-109
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
REPAIRING PROCEDURE

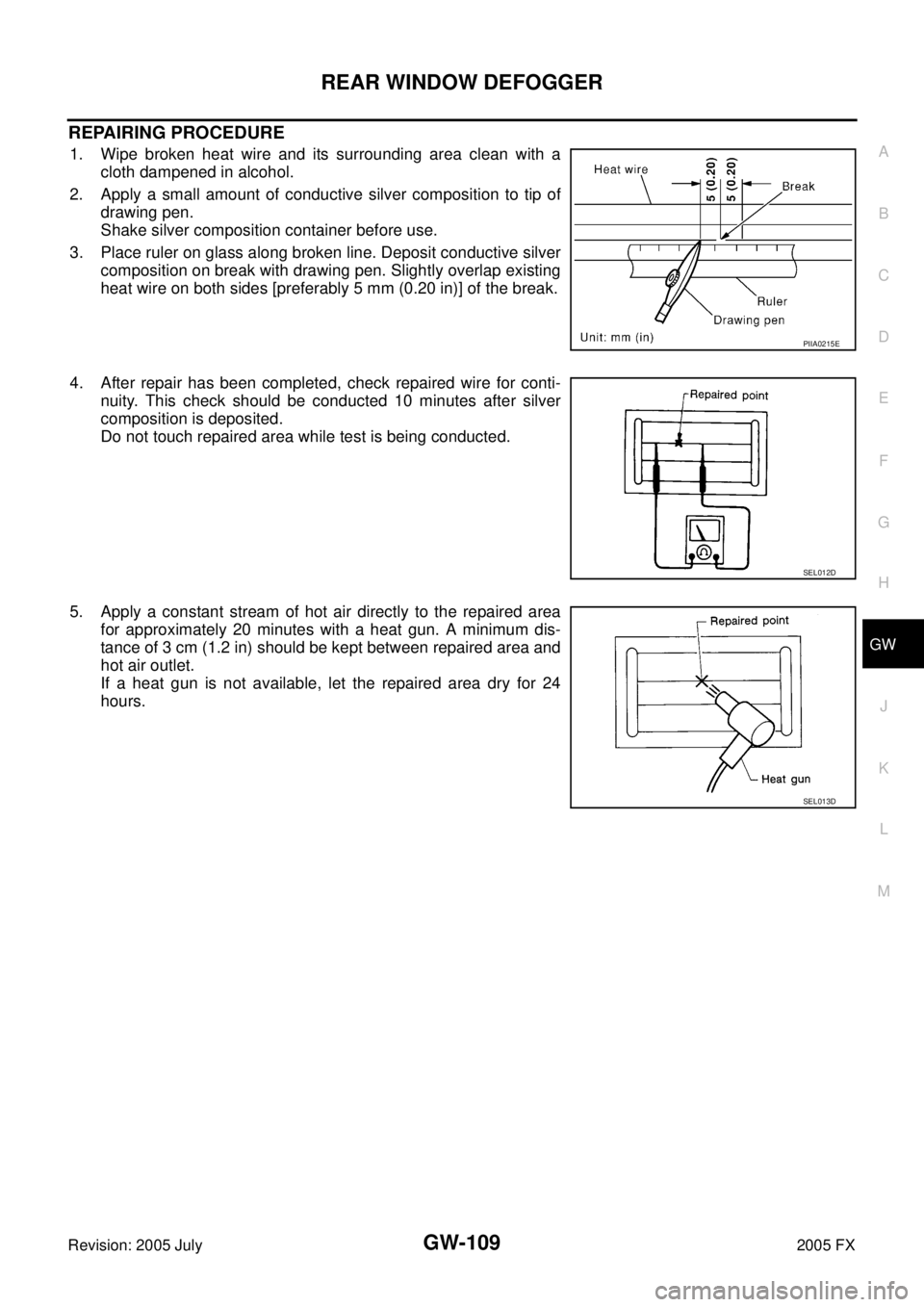

1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.
2. Apply a small amount of conductive silver composition to tip of drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive silver composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.
4. After repair has been completed, check repaired wire for conti- nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
PIIA0215E
SEL012D
SEL013D
Page 3387 of 4731
GW-110
DOOR MIRROR
Revision: 2005 July 2005 FX
DOOR MIRRORPFP:96301

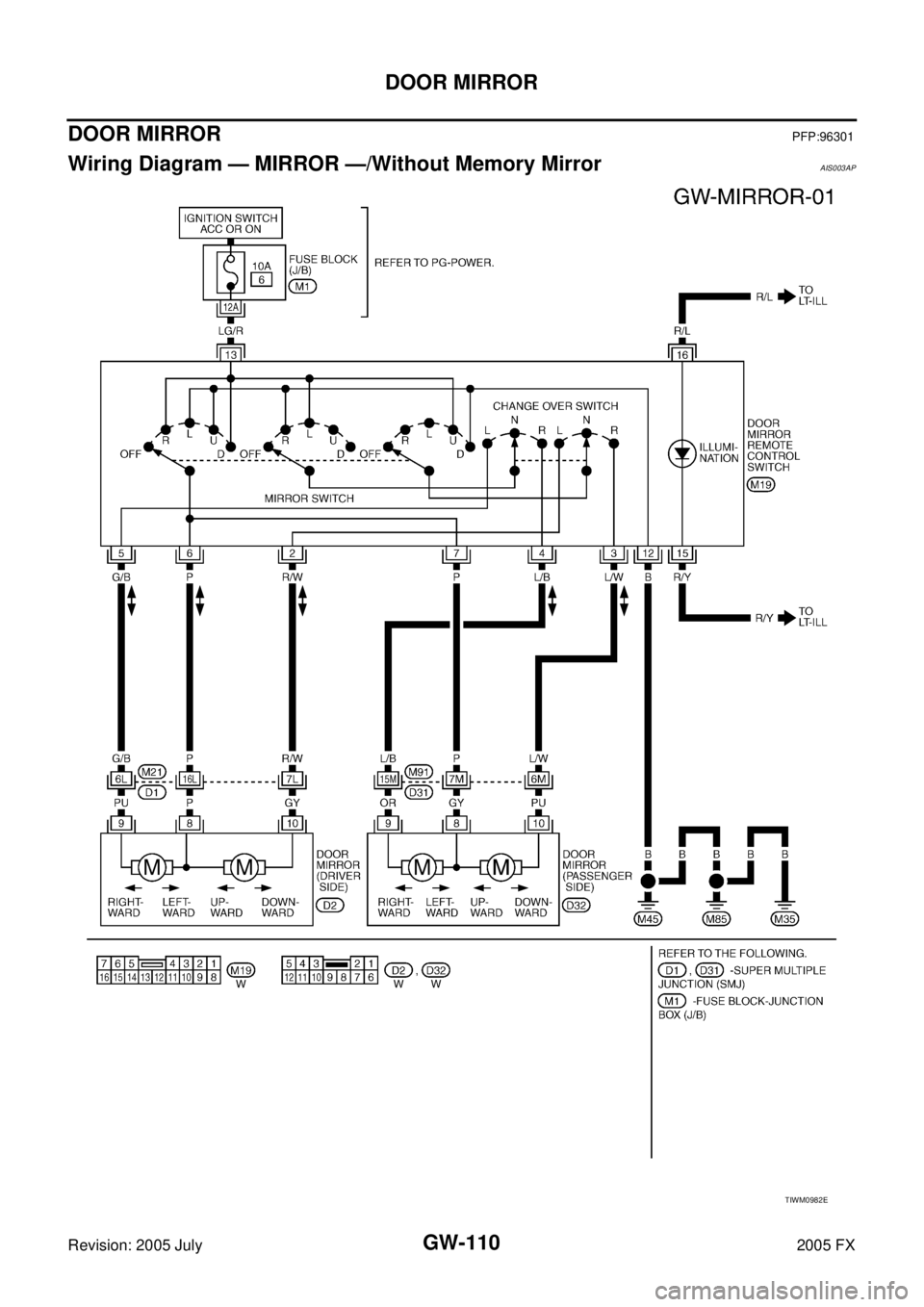

Wiring Diagram — MIRROR —/Without Memory Mirror AIS003AP
TIWM0982E
Page 3388 of 4731
DOOR MIRROR GW-111
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX

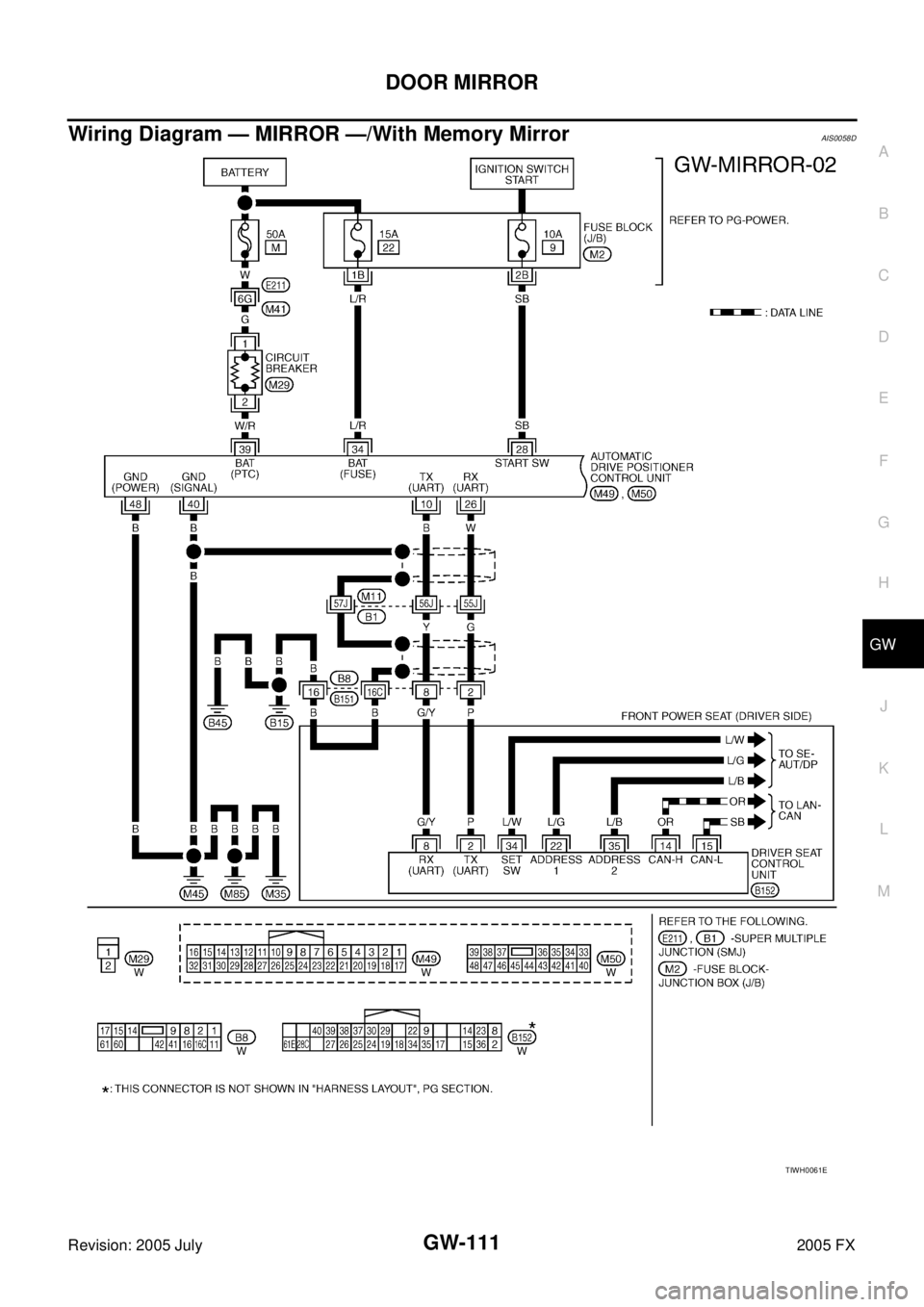

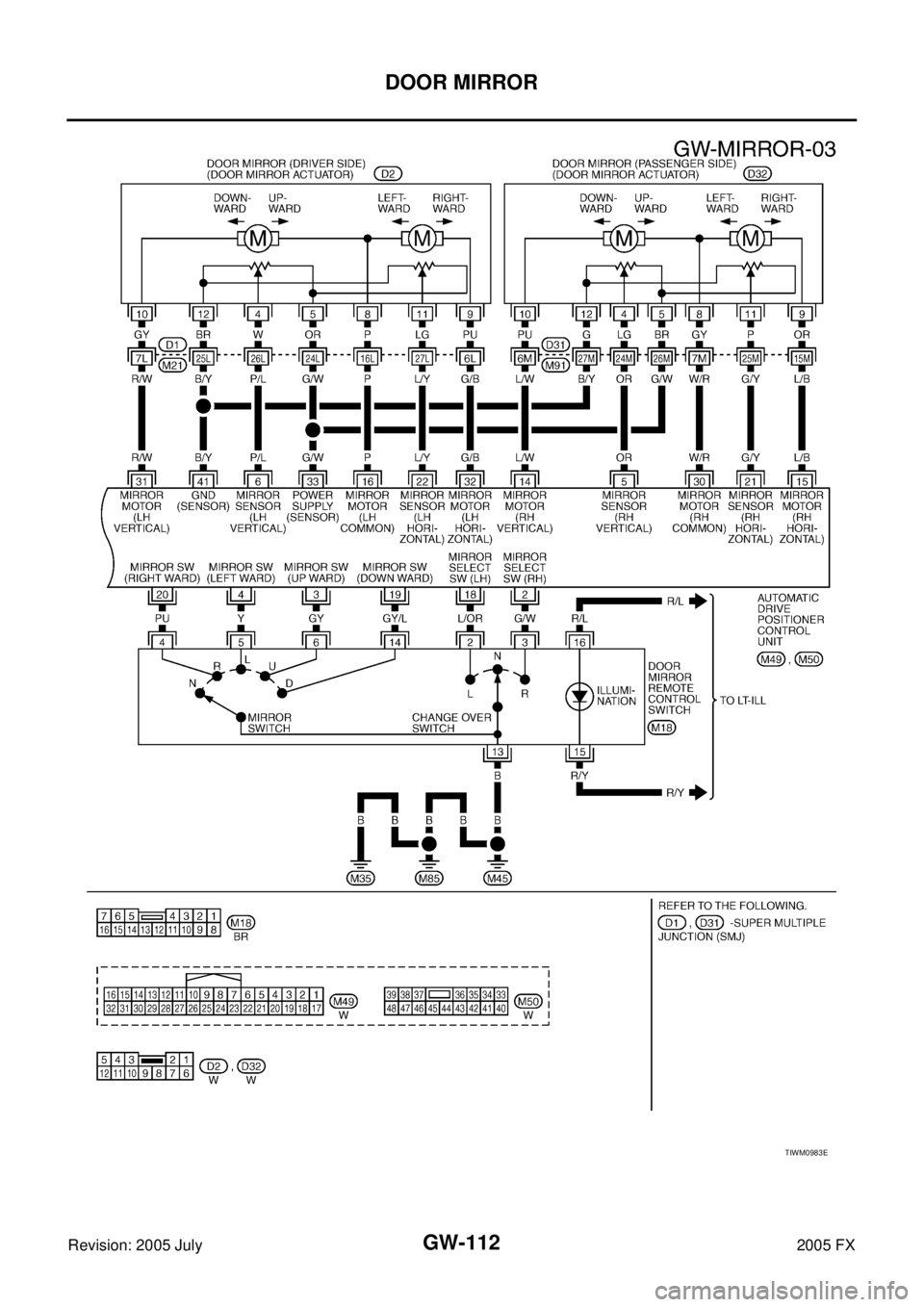

Wiring Diagram — MIRROR —/With Memory MirrorAIS0058D
TIWH0061E
Page 3389 of 4731
GW-112
DOOR MIRROR
Revision: 2005 July 2005 FX
TIWM0983E
Page 3390 of 4731
DOOR MIRROR GW-113
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Trouble DiagnosisAIS003L5
A trouble diagnosis of a automatic drive positioner interlocking door mirror is refer to SE-11, "AUTOMATIC
DRIVE POSITIONER" .
Page 3391 of 4731

GW-114
DOOR MIRROR
Revision: 2005 July 2005 FX
Removal and InstallationAIS003AQ
CAUTION:
Be careful not to damage the mirror body.
REMOVAL
1. Remove the front door finisher. Refer to EI-34, "DOOR FINISHER" .
2. Remove the corner cover inner.
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
Disassembly and AssemblyAIS00561
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put strip of protection tape on mirror body.
3. As shown in the figure insert a small flat-bladed screwdriver into the recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.
NOTE:
When pushing up pawls do not attempt to use 1 recess only, be sure
to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating (twist) to
make work easier.
4. Remove terminals of mirror heater attachment.

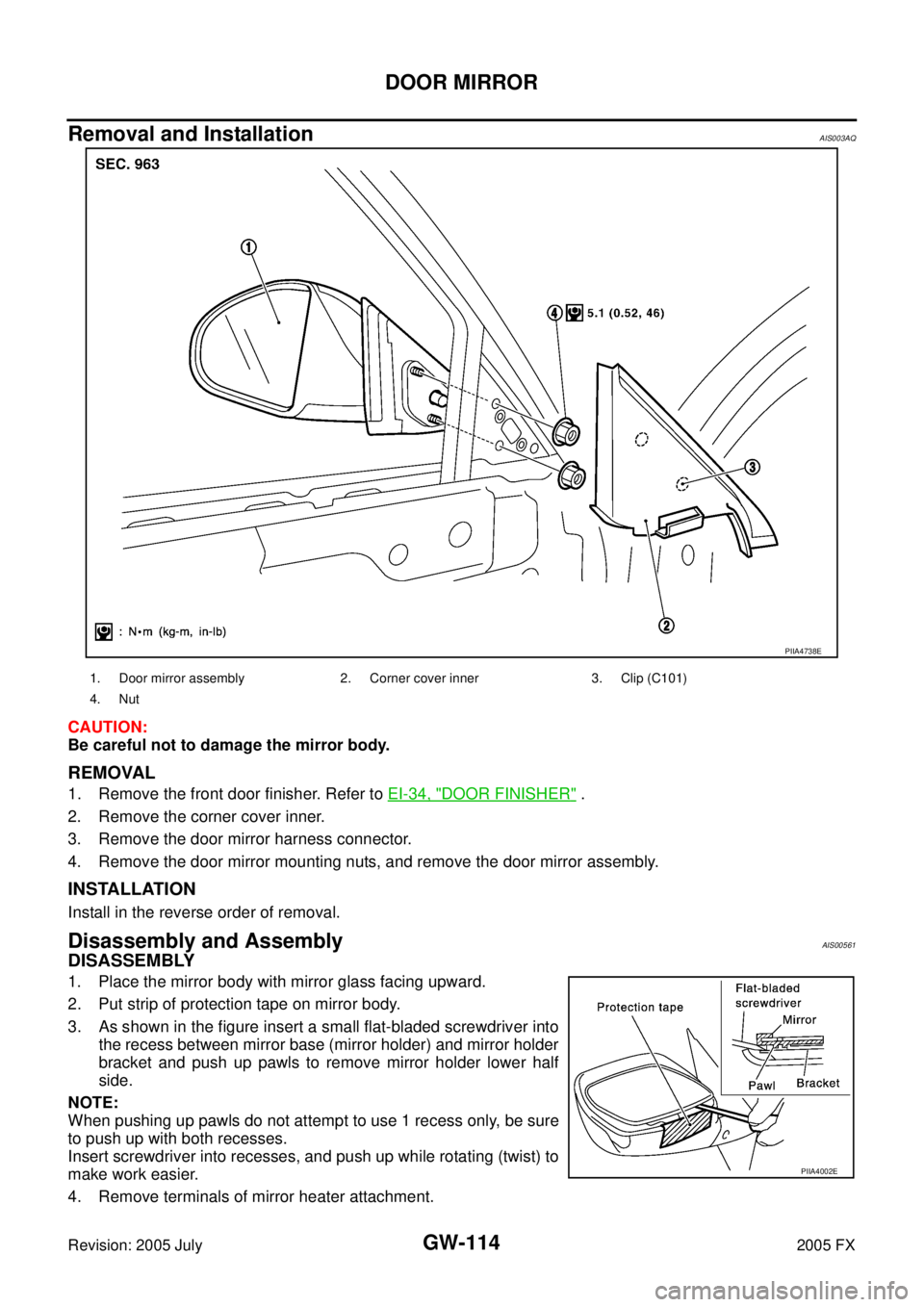

PIIA4738E
1. Door mirror assembly 2. Corner cover inner 3. Clip (C101)
4. Nut
PIIA4002E
Page 3392 of 4731
DOOR MIRROR GW-115
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
5. Lightly lift up lower side of mirror surface, and detach pawls of upper side from bracket as if pulling it out.
Remove mirror surface from mirror body.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side of
mirror surface (mirror holder).
ASSEMBLY
1. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
2. Connect terminals of heater installed mirror.
3. Fit the upper pawls on the mirror face onto the mirror holder bracket first, then press the lower side of mirror face until a click
sound is heard to engage the lower pawls.
NOTE:
After installation, visually make sure lower pawls are securely
engaged from the bottom of mirror face.
PIIA4003E
