FRONT SEAT
Revision: 2005 July 2005 FX
3. Remove the stay securing the inner cloth.
4. Remove the headrest.
5. Remove the headrest holder. From the back of the seatback, press the headrest holder tab of
the stay pipe hole to disengage. Then pull the headrest holder
up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front,
rear, left and right).
6. Remove the heated seat connector.
7. After removing the seatback trim and pad, remove the hog rings to separate the trim, pad, and seatback heater unit.
INSTALLATION OF SEATBACK TRIM AND PAD
Install in the reverse order of removal.
REMOVAL OF SEAT CUSHION TRIM AND PAD
1. Remove the seat cushion inner finisher.
PIIA6048E
PIIA6050E
PIIA6049E
PIIA6052E
Page 4578 of 4731
FRONT SEAT SE-105
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
2. Remove the velcro and retainer.
3. Remove the seat harness connector.
4. Remove the seatback frame.
5. Remove the reclining device assembly.
6. Remove the power seat switch assembly.
7. Remove the retainer and clip.
8. After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and the seat cushion heater unit.
INSTALLATION OF SEAT CUSHION TRIM AND PAD
Install in the reverse order of removal.
PIIA6053E
PIIA6054E
PIIA1160E
PIIA6055E
Page 4579 of 4731
SE-106
REAR SEAT
Revision: 2005 July 2005 FX
REAR SEATPFP:88300
Removal and InstallationAIS002X8
PIIA6033E
Page 4580 of 4731
REAR SEAT SE-107
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX

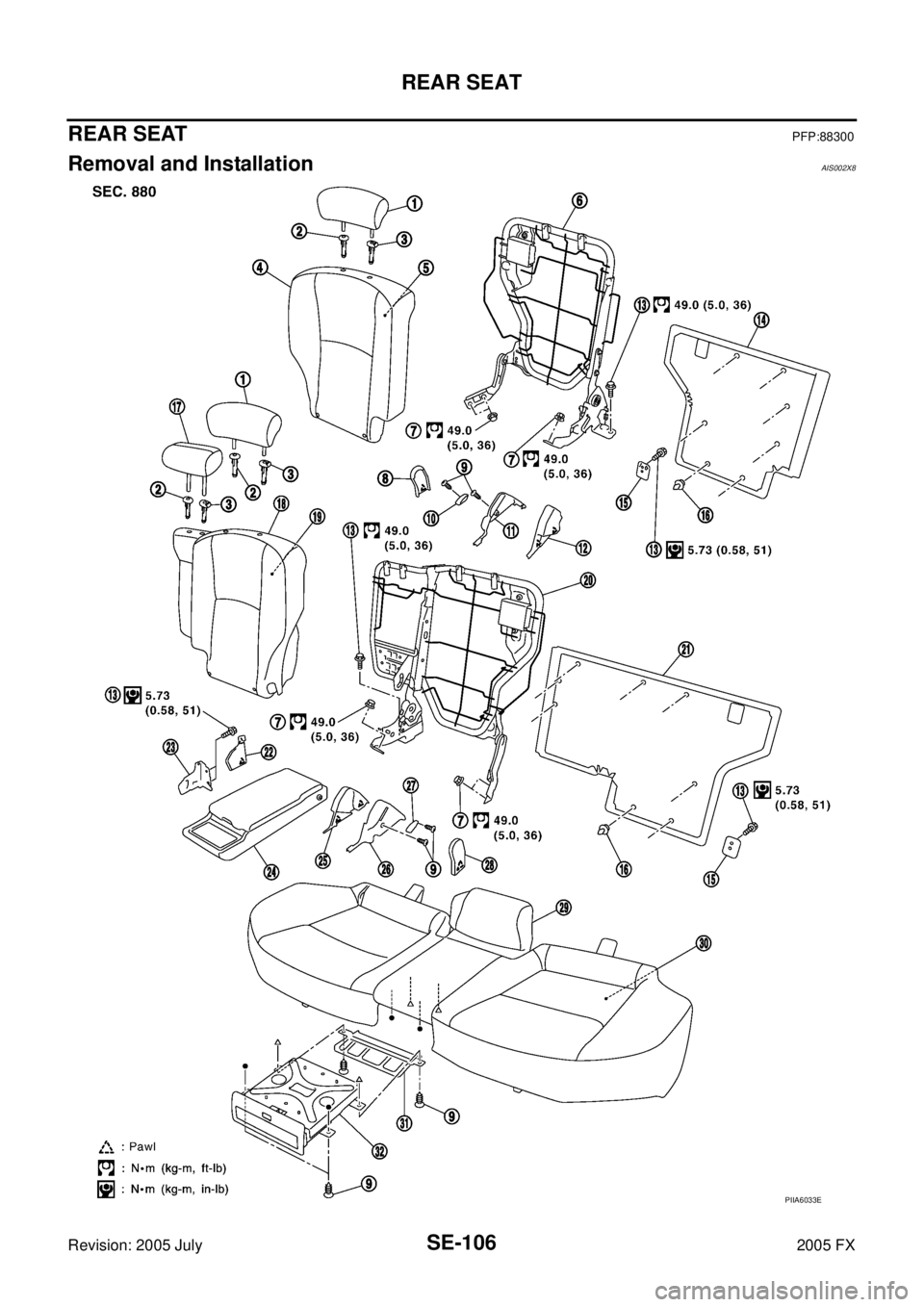

1. Headrest (side) 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback trim (RH) 5. Seatback pad (RH) 6. Seatback frame (RH)
7. Nut 8. Seat hinge cover (RH) 9. Screw
10. Reclining lever (RH) 11. Reclining device outer cover (RH) 12. Reclining device inner cover (RH)
13. Bolt 14. Seatback garnish (RH) 15. Trunk net hook
16. Clip (C101) 17. Headrest (center) 18. Seatback trim (LH)
19. Seatback pad (LH) 20. Seatback frame (LH) 21. Seatback garnish (LH)
22. Armrest bracket cover 23. Armrest bracket 24. Armrest
25. Reclining device inner cover (LH) 26. Reclining device outer cover (LH) 27. Reclining lever (LH)
28. Seat hinge cover (LH) 29. Seat cushion trim 30. Seat cushion pad
31. Cup holder bracket 32. Cup holder
Page 4581 of 4731
SE-108
REAR SEAT
Revision: 2005 July 2005 FX
REMOVAL
1. Pull the lock at the front bottom of the seat cushion forward (1
for each side), and pull the seat cushion upward to release the
wire from the plastic hook, then pull the seat cushion forward to
remove.
2. Remove the seatback mounting nuts.
3. Remove the seatback mounting bolt and nut. Remove the remote control wire.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After rear wheel house finisher assembly is remove the seatback is installed. Refer to EI-43, "
Removal and
Installation" .
REMOVAL OF SEAT CUSHION TRIM AND PAD
1. Remove the cup holder in the back of the seat cushion.
2. Removal the hog rings to separate the trim and pad.
PIIA6034E
PIIA6035E
PIIA6036E
PIIA4985E
Page 4582 of 4731
REAR SEAT SE-109
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
INSTALLATION OF SEAT CUSHION TRIM AND PAD
Install in the reverse order of removal.
REMOVAL OF SEATBACK TRIM AND PAD
1. Remove the trunk net hook in the back of the seatback.
2. After removing the seatback garnish, remove the hog rings.
3. Remove the headrest.
4. Remove the headrest holder. Squeeze and pull up headrest holder tabs to remove from seat-
back frame.
NOTE:
Before installing the headrest holder, check its orientation (front,
rear, left and right).
5. Remove the armrest (LH only).
6. After removing the seatback trim and pad, separate the trim and pad.
INSTALLATION OF SEATBACK TRIM AND PAD
Install in the reverse order of removal.
PIIA6037E
PIIA1158E
PIIA6038E
Page 4583 of 4731
SE-110
REAR SEAT
Revision: 2005 July 2005 FX
REMOVAL OF REMOTE CONTROL LEVER
1. Remove the rear seat. Refer to SE-108, "REMOVAL" .
2. Remove the luggage side finisher assembly. Refer to EI-43, "
Removal and Installation" .
3. Remove the remote control lever.
4. Remove the remote control lever mounting bolt.
5. Remove the remote control lever assembly.
INSTALLATION OF REMOTE CONTROL LEVER
Install in the reverse order of removal.
PIIB1434E
1. Remote control wire 2. Bolt 3. Remote control lever
Page 4584 of 4731
