2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to INFINITI FX35 2005 Service Manual EC-872
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to](/manual-img/42/57020/w960_57020-2264.png)
EC-872
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen- sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness connectors F102, M82
Harness for open or short between intake valve timing control position sensor and ECM
Harness for open or short between intake valve timing control position sensor and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2195E
Voltage: Battery voltage
PBIB1517E
SEF509Y
Page 2266 of 4731
![INFINITI FX35 2005 Service Manual DTC P0011, P0021 IVT CONTROL EC-873
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT INFINITI FX35 2005 Service Manual DTC P0011, P0021 IVT CONTROL EC-873
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT](/manual-img/42/57020/w960_57020-2265.png)
DTC P0011, P0021 IVT CONTROL EC-873
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT 1. Disconnect ECM harness connector.
2. Check harness continuity between the following; ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-875, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace intake valve timing control position sensor. Continuity should exist.
Continuity should exist.
Page 2267 of 4731
![INFINITI FX35 2005 Service Manual EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect in INFINITI FX35 2005 Service Manual EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect in](/manual-img/42/57020/w960_57020-2266.png)
EC-874
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E19, F49
Harness for open or short between intake valve timing control solenoid valve and IPDM E/R.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following; ECM terminal 10 and intake valve timing control solenoid valve (bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-875, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace intake valve timing control solenoid valve. Voltage: Battery voltage
PBIB1517E
PBIB0192E
Continuity should exist.
Page 2268 of 4731
![INFINITI FX35 2005 Service Manual DTC P0011, P0021 IVT CONTROL EC-875
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
13. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1042, "
Component Inspection" INFINITI FX35 2005 Service Manual DTC P0011, P0021 IVT CONTROL EC-875
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
13. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1042, "
Component Inspection"](/manual-img/42/57020/w960_57020-2267.png)
DTC P0011, P0021 IVT CONTROL EC-875
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
13. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1042, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace crankshaft position sensor (POS).
14. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-1049, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace camshaft position sensor (PHASE).
15. CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick-up portion of the camshaft sprocket. Refer to EM-212, "
CAM-
SHAFT" .
OK or NG
OK >> GO TO 16.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
16. CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-200, "TIMING CHAIN" .
No >> GO TO 17.
17. CHECK LUBRICATION CIRCUIT
Refer to EM-218, "
Inspection of Camshaft Sprocket (INT) Oil Groove" .
OK or NG
OK >> GO TO 18.
NG >> Clean lubrication line.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS007IU
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
Page 2269 of 4731
![INFINITI FX35 2005 Service Manual EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control INFINITI FX35 2005 Service Manual EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control](/manual-img/42/57020/w960_57020-2268.png)
EC-876
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2005 July 2005 FX
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor.

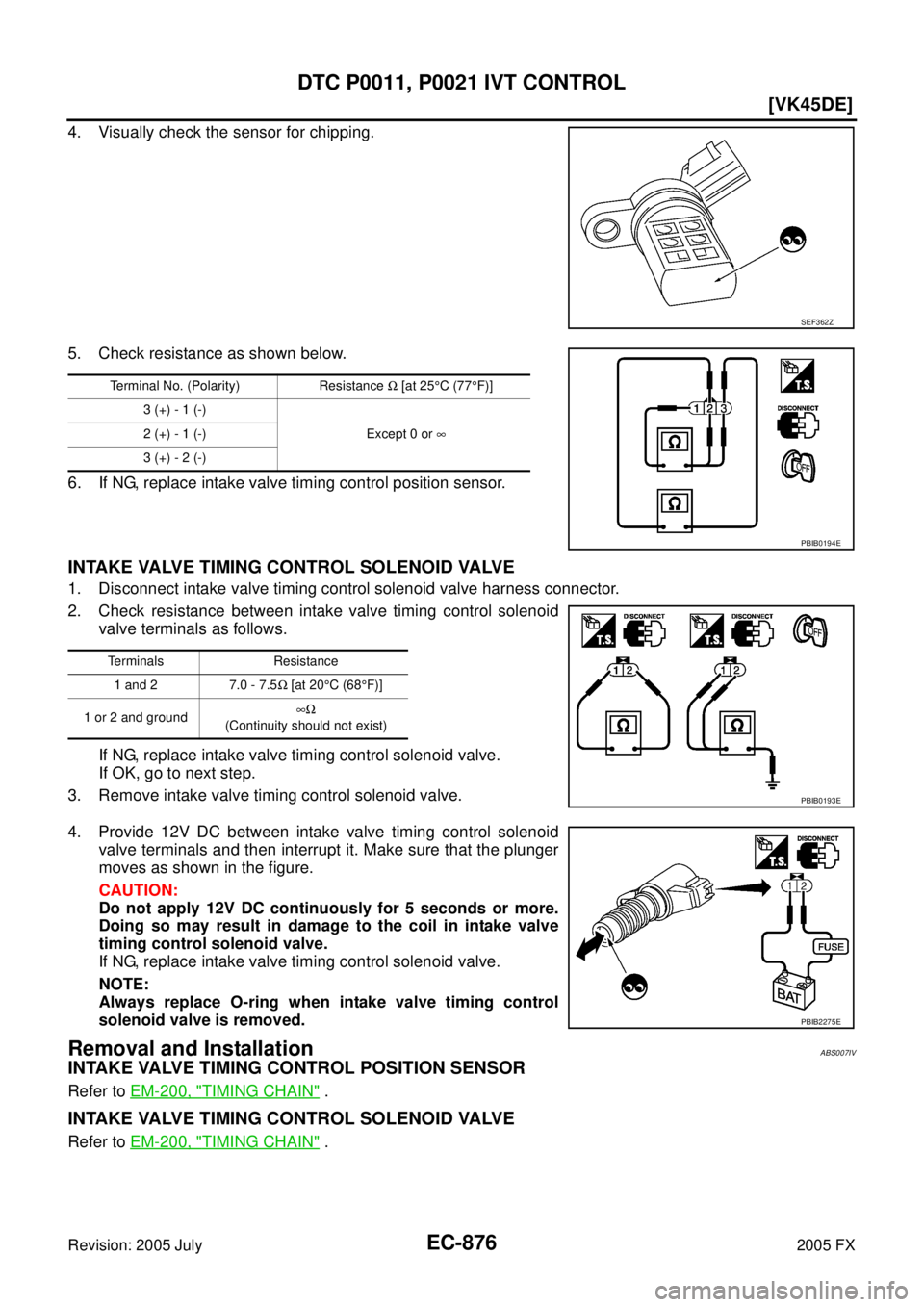

INTAKE VALVE TIMING CONTROL SOLENOID VALVE
