Page 2329 of 4731
EC-936
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS007KZ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Restart engine and let it idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-940, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y
Page 2330 of 4731
DTC P0132, P0152 HO2S1 EC-937
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS007L0
BANK 1
TBWM0228E
Page 2331 of 4731
EC-938
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
16 R/L Heated oxygen sensor 1
(bank 1) [Engine is running]
Warm-up condition
Engine speed: 2,000 rpm 0 - Approximately 1.0V
(Periodically change)
78 B/R Sensor ground
(Heated oxygen sensor) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
Page 2332 of 4731
DTC P0132, P0152 HO2S1 EC-939
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

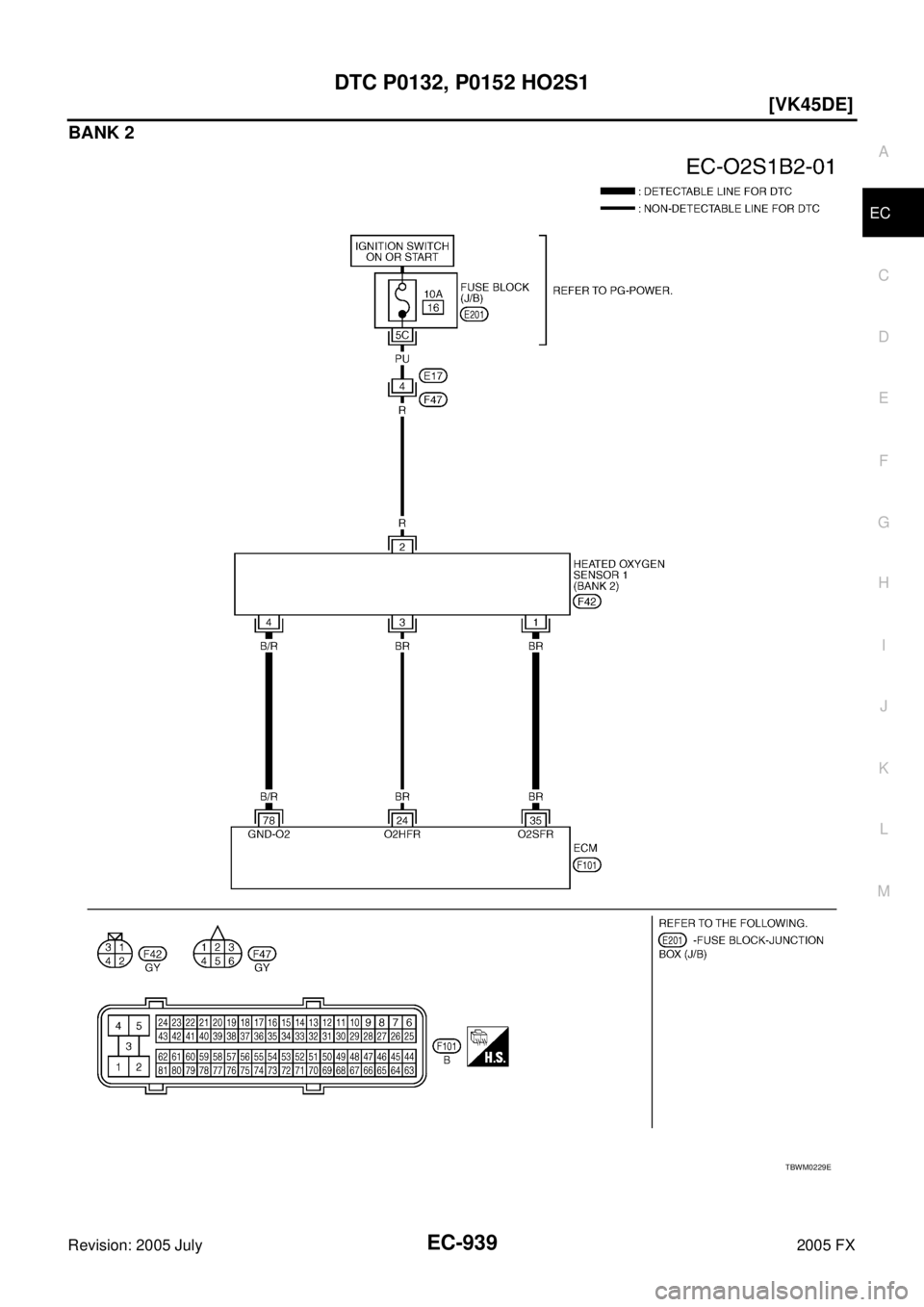

BANK 2
TBWM0229E
Page 2333 of 4731
![INFINITI FX35 2005 Service Manual EC-940
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals INFINITI FX35 2005 Service Manual EC-940
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals](/manual-img/42/57020/w960_57020-2332.png)
EC-940
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS007L1
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-861, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. RETIGHTEN HEATED OXYGEN SENSOR 1
1. Loosen and retighten corresponding heated oxygen sensor 1.
>> GO TO 3.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
35 BR Heated oxygen sensor 1
(bank 2) [Engine is running]
Warm-up condition
Engine speed:2,000 rpm 0 - Approximately 1.0V
(Periodically change)
78 B/R Sensor ground
(Heated oxygen sensor) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
PBIB2195E
Tightening torque: 50 N·m (5.1 kg-m, 37 ft-lb)
PBIB1520E
Page 2334 of 4731
![INFINITI FX35 2005 Service Manual DTC P0132, P0152 HO2S1 EC-941
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 1 harnes INFINITI FX35 2005 Service Manual DTC P0132, P0152 HO2S1 EC-941
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 1 harnes](/manual-img/42/57020/w960_57020-2333.png)
DTC P0132, P0152 HO2S1 EC-941
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 1 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between HO2S1 terminal 4 and ECM terminal 78. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S1 terminal as follows. Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
PBIB1521E
DTC
Te r m i n a l s
Bank
ECM Sensor
P0132 16 1 1
P0152 35 1 2
Continuity should exist.
DTC Te r m i n a l s
Bank
ECM Sensor
P0132 16 1 1
P0152 35 1 2
Continuity should not exist.
Page 2335 of 4731
![INFINITI FX35 2005 Service Manual EC-942
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
5. CHECK HO2S1 CONNECTOR FOR WATER
Check connectors for water.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness or connecto INFINITI FX35 2005 Service Manual EC-942
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
5. CHECK HO2S1 CONNECTOR FOR WATER
Check connectors for water.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness or connecto](/manual-img/42/57020/w960_57020-2334.png)
EC-942
[VK45DE]
DTC P0132, P0152 HO2S1
Revision: 2005 July 2005 FX
5. CHECK HO2S1 CONNECTOR FOR WATER
Check connectors for water.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness or connectors.
6. CHECK HEATED OXYGEN SENSOR 1
Refer to EC-942, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning heated oxygen sensor 1.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS007L2
HEATED OXYGEN SENSOR 1
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “MANU TRIG” and adjust “TRIGGER POINT” to 100% in “DATA MONITOR” mode with CONSULT- II.
3. Select “HO2S1 (B1)/(B2)” and “HO2S1 MNTR (B1)/(B2)”.
4. Hold engine speed at 2,000 rpm under no load during the following steps.
5. Touch “RECORD” on CONSULT-II screen.
6. Check the following.
“HO2S1 MNTR (B1)/(B2)” in “DATA MONITOR” mode
changes from “RICH” to “LEAN” to “RICH” more than 5 times
in 10 seconds.
5 times (cycles) are counted as shown at right.
“HO2S1 (B1)/(B2)” voltage goes above 0.6V at least once.
“HO2S1 (B1)/(B2)” voltage goes below 0.3V at least once.
“HO2S1 (B1)/(B2)” voltage never exceeds 1.0V. Water should not exist.
SEF646Y
SEF647Y
Page 2336 of 4731
![INFINITI FX35 2005 Service Manual DTC P0132, P0152 HO2S1 EC-943
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than INFINITI FX35 2005 Service Manual DTC P0132, P0152 HO2S1 EC-943
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than](/manual-img/42/57020/w960_57020-2335.png)
DTC P0132, P0152 HO2S1 EC-943
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM terminal 16 [HO2S1 (B1) signal] or 35 [HO2S1 (B2) signal] and ground.
3. Check the following with engine speed held at 2,000 rpm con- stant under no load.
The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V
more than 5 times within 10 seconds.
The maximum voltage is over 0.6V at least 1 time.
The minimum voltage is below 0.3V at least 1 time.
The voltage never exceeds 1.0V.
1 time: 0 - 0.3V → 0.6 - 1.0V → 0 - 0.3V
2 times: 0 - 0.3V → 0.6 - 1.0V → 0 - 0.3V → 0.6 - 1.0V → 0 -
0.3V
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationABS007L3
HEATED OXYGEN SENSOR 1
Refer to EM-182, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
SEF648Y
PBIB1528E
