Page 1081 of 4731

INFINITI FX35 2005 Service Manual BL-266 BODY REPAIR Revision: 2005 July2005 FX Read the Following Precautions When Repairing HSS: 1. Additional points to consider lThe repair of reinforcements (such as side members) by heat- ing is n

Page 1082 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-267 C D E F G H J K L MA B BL Revision: 2005 July2005 FX lThe spot weld on HSS panels is harder than that of an ordi- nary steel panel. Therefore, when cutting spot welds on a HSS panel

Page 1083 of 4731

INFINITI FX35 2005 Service Manual BL-268 BODY REPAIR Revision: 2005 July2005 FX Replacement OperationsAIS0034Y DESCRIPTION This section is prepared for technicians who have attained a high level of skill and experience in repairing co

Page 1084 of 4731

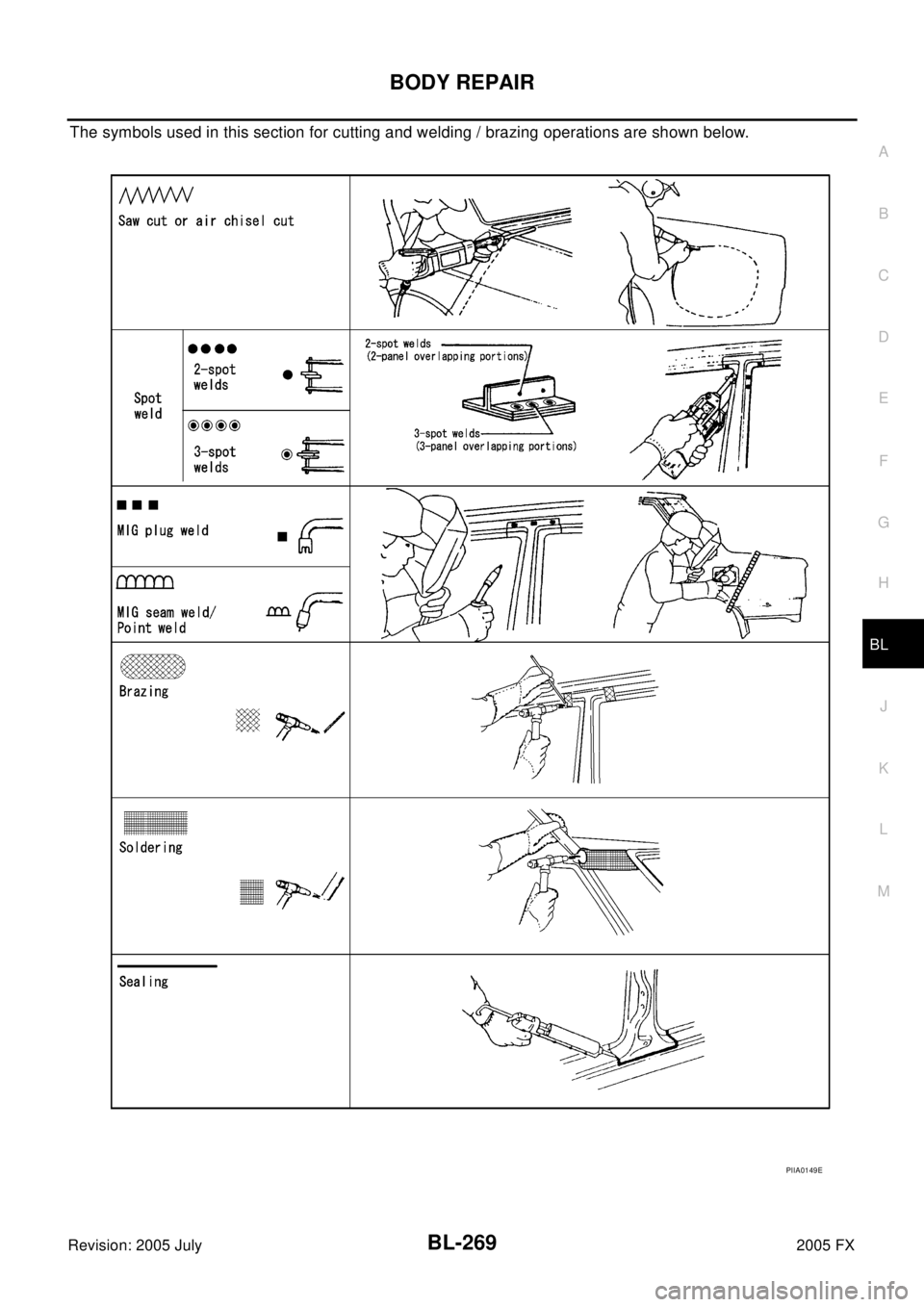

INFINITI FX35 2005 Service Manual BODY REPAIR BL-269 C D E F G H J K L MA B BL Revision: 2005 July2005 FX The symbols used in this section for cutting and welding / brazing operations are shown below. PIIA0149E

Page 1085 of 4731

INFINITI FX35 2005 Service Manual BL-270 BODY REPAIR Revision: 2005 July2005 FX lFront pillar butt joint can be determined anywhere within shaded area as shown in the figure. The best location for the butt joint is at position A due t

Page 1086 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-271 C D E F G H J K L MA B BL Revision: 2005 July2005 FX HOODLEDGE SIIA2270E

Page 1087 of 4731

INFINITI FX35 2005 Service Manual BL-272 BODY REPAIR Revision: 2005 July2005 FX Change parts lHoodledge assembly (LH)lHoodledge reinforcement (LH)

Page 1088 of 4731

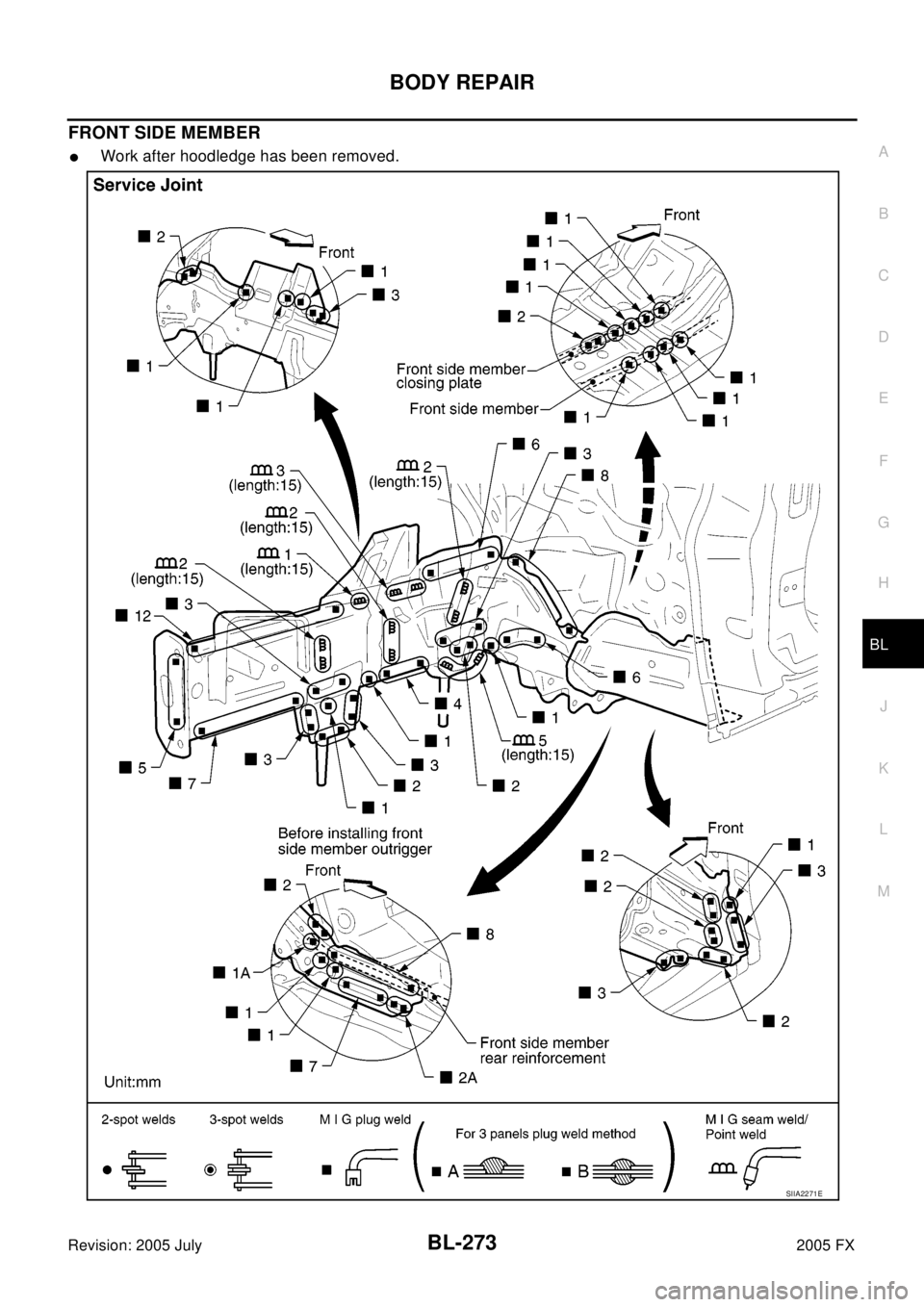

INFINITI FX35 2005 Service Manual BODY REPAIR BL-273 C D E F G H J K L MA B BL Revision: 2005 July2005 FX FRONT SIDE MEMBER lWork after hoodledge has been removed. SIIA2271E
