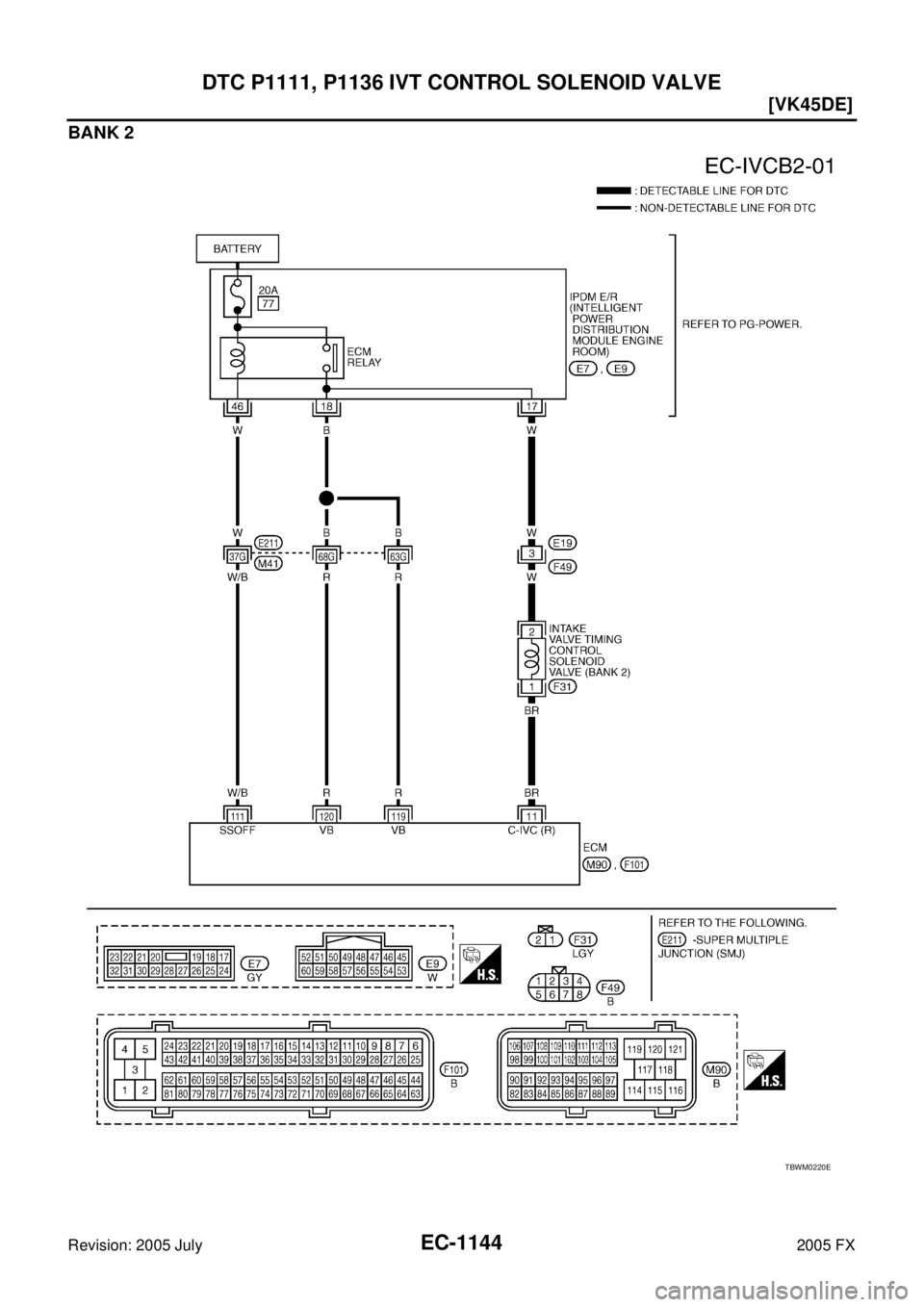

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
Revision: 2005 July 2005 FX
BANK 2
TBWM0220E
Page 2538 of 4731
![INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1145
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each t INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1145
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each t](/manual-img/42/57020/w960_57020-2537.png)
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1145
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureABS007QP
1. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
11 B R Intake valve timing control
solenoid valve (bank 2) [Engine is running]
Warm-up condition
Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm 7 - 12V
PBIB1790E
Voltage: Battery voltage
PBIB1517E
PBIB0192E
Page 2539 of 4731
![INFINITI FX35 2005 Service Manual EC-1146
[VK45DE]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
Revision: 2005 July 2005 FX
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E19, F49
IPDM E/R harness connector E7 INFINITI FX35 2005 Service Manual EC-1146
[VK45DE]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
Revision: 2005 July 2005 FX
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E19, F49
IPDM E/R harness connector E7](/manual-img/42/57020/w960_57020-2538.png)
EC-1146
[VK45DE]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
Revision: 2005 July 2005 FX
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E19, F49
IPDM E/R harness connector E7
Harness for open or short between intake valve timing control solenoid valve and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following; ECM terminal 10 and intake valve timing control solenoid valve (bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-1147, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace intake valve timing control solenoid valve.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Page 2540 of 4731
![INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1147
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS007QQ
INTAKE VALVE TIMING CONTROL SOLENOID VALVE INFINITI FX35 2005 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1147
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS007QQ
INTAKE VALVE TIMING CONTROL SOLENOID VALVE](/manual-img/42/57020/w960_57020-2539.png)
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE EC-1147
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Component InspectionABS007QQ
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid valve terminals as follows.
If NG, replace intake valve timing control solenoid valve.
If OK, go to next step.
3. Remove intake valve timing control solenoid valve.
4. Provide 12V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger
moves as shown in the figure.
CAUTION:
Do not apply 12V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
If NG, replace intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Removal and InstallationABS007QR
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-200, "TIMING CHAIN" .
Terminals Resistance
1 and 2 7.0 - 7.5 Ω [at 20 °C (68 °F)]
1 or 2 and ground ∞Ω
(Continuity should not exist)
PBIB0193E
PBIB2275E
Page 2541 of 4731
![INFINITI FX35 2005 Service Manual EC-1148
[VK45DE]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2005 July 2005 FX
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionABS007QS
Electric throttle control INFINITI FX35 2005 Service Manual EC-1148
[VK45DE]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2005 July 2005 FX
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionABS007QS
Electric throttle control](/manual-img/42/57020/w960_57020-2540.png)
EC-1148
[VK45DE]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2005 July 2005 FX
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionABS007QS
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicABS007QT
This self-diagnosis has one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureABS007QU
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position and wait at least 3 seconds.
4. Shift selector lever to P position.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Turn ignition switch ON and wait at least 1 second.
7. Shift selector lever to D position and wait at least 3 seconds.
8. Shift selector lever to P position.
9. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
10. If DTC is detected, go to EC-1149, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1121
1121 Electric throttle control
actuator A)
Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
Electric throttle control actuator
B) Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction A The ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction C While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y
Page 2542 of 4731
![INFINITI FX35 2005 Service Manual DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR EC-1149
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch INFINITI FX35 2005 Service Manual DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR EC-1149
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch](/manual-img/42/57020/w960_57020-2541.png)
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR EC-1149
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position and wait at least 3 seconds.
4. Shift selector lever to N, P position.
5. Start engine and let it idle for 3 seconds.
6. If DTC is detected, go to EC-1149, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
Diagnostic ProcedureABS007QV
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if a foreign matter is caught between the throttle valve and the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-786, "
Throttle Valve Closed Position Learning" .
3. Perform EC-787, "
Idle Air Volume Learning" .
>> INSPECTION END
SEF058Y
PBIB1494E
Page 2543 of 4731
![INFINITI FX35 2005 Service Manual EC-1150
[VK45DE]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2005 July 2005 FX
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionABS007QW
NOTE:
If DTC P1122 is displayed wit INFINITI FX35 2005 Service Manual EC-1150
[VK45DE]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2005 July 2005 FX
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionABS007QW
NOTE:
If DTC P1122 is displayed wit](/manual-img/42/57020/w960_57020-2542.png)
EC-1150
[VK45DE]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2005 July 2005 FX
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionABS007QW
NOTE:
If DTC P1122 is displayed with DTC P1121 or 1126, first perform the trouble diagnosis for DTC P1121 or
P1126. Refer to EC-1148
or EC-1156 .
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicABS007QX
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureABS007QY
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-1152, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1122
1122 Electric throttle control
performance problem Electric throttle control function does not oper-
ate properly.
Harness or connectors
(Throttle control motor circuit is open or
shorted)
Electric throttle control actuator
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y
Page 2544 of 4731
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION EC-1151
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS007QZ
TBWM0415E
