LAN-302
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 16.
NG >> Repair harness between IPDM E/R and harness con- nector E205.
16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals 94 and 86.
3. Check resistance between IPDM E/R terminals 48 and 49.
OK or NG
OK >> GO TO 17.
NG >> Replace ECM and/or IPDM E/R.
17. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 18.
NG >> Refer to LAN-16, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIB1364E
94 - 86 : Approx. 108 - 132 Ω
48 - 49 : Approx. 108 - 132 Ω
LKIA0037E
Page 3722 of 4731
![INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-303
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-303
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform](/manual-img/42/57020/w960_57020-3721.png)
CAN SYSTEM (TYPE 6) LAN-303
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–Display unit
–AWD control unit
–BCM
–Steering angle sensor
–LDW camera unit
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionAKS00CD0
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Page 3723 of 4731
LAN-304
[CAN]
CAN SYSTEM (TYPE 7)
Revision: 2005 July 2005 FX
CAN SYSTEM (TYPE 7)PFP:23710
Component Parts and Harness Connector LocationAKS00CBQ
PKIB5971E
Page 3724 of 4731
CAN SYSTEM (TYPE 7) LAN-305
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
SchematicAKS00CBR
TKWM2371E
Page 3725 of 4731
LAN-306
[CAN]
CAN SYSTEM (TYPE 7)
Revision: 2005 July 2005 FX

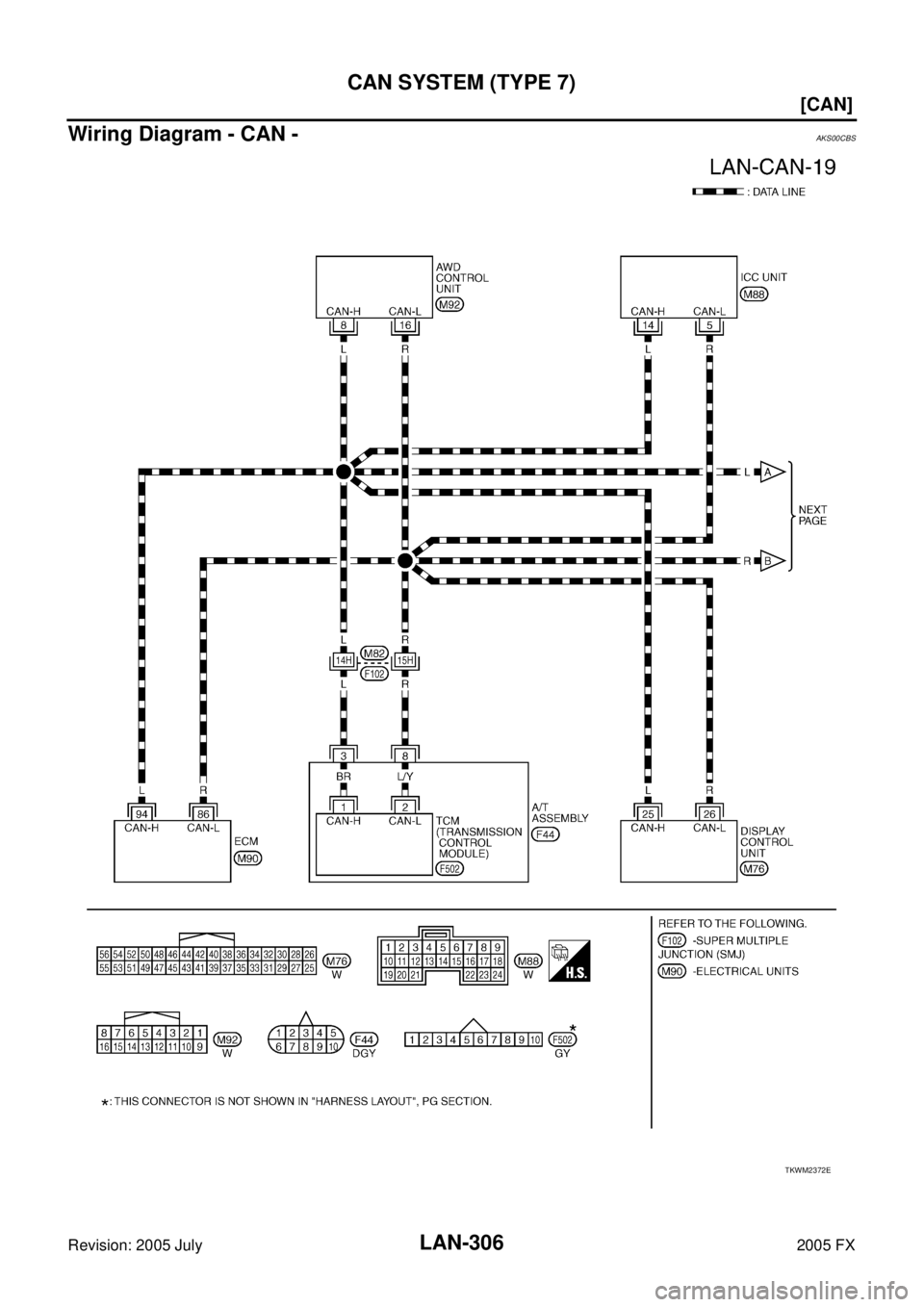

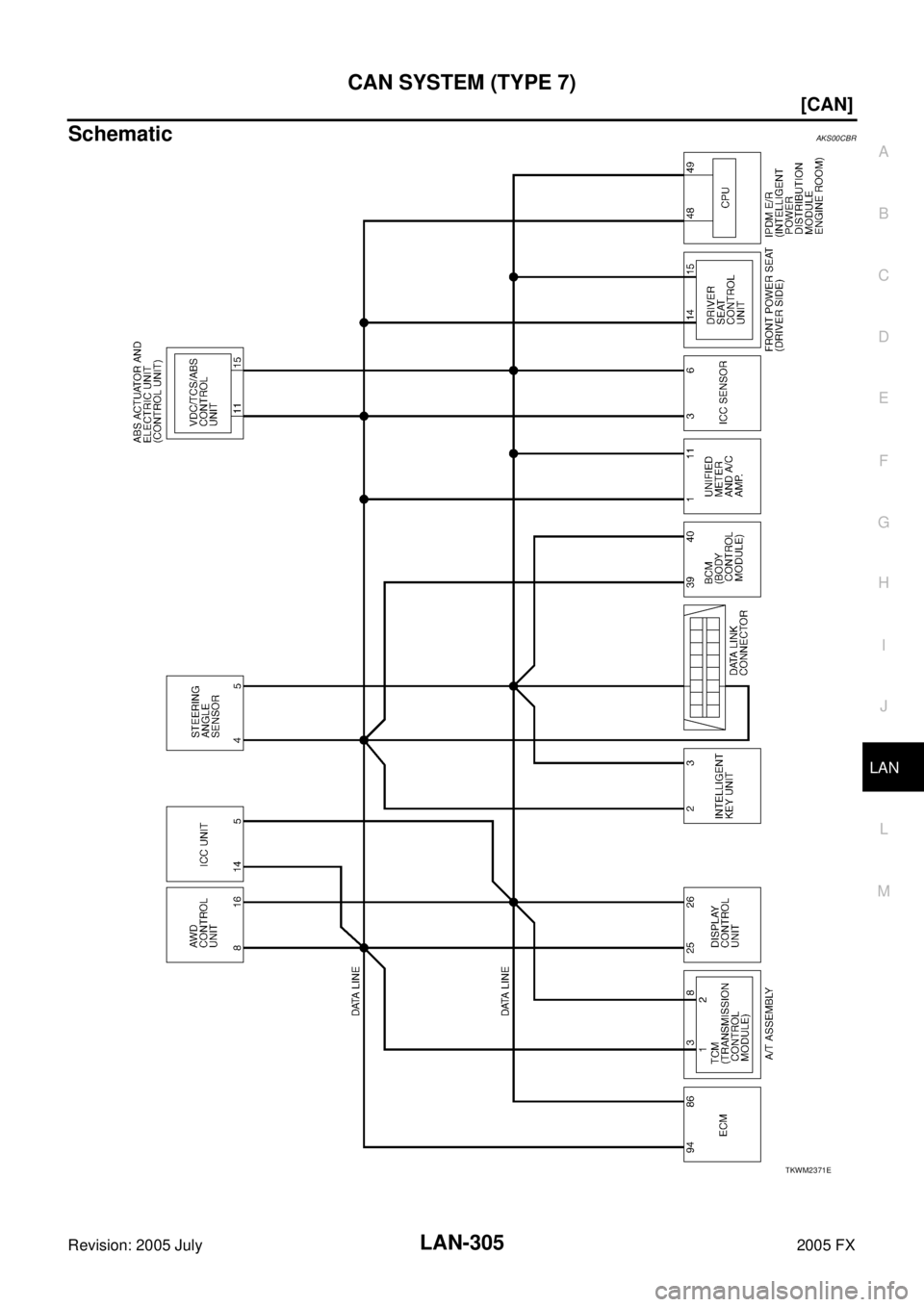

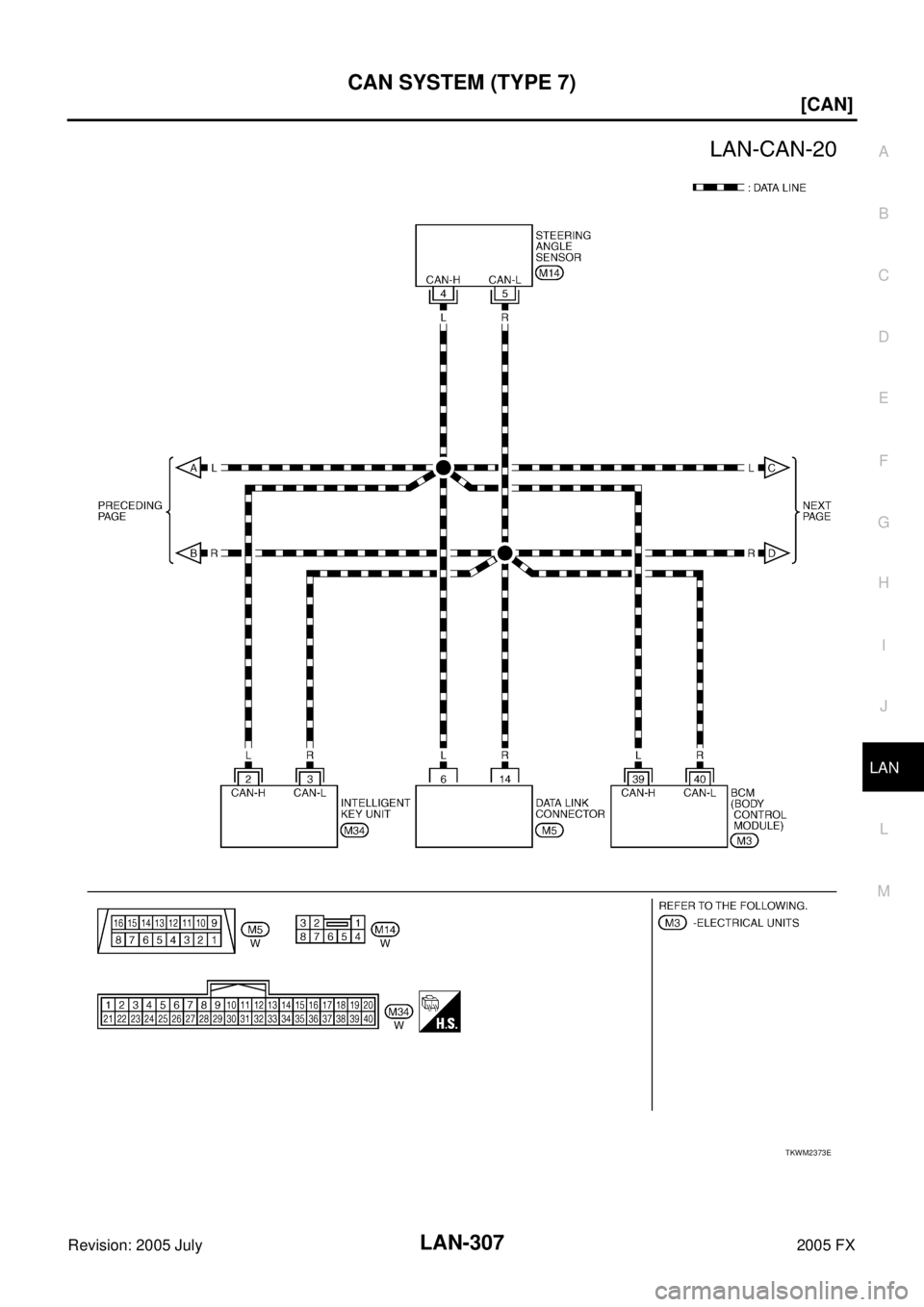

Wiring Diagram - CAN -AKS00CBS
