Terminals and Reference Values for BCMAKS00CJ0
Terminals and Reference Values for IPDM E/RAKS007IM
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
2 GY Combination switch input 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
3 L/B Combination switch input 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
4 PU/W Combination switch input 3
5 Y/R Combination switch input 2
6 SB Combination switch input 1
11 LG/R Ignition switch (ACC) ACC — Battery voltage
32 GY/R Combination switch output 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
33 G Combination switch output 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
34 W/B Combination switch output 3
35 W/G Combination switch output 2
36 W/R Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN − H—— —
40 R CAN − L—— —
42 L/R Battery power supply OFF — Battery voltage
49 B Ground ON — Approx. 0V
52 B Ground ON — Approx. 0V
55 G Battery power supply OFF — Battery voltage
PKIB3468E
PKIB3469E
PKIB3470E
PKIB3471E
Terminal No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
22 R Parking, license,
and tail lamp ONLighting switch
1ST position OFF Approx. 0V
ON Battery voltage
38 B Ground ON — Approx. 0V
48 L CAN − H— — —
49 R CAN − L— — —
60 B Ground ON — Approx. 0V
Page 4028 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-139
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
How to Proceed With Trouble DiagnosisAKS007E0
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 2 9 , "
System Description" .
3. Perform Preliminary Check. Refer to LT- 1 3 9 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do parking, license plate, side marker and tail lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckAKS007E1
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.

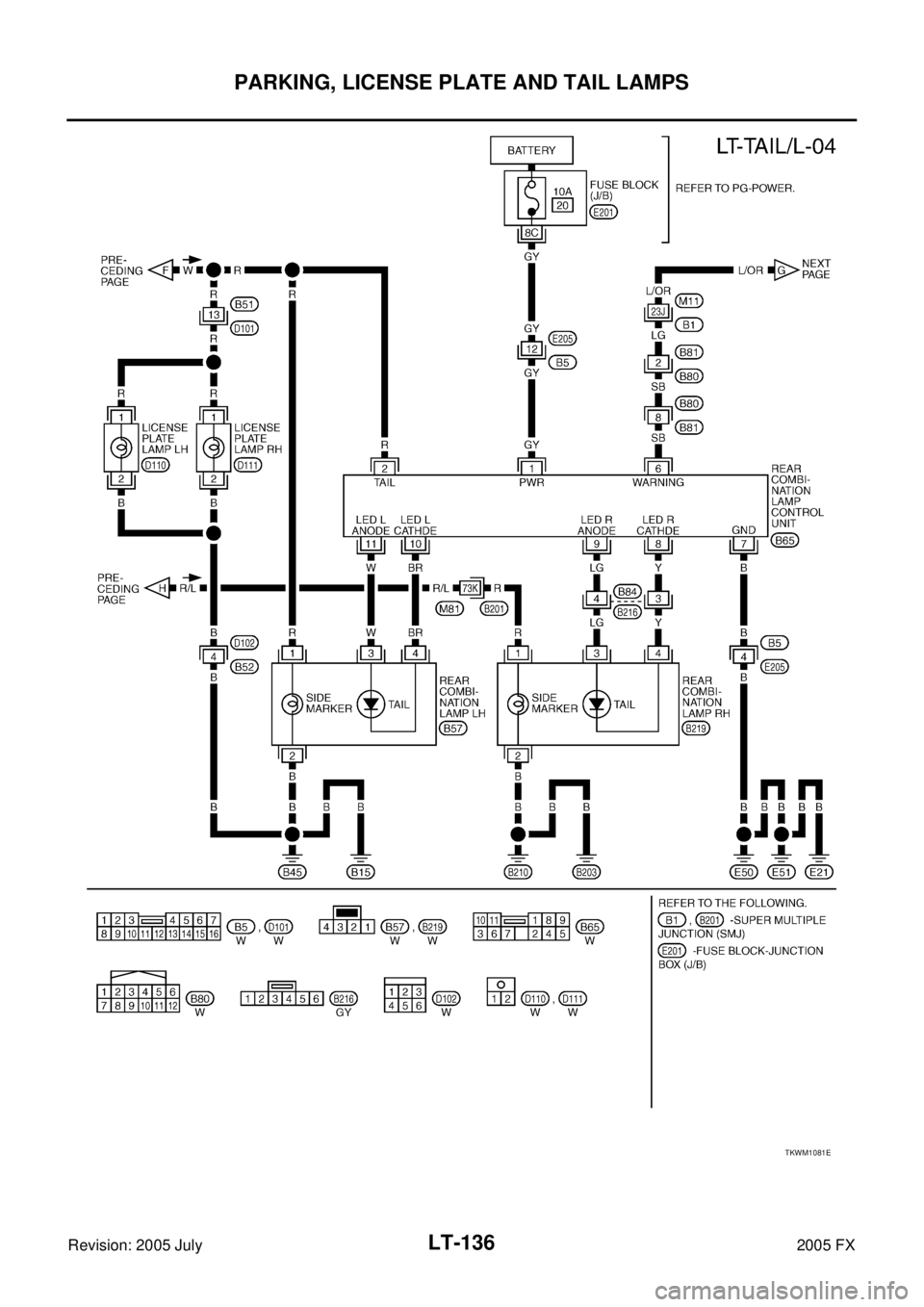

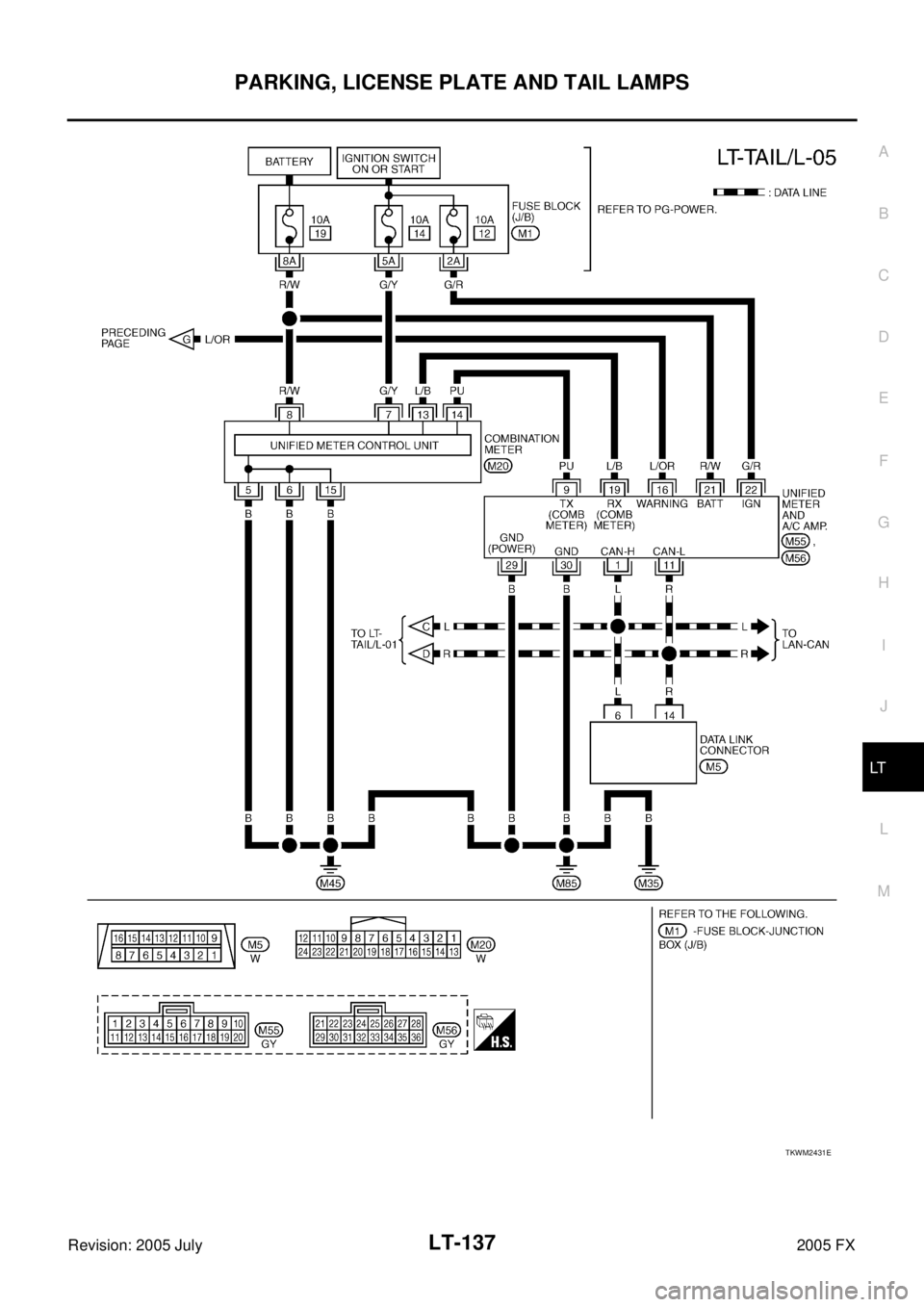

Refer to LT- 1 3 3 , "
Wiring Diagram — TAIL/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.

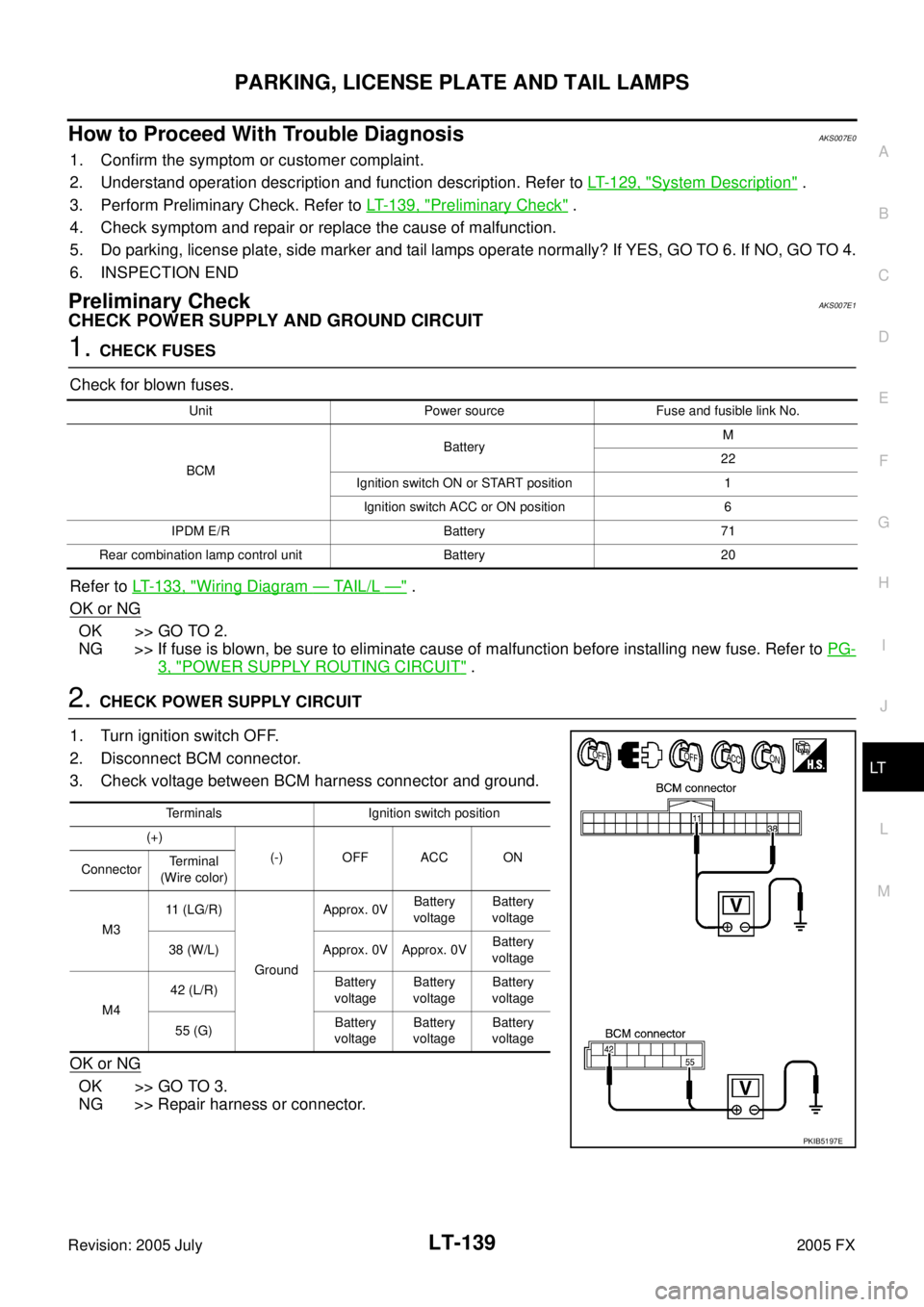

3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 71
Rear combination lamp control unit Battery 20
Terminals Ignition switch position
(+) (-) OFF ACC ON
Connector Terminal
(Wire color)
M3 11 (LG/R)
Ground Approx. 0V
Battery
voltage Battery
voltage
38 (W/L) Approx. 0V Approx. 0V Battery
voltage
M4 42 (L/R)
Battery
voltage Battery
voltage Battery
voltage
55 (G) Battery
voltage Battery
voltage Battery
voltage
PKIB5197E
Page 4029 of 4731

LT-140
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)AKS007E2
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)" in HEADLAMP.
CONSULT-II Functions (IPDM E/R)AKS00CM4
Refer to LT- 2 0 , "CONSULT-II Functions (IPDM E/R)" in HEADLAMP.
Parking, License Plate and Side Marker Lamps Do Not IlluminateAKS007IO

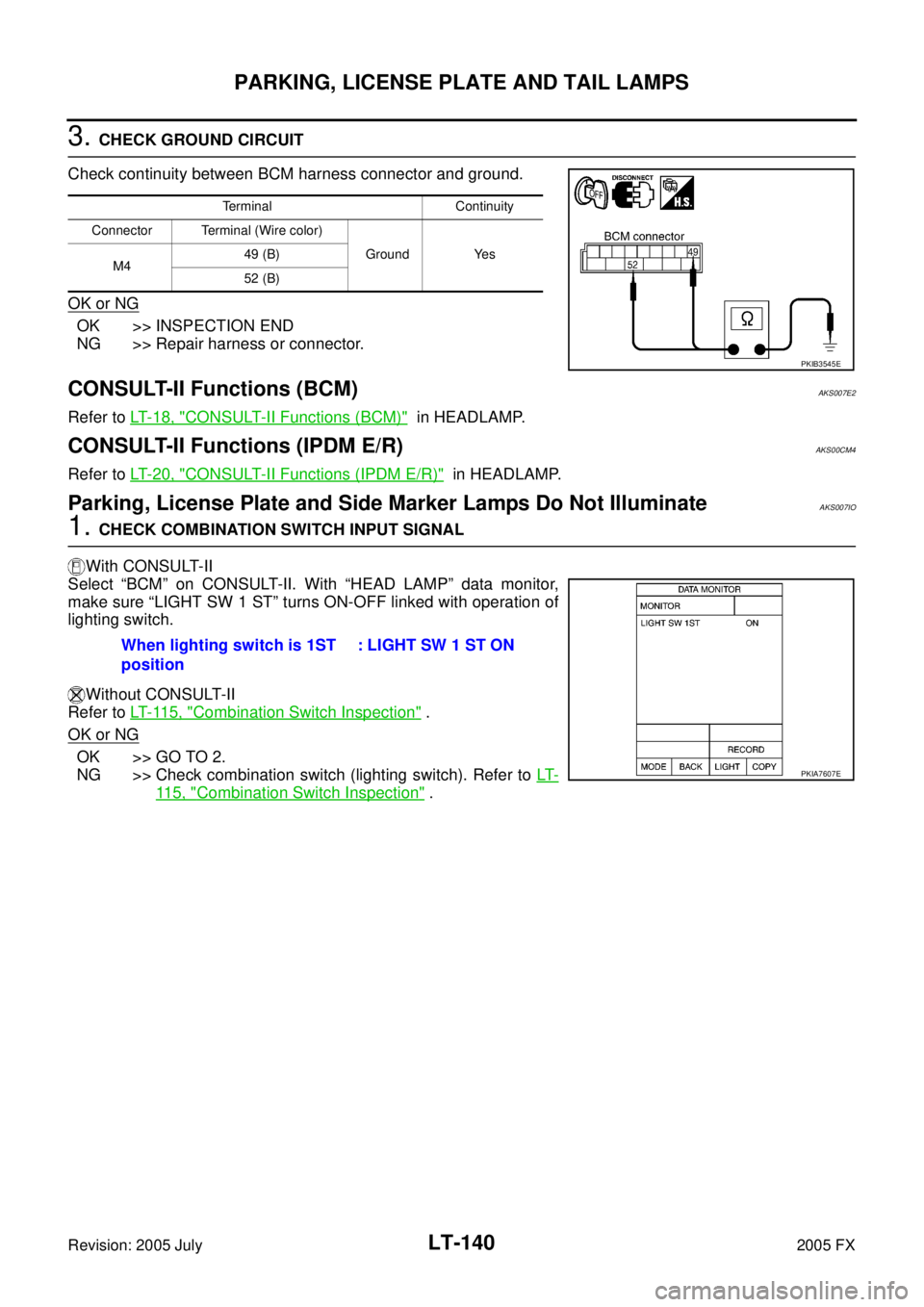

1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “LIGHT SW 1 ST” turns ON-OFF linked with operation of
lighting switch.
Without CONSULT-II
Refer to LT- 11 5 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-
11 5 , "Combination Switch Inspection" .
Terminal Continuity
Connector Terminal (Wire color)
Ground Yes
M4 49 (B)
52 (B)
PKIB3545E
When lighting switch is 1ST
position : LIGHT SW 1 ST ON
PKIA7607E
Page 4030 of 4731

PARKING, LICENSE PLATE AND TAIL LAMPS LT-141
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

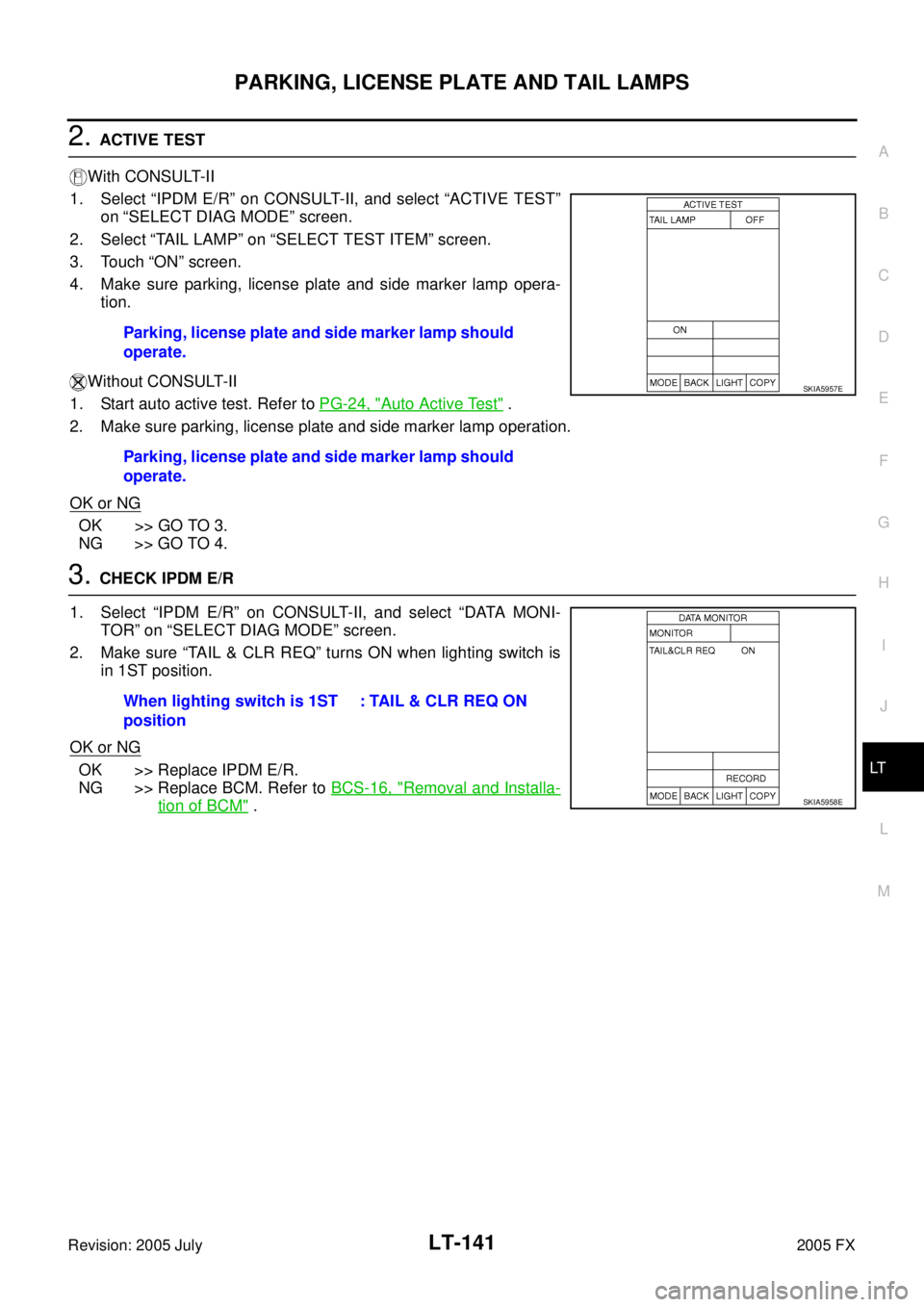

2. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “TAIL LAMP” on “SELECT TEST ITEM” screen.
3. Touch “ON” screen.
4. Make sure parking, license plate and side marker lamp opera- tion.
Without CONSULT-II
1. Start auto active test. Refer to PG-24, "
Auto Active Test" .
2. Make sure parking, license plate and side marker lamp operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen.
2. Make sure “TAIL & CLR REQ” turns ON when lighting switch is in 1ST position.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
Parking, license plate and side marker lamp should
operate.
Parking, license plate and side marker lamp should
operate.
SKIA5957E
When lighting switch is 1ST
position : TAIL & CLR REQ ON
SKIA5958E
Page 4031 of 4731

LT-142
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX
4. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front side marker, clearance lamp, license plate lamp and rear combination lamp connectors.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “TAIL LAMP” on “SELECT TEST ITEM” screen.
5. Touch “ON” screen.

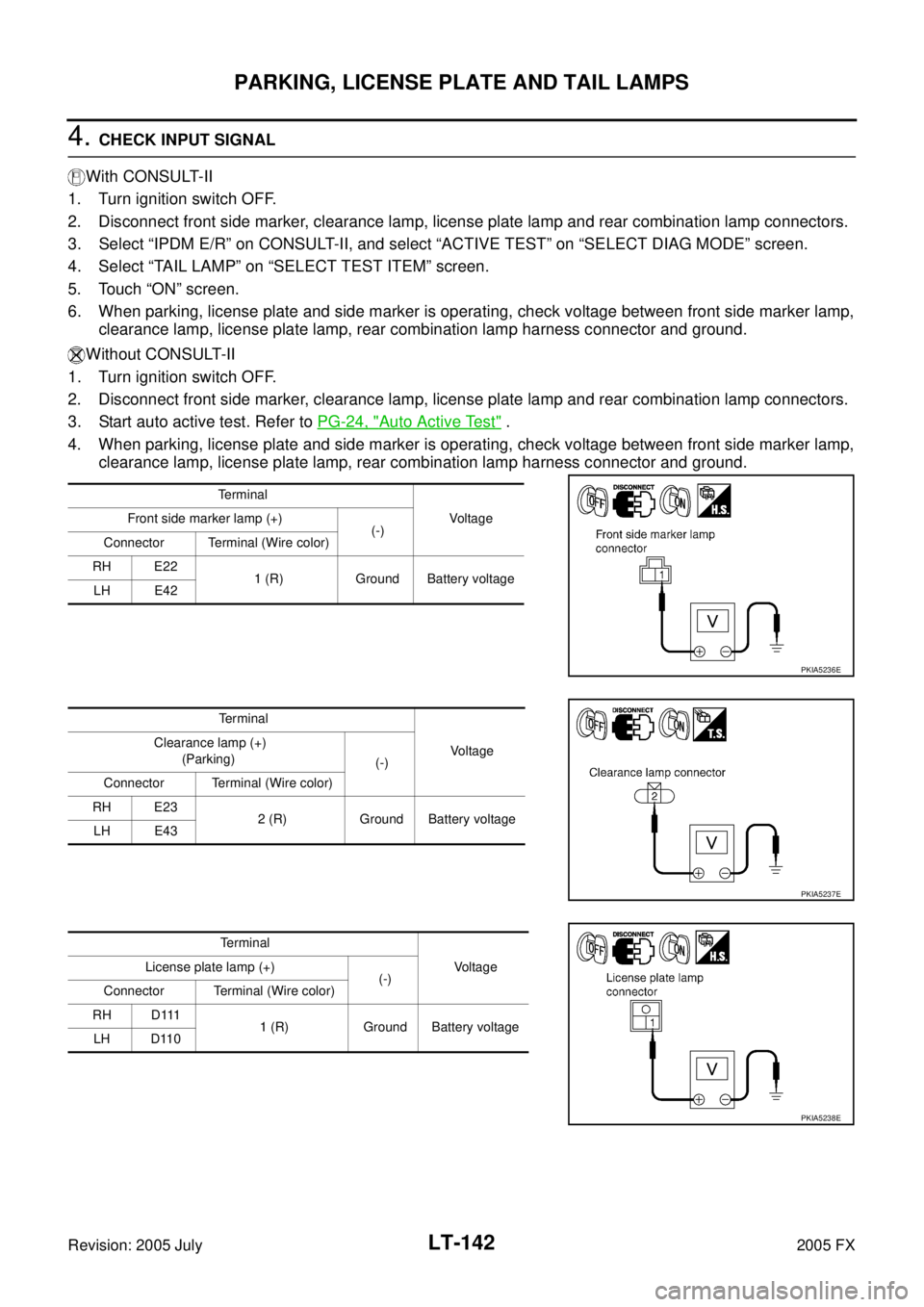

6. When parking, license plate and side marker is operating, check voltage between front side marker lamp, clearance lamp, license plate lamp, rear combination lamp harness connector and ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front side marker, clearance lamp, license plate lamp and rear combination lamp connectors.
3. Start auto active test. Refer to PG-24, "
Auto Active Test" .
4. When parking, license plate and side marker is operating, check voltage between front side marker lamp, clearance lamp, license plate lamp, rear combination lamp harness connector and ground.
Terminal
Voltag e
Front side marker lamp (+)
(-)
Connector Terminal (Wire color)
RH E22 1 (R) Ground Battery voltage
LH E42
PKIA5236E
Te r m i n a l
Voltage
Clearance lamp (+)
(Parking) (-)
Connector Terminal (Wire color)
RH E23 2 (R) Ground Battery voltage
LH E43
PKIA5237E
Terminal
Vo l ta g e
License plate lamp (+)
(-)
Connector Terminal (Wire color)
RH D111 1 (R) Ground Battery voltage
LH D110
PKIA5238E
Page 4032 of 4731
PARKING, LICENSE PLATE AND TAIL LAMPS LT-143
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
Terminal
Voltage
Rear combination lamp (+)
(Side marker) (-)
Connector Terminal (Wire color)
RH B219 1 (R) Ground Battery voltage
LH B57
PKIA5239E
