2005 INFINITI FX35 Service Manual

heater clock setting clock reset lock tire type wiring

Page 4401 of 4731

INFINITI FX35 2005 Service Manual RFD-32
REAR FINAL DRIVE ASSEMBLY
Revision: 2005 July 2005 FX
10. Apply gear oil to the thread and seat of drive pinion lock nut, and
temporarily tighten drive pinion lock nut to drive pinion.
CAUTIO

RFD-32
REAR FINAL DRIVE ASSEMBLY
Revision: 2005 July 2005 FX
10. Apply gear oil to the thread and seat of drive pinion lock nut, and
temporarily tighten drive pinion lock nut to drive pinion.
CAUTION:
Do not reuse drive pinion lock nut.
11. Adjust to the drive pinion lock nut tightening torque and pinion bearing preload torque.
CAUTION:
Adjust to the lower limit of the drive pinion lock nut tight-
ening torque first.
If the preload torque exceeds the specified value, replace
collapsible spacer and tighten it again to adjust. Do not
loosen drive pinion lock nut to adjust the preload torque.
After adjustment, rotate drive pinion back and forth 2 to 3
times to check for unusual noise, rotation malfunction, and other malfunctions.
12. Install differential case assembly. Refer to RFD-32, "
Differential Assembly" .
CAUTION:
Do not install rear cover yet.
13. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and companion flange runout. Refer to RFD-17, "
Drive Gear Runout" , RFD-18, "Tooth Contact" , RFD-19, "Backlash" ,
RFD-20, "
Companion Flange Runout" .
Recheck above items. Readjust the above description, if necessary.
14. Check total preload torque. Refer to RFD-17, "
Total Preload Torque" .
15. Install rear cover. Refer to RFD-32, "
Differential Assembly" .
Differential Assembly
1. Install side gear thrust washers with the same thickness as the
ones installed prior to disassembly or reinstall the old ones on
the side gears.
2. Install side gears and thrust washers into differential case. CAUTION:
Make sure that the circular clip is installed to side gears.
3. Align 2 pinion mate gears in diagonally opposite positions, then rotate and install them into differential case after installing thrust
washer to pinion mate gear. Tool number A: KV40104000 ( — )
B: ST3127S000 (J-25765-A)
Drive pinion lock nut tightening torque: 147 - 323 N·m (15 - 32 kg-m, 109 - 238 ft-lb)
Drive pinion bearing preload: 2.65 - 3.23 N·m (0.27 - 0.32 kg-m, 24 - 28 in-lb)
PDIA0548E
SDIA0193J
SDIA2025E

Page 4402 of 4731

INFINITI FX35 2005 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-33
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2005 July 2005 FX
4. Align the lock pin holes on differential case with shaft, and install
pinion mate shaft.
5. Me

Page 4403 of 4731

INFINITI FX35 2005 Service Manual RFD-34
REAR FINAL DRIVE ASSEMBLY
Revision: 2005 July 2005 FX
10. Press side bearing inner races to differential case, using the drift
and the base.
CAUTION:
Do not reuse side bearing inner race.
1

Page 4404 of 4731

INFINITI FX35 2005 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-35
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2005 July 2005 FX

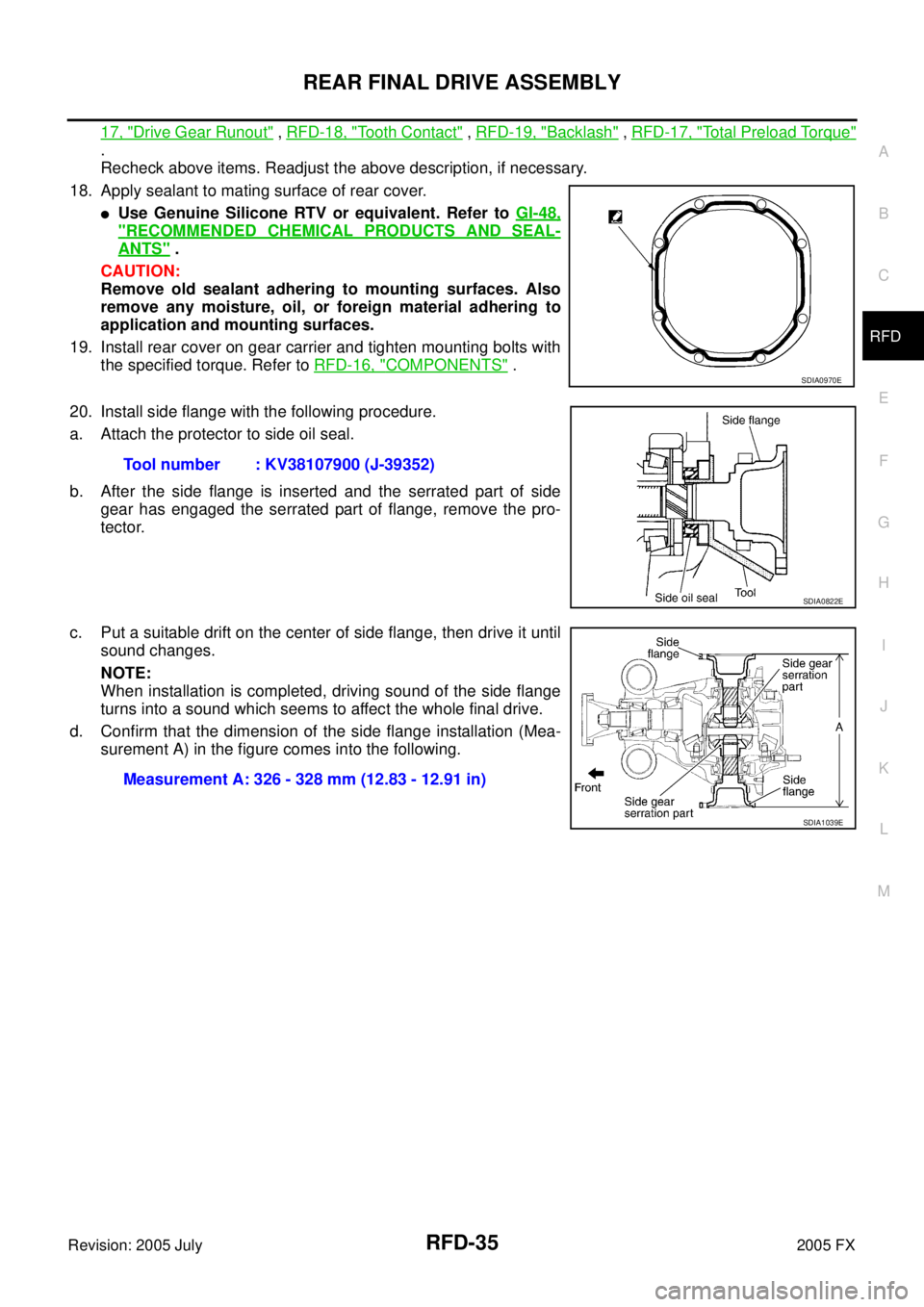

17, "Drive Gear Runout" , RFD-18, "Tooth Contact" , RFD-19, "Backlash" , RFD-17, "Total Preload Tor

Page 4405 of 4731

INFINITI FX35 2005 Service Manual RFD-36
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsADS001AQ
Inspection and AdjustmentADS001AR
DRIVE GEAR RUNO

Page 4406 of 4731

INFINITI FX35 2005 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) RFD-37
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2005 July 2005 FX
Pinion Height Adjusting Washer
Unit: mm (in)
*: Always check with the Parts Department

Page 4407 of 4731

INFINITI FX35 2005 Service Manual RFD-38
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX

Page 4408 of 4731

INFINITI FX35 2005 Service Manual RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION RSU
A
B
RSU
Revision: 2005 July 2005 FX
REAR SUSPENSION
PRECAUTIONS ...............................................

RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION RSU
A
B
RSU
Revision: 2005 July 2005 FX
REAR SUSPENSION
PRECAUTIONS .......................................................... 2
Cautions .............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools (SST) ................................ ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
REAR SUSPENSION ASSEMBLY ........................ ..... 5
On-Vehicle Inspection and Service ..................... ..... 5
INSPECTION OF SUSPENSION ARM BALL
JOINT END PLAY ............................................ ..... 5
SHOCK ABSORBER INSPECTION ................ ..... 5
Wheel Alignment Inspection ................................ ..... 5
DESCRIPTION ................................................. ..... 5
PRELIMINARY CHECK ................................... ..... 5
CAMBER INSPECTION ................................... ..... 5
TOE-IN ............................................................. ..... 6
Components ........................................................ ..... 7
Removal and Installation ..................................... ..... 8
REMOVAL ........................................................ ..... 8
INSTALLATION ................................................ ..... 8
SHOCK ABSORBER ............................................. ..... 9
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION AFTER REMOVAL .................... ..... 9
INSTALLATION ................................................ ..... 9
Disassembly and Assembly ................................ ..... 9
DISASSEMBLY ................................................ ..... 9
INSPECTION AFTER DISASSEMBLY ............ ... 10
ASSEMBLY ...................................................... ... 10 SUSPENSION ARM ...............................................
... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 12
RADIUS ROD ......................................................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSPECTION AFTER REMOVAL .................... ... 13
INSTALLATION ................................................ ... 13
FRONT LOWER LINK ........................................... ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 14
INSPECTION AFTER REMOVAL .................... ... 14
INSTALLATION ................................................ ... 14
REAR LOWER LINK & COIL SPRING .................. ... 15
Removal and Installation ..................................... ... 15
REMOVAL ........................................................ ... 15
INSPECTION AFTER REMOVAL .................... ... 15
INSTALLATION ................................................ ... 15
STABILIZER BAR .................................................. ... 16
Removal and Installation ..................................... ... 16
REMOVAL ........................................................ ... 16
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
REAR SUSPENSION MEMBER ............................ ... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 17
INSPECTION AFTER REMOVAL .................... ... 17
INSTALLATION ................................................ ... 17
SERVICE DATA ..................................................... ... 18
Wheel Alignment ................................................. ... 18
Ball Joint .............................................................. ... 18
Wheelarch Height (Unladen*) .............................. ... 18
