Page 3689 of 4731

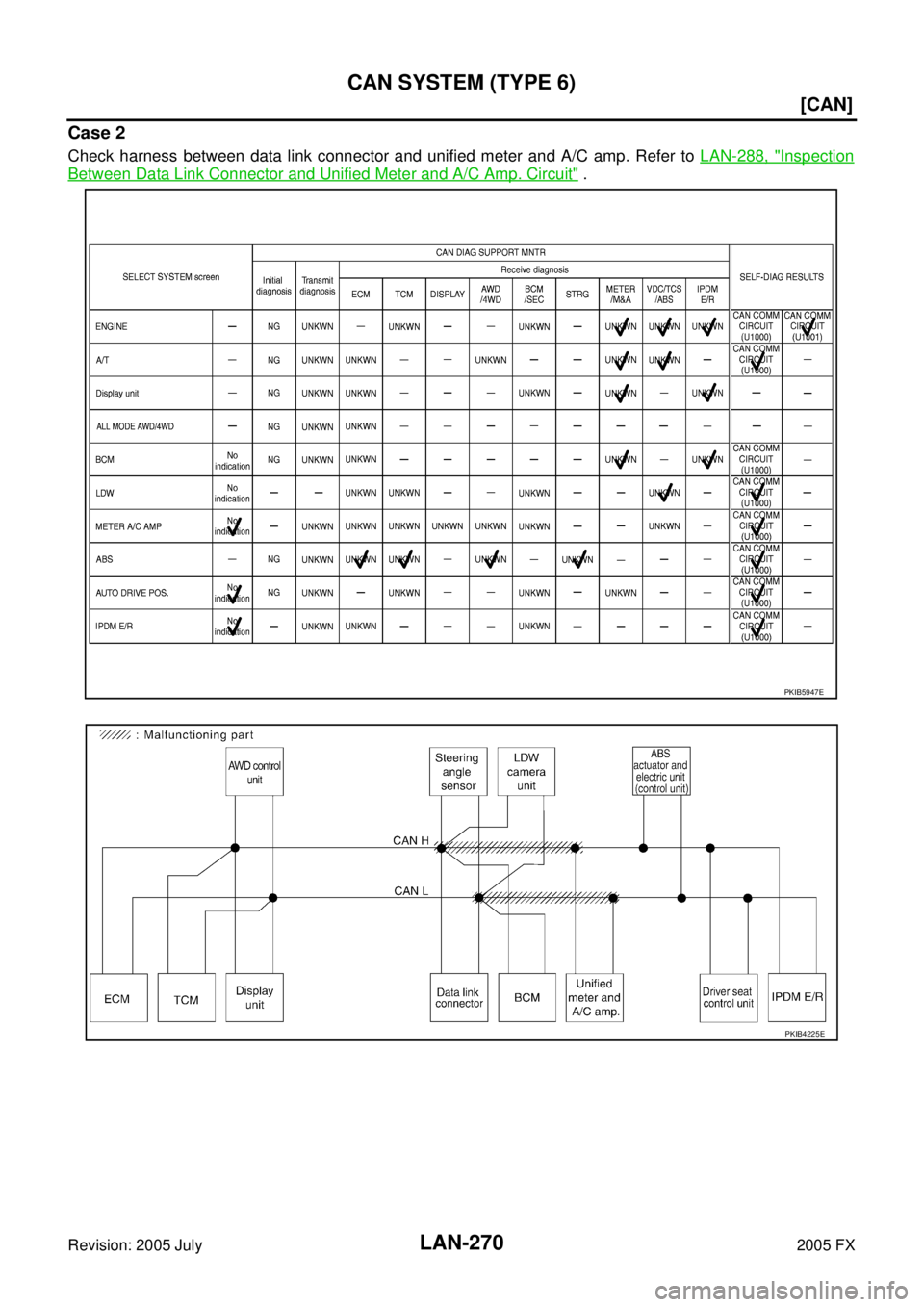

INFINITI FX35 2005 Service Manual LAN-270 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-288, "Inspection Between Data Link Connector

Page 3690 of 4731

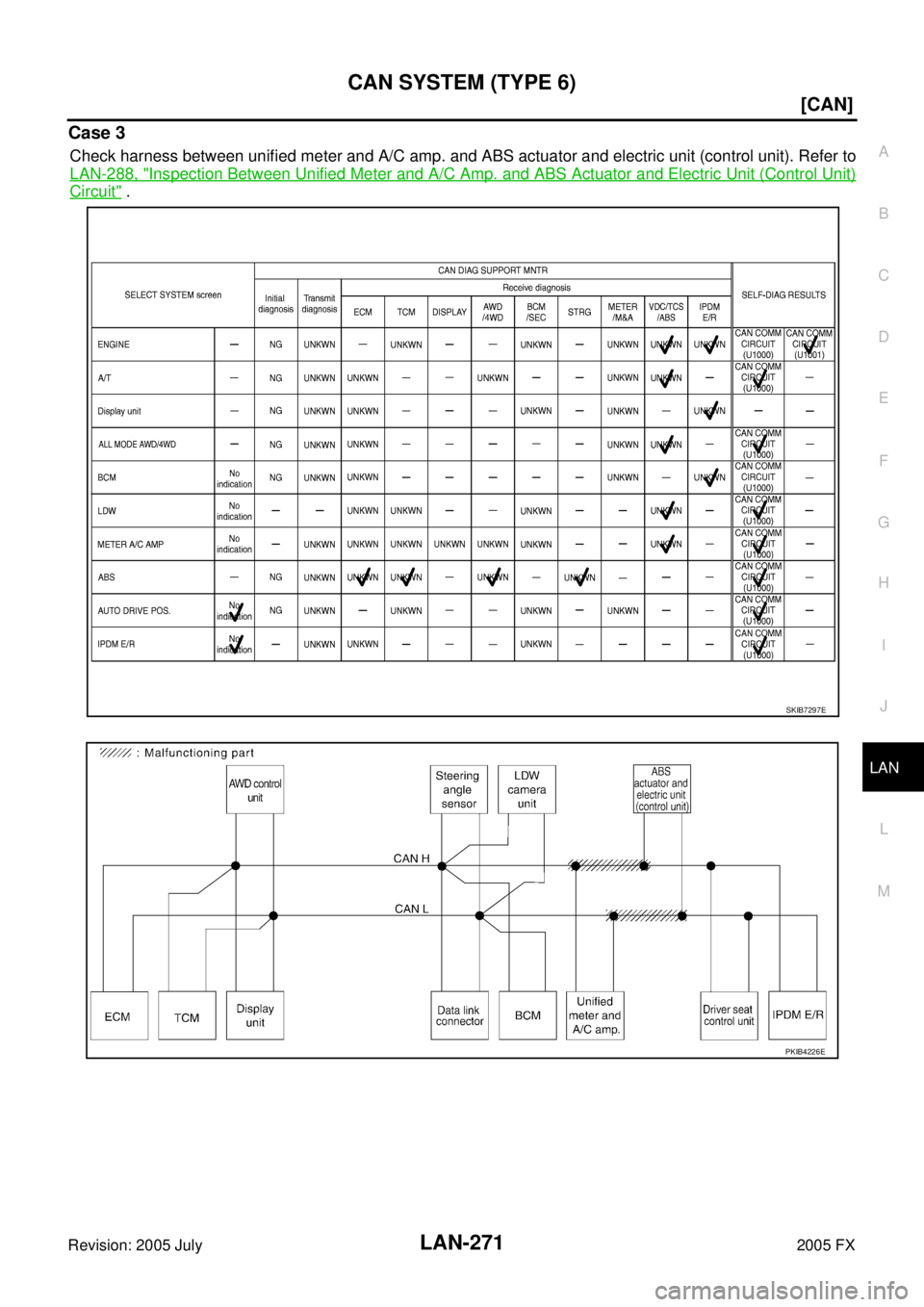

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-271 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (contr

Page 3691 of 4731

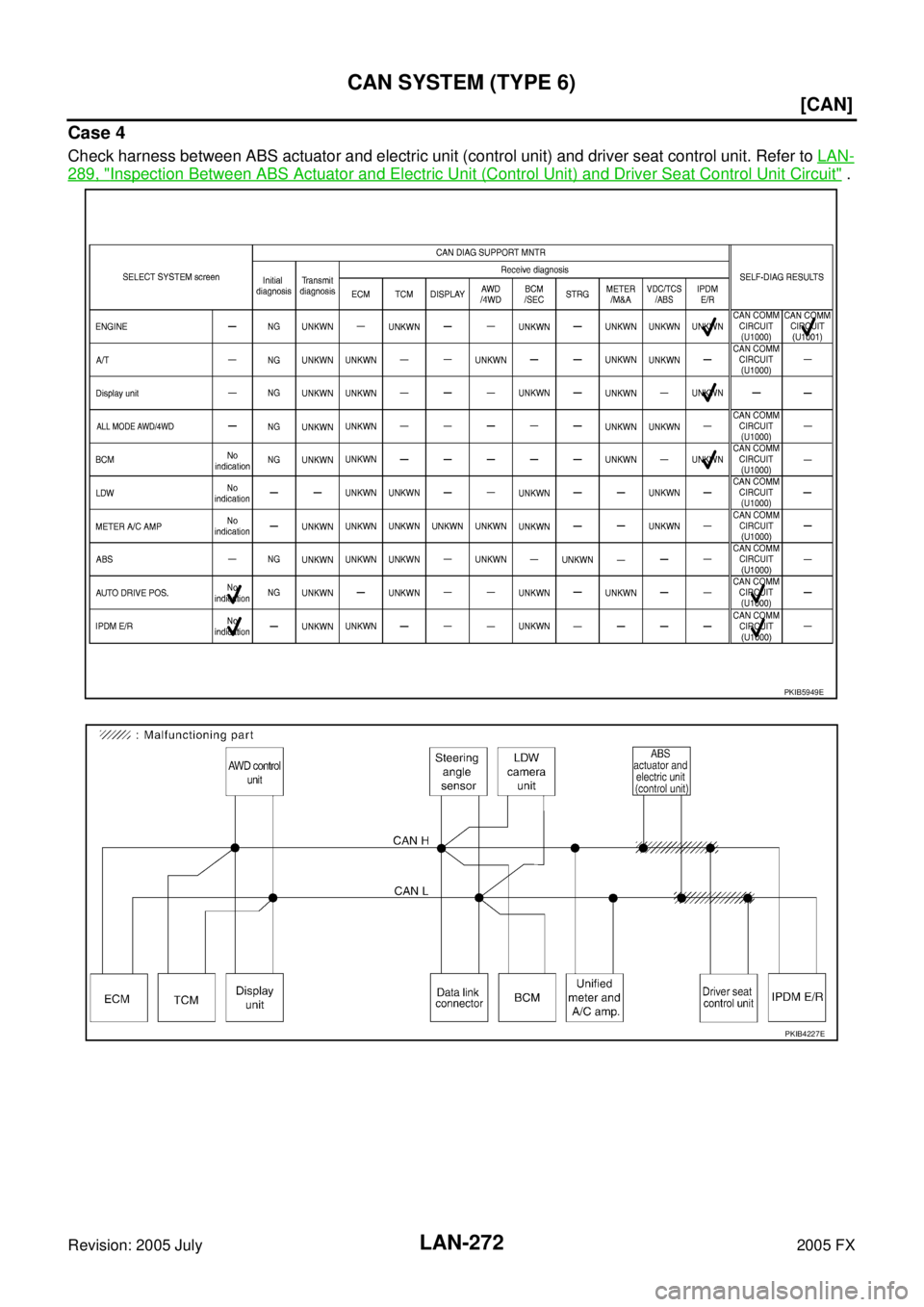

INFINITI FX35 2005 Service Manual LAN-272 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 289, "Inspection Be

Page 3692 of 4731

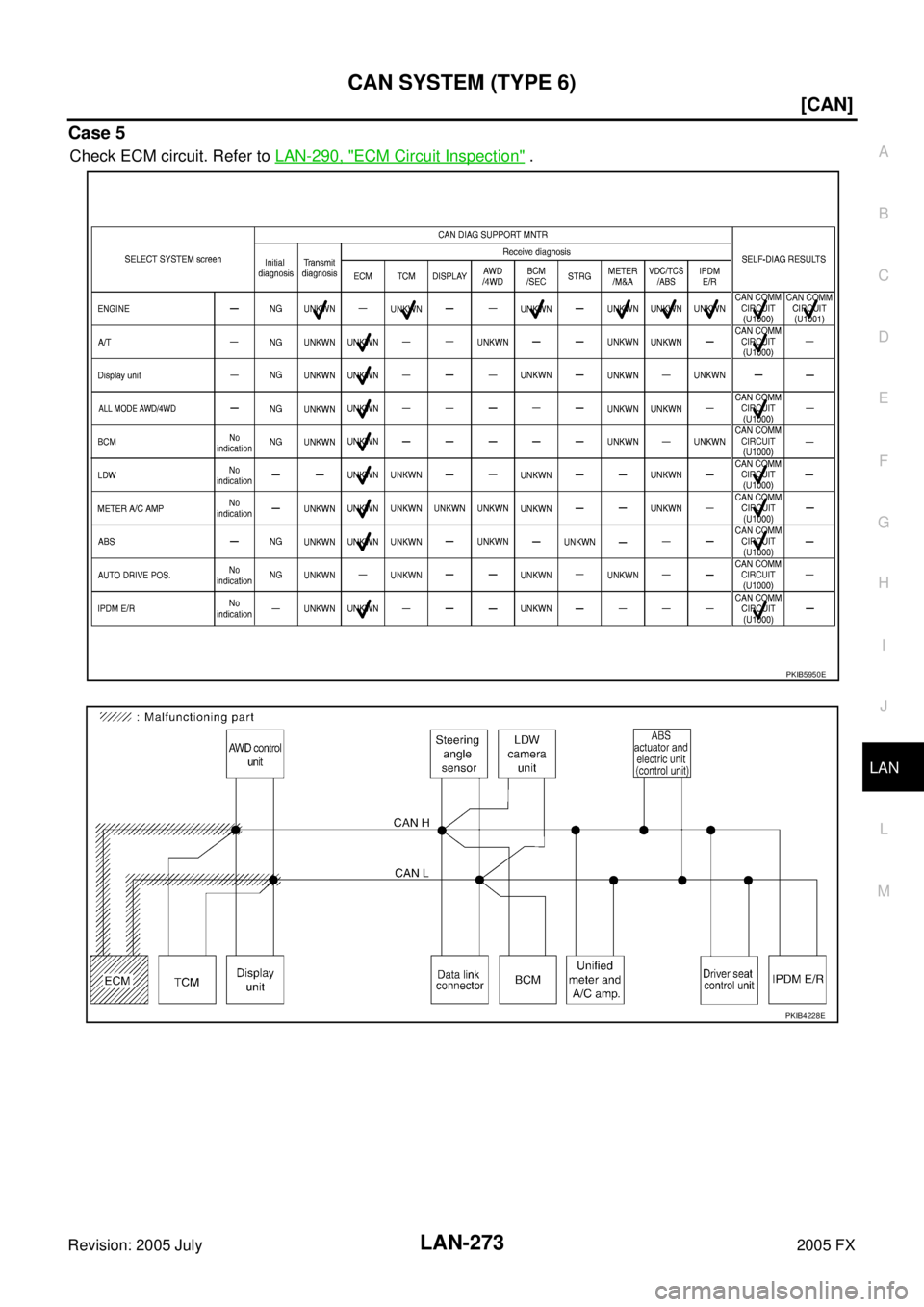

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-273 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-290, "ECM Circuit Inspection" . PKIB5950E PKIB4228E

Page 3693 of 4731

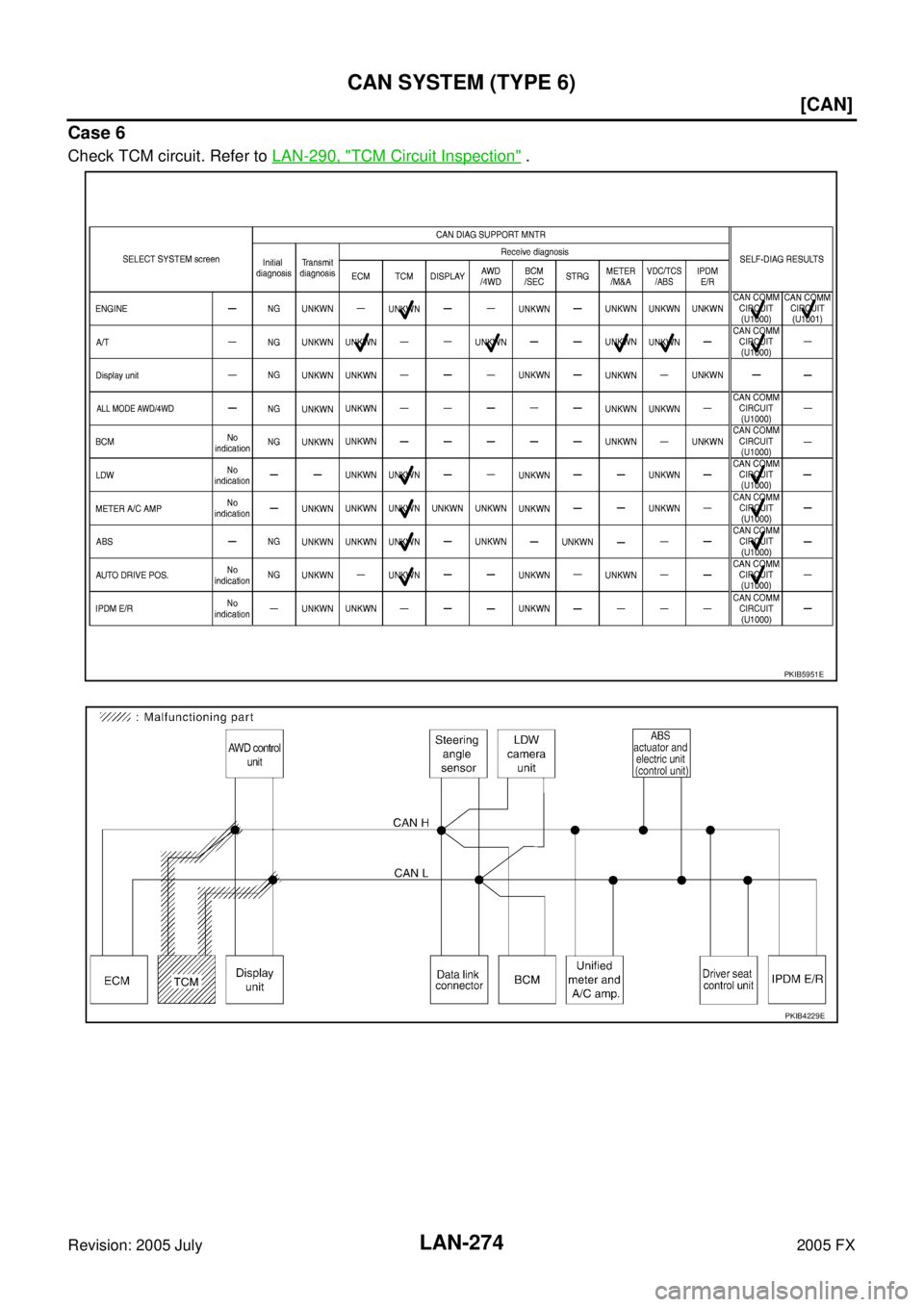

INFINITI FX35 2005 Service Manual LAN-274 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-290, "TCM Circuit Inspection" . PKIB5951E PKIB4229E

Page 3694 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-275 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 7 Check display unit circuit. Refer to LAN-291, "Display Unit Circuit Inspection" . PKIB5952

Page 3695 of 4731

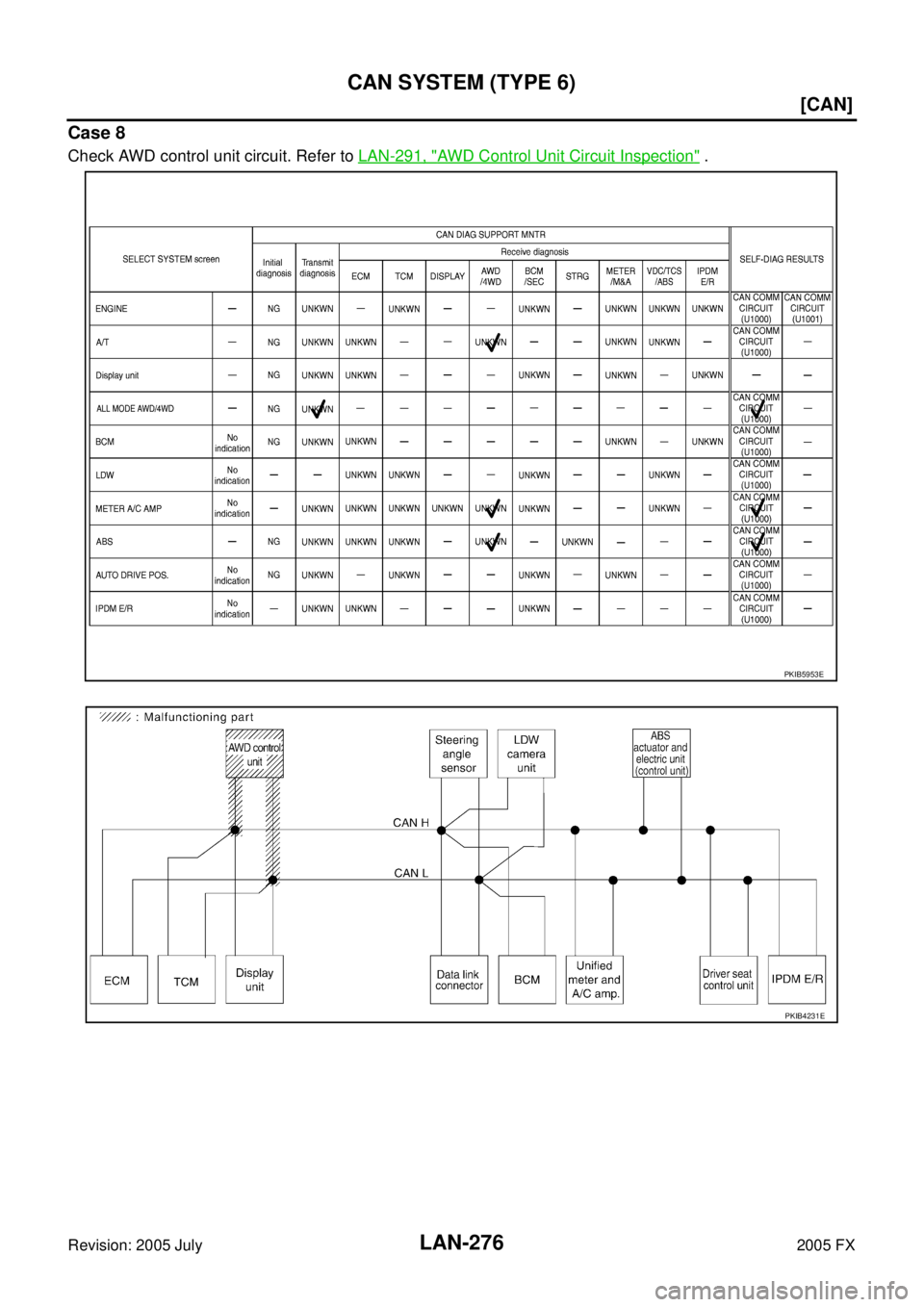

INFINITI FX35 2005 Service Manual LAN-276 [CAN] CAN SYSTEM (TYPE 6) Revision: 2005 July 2005 FX Case 8 Check AWD control unit circuit. Refer to LAN-291, "AWD Control Unit Circuit Inspection" . PKIB5953E PKIB4231E

Page 3696 of 4731

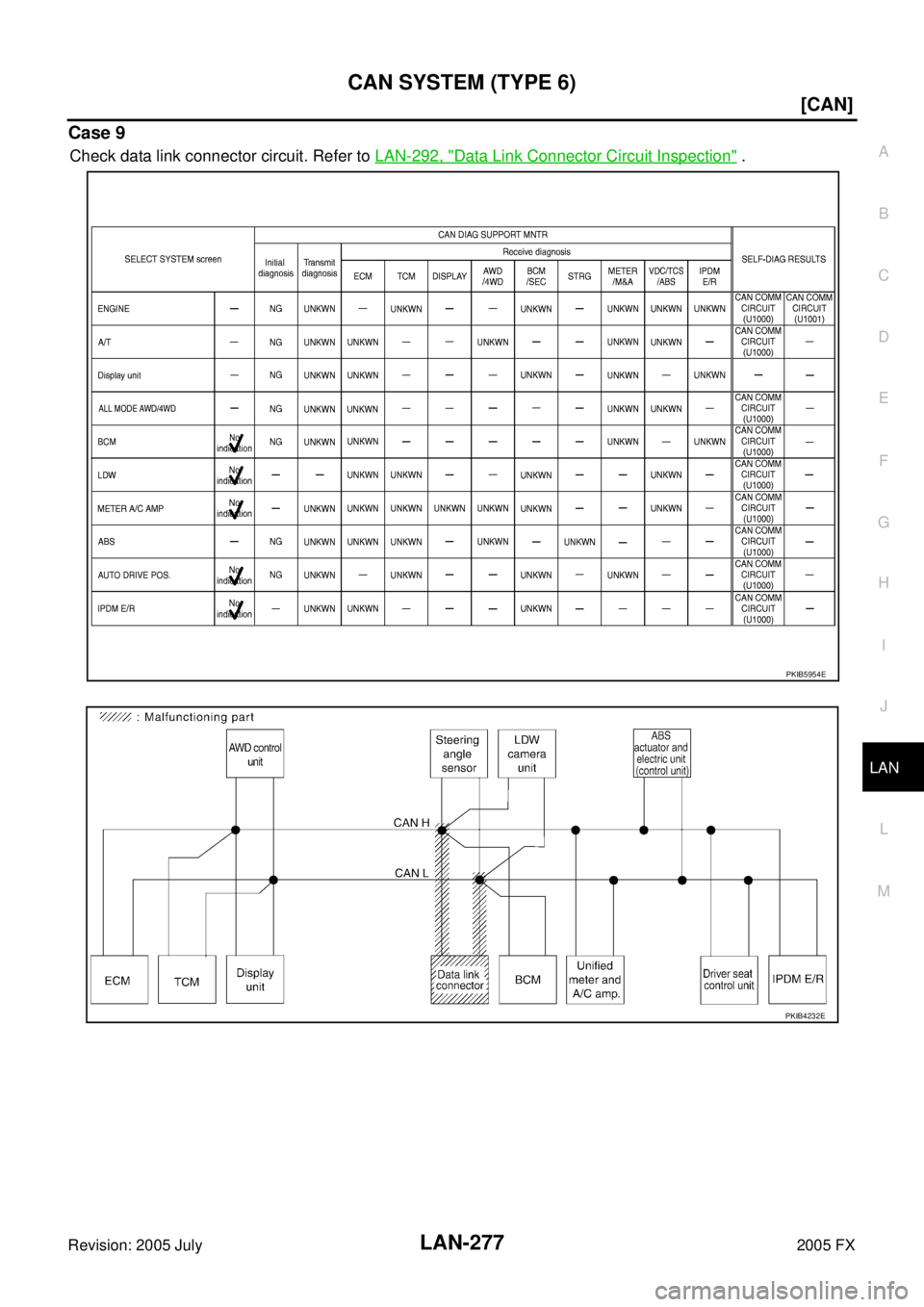

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 6) LAN-277 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 9 Check data link connector circuit. Refer to LAN-292, "Data Link Connector Circuit Inspecti
