Page 4217 of 4731
PG-40
GROUND
Revision: 2005 July 2005 FX
ENGINE CONTROL HARNESS/VQ ENGINE MODELS
CKIM0409E
Page 4218 of 4731
GROUND PG-41
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
BODY HARNESS

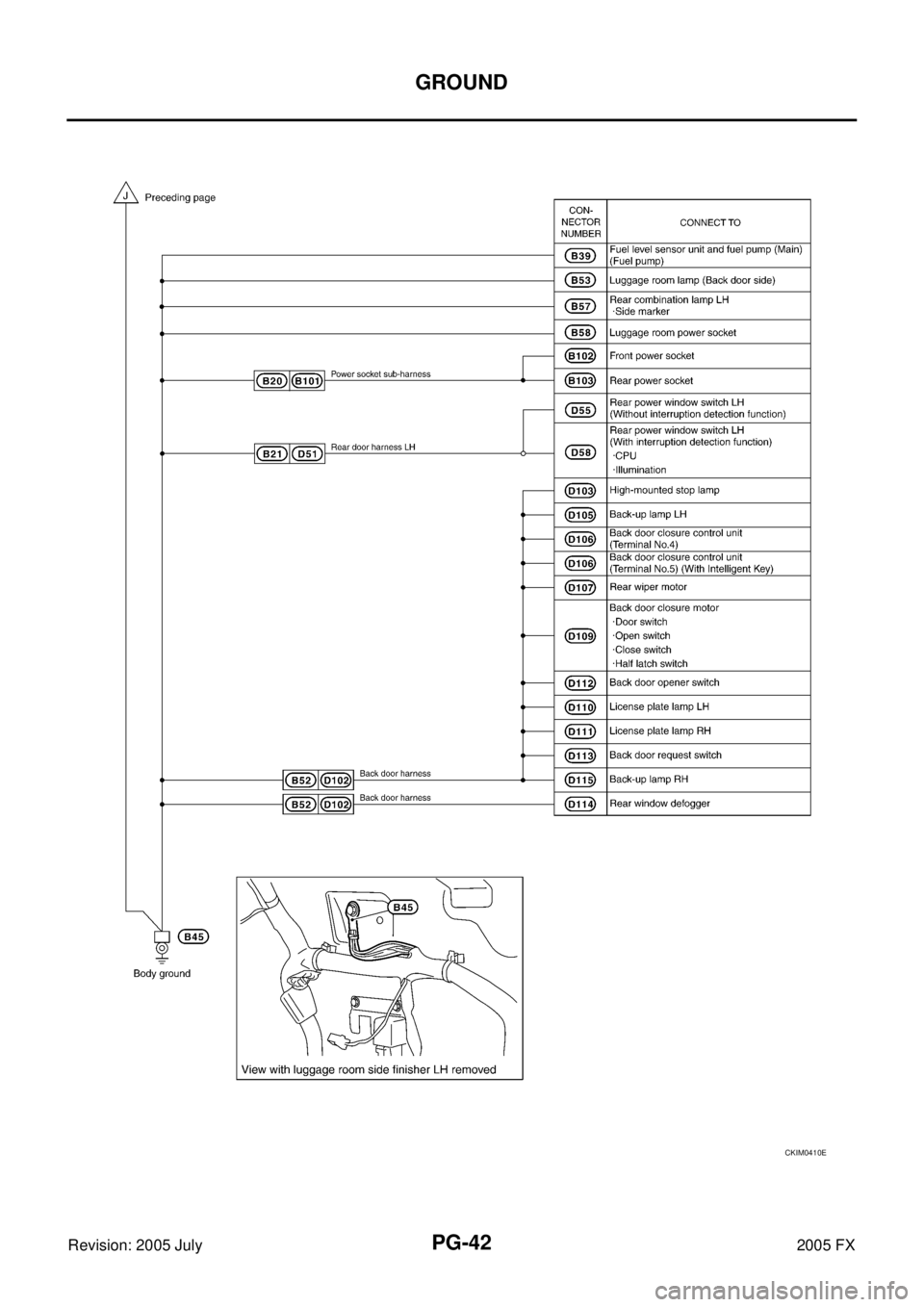

CKIH0251E
Page 4219 of 4731
PG-42
GROUND
Revision: 2005 July 2005 FX

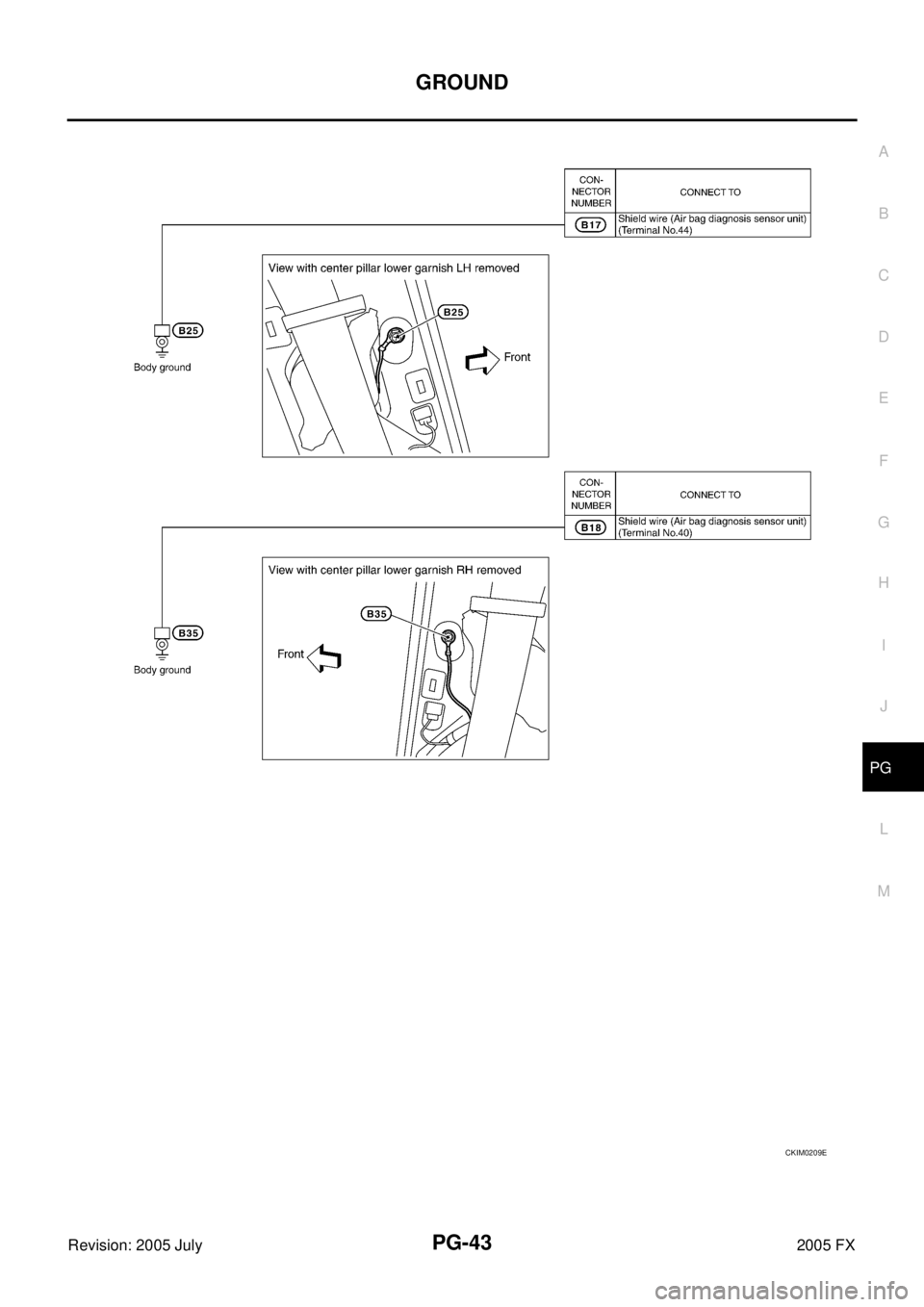

CKIM0410E
Page 4220 of 4731
GROUND PG-43
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX

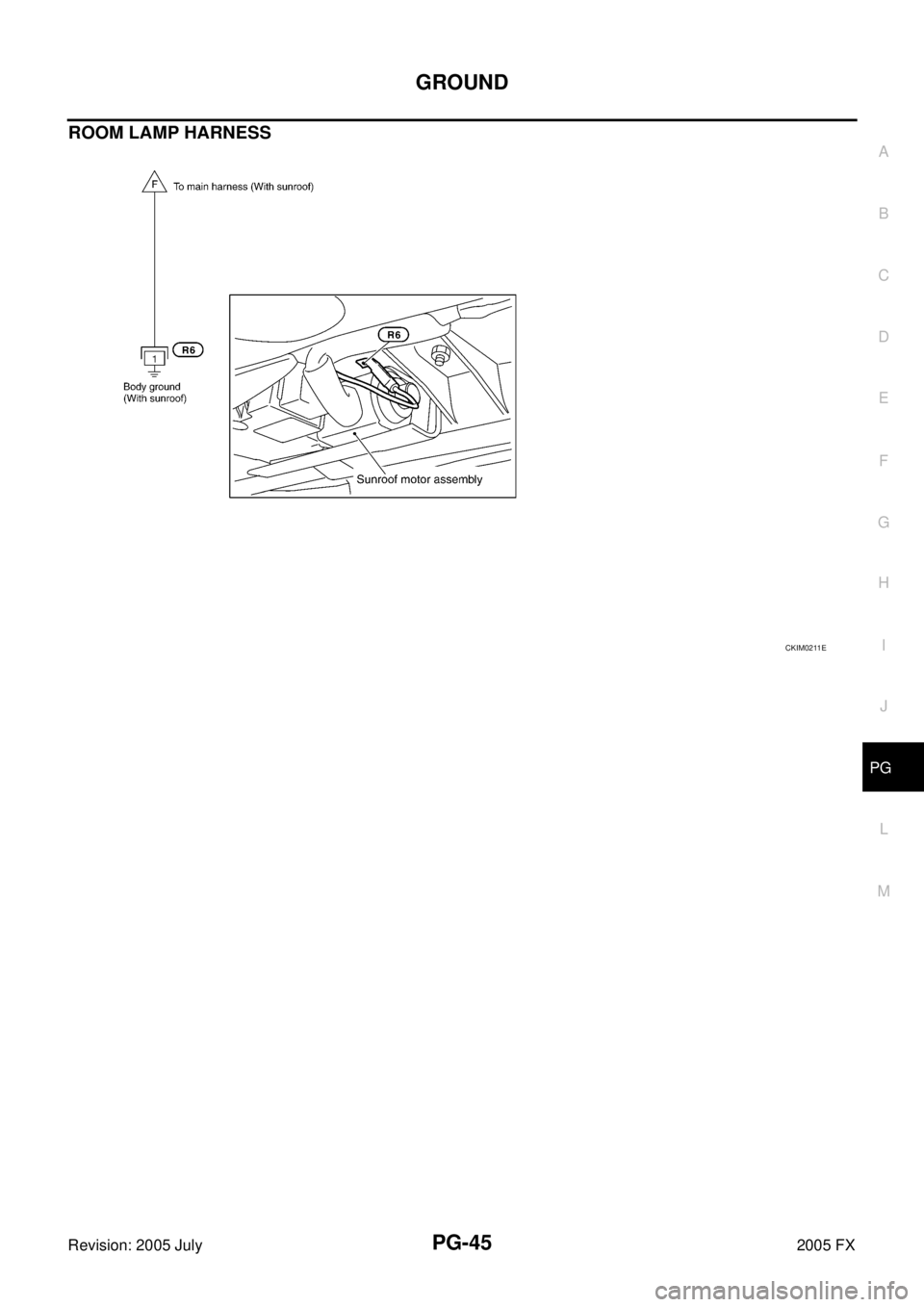

CKIM0209E
Page 4221 of 4731
PG-44
GROUND
Revision: 2005 July 2005 FX
BODY NO. 2 HARNESS

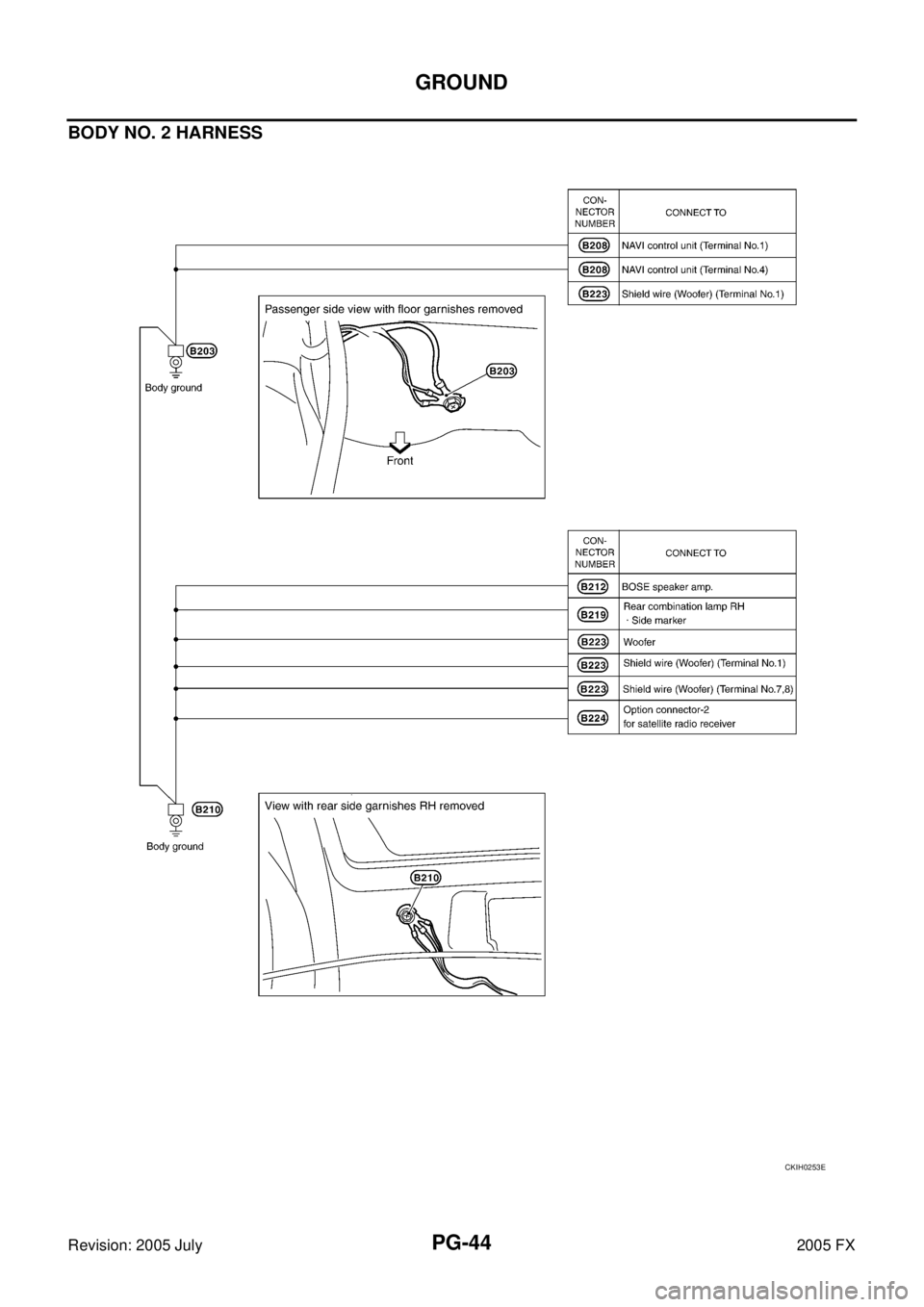

CKIH0253E
Page 4222 of 4731
GROUND PG-45
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
ROOM LAMP HARNESS
CKIM0211E
Page 4223 of 4731
PG-46
HARNESS
Revision: 2005 July 2005 FX
HARNESS PFP:00011
Harness Layout AKS007W0

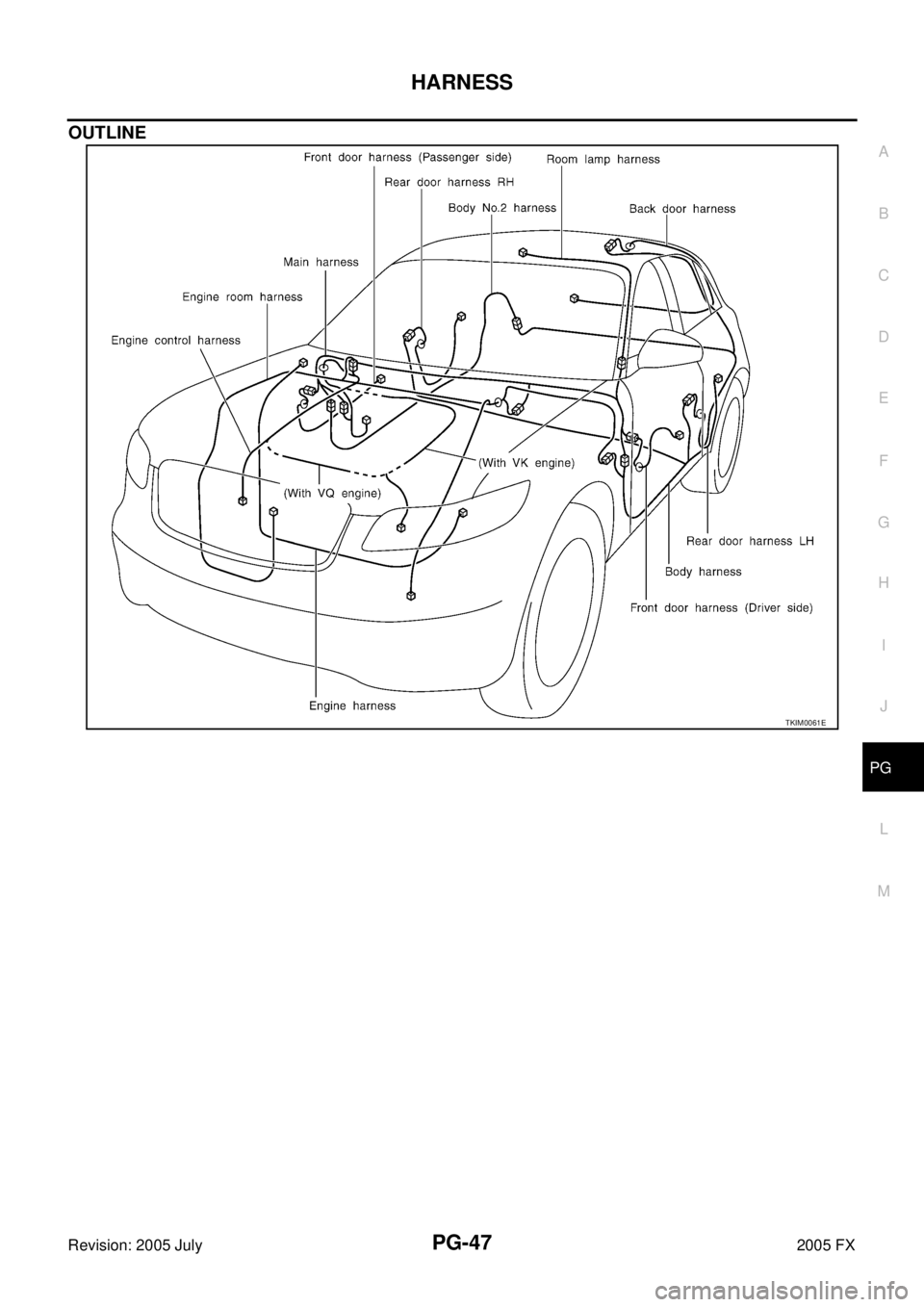

HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:
Main Harness
Engine Room Harness (Engine Compartment)
Engine Control Harness
Body Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E
Page 4224 of 4731
HARNESS PG-47
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
OUTLINE
TKIM0061E
