INFINITI FX35 2005 Service Manual SRS-26
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
6. Touch “SELF-DIAG [PAST]”.
7. If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to
step 10.
If no malfunction is detected on

Page 4610 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS SRS-27
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2005 July 2005 FX
self-diagnostic result. For replacement procedure of component parts, refer to the Removal and Installa-

TROUBLE DIAGNOSIS SRS-27
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2005 July 2005 FX
self-diagnostic result. For replacement procedure of component parts, refer to the Removal and Installa-
tion procedure for the appropriate component.
15. Go to SRS-23, "
DIAGNOSTIC PROCEDURE 3" , for final inspection.
CONSULT-II Diagnostic Code Chart (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)
Diagnostic item Explanation Repair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED. When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
Low battery voltage (Less than 9V)Go to SRS-23, "DIAGNOSTIC PRO-
CEDURE 3" .
No malfunction is detected.Go to SRS-23, "DIAGNOSTIC PRO-
CEDURE 3" .
DRIVER AIR BAG
MODULE
[OPEN]
Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace driver air bag module, diag-
nosis sensor unit and spiral cable.
DRIVER AIR BAG
MODULE
[VB-SHORT]
Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIR BAG
MODULE
[GND-SHORT]
Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIR BAG
MODULE
[SHORT]
Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front passenger air bag module.
ASSIST A/B MODULE
[VB-SHORT]
Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
Front passenger air bag module circuit is shorted between lines.
CRASH ZONE SEN
[UNIT FAIL]
CRASH ZONE SEN
[COMM FAIL]
Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace crash zone sensor and diag-
nosis sensor unit.
SIDE MODULE LH
[OPEN]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side air bag module.
SIDE MODULE LH
[VB-SHORT]
Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
Front LH side air bag module circuit is shorted between lines.
SIDE MODULE RH
[OPEN]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side air bag module.
SIDE MODULE RH
[VB-SHORT]
Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
Front RH side air bag module circuit is shorted between lines.

Page 4611 of 4731

INFINITI FX35 2005 Service Manual SRS-28
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.

SRS-28
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side air bag (Satellite) sen-
sor.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side air bag (Satellite) sen-
sor.
PRE-TEN FRONT LH
[OPEN]
Front LH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front LH seat belt.
PRE-TEN FRONT LH
[VB-SHORT]
Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
Front LH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT RH
[OPEN]
Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and front RH seat belt.
PRE-TEN FRONT RH
[VB-SHORT]
Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
Front RH pre-tensioner circuit is shorted between lines.
CURTAIN MODULE LH
[OPEN]
LH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and LH side curtain air bag module.
CURTAIN MODULE LH
[VB-SHORT]
LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
LH side curtain air bag module circuit is shorted between lines.
CURTAIN MODULE RH
[OPEN]
RH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible damage.
3. If the harness check result is OK, replace the diagnosis sensor unit
and RH side curtain air bag module.
CURTAIN MODULE RH
[VB-SHORT]
RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
RH side curtain air bag module circuit is shorted between lines.
CONTROL UNIT
Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness connection.
2. Replace the diagnosis sensor unit.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”

Page 4612 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS SRS-29
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2005 July 2005 FX
Trouble Diagnosis without CONSULT-IIAHS000HT
DIAGNOSTIC PROCEDURE 6
Inspecting SRS Malfunctioning Parts b

Page 4613 of 4731

INFINITI FX35 2005 Service Manual SRS-30
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
PHIA1234E
SHIA0083E
PHIA1235E
PHIA1236E

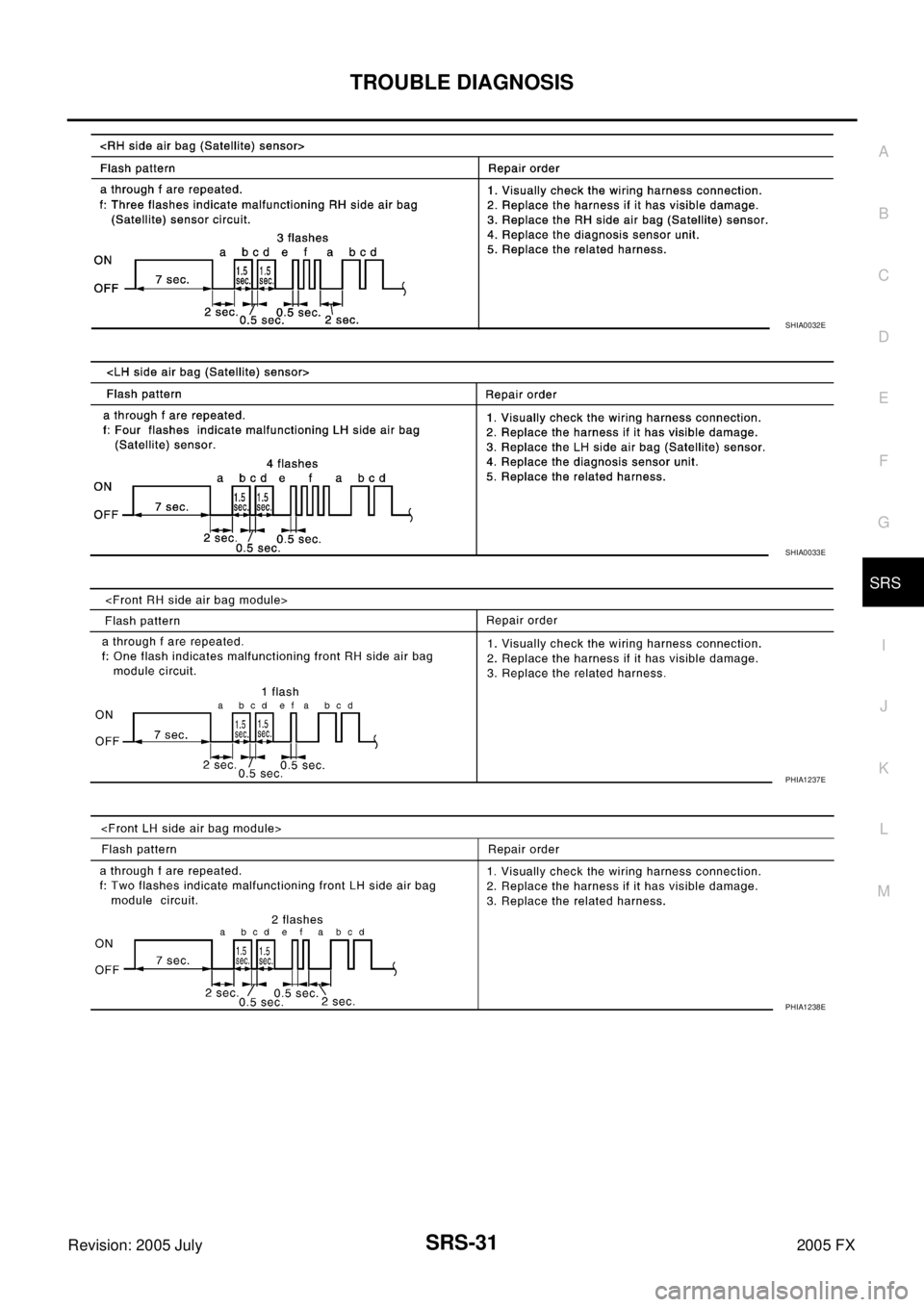

Page 4614 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS SRS-31
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2005 July 2005 FX
SHIA0032E
SHIA0033E
PHIA1237E
PHIA1238E

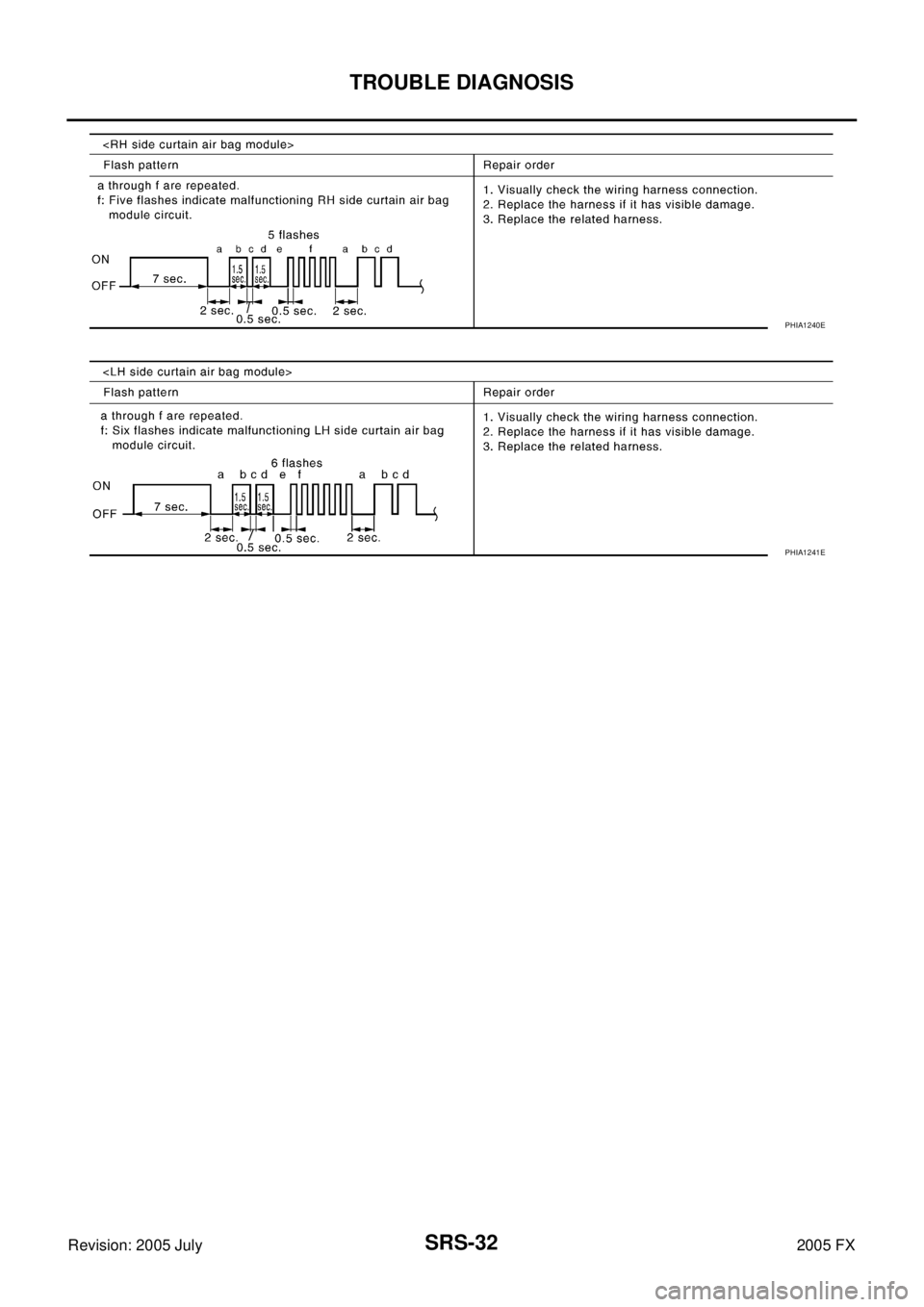

Page 4615 of 4731

INFINITI FX35 2005 Service Manual SRS-32
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
PHIA1240E
PHIA1241E

Page 4616 of 4731

INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS SRS-33
C
D E
F
G
I
J
K L
M A
B
SRS
Revision: 2005 July 2005 FX
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFAHS000HU
DIAGNOSTIC PROCEDURE 7
1. CHECK TH
