Page 3561 of 4731

INFINITI FX35 2005 Service Manual LAN-142 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 8 Check ICC unit circuit. Refer to LAN-158, "ICC Unit Circuit Inspection" . PKIB4410E PKIB4280E

Page 3562 of 4731

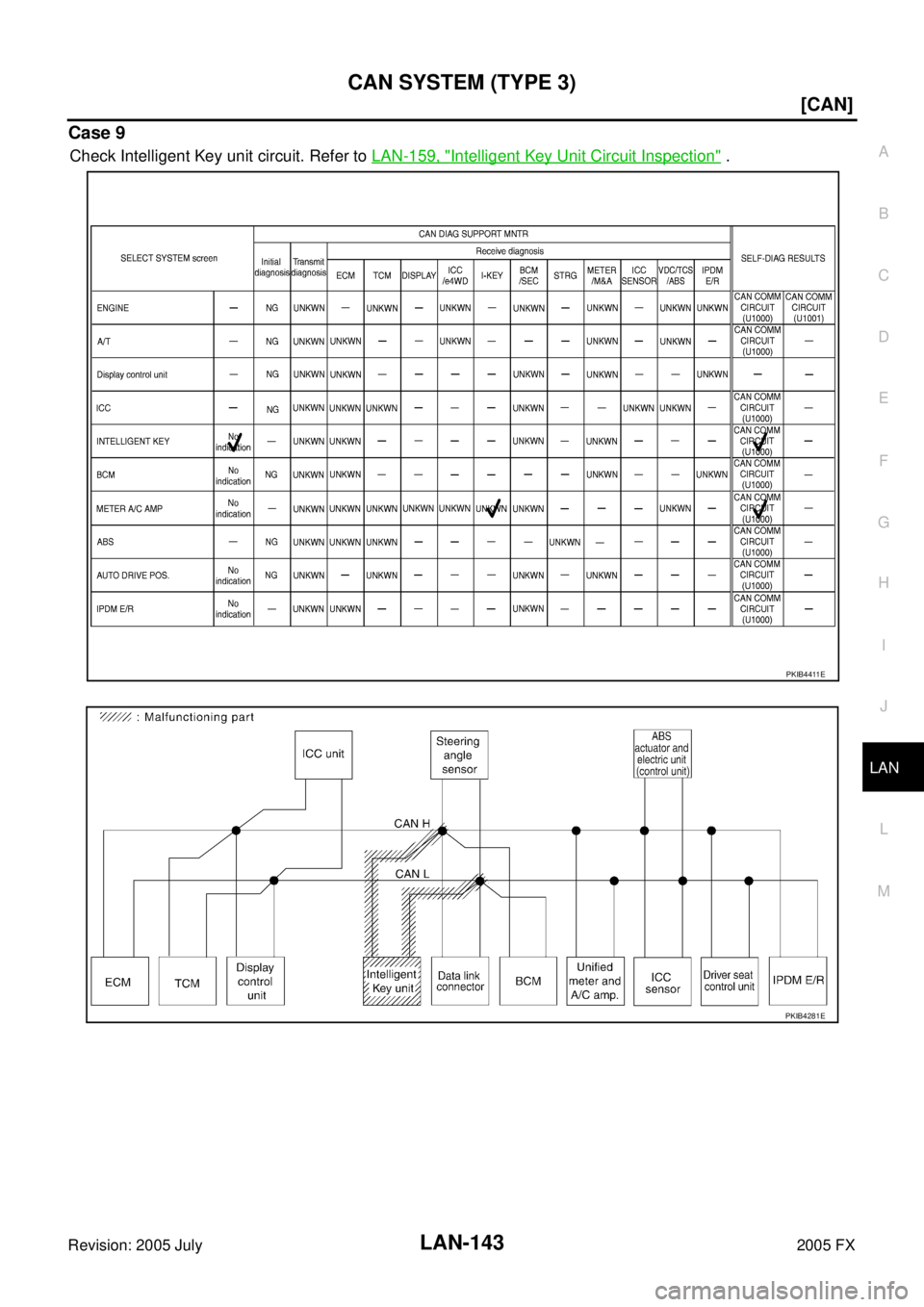

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-143 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 9 Check Intelligent Key unit circuit. Refer to LAN-159, "Intelligent Key Unit Circuit Inspec

Page 3563 of 4731

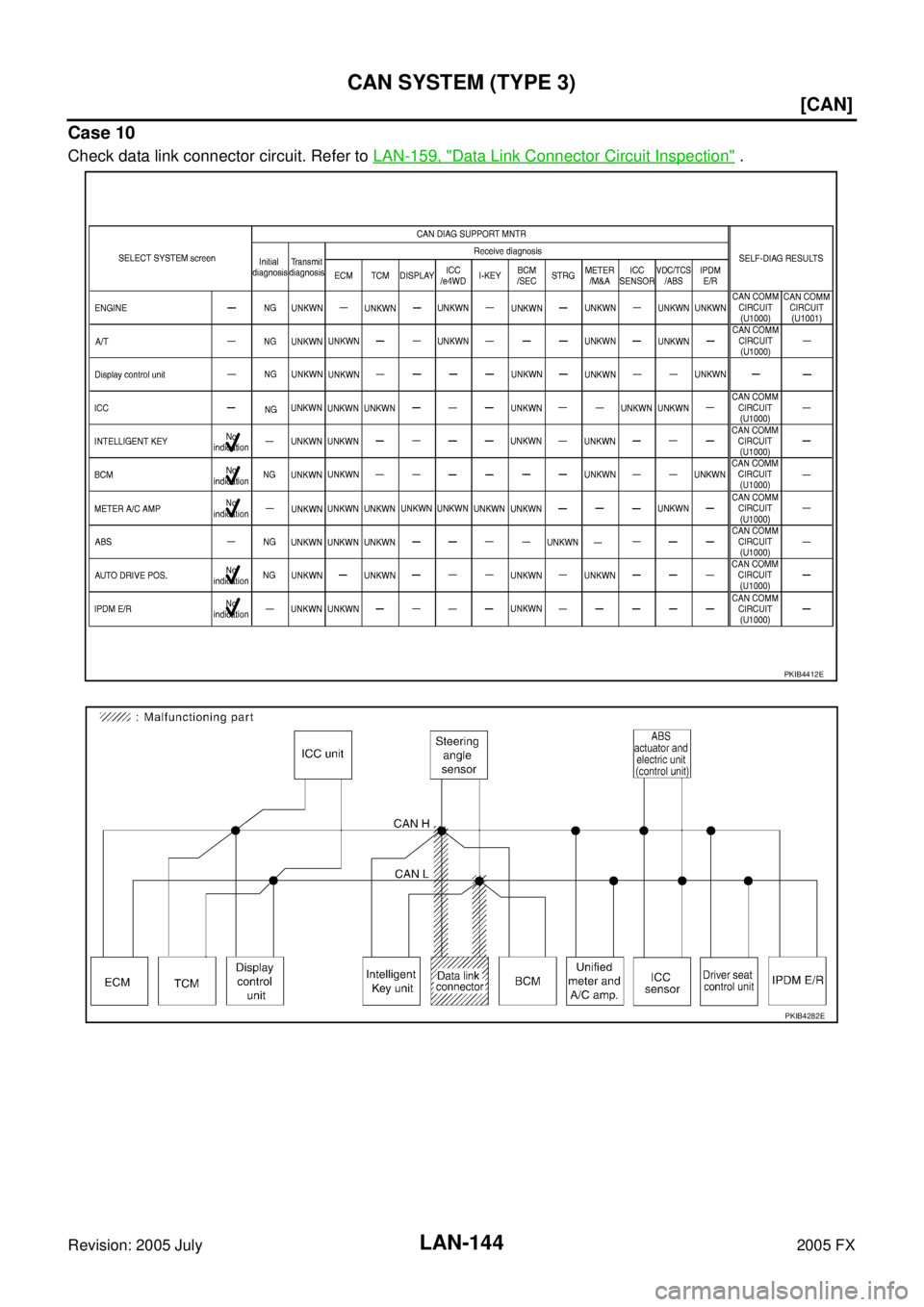

INFINITI FX35 2005 Service Manual LAN-144 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 10 Check data link connector circuit. Refer to LAN-159, "Data Link Connector Circuit Inspection" . PKIB4412E PKIB4282E

Page 3564 of 4731

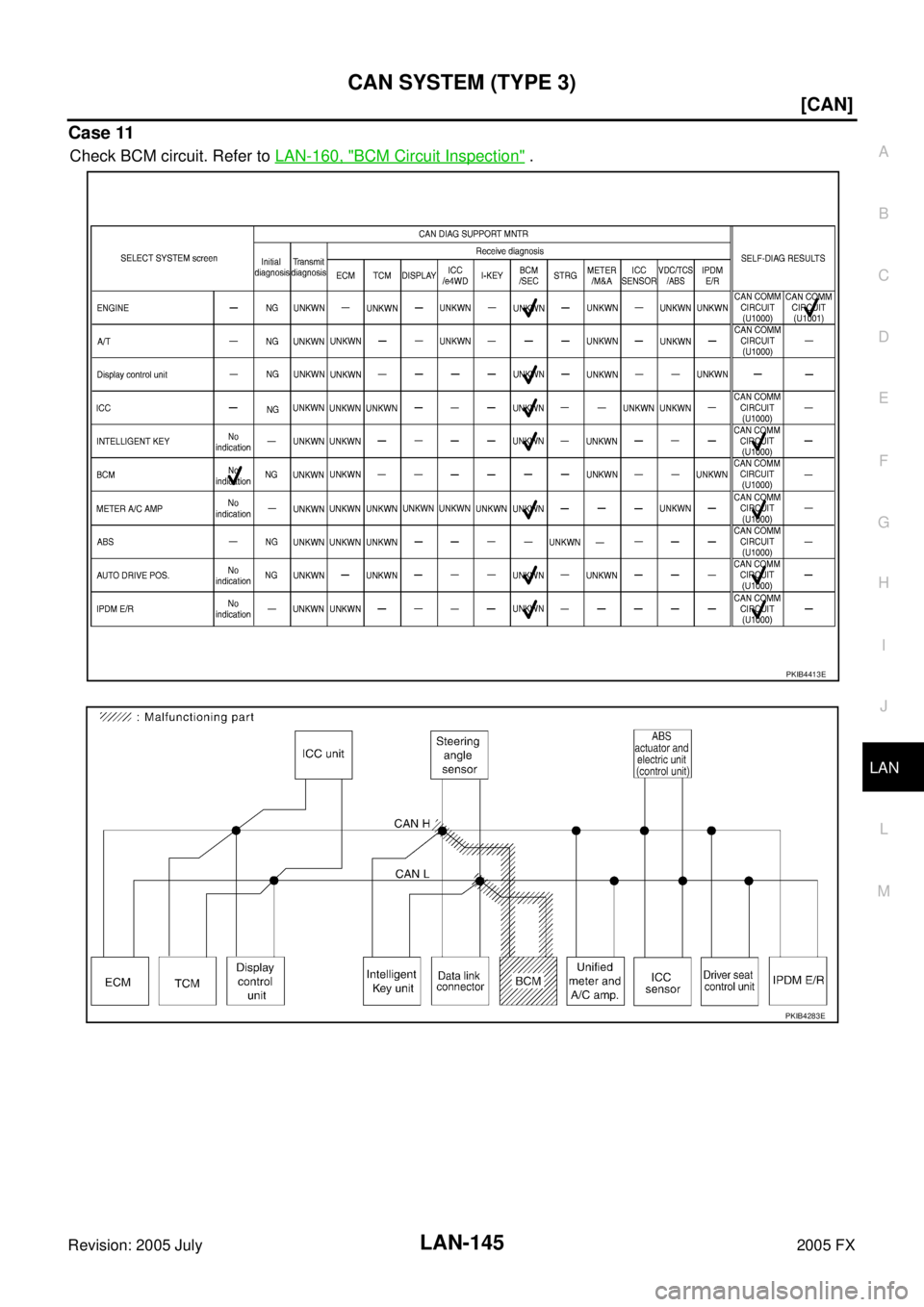

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-145 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 11 Check BCM circuit. Refer to LAN-160, "BCM Circuit Inspection" . PKIB4413E PKIB4283E

Page 3565 of 4731

INFINITI FX35 2005 Service Manual LAN-146 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 12 Check steering angle sensor circuit. Refer to LAN-160, "Steering Angle Sensor Circuit Inspection" . PKIB4414E PKIB4284E

Page 3566 of 4731

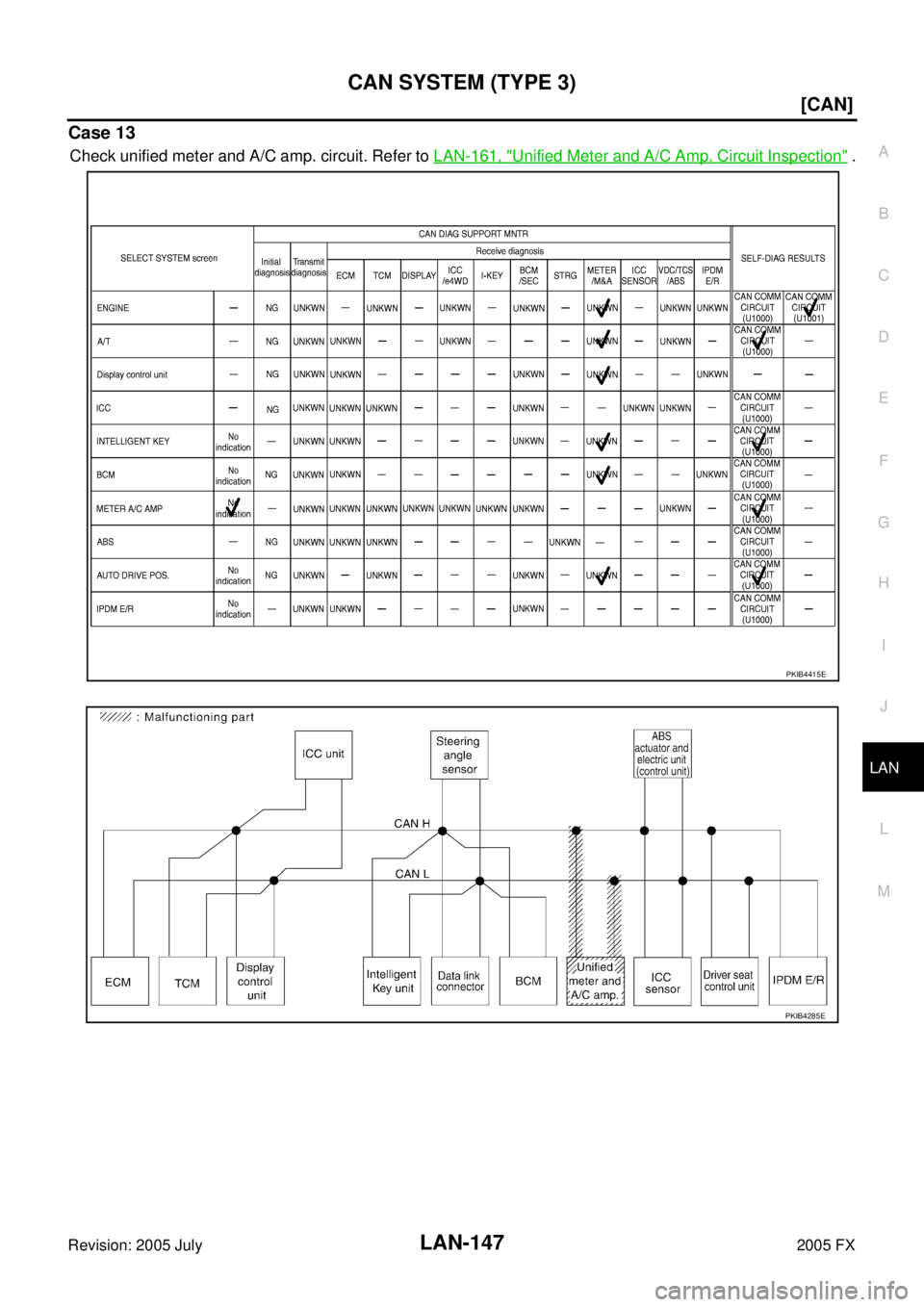

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-147 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 13 Check unified meter and A/C amp. circuit. Refer to LAN-161, "Unified Meter and A/C Amp. C

Page 3567 of 4731

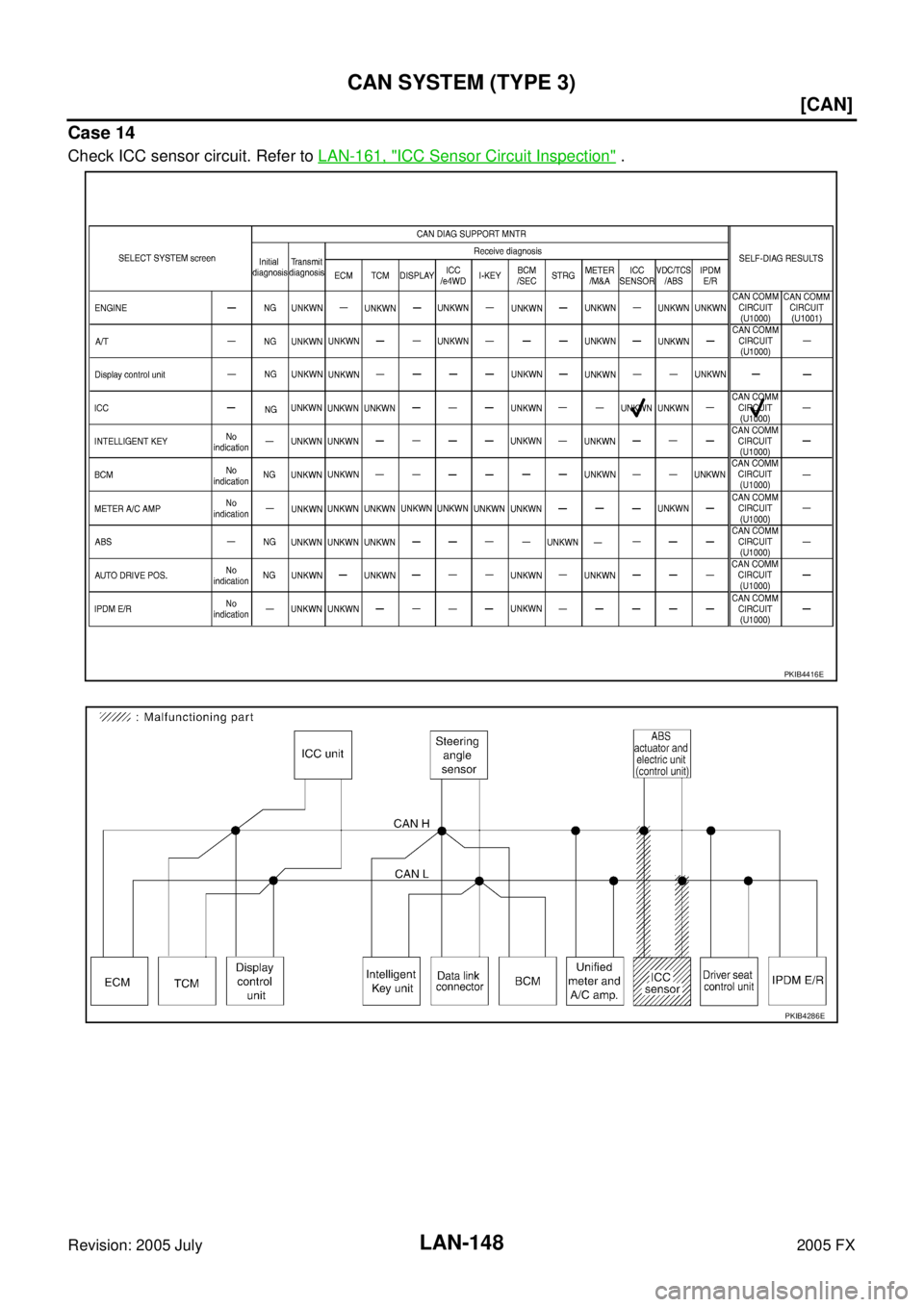

INFINITI FX35 2005 Service Manual LAN-148 [CAN] CAN SYSTEM (TYPE 3) Revision: 2005 July 2005 FX Case 14 Check ICC sensor circuit. Refer to LAN-161, "ICC Sensor Circuit Inspection" . PKIB4416E PKIB4286E

Page 3568 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 3) LAN-149 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 15 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-162, "ABS Actua
