Page 3041 of 4731
![INFINITI FX35 2005 Service Manual EM-206
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOT INFINITI FX35 2005 Service Manual EM-206
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOT](/manual-img/42/57020/w960_57020-3040.png)
EM-206
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
2. Install camshaft sprockets.
Install onto correct side by checking with identification mark
on surface.
Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)
Lock the hexagonal part of camshaft in the same procedure
as for removal, and tighten mounting bolts.
3. Install crankshaft sprockets for both banks.
Install each crankshaft sprocket so that its flange side (the
larger diameter side without teeth) faces in the direction
shown in the figure.
NOTE:
The same parts are used but facing directions are different. Camshaft dowel pin
: At cylinder head upper face side in each bank
Crankshaft key : At cylinder head side of left bank
SBIA0356E
PBIC2345E
PBIC0057E
Page 3042 of 4731
![INFINITI FX35 2005 Service Manual TIMING CHAIN EM-207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain fo INFINITI FX35 2005 Service Manual TIMING CHAIN EM-207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain fo](/manual-img/42/57020/w960_57020-3041.png)
TIMING CHAIN EM-207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX

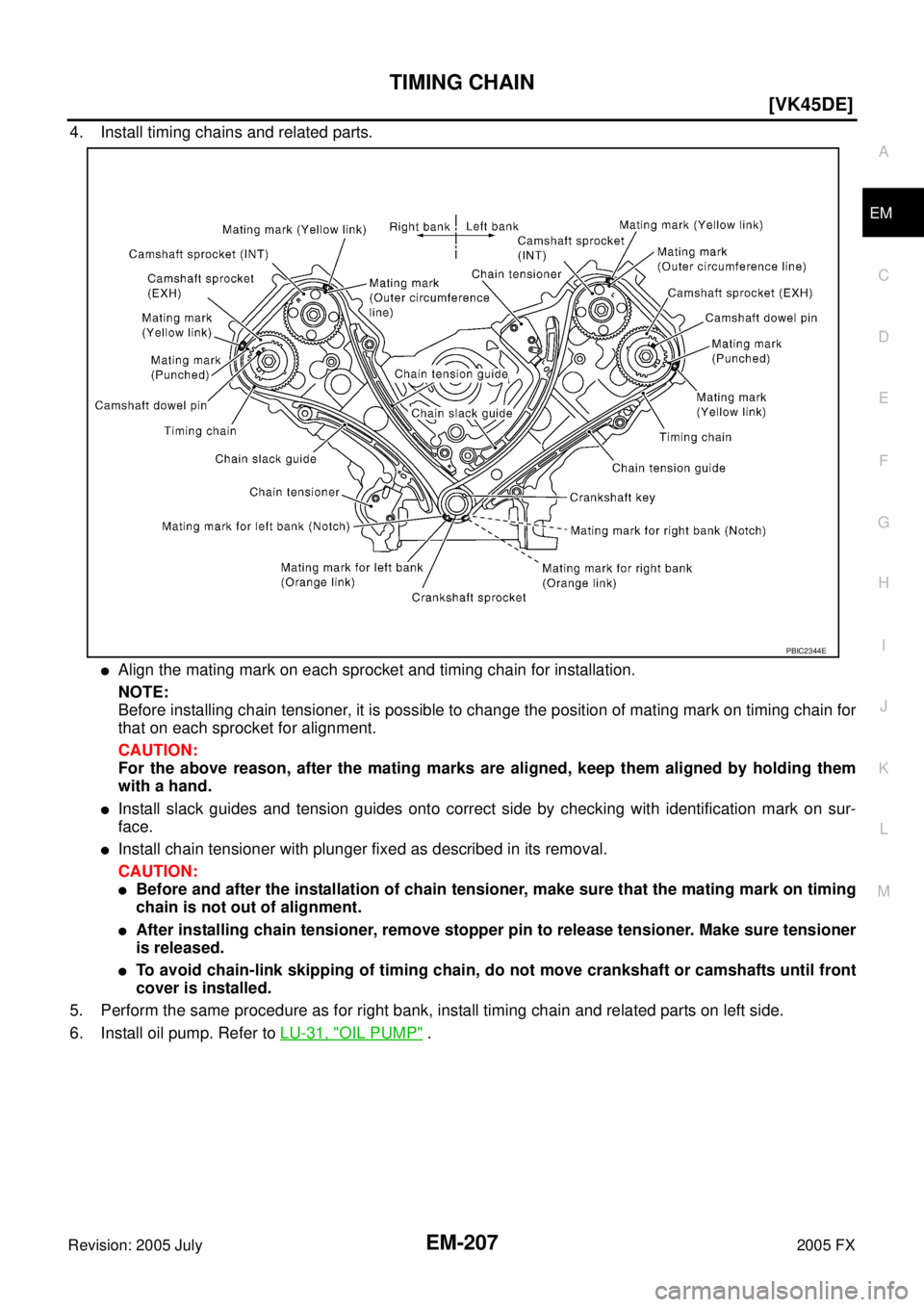

4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain for installation.
NOTE:
Before installing chain tensioner, it is possible to change the position of mating mark on timing chain for
that on each sprocket for alignment.
CAUTION:
For the above reason, after the mating marks are aligned, keep them aligned by holding them
with a hand.
Install slack guides and tension guides onto correct side by checking with identification mark on sur-
face.
Install chain tensioner with plunger fixed as described in its removal.
CAUTION:
Before and after the installation of chain tensioner, make sure that the mating mark on timing
chain is not out of alignment.
After installing chain tensioner, remove stopper pin to release tensioner. Make sure tensioner
is released.
To avoid chain-link skipping of timing chain, do not move crankshaft or camshafts until front
cover is installed.
5. Perform the same procedure as for right bank, install timing chain and related parts on left side.
6. Install oil pump. Refer to LU-31, "
OIL PUMP" .
PBIC2344E
Page 3043 of 4731
![INFINITI FX35 2005 Service Manual EM-208
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat INFINITI FX35 2005 Service Manual EM-208
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat](/manual-img/42/57020/w960_57020-3042.png)
EM-208
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat surfaces of oil pump inner rotor.
If the positional relationship does not allow the insertion,
rotate oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi- tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
8. Install front oil seal on front cover.
Apply new engine oil to both oil seal lip and dust seal lip.
Install it so that each seal lip is oriented as shown in the fig-
ure.
CAUTION:
Be careful not to scratch or make burrs on circumference
of oil seal.
Using front oil seal drift (commercial service tool), press fit
until the height of front oil seal is level with the mounting sur-
face.
Make sure the garter spring is in position and seal lips not
inverted.
9. Install chain tensioner cover to front cover.
Apply a continuous bead of liquid gasket with tube presser
[SST: WS39930000 ( — )] to front cover as shown in the
figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
10. Install front cover as follows:
PBIC0058E
SEM715A
Front oil seal drift Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
PBIC0059E
SBIA0372E
Page 3044 of 4731
![INFINITI FX35 2005 Service Manual TIMING CHAIN EM-209
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
a. Install new O-rings onto cylinder heads (right and left bank) and
cylinder block.
b. Apply a conti INFINITI FX35 2005 Service Manual TIMING CHAIN EM-209
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
a. Install new O-rings onto cylinder heads (right and left bank) and
cylinder block.
b. Apply a conti](/manual-img/42/57020/w960_57020-3043.png)
TIMING CHAIN EM-209
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
a. Install new O-rings onto cylinder heads (right and left bank) and
cylinder block.
b. Apply a continuous bead of liquid gasket with tube presser [SST: WS39930000 ( — )] to front cover as shown in the fig-
ure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
c. make sure again that the mating marks on timing chain and that on each sprocket are aligned. Then, install front cover.
CAUTION:
Be careful to avoid interference with the front end of oil
pump drive spacer. Such interference may damage front oil
seal.
d. Tighten mounting bolts in numerical order as shown in the fig- ure.
There are four type mounting bolts.
e. After all mounting bolts are tightened, retighten them in numerical order as shown in the figure. CAUTION:
Be sure to wipe off any excessive liquid gasket leaking onto surface mating with oil pan.
11. Install intake valve timing control cover as follows:
a. At the back of intake valve timing control cover, install new seal rings (three for each bank) to the area to be inserted into camshaft sprocket (INT).
CAUTION:
Do not spread seal ring excessively to avoid breaks and deformation.
SBIA0373E
PBIC0062E
KBIA0354J
PBIC1681E
Page 3045 of 4731
![INFINITI FX35 2005 Service Manual EM-210
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
b. Install new O-rings on front cover.
c. Apply a continuous bead of liquid gasket with tube presser [SST:
WS3930000 ( — )] to intake valve INFINITI FX35 2005 Service Manual EM-210
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
b. Install new O-rings on front cover.
c. Apply a continuous bead of liquid gasket with tube presser [SST:
WS3930000 ( — )] to intake valve](/manual-img/42/57020/w960_57020-3044.png)
EM-210
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
b. Install new O-rings on front cover.
c. Apply a continuous bead of liquid gasket with tube presser [SST:
WS3930000 ( — )] to intake valve timing control covers as
shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
d. Tighten mounting bolts in numerical order as shown in the fig- ure.
12. Install intake valve timing control position sensor, intake valve timing control solenoid valve and camshaft position sensor (PHASE) to intake valve timing control cover and front cover if removed.
Be sure to tighten mounting bolts with flanges completely seated.
13. Install oil pan and oil strainer. Refer to EM-185, "
OIL PAN AND OIL STRAINER" .
14. Install crankshaft pulley as follows:
a. Fix crankshaft with ring gear stopper [SST: J-45476].
b. Install crankshaft pulley, taking care not to damage front oil seal.
Install according to dowel pin of oil pump drive spacer.
Lightly tapping its center with plastic hammer, insert pulley.
CAUTION:
Do not tap pulley on the side surface where belt is installed (outer circumference).
c. Apply engine oil onto threaded parts of crankshaft pulley bolt and seating area.
d. Tighten crankshaft pulley bolt.
e. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
SBIA0374E
SBIA0375E
PBIC0051E
: 93.1 N·m (9.5 kg-m, 69 ft-lb)
Page 3046 of 4731
![INFINITI FX35 2005 Service Manual TIMING CHAIN EM-211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
f. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the INFINITI FX35 2005 Service Manual TIMING CHAIN EM-211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
f. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the](/manual-img/42/57020/w960_57020-3045.png)
TIMING CHAIN EM-211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
f. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The
angle between two notches is 90 degrees.
15. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
16. Install in the reverse order of removal after this step. NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may gen-
erate a pounding noise during and just after engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The followings are procedures for checking fluids leak, lubricates leak and exhaust gases leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS"
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC2346E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
Page 3047 of 4731
EM-212
[VK45DE]
CAMSHAFT
Revision: 2005 July 2005 FX
CAMSHAFTPFP:13001
ComponentsABS00DFW
Removal and InstallationABS00E9S
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-240, "ENGINE ASSEMBLY" .
2. Remove timing chain. Refer to EM-200, "
TIMING CHAIN" .
1. Cylinder head (right bank) 2. Camshaft bracket (No. 2 to 5) 3. Adjusting shim
4. Valve lifter 5. Camshaft bracket (No. 1) 6. Seal washer
7. Camshaft (EXH) 8. Camshaft sprocket (EXH) 9. Camshaft sprocket (INT)
10. Camshaft (INT) 11. Cylinder head (left bank) 12. Adjusting shim
13. Valve lifter 14. Camshaft (INT) 15. Camshaft sprocket (INT)
16. Camshaft sprocket (EXH) 17. Camshaft (EXH) 18. Camshaft bracket (No. 1)
19. Seal washer 20. Camshaft bracket (No. 2 to 5) 21. Camshaft bracket (No. 6)
22. Harness bracket 23. Harness bracket
PBIC2354E
Page 3048 of 4731
![INFINITI FX35 2005 Service Manual CAMSHAFT EM-213
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove c INFINITI FX35 2005 Service Manual CAMSHAFT EM-213
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove c](/manual-img/42/57020/w960_57020-3047.png)

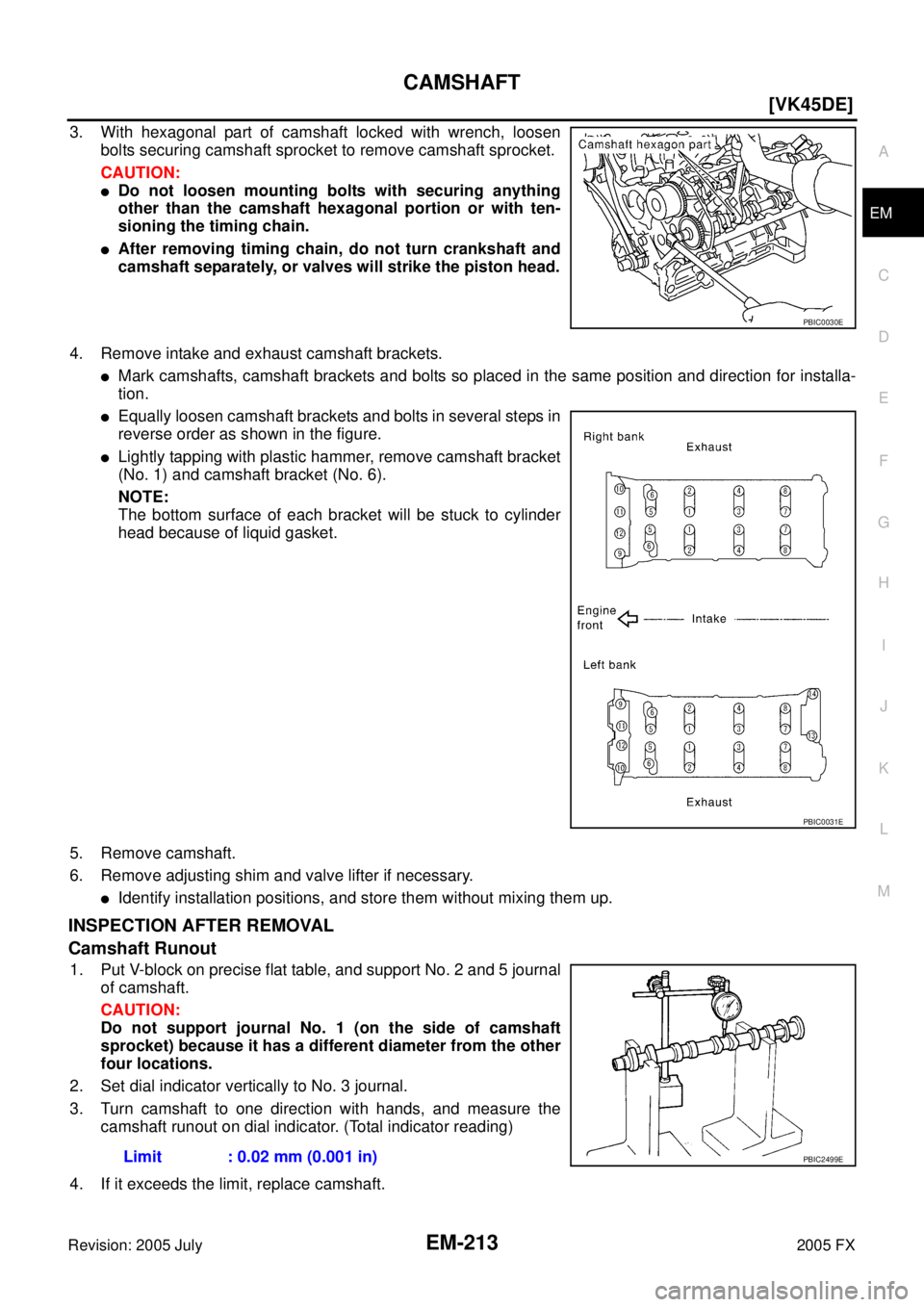

CAMSHAFT EM-213
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove camshaft sprocket.
CAUTION:
Do not loosen mounting bolts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
After removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike the piston head.
4. Remove intake and exhaust camshaft brackets.
Mark camshafts, camshaft brackets and bolts so placed in the same position and direction for installa-
tion.
Equally loosen camshaft brackets and bolts in several steps in
reverse order as shown in the figure.
Lightly tapping with plastic hammer, remove camshaft bracket
(No. 1) and camshaft bracket (No. 6).
NOTE:
The bottom surface of each bracket will be stuck to cylinder
head because of liquid gasket.
5. Remove camshaft.
6. Remove adjusting shim and valve lifter if necessary.
Identify installation positions, and store them without mixing them up.
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on precise flat table, and support No. 2 and 5 journal of camshaft.
CAUTION:
Do not support journal No. 1 (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.
2. Set dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the camshaft runout on dial indicator. (Total indicator reading)
4. If it exceeds the limit, replace camshaft.
PBIC0030E
PBIC0031E
Limit : 0.02 mm (0.001 in)PBIC2499E
