Page 3729 of 4731

INFINITI FX35 2005 Service Manual LAN-310 [CAN] CAN SYSTEM (TYPE 7) Revision: 2005 July 2005 FX PKIB4177E

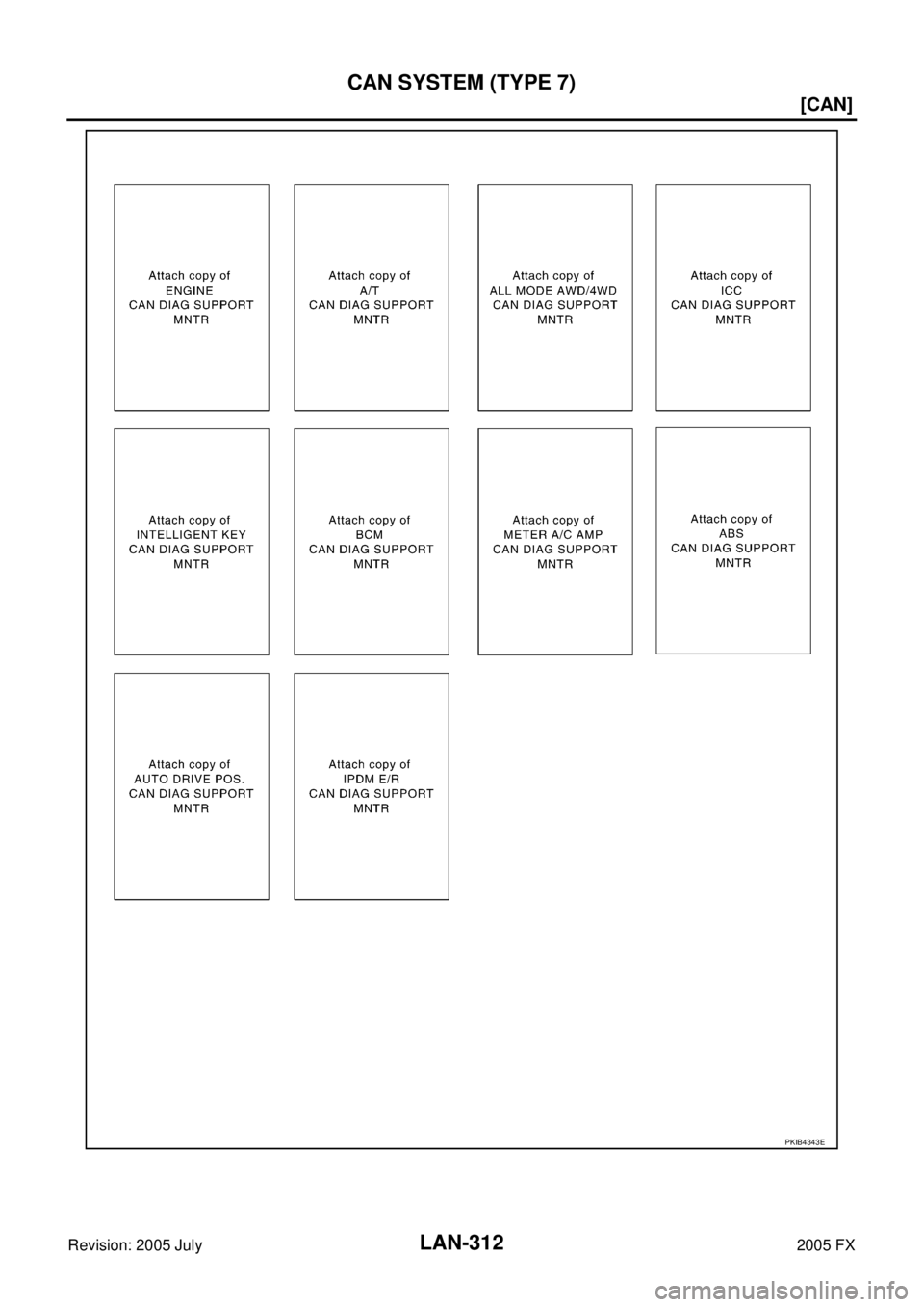

Page 3730 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 7) LAN-311 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX PKIB4342E

Page 3731 of 4731

INFINITI FX35 2005 Service Manual LAN-312 [CAN] CAN SYSTEM (TYPE 7) Revision: 2005 July 2005 FX PKIB4343E

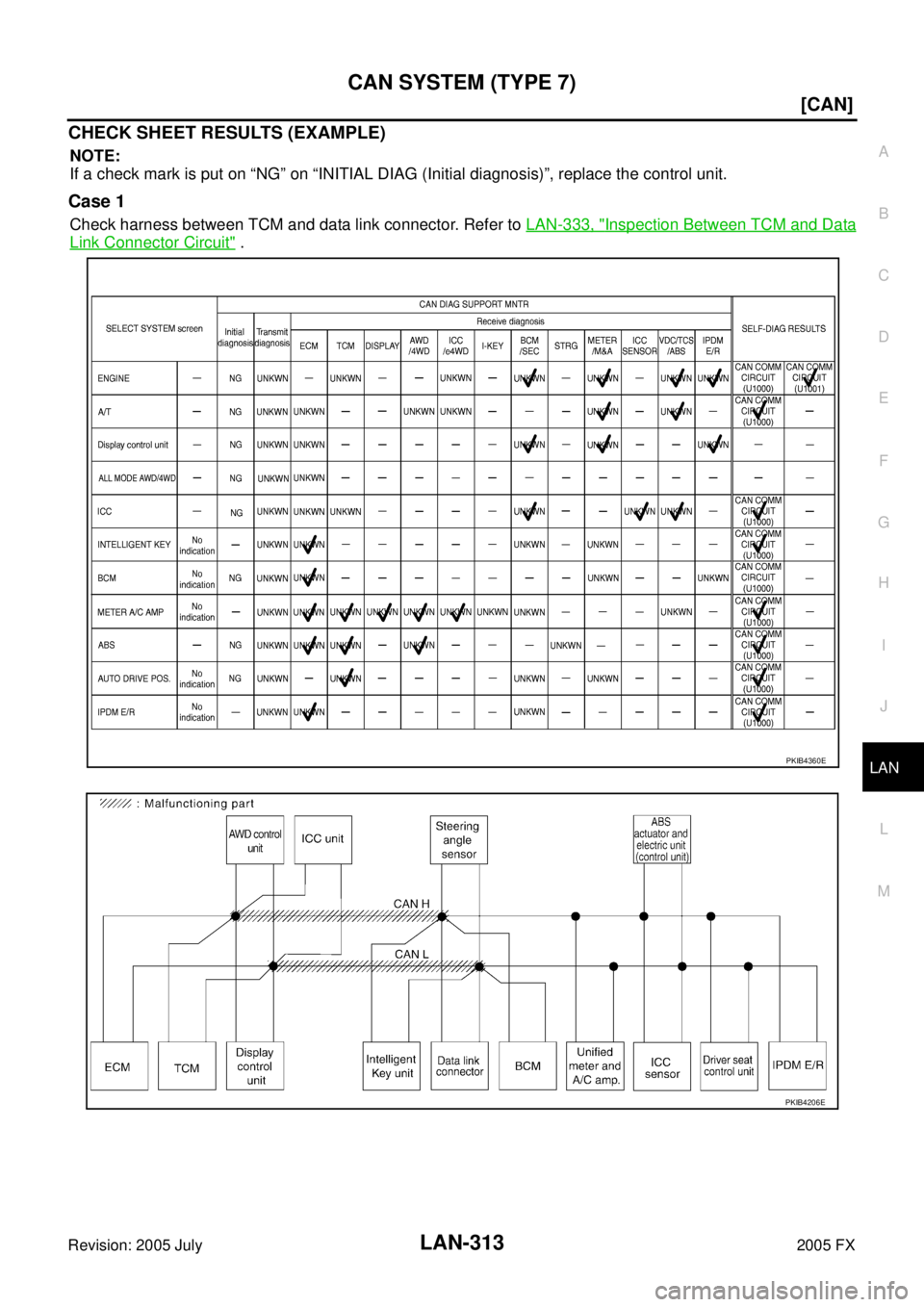

Page 3732 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 7) LAN-313 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initi

Page 3733 of 4731

INFINITI FX35 2005 Service Manual LAN-314 [CAN] CAN SYSTEM (TYPE 7) Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-334, "Inspection Between Data Link Connector

Page 3734 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 7) LAN-315 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (contr

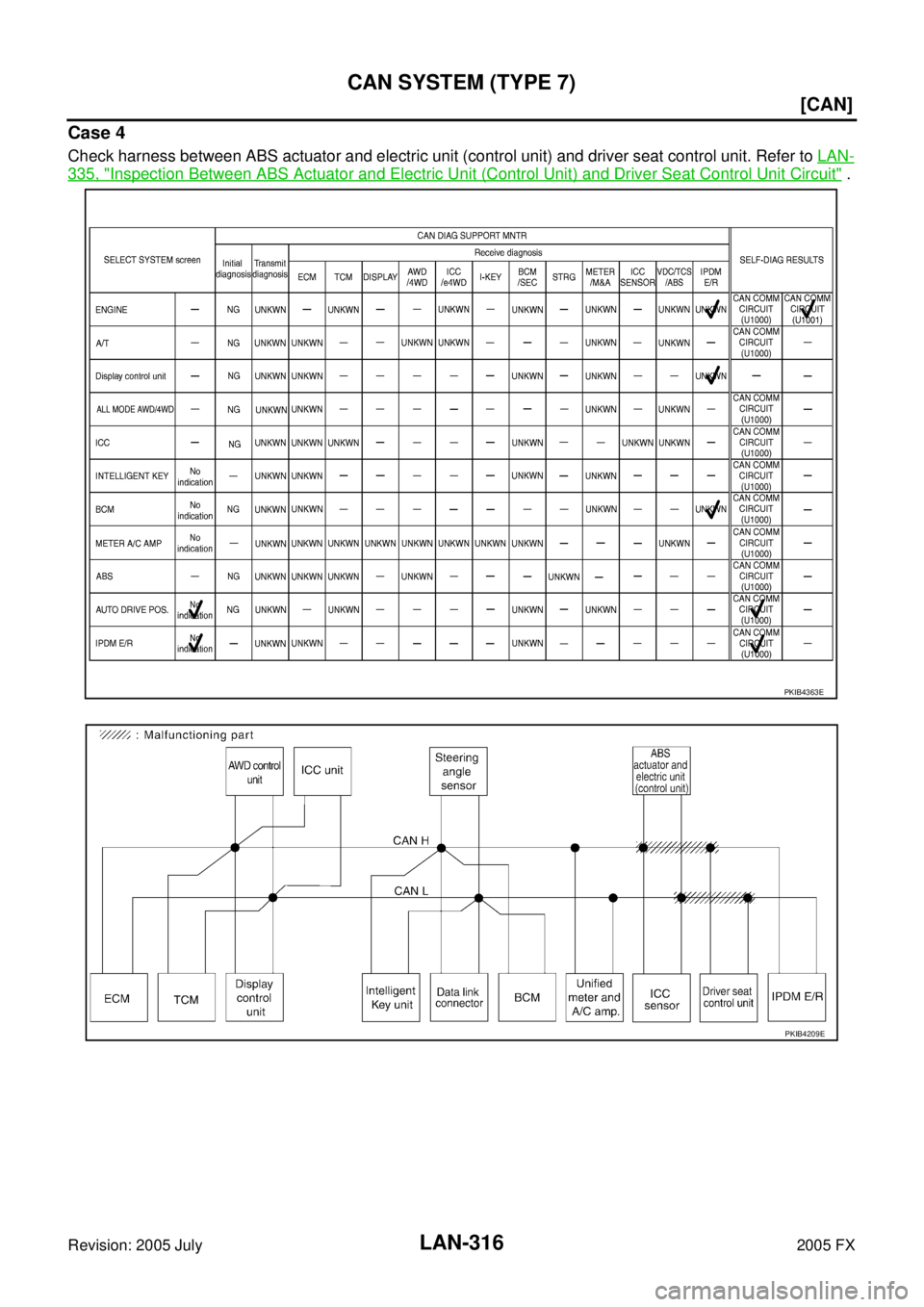

Page 3735 of 4731

INFINITI FX35 2005 Service Manual LAN-316 [CAN] CAN SYSTEM (TYPE 7) Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 335, "Inspection Be

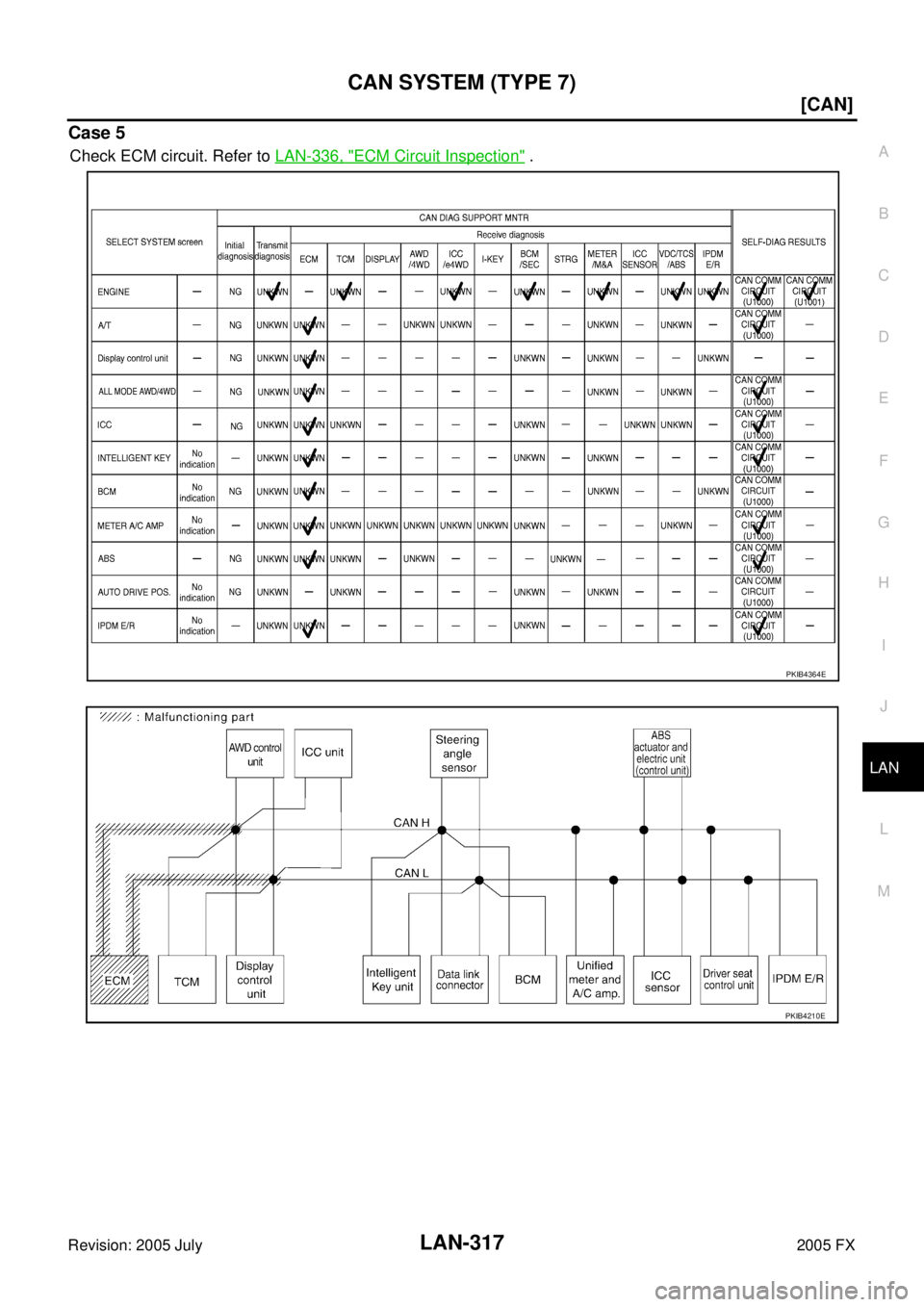

Page 3736 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 7) LAN-317 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-336, "ECM Circuit Inspection" . PKIB4364E PKIB4210E
