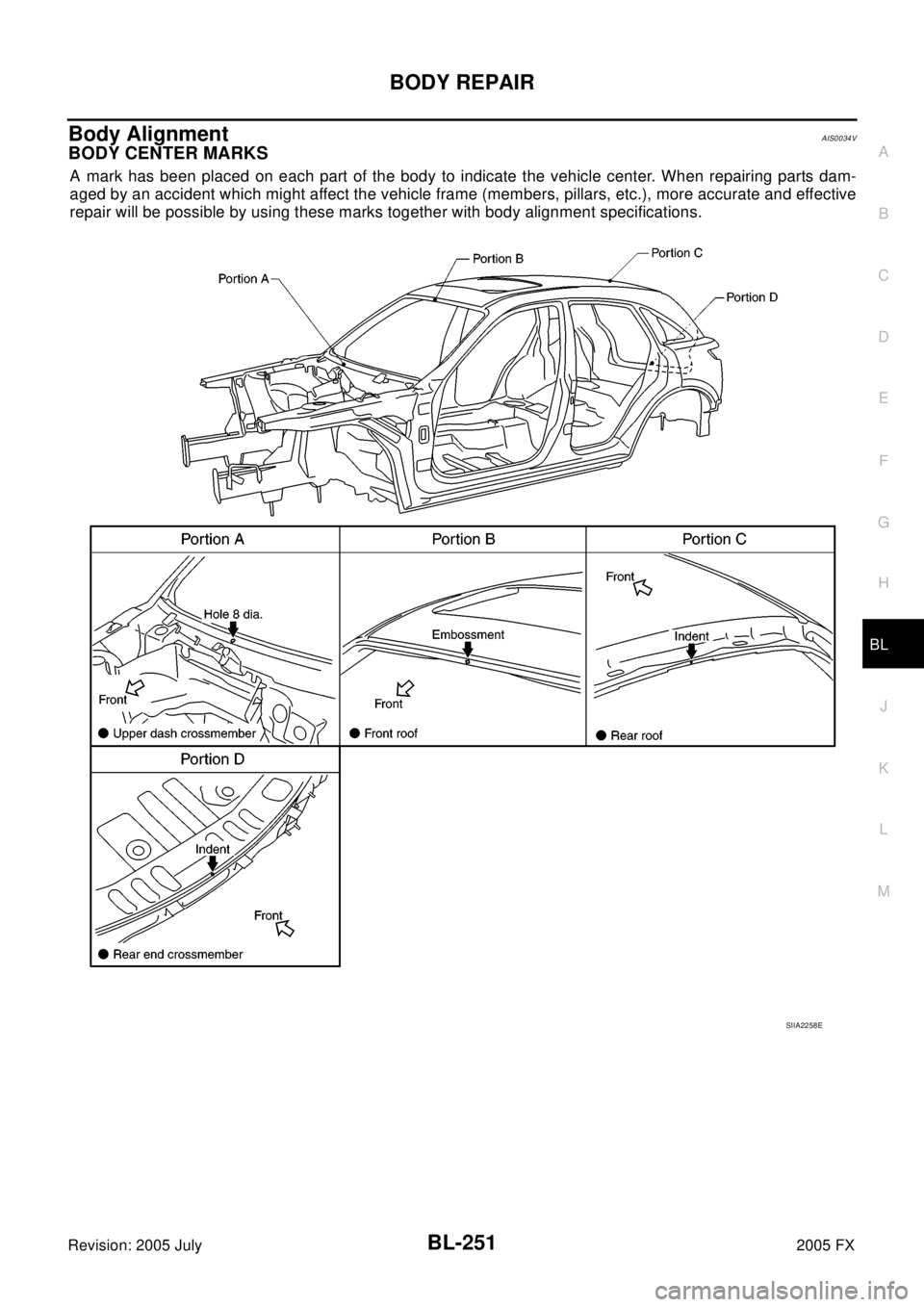

INFINITI FX35 2005 Service Manual BL-250 BODY REPAIR Revision: 2005 July2005 FX Body ConstructionAIS0034U BODY CONSTRUCTION SIIA2257E

Page 1066 of 4731

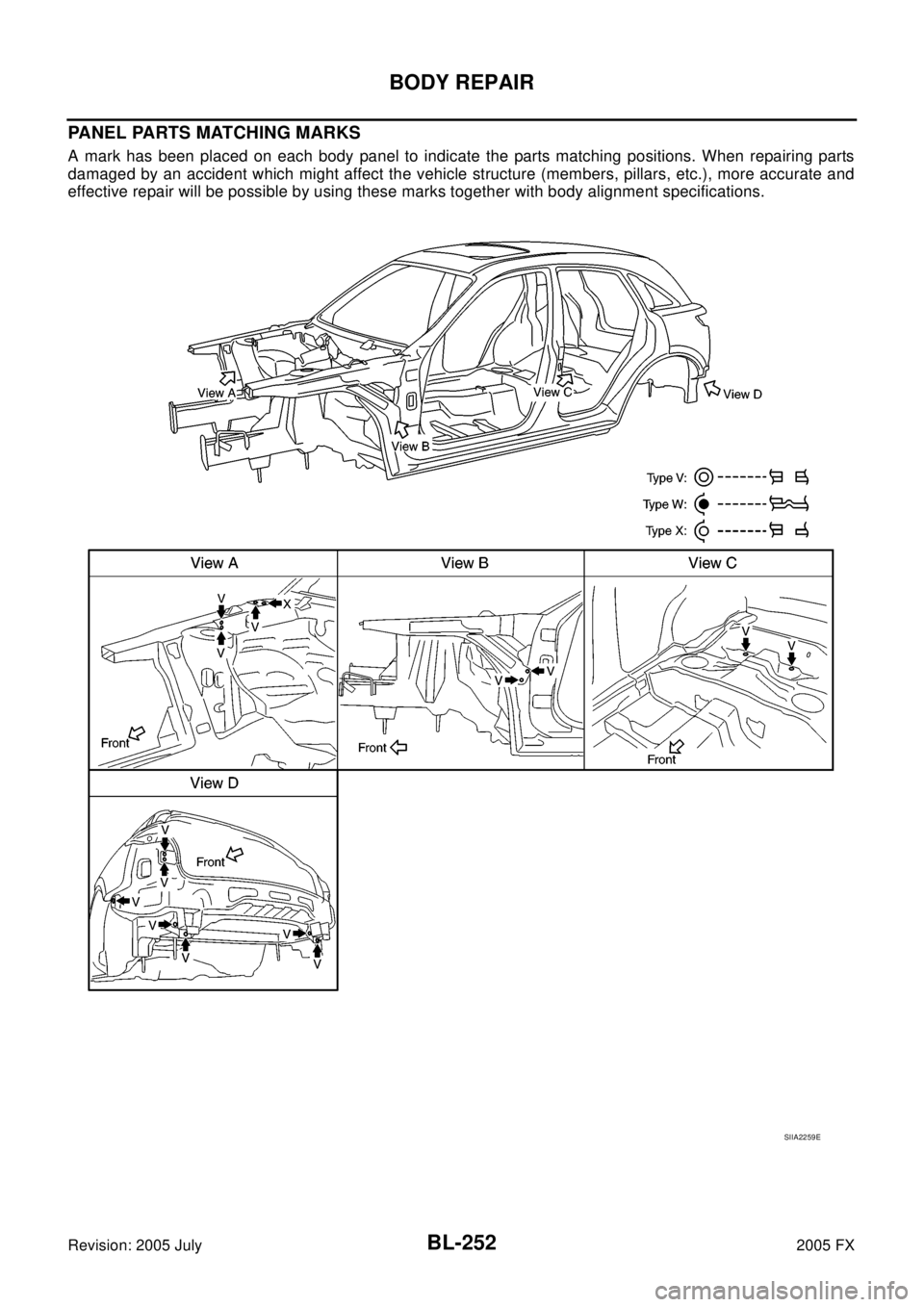

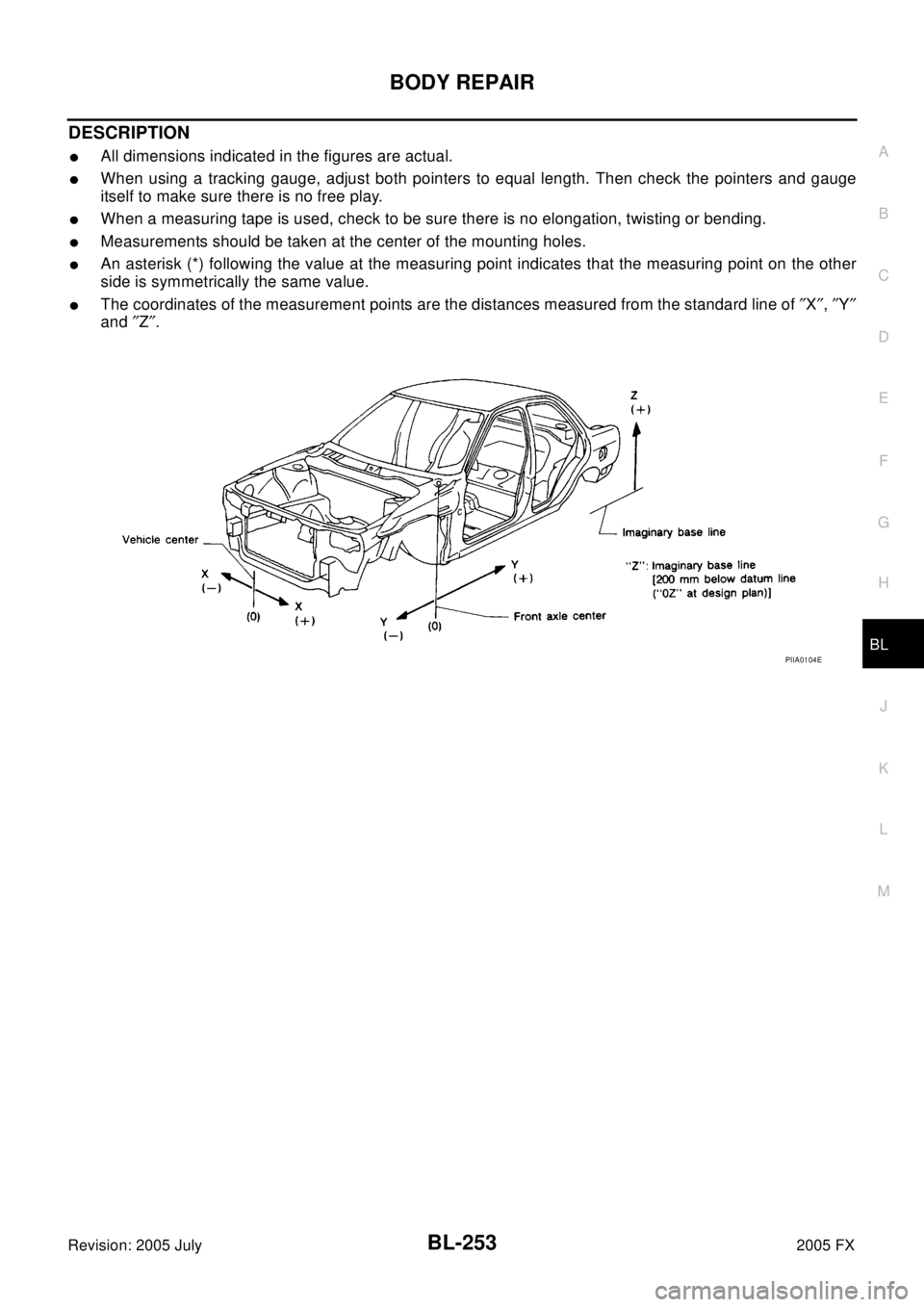

INFINITI FX35 2005 Service Manual BODY REPAIR BL-251 C D E F G H J K L MA B BL Revision: 2005 July2005 FX Body AlignmentAIS0034V BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When re

Page 1067 of 4731

INFINITI FX35 2005 Service Manual BL-252 BODY REPAIR Revision: 2005 July2005 FX PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts damaged by an accident

Page 1068 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-253 C D E F G H J K L MA B BL Revision: 2005 July2005 FX DESCRIPTION lAll dimensions indicated in the figures are actual. lWhen using a tracking gauge, adjust both pointers to equal len

Page 1069 of 4731

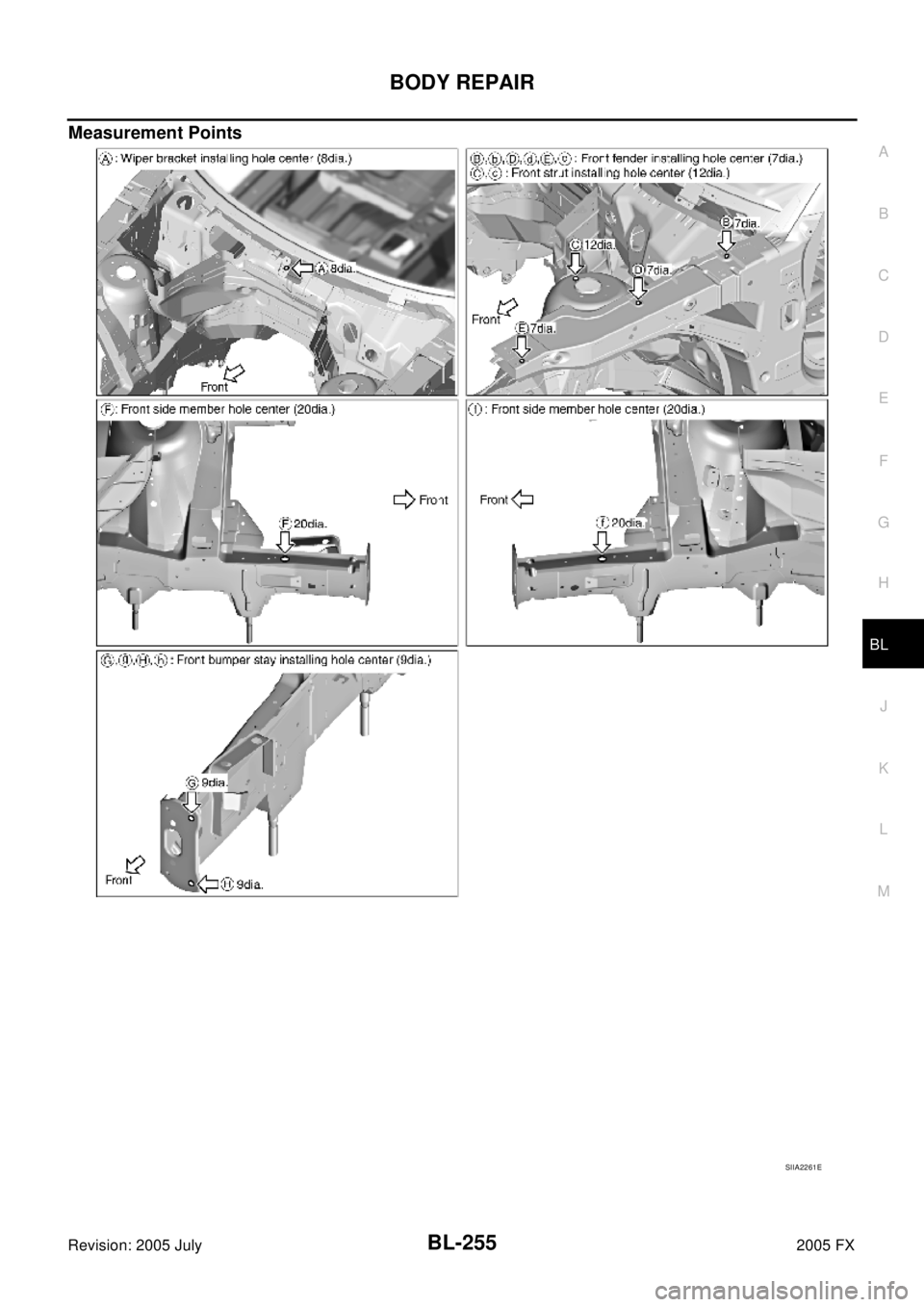

INFINITI FX35 2005 Service Manual BL-254 BODY REPAIR Revision: 2005 July2005 FX ENGINE COMPARTMENT Measurement SIIA2260E

Page 1070 of 4731

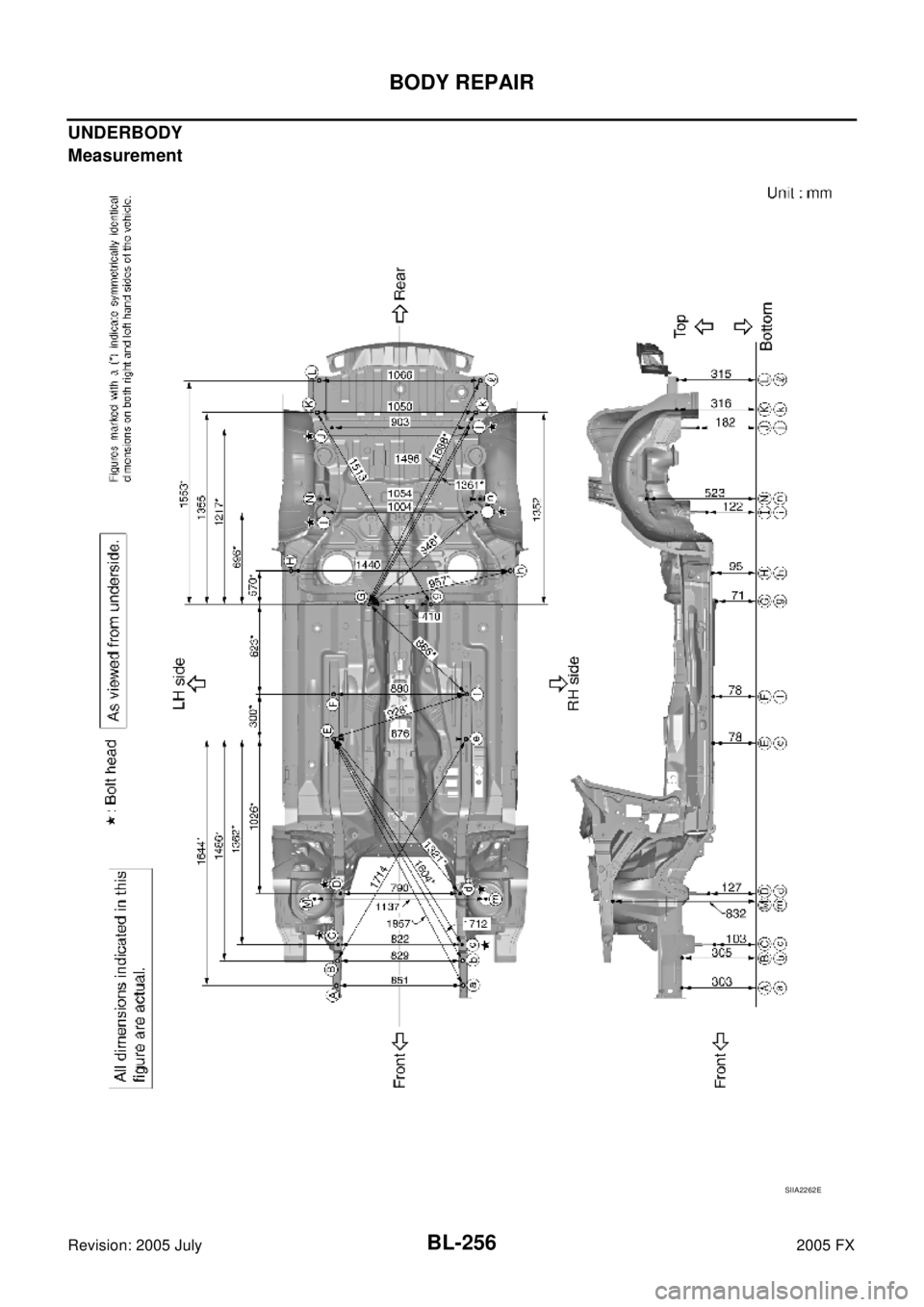

INFINITI FX35 2005 Service Manual BODY REPAIR BL-255 C D E F G H J K L MA B BL Revision: 2005 July2005 FX Measurement Points SIIA2261E

Page 1071 of 4731

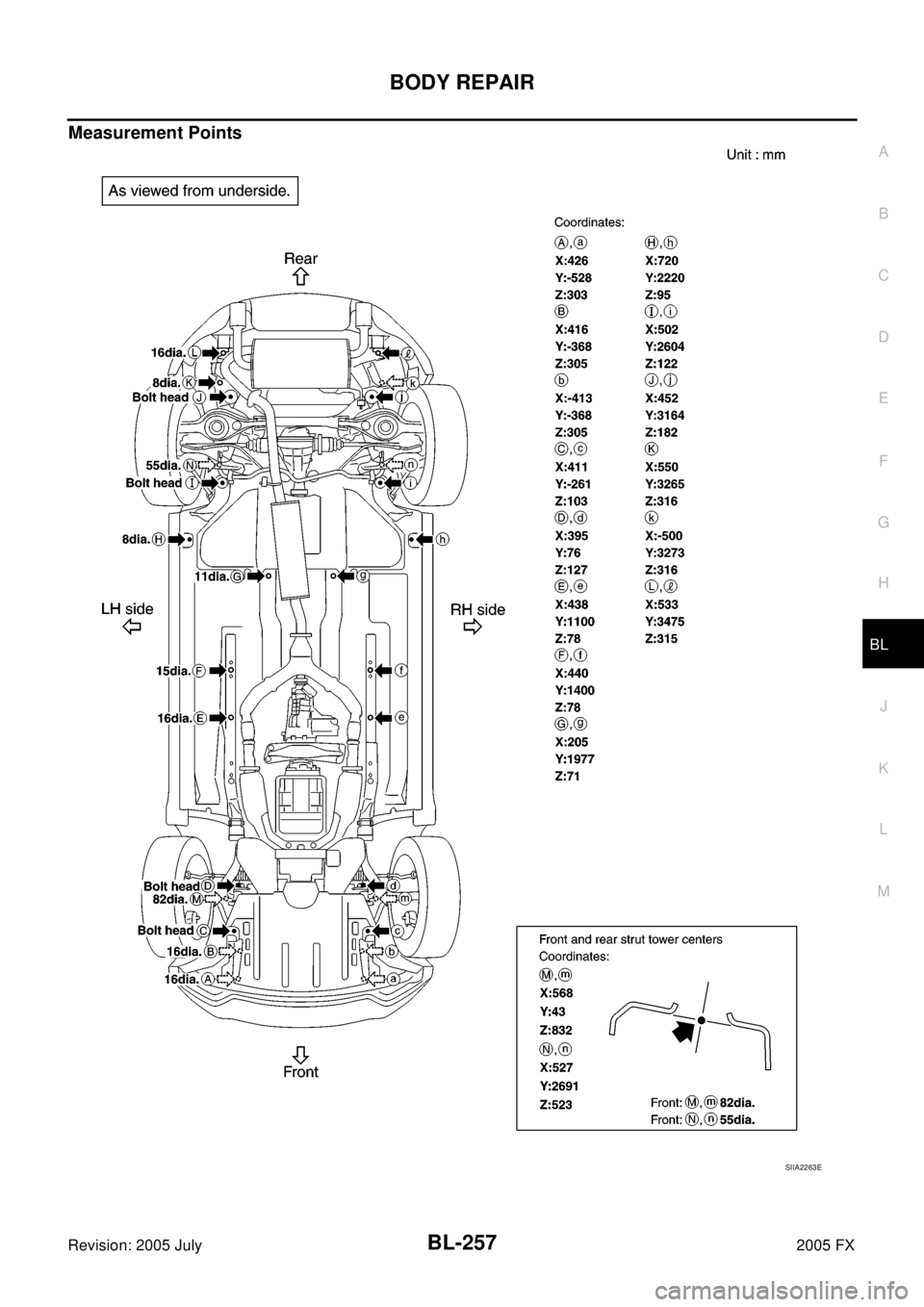

INFINITI FX35 2005 Service Manual BL-256 BODY REPAIR Revision: 2005 July2005 FX UNDERBODY Measurement SIIA2262E

Page 1072 of 4731

INFINITI FX35 2005 Service Manual BODY REPAIR BL-257 C D E F G H J K L MA B BL Revision: 2005 July2005 FX Measurement Points SIIA2263E
