Page 321 of 4731

INFINITI FX35 2005 Service Manual AT-238 A/T SHIFT LOCK SYSTEM Revision: 2005 July 2005 FX Diagnostic ProcedureACS002RW SYMPTOM 1: Selector lever cannot be moved from “P” position with key in ON position and brake pedal applied.

Page 322 of 4731

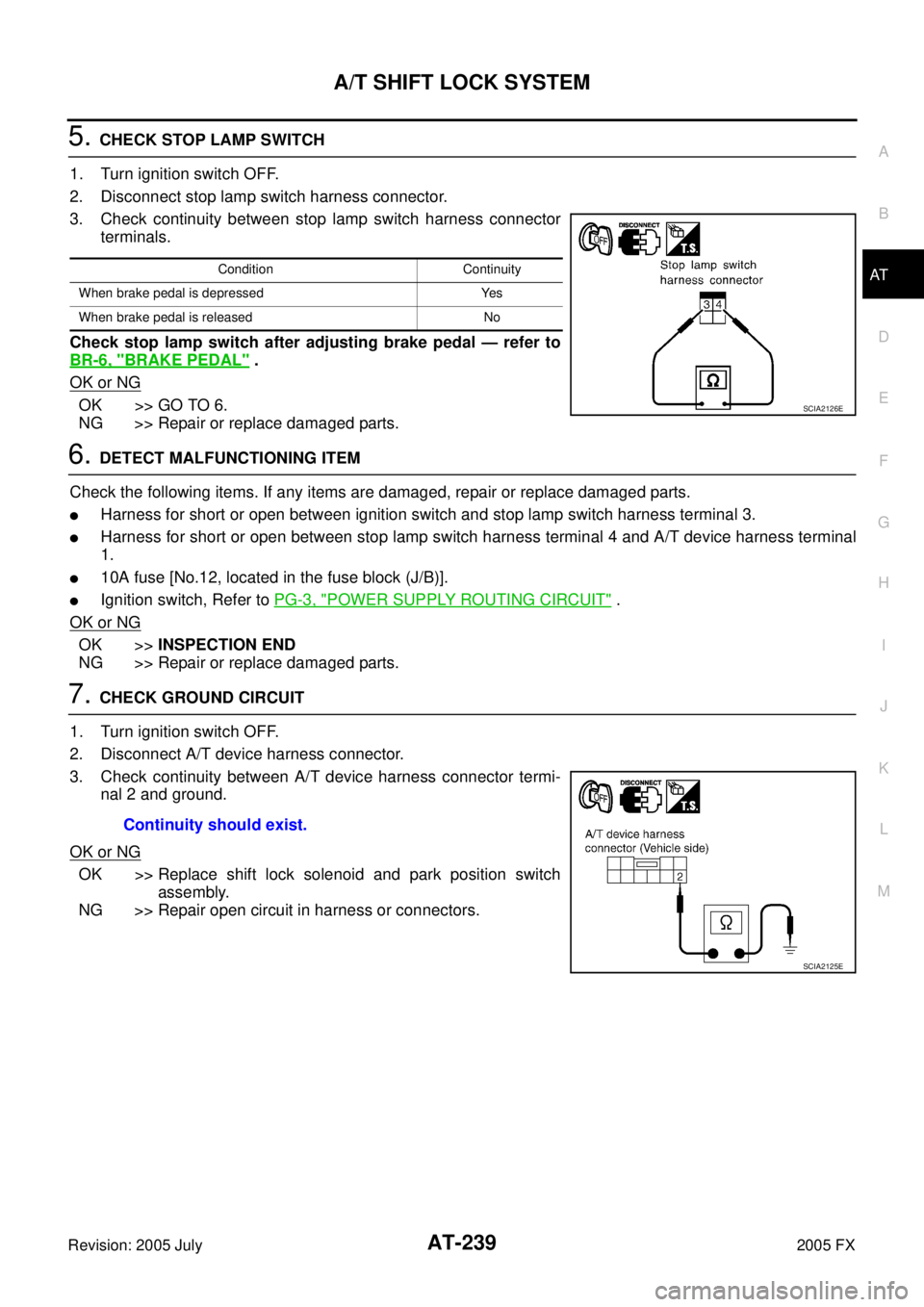

INFINITI FX35 2005 Service Manual A/T SHIFT LOCK SYSTEM AT-239 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX 5. CHECK STOP LAMP SWITCH 1. Turn ignition switch OFF. 2. Disconnect stop lamp switch harness connecto

Page 323 of 4731

INFINITI FX35 2005 Service Manual AT-240 KEY INTERLOCK CABLE Revision: 2005 July 2005 FX KEY INTERLOCK CABLEPFP:34908 ComponentsACS002RX CAUTION: Install key interlock cable in such a way that it will not be damaged by sharp bends, t

Page 324 of 4731

INFINITI FX35 2005 Service Manual KEY INTERLOCK CABLE AT-241 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX Removal and InstallationACS006H9 REMOVAL 1. Unlock slider by squeezing lock tabs on slider from adjuster

Page 325 of 4731

INFINITI FX35 2005 Service Manual AT-242 KEY INTERLOCK CABLE Revision: 2005 July 2005 FX INSTALLATION 1. Set key interlock cable to key cylinder and install holder. 2. Clamp key interlock cable and fix to key interlock cable with ba

Page 326 of 4731

INFINITI FX35 2005 Service Manual ON-VEHICLE SERVICE AT-243 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX ON-VEHICLE SERVICEPFP:00000 Control Valve with TCM and A/T Fluid Temperature Sensor 2ACS0081E COMPONENTS C

Page 327 of 4731

INFINITI FX35 2005 Service Manual AT-244 ON-VEHICLE SERVICE Revision: 2005 July 2005 FX 6. Remove snap ring from A/T assembly harness connector. 7. Push A/T assembly harness connector. CAUTION: Be careful not to damage connector.

Page 328 of 4731

INFINITI FX35 2005 Service Manual ON-VEHICLE SERVICE AT-245 D E F G H I J K L M A B AT Revision: 2005 July 2005 FX 11. Disconnect A/T fluid temperature sensor 2 connector. CAUTION: Be careful not to damage connector. 12
